QNAP TVS-h874-i5-32G Tower 8 Bay NAS for SMB i5-12400 32GB RAM
Model # TVS-h874-i5-32G
-
SKU: TVS-h874-i5-32G
$6,201.00
Stock Availability
🟢Live
Only 2 left!
Vermont VIC: ✓ In Stock
(Click & Collect Available)
(Click & Collect Available)
- Pick Up Available
- Australian Warranty
- Checkout Securely
8-bay Core i5 QuTS hero tower NAS
QNAP TVS-h874-i5-32G 8-Bay Core i5 2.5GbE QuTS hero NAS

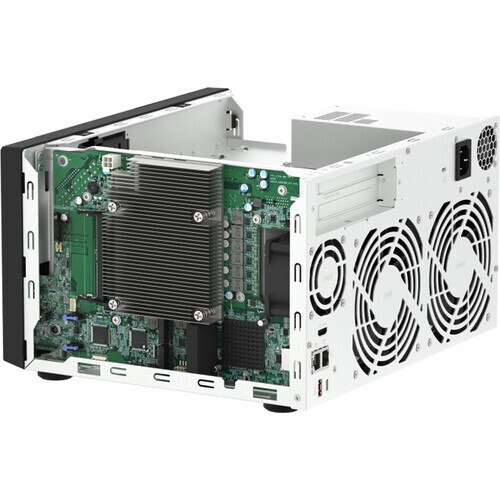

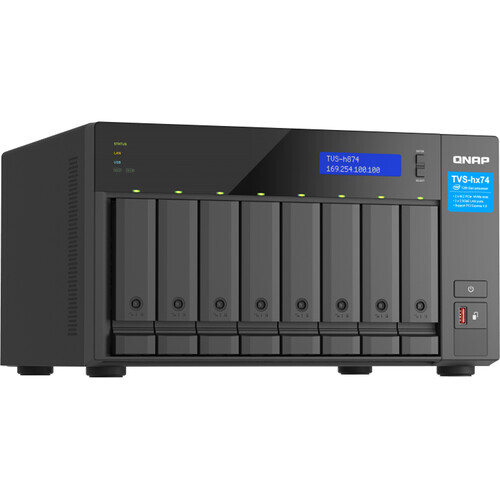

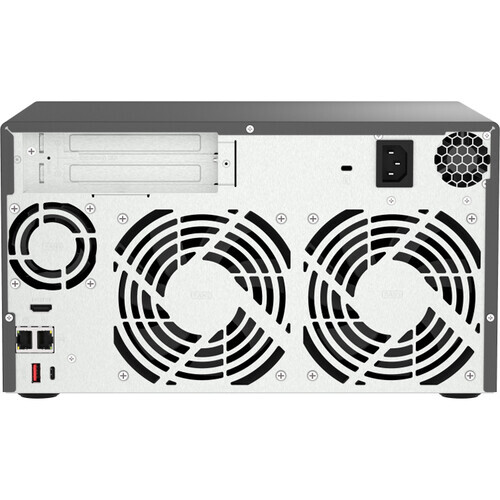

The QNAP TVS-h874-i5-32G is an eight-bay tower NAS with an Intel® Core i5-12400 processor, 32GB DDR4, dual 2.5GbE, two M.2 PCIe Gen 4 x4 slots, two PCIe Gen 4 slots and HDMI output.
8 baysCore i5-1240032GB DDR4Dual 2.5GbE3-year warranty
What is it? It is an SMB NAS for central storage, backup, virtualisation and collaborative media workflows. The supplied QuTS hero content includes ZFS-based self-healing, data reduction, snapshots, SnapSync and SSD optimisation.
Processor and memory
Intel® Core processing for multitasking
The supplied processor, graphics and memory configuration supports demanding storage and application workloads.
Core i5-12400
The processor has six cores, twelve threads and burst speeds up to 4.4GHz.
Intel® UHD Graphics 730
Integrated graphics, hardware-accelerated transcoding and GPU pass-through are listed.
32GB DDR4 installed
The NAS supports up to 64GB using two SODIMM DDR4 slots.
Storage and acceleration
Eight SATA bays with two M.2 PCIe Gen 4 slots
The storage layout combines hot-swappable SATA capacity with optional NVMe cache, pools and acceleration.
Eight SATA bays
The 3.5-inch bays support compatible 3.5-inch SATA HDDs and 2.5-inch SATA SSDs.
Two M.2 slots
Two M.2 2280 PCIe Gen 4 x4 slots support compatible NVMe SSDs using PCIe Gen 3 and above.
Cache and AI options
SSD cache acceleration and compatible M.2 Edge TPU acceleration are described in the supplied content.
Need help choosing a NAS?
Read NAS Buying Guide
Explore the DeviceDeal NAS Buying Guide
Compare NAS types, storage planning considerations and practical buying factors before selecting a system.
Networking and expansion
Dual 2.5GbE and two PCIe Gen 4 slots
Built-in multi-gigabit networking and flexible expansion support higher-bandwidth requirements.
Dual 2.5GbE
Two ports support 2.5G, 1G, 100M and 10M, with Port Trunking described in the source.
Optional 5GbE or 10GbE
Compatible PCIe network cards can add faster connectivity.
PCIe expansion
Two PCIe Gen 4 slots support compatible network adapters, QM2 cards and entry-level graphics cards.
Applications and display
Virtualisation, media and local HDMI output
The supplied information supports virtual workloads, direct display use and media processing.
Virtual machines and containers
The source lists VMware Ready, Microsoft Hyper-V, Citrix and Veeam Ready environments.
Hardware transcoding
Intel® UHD Graphics 730 supports compatible hardware decoding and real-time transcoding.
HDMI output
HDMI 1.4b supports up to 4096 × 2160 at 30Hz for compatible local display use.
QuTS hero
ZFS-based data protection and storage efficiency
The supplied QuTS hero content combines data-integrity, reduction and recovery capabilities.
Data integrity
ZFS self-healing and Write Once, Read Many support are described.
Data reduction
Inline deduplication, compression and compaction can reduce storage consumption.
Snapshots and Sync
Near-limitless snapshots and real-time SnapSync support recovery and business-continuity workflows.
Frequently asked questions
What is the QNAP TVS-h874-i5-32G?
It is an eight-bay QuTS hero tower NAS with an Intel® Core i5-12400 processor, 32GB DDR4 and dual 2.5GbE.
Which processor is installed?
It uses an Intel® Core i5-12400 six-core, twelve-thread processor with burst speeds up to 4.4GHz.
How much memory is included and supported?
It includes 32GB SODIMM DDR4 and supports up to 64GB using two 32GB modules.
Which drives can be installed?
The eight 3.5-inch bays support compatible 3.5-inch SATA HDDs and 2.5-inch SATA SSDs.
What do the M.2 slots support?
It has two M.2 2280 PCIe Gen 4 x4 slots for compatible NVMe SSDs using PCIe Gen 3 and above.
Are M.2 SSDs hot-swappable?
No. The supplied specifications state that M.2 SSDs are not hot-swappable.
Does it include 10GbE networking?
It includes two 2.5GbE ports. Optional 5GbE or 10GbE can be added using a compatible PCIe expansion card.
What can the PCIe slots support?
The supplied information lists compatible network adapters, QM2 cards and entry-level graphics cards.
Can it run virtual machines and containers?
Yes. The source states that it can host multiple virtual machines and containers with optimised resource utilisation.
Does it support hardware-accelerated transcoding?
Yes. Intel® UHD Graphics 730 supports compatible hardware decoding and real-time transcoding. Results vary with software, file format, system usage and bandwidth.
Which USB and HDMI connections are listed?
It has one USB 3.2 Gen 2 Type-C port, two Type-A ports and HDMI 1.4b up to 4096 × 2160 at 30Hz.
What warranty applies to the TVS-h874-i5-32G?
The supplied specifications list a three-year QNAP manufacturer warranty. Coverage is subject to QNAPs applicable warranty terms.
(TVS-h874-i5-32G)
Features and highlights
Key product details organised from the supplied QNAP information for TVS-h874-i5-32G.
Core i5-12400
Six cores, twelve threads and burst speeds up to 4.4GHz.
32GB DDR4
Installed memory supports expansion up to 64GB.
Eight SATA bays
Compatible 3.5-inch HDDs and 2.5-inch SATA SSDs are supported.
Dual M.2 PCIe Gen 4
Two slots support cache, pools and other compatible NVMe uses.
Dual 2.5GbE
Optional 5GbE or 10GbE is available through PCIe expansion.
Two PCIe Gen 4 slots
Compatible network, QM2 and entry-level graphics cards can be added.
Purchase check: Drive inclusion is not confirmed. M.2 SSDs, Edge TPU accelerators and expansion cards are sold separately, and M.2 SSDs are not hot-swappable.
Technical specifications
The following specifications are organised from the supplied product information for QNAP TVS-h874-i5-32G.
Product details
| Brand | QNAP |
|---|---|
| Model / SKU | TVS-h874-i5-32G |
| Product type | 8-bay Core i5 QuTS hero tower NAS |
Processor and Memory
| CPU | Intel® Core i5-12400 6-core/12-thread processor, burst up to 4.4GHz |
|---|---|
| CPU Architecture | 64-bit x86 |
| Graphics Processor | Intel® UHD Graphics 730 |
| Encryption Engine | Yes (AES-NI) |
| Hardware-Accelerated Transcoding | Yes |
| System Memory | 32GB SODIMM DDR4 |
| Maximum Memory | 64GB (2 × 32GB) |
| Memory Slots | 2 × SODIMM DDR4 |
Storage
| Drive Bays | 8 × 3.5-inch SATA 6Gb/s, 3Gb/s |
|---|---|
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-Swappable | Yes M.2 SSDs are not hot-swappable. |
| M.2 Slots | 2 × M.2 2280 PCIe Gen 4 x4 slots Compatible with NVMe SSD PCIe Gen 3 and above. |
| SSD Cache Acceleration | Supported |
| GPU Pass-Through | Yes |
Networking
| 2.5 Gigabit Ethernet | 2 × 2.5GbE ports (2.5G/1G/100M/10M) |
|---|---|
| 5 Gigabit Ethernet | Optional via PCIe expansion card |
| 10 Gigabit Ethernet | Optional via PCIe expansion card |
| Wake on LAN | Yes |
| Jumbo Frame | Yes |
Expansion and Connectivity
| PCIe Slots | 2 slots Slot 1: PCIe Gen 4 x16 Slot 2: PCIe Gen 4 x4 Card dimensions for slots 12: 185 × 131.15 × 18.76mm / 7.28 × 5.16 × 0.74 inches. Wider cards can be installed if the next PCIe slot is not used. |
|---|---|
| USB 3.2 Gen 2 Ports | 1 × Type-C USB 3.2 Gen 2 10Gbps 2 × Type-A USB 3.2 Gen 2 10Gbps |
| HDMI Output | 1 × HDMI 1.4b, up to 4096 × 2160 at 30Hz |
Physical Specifications
| Form Factor | Tower |
|---|---|
| LED Indicators | HDD 18, status, LAN, USB port and M.2 port |
| LCD Display / Button | Yes |
| Buttons | Power, reset and USB copy |
| Dimensions (H × W × D) | 188.2 × 329.3 × 280.8mm Dimensions do not include the foot pad. The foot pad may be up to 30mm / 1.18 inches high depending on model. |
| Weight (Net) | 7.3kg |
| Weight (Gross) | 8.95kg |
| Kensington Security Slot | Yes |
Power and Cooling
| Power Supply Unit | 250W, 100240V |
|---|---|
| Disk Standby Power Consumption | 58.127W |
| Typical Operating Power Consumption | 81.865W Tested fully populated with WD10EFRX hard drives. |
| Fans | System fan: 2 × 120mm, 12VDC CPU fan: 1 × 60mm, 12VDC |
| System Warning | Buzzer |
Operating Environment
| Operating Temperature | 040°C (32104°F) |
|---|---|
| Storage Temperature | -2070°C (-4158°F) |
| Relative Humidity | 595% RH non-condensing, wet bulb: 27°C (80.6°F) |
Warranty and Connections
| Standard Warranty | 3 years |
|---|---|
| Maximum Concurrent CIFS Connections | 3,500 with maximum memory installed |
| SKU | TVS-h874-i5-32G |
| Model # | TVS-h874 |
| Barcode # | 4711103082362 |
| Brand | QNAP |
| Shipping Weight | 9.0000kg |
| Shipping Width | 0.300m |
| Shipping Height | 0.420m |
| Shipping Length | 0.390m |
Three yearsQNAP manufacturer warranty
3-year QNAP manufacturer warranty
The supplied specifications list a 3-year manufacturer warranty for QNAP TVS-h874-i5-32G.
Warranty coverage, eligibility and claim assessment are subject to QNAPs applicable warranty terms. Please retain your DeviceDeal tax invoice as proof of purchase.
