Built-in 10GbE SFP+
One 10GbE SFP+ port supports high-speed data transmission and backup workflows.

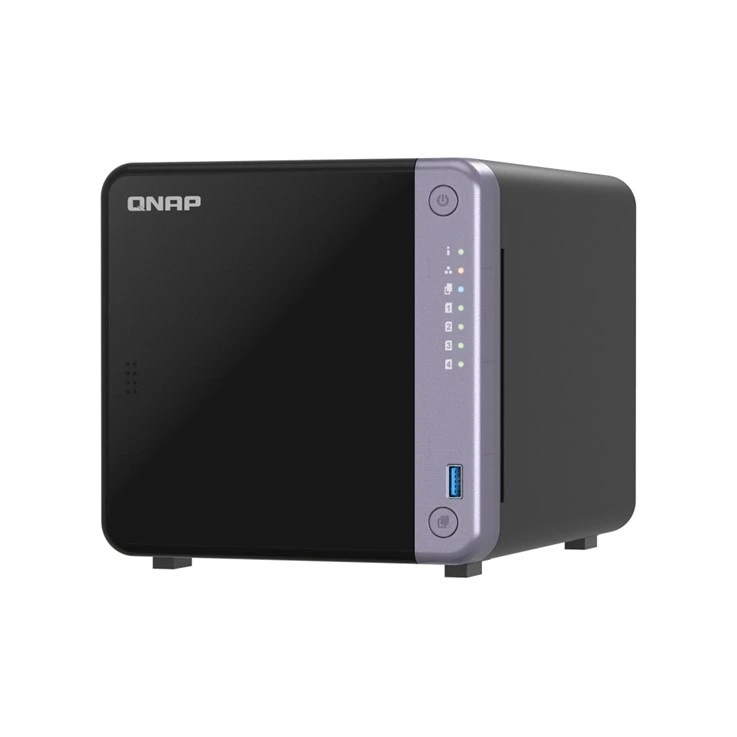

QNAP TS-432X-4G 4-Bay 10GbE Tower NAS - 4GB DDR4
Model # TS-432X-4G
-
SKU: TS-432X-4G
- Pick Up Available
- Australian Warranty
- Checkout Securely

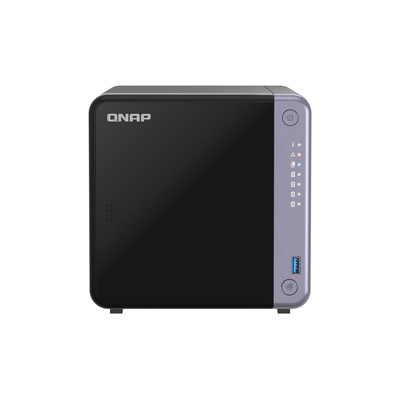

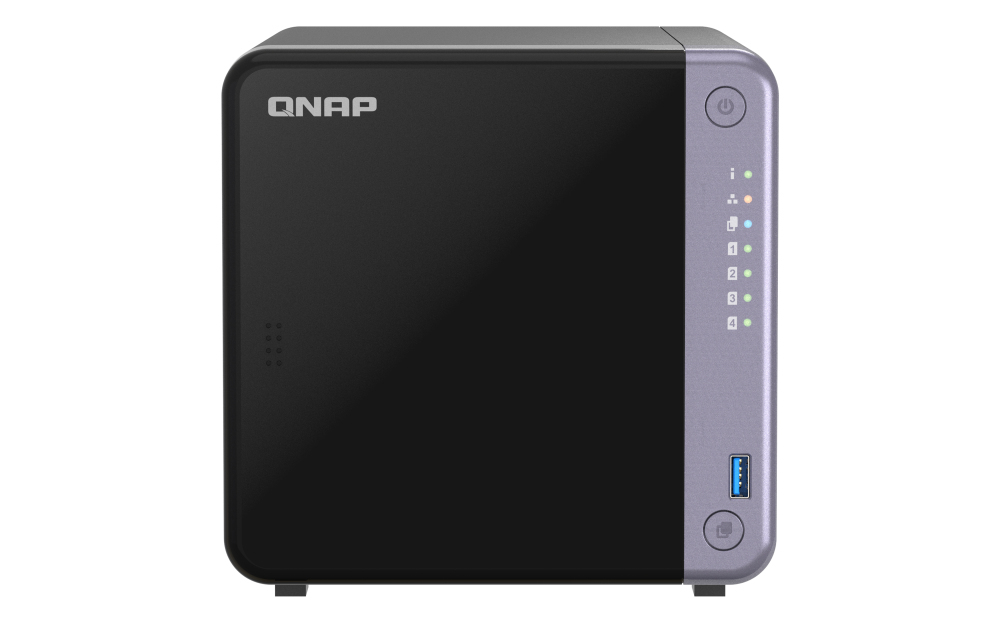

4-bay tower NAS with built-in 10GbE
QNAP TS-432X-4G 4-Bay 10GbE NAS with PCIe Expansion
A four-bay tower NAS with an AnnapurnaLabs Alpine AL524 quad-core 2.0GHz processor, 4GB DDR4, one 10GbE SFP+ port, dual 2.5GbE and PCIe Gen 3 x4 expansion.
4 drive bays10GbE SFP+Dual 2.5GbE2-year manufacturer warranty
What is the TS-432X-4G?
The TS-432X-4G is a four-bay tower NAS designed for backup, rapid data transmission, file sharing, container applications and snapshot protection. It includes built-in 10GbE SFP+, dual 2.5GbE, 4GB DDR4 memory and a PCIe Gen 3 x4 expansion slot.

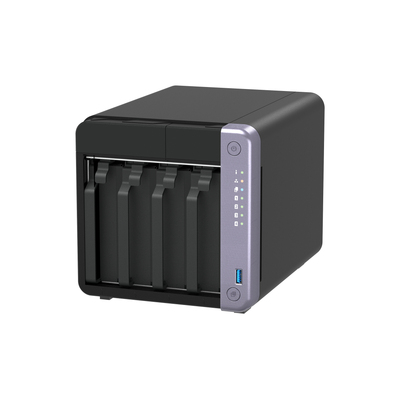

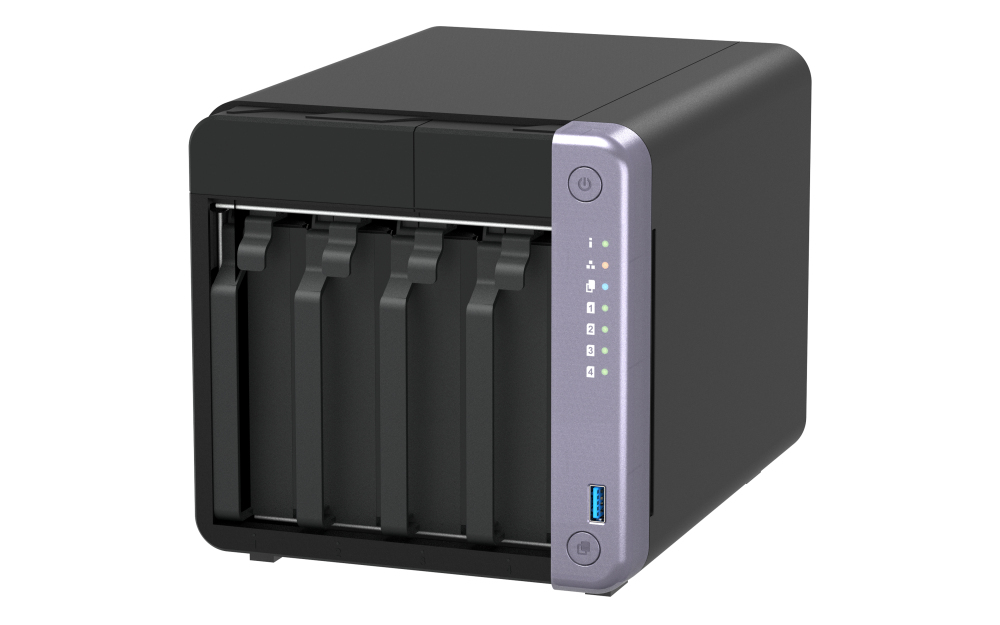

4 baysHot-swappable SATA storage
1 × 10GbEBuilt-in SFP+ port
2 × 2.5GbEMulti-gigabit ports
PCIe Gen 3 x4Expansion slot
Need help choosing a NAS?
Read NAS Buying Guide Explore the DeviceDeal NAS Buying Guide
Compare NAS types, storage considerations and practical features before selecting your next network attached storage solution.
Quad-core hardware and expandable memory
The AnnapurnaLabs Alpine AL524 four-core 2.0GHz processor and AES 256-bit encryption support file sharing, backup, snapshots and container applications. The installed 4GB SODIMM DDR4 memory can be expanded to 16GB.
- The installed 4GB memory is identified as non-ECC.
- The single SODIMM slot is listed as supporting ECC memory.
- SSD cache acceleration is supported.

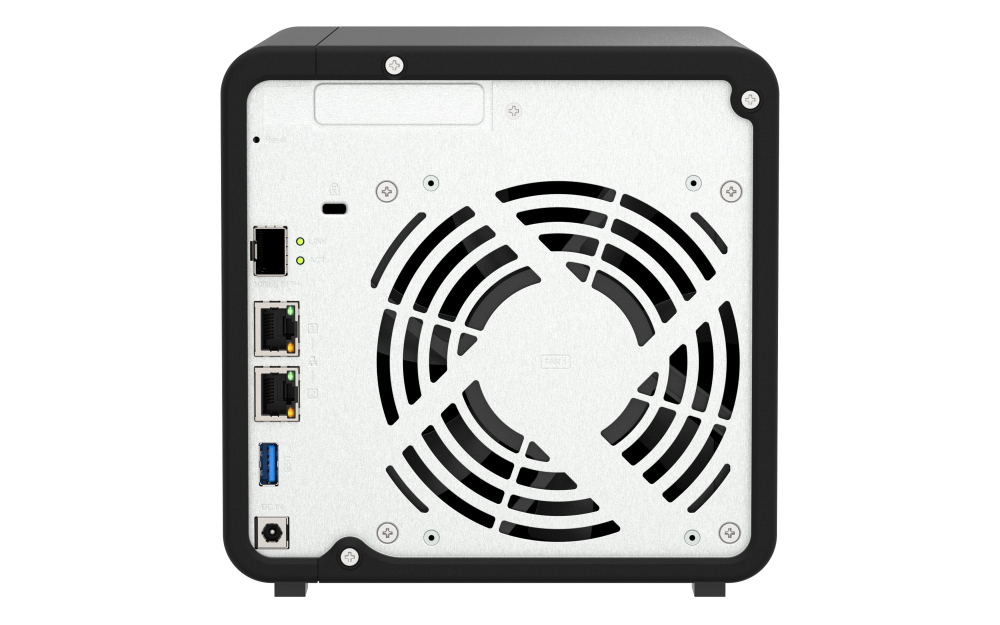

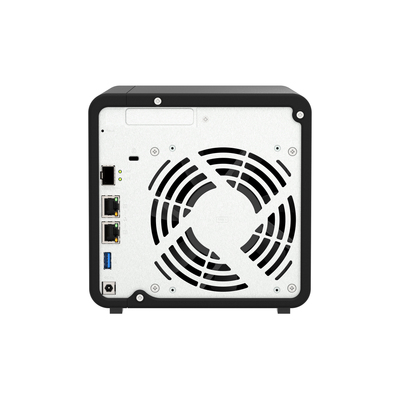

Built-in 10GbE and dual 2.5GbE
One 10GbE SFP+ port supports intensive data transmission, while two 2.5GbE ports provide multi-gigabit access for local users and teams.
- SMB Multichannel can combine available bandwidth between the NAS and a directly connected client.
- Port Trunking can aggregate compatible ports for simultaneous access by multiple users.
- Actual performance depends on hardware configuration and the network environment.
PCIe and USB expansion
One PCIe Gen 3 x4 slot can accept compatible networking or M.2 SSD expansion cards. The supplied content identifies QM2-2P2G2T as an option for adding two 2.5GbE ports and two M.2 SSD slots.
- Two USB 3.2 Gen 1 ports support external storage and backup.
- USB One Touch Copy is listed.
- Compatible expansion cards can add 2.5GbE, 5GbE, 10GbE or M.2 capability.
Supplied sequential throughput
QNAP laboratory results supplied for the listed test environment report 590MB/s read and write through two 2.5GbE connections, and 1,181MB/s read with 887MB/s write through one 10GbE connection.
Results were measured in QNAP laboratories and may vary according to the actual environment.
Important memory and compatibility notes
- The supplied information does not state whether drives are included, so no diskless claim has been added.
- The installed 4GB module is listed as non-ECC, while the memory slot supports ECC memory.
- Confirm drive, memory and PCIe-card compatibility before purchase.
- Maximum expansion-card dimensions are 190 × 68.9 × 18.76mm.
Frequently asked questions
What is the QNAP TS-432X-4G?
It is a four-bay tower NAS with an AnnapurnaLabs Alpine AL524 four-core processor, one 10GbE SFP+ port, dual 2.5GbE and PCIe expansion.
How many drive bays does the TS-432X-4G have?
It has four hot-swappable 3.5-inch SATA bays supporting 3.5-inch and 2.5-inch SATA hard drives plus 2.5-inch SATA solid state drives.
Which processor is installed?
It uses an AnnapurnaLabs Alpine AL524 four-core 2.0GHz processor with a 64-bit ARM architecture.
How much memory is installed and what is the maximum?
It includes 4GB SODIMM DDR4 memory and supports up to 16GB in the single memory slot.
Does the TS-432X support ECC memory?
Yes. The memory slot is listed as supporting ECC memory, while the installed 4GB module is identified as non-ECC.
Which network ports are built in?
It includes one 10GbE SFP+ port and two 2.5GbE ports supporting 2.5G, 1G and 100M speeds.
Can it combine bandwidth across network ports?
Yes. The supplied information describes SMB Multichannel and Port Trunking as options for combining compatible same-speed ports.
Does it support PCIe expansion?
Yes. It has one PCIe Gen 3 x4 slot for compatible networking or M.2 SSD expansion cards.
Which USB ports are included?
It provides two USB 3.2 Gen 1 ports and supports USB One Touch Copy.
Does the TS-432X support SSD cache acceleration?
Yes. SSD cache acceleration support is listed in the supplied specifications.
What are the listed dimensions?
The tower chassis measures 165 × 170 × 226.5mm.
What warranty applies to the TS-432X-4G?
The supplied specifications list a two-year QNAP manufacturer warranty.
(TS-432X-4G)
Features and highlights
Key capabilities below are organised from the supplied product information for TS-432X-4G.
Dual 2.5GbE ports
Two multi-gigabit ports support SMB Multichannel or Port Trunking.
Four hot-swappable bays
The SATA bays support 3.5-inch and 2.5-inch hard drives plus 2.5-inch SSDs.
Expandable memory
The NAS includes 4GB SODIMM DDR4 and supports up to 16GB.
ECC-capable memory slot
The installed module is listed as non-ECC, while the slot supports ECC memory.
PCIe Gen 3 x4 expansion
A compatible expansion card can add networking or M.2 SSD capability.
Important: The supplied source does not say whether drives are included. The installed 4GB memory is non-ECC, while the single memory slot is listed as supporting ECC memory.
Technical specifications
Specifications below are organised from the supplied QNAP product information for TS-432X-4G.
Processor and memory
| CPU | AnnapurnaLabs, an Amazon company Alpine AL524, four-core, 2.0GHz |
|---|---|
| CPU architecture | 64-bit ARM |
| Encryption engine | YesThe supplied product description identifies AES 256-bit encryption support. |
| System memory | 4GB SODIMM DDR4The supplied product description identifies the installed memory as non-ECC. |
| Maximum memory | 16GB (1 × 16GB) |
| Memory slot | 1 × SODIMM DDR4; supports ECC memory |
Storage
| Drive bays | 4 × 3.5-inch SATA 6Gb/s, 3Gb/s |
|---|---|
| Drive compatibility | 3.5-inch SATA hard disk drives; 2.5-inch SATA hard disk drives; 2.5-inch SATA solid state drives |
| Hot-swappable | Yes |
| SSD cache acceleration | Supported |
Networking
| 2.5 Gigabit Ethernet | 2 × 2.5GbE ports (2.5G/1G/100M) |
|---|---|
| 10 Gigabit Ethernet | 1 × 10GbE SFP+ |
| Wake on LAN | Yes |
| Jumbo Frame | Yes |
| Maximum concurrent CIFS connections | 700 with maximum memory installed |
Expansion and connectivity
| PCIe slot | 1 × PCIe Gen 3 x4Maximum card dimensions: 190 × 68.9 × 18.76mm. |
|---|---|
| USB ports | 2 × USB 3.2 Gen 1 ports |
Physical specifications
| Form factor | Tower |
|---|---|
| LED indicators | Power, status, LAN, USB and HDD14 |
| Buttons | Power, reset and USB Auto Copy |
| Dimensions (H × W × D) | 165 × 170 × 226.5mm |
| Net weight | 1.99kg |
| Gross weight | 4.8kg |
| Kensington security slot | Yes |
Power, cooling and environment
| Power supply | 90W adapter (12VDC), 100240VAC |
|---|---|
| Fan | 1 × 120mm, 12VDC |
| System warning | Buzzer |
| Operating temperature | 040°C (32104°F) |
| Storage temperature | -2070°C (-4158°F) |
| Relative humidity | 595% RH non-condensing, wet bulb: 27°C (80.6°F) |
Warranty
| Standard warranty | 2 years |
|---|
| SKU | TS-432X-4G |
| Model # | TS-432X |
| Barcode # | 0885022027552 |
| Brand | QNAP |
| Shipping Weight | 2.0000kg |
