Dual 10GbE SFP+
Two built-in 10GbE SFP+ ports support high-bandwidth storage traffic.
QNAP TS-432PXU-RP-2G 4 Bay Rackmount NAS (NO DISK) 2GB Ram
Model # TS-432PXU-RP-2G
-
SKU: TS-432PXU-RP-2G
- Pick Up Available
- Australian Warranty
- Checkout Securely
4-bay 1U NAS with redundant power
QNAP TS-432PXU-RP-2G 4-Bay 10GbE NAS with Redundant PSU
A diskless four-bay 1U rackmount NAS with an AnnapurnaLabs Alpine AL324 quad-core processor, dual 10GbE SFP+, dual 2.5GbE, PCIe expansion and two 250W power supplies.
4 drive bays2 × 10GbE SFP+Redundant power3-year manufacturer warranty
What is the TS-432PXU-RP-2G?
The TS-432PXU-RP-2G is a diskless four-bay 1U rackmount NAS for SMB storage, backup and collaboration. It combines an AnnapurnaLabs Alpine AL324 quad-core 1.7GHz processor, dual 10GbE SFP+, dual 2.5GbE, PCIe expansion and dual 250W redundant power supplies.
4 baysHot-swappable SATA storage
2 × 10GbESFP+ network ports
2 × 2.5GbERJ45 network ports
2 × 250WRedundant power supplies
Need help choosing a NAS?
Read NAS Buying Guide Explore the DeviceDeal NAS Buying Guide
Compare NAS types, storage considerations and practical features before selecting your next network attached storage solution.
Business backup, cloud protection and snapshots
The supplied QNAP applications support centralised backup, synchronisation, cloud-account protection and snapshot-based recovery.
- Hybrid Backup Sync can back up and synchronise data to other NAS devices, servers and cloud storage.
- Boxafe is listed for Google Workspace and Microsoft 365 data.
- Snapshots can help recover files after accidental deletion or malware attacks.
Multi-gigabit networking and supplied throughput
Two 10GbE SFP+ ports and two 2.5GbE RJ45 ports provide flexible bandwidth for file access, backup, restoration and media transfer.
582MB/s uploadSupplied Windows transfer result using two 2.5GbE connections
492MB/s downloadSupplied Windows transfer result using two 2.5GbE connections
676MB/s uploadSupplied Windows transfer result using two 10GbE connections
2,040MB/s downloadSupplied Windows transfer result using two 10GbE connections
The results were measured in QNAP laboratories using the supplied TS-432PXU-RP environment and may vary.
Memory, PCIe and storage expansion
The NAS includes 2GB UDIMM DDR4 memory and supports up to 16GB in one memory slot. One PCIe Gen 2 x2 slot supports compatible expansion cards.
- An optional M.2 slot can be added through a compatible PCIe adapter.
- SSD cache acceleration is supported.
- The supplied information lists QNAP TR RAID expansion enclosures and TL JBOD units.
Redundant power for operational continuity
Two 250W power supply units are listed to provide redundant power in the 1U rackmount chassis. The typical operating power consumption is stated as 53.343W with drives fully populated.
Important rackmount and expansion notes
- The supplied product name identifies this NAS as having no disks.
- Wake on LAN is supported on the 2.5GbE ports only.
- PCIe Gen 2 x2 bandwidth can restrict NAS 10GbE performance.
- Use compatible QNAP memory modules and confirm expansion-card dimensions before installation.
Frequently asked questions
What is the QNAP TS-432PXU-RP-2G?
It is a diskless four-bay 1U rackmount NAS with an AnnapurnaLabs Alpine AL324 quad-core processor, dual 10GbE SFP+, dual 2.5GbE, PCIe expansion and redundant power.
Does the TS-432PXU-RP-2G include drives?
No. The supplied product name identifies it as a no-disk configuration.
How many drive bays does it have?
It has four hot-swappable 3.5-inch SATA bays supporting 3.5-inch and 2.5-inch SATA hard drives plus 2.5-inch SATA solid state drives.
Which processor is installed?
It uses an AnnapurnaLabs Alpine AL324 64-bit ARM Cortex-A57 four-core 1.7GHz processor.
How much memory is installed and what is the maximum?
It includes 2GB UDIMM DDR4 memory and supports up to 16GB in one memory slot.
Which network ports are included?
It has two 10GbE SFP+ ports and two 2.5GbE ports supporting 2.5G, 1G, 100M and 10M speeds.
Does it have redundant power supplies?
Yes. The supplied specifications list two 250W power supply units.
Does Wake on LAN work on all network ports?
No. The supplied specifications state that Wake on LAN is supported on the 2.5GbE ports only.
Does it support PCIe expansion?
Yes. It has one PCIe Gen 2 x2 slot, although the supplied specifications note that this bandwidth can restrict NAS 10GbE performance.
Can an M.2 slot be added?
Yes. An optional M.2 slot is listed through a compatible PCIe adapter.
Can the storage capacity be expanded?
Yes. The supplied information lists QNAP TR RAID expansion enclosures and TL JBOD units.
What warranty applies to the TS-432PXU-RP-2G?
The supplied specifications list a three-year QNAP manufacturer warranty.
(TS-432PXU-RP-2G)
Features and highlights
Key capabilities below are organised from the supplied product information for TS-432PXU-RP-2G.
Dual 2.5GbE RJ45
Two multi-gigabit ports provide additional network-allocation options.

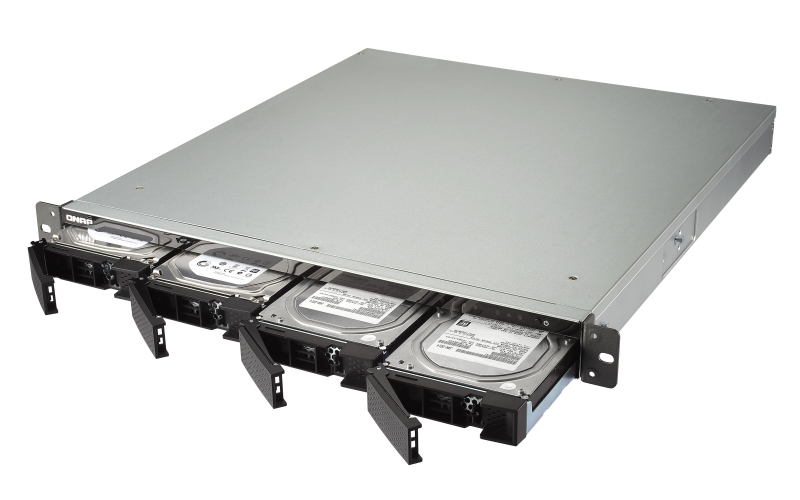

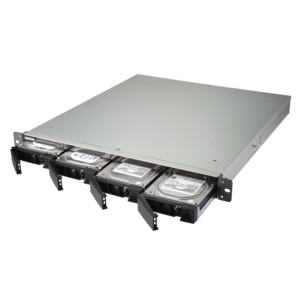

Four hot-swappable bays
The SATA bays support 3.5-inch and 2.5-inch hard drives plus 2.5-inch SSDs.
Expandable DDR4 memory
The NAS includes 2GB UDIMM DDR4 and supports up to 16GB.
PCIe expansion
One PCIe Gen 2 x2 slot supports compatible expansion cards and an optional M.2 adapter.
Redundant power supplies
Two 250W power supplies support operational continuity in the rackmount chassis.
Important: The product is supplied as a no-disk configuration. PCIe bandwidth can restrict 10GbE performance, and Wake on LAN is supported on the 2.5GbE ports only.
Technical specifications
Specifications below are organised from the supplied QNAP product information for TS-432PXU-RP-2G.
Processor and memory
| CPU | AnnapurnaLabs Alpine AL324 64-bit ARM Cortex-A57 four-core 1.7GHz processor |
|---|---|
| CPU architecture | 64-bit ARM |
| Encryption engine | Yes |
| System memory | 2GB UDIMM DDR4 |
| Maximum memory | 16GB (1 × 16GB) |
| Memory slot | 1 × UDIMM DDR4 |
Storage
| Drive bays | 4 × 3.5-inch SATA 6Gb/s, 3Gb/s |
|---|---|
| Drive compatibility | 3.5-inch SATA hard disk drives; 2.5-inch SATA hard disk drives; 2.5-inch SATA solid state drives |
| Hot-swappable | YesNot supported for M.2 SSDs. |
| M.2 slot | Optional via a PCIe adapter |
| SSD cache acceleration support | Yes |
Networking
| 2.5 Gigabit Ethernet | 2 × 2.5GbE ports (2.5G/1G/100M/10M) |
|---|---|
| 10 Gigabit Ethernet | 2 × 10GbE SFP+ |
| Wake on LAN | YesSupported on the 2.5GbE ports only. |
| Jumbo Frame | Yes |
| Maximum concurrent CIFS connections | 700 with maximum memory installed |
Expansion and connectivity
| PCIe slot | 1 × PCIe Gen 2 x2PCIe bandwidth limitations can restrict NAS 10GbE performance. Maximum card dimensions: 210 × 68.9 × 18.76mm. |
|---|---|
| USB ports | 4 × USB 3.2 Gen 1 |
Physical specifications
| Form factor | 1U rackmount |
|---|---|
| LED indicators | HDD14, status, LAN and storage expansion |
| Buttons | Power and reset |
| Dimensions (H × W × D) | 43.3 × 430 × 479mmExcludes ear hooks and the protruding part of the power supply unit. |
| Net weight | 9.08kg |
| Gross weight | 11.03kg |
Power, cooling and environment
| Power supply unit | 250W × 2 PSU, 100240V |
|---|---|
| Typical operating power consumption | 53.343WTested with drives fully populated. |
| Fan | 2 × 40mm, 12VDC |
| System warning | Buzzer |
| Operating temperature | 040°C (32104°F) |
| Storage temperature | -2070°C (-4158°F) |
| Relative humidity | 595% RH non-condensing, wet bulb: 27°C (80.6°F) |
Warranty
| Standard warranty | 3 years |
|---|
| SKU | TS-432PXU-RP-2G |
| Model # | TS-432PXU |
| Barcode # | 885022015375 |
| Brand | QNAP |
| Shipping Weight | 11.1000kg |
| Shipping Width | 0.680m |
| Shipping Height | 0.170m |
| Shipping Length | 0.620m |
3 YearsQNAP manufacturer warranty
3-year QNAP manufacturer warranty
The supplied specifications list a 3-year standard manufacturer warranty for the QNAP TS-432PXU-RP-2G.
Warranty coverage, eligibility and claim assessment are subject to QNAPs applicable warranty terms. Please retain your DeviceDeal tax invoice as proof of purchase.
