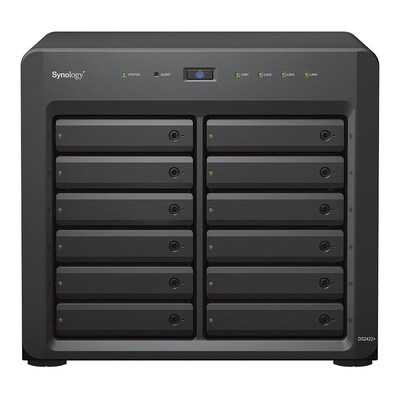

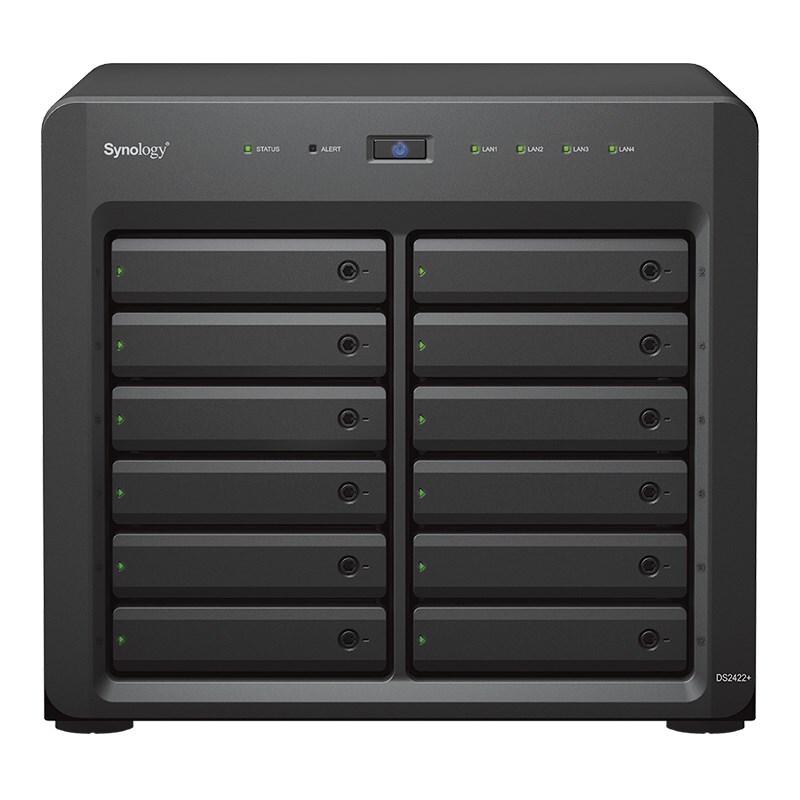

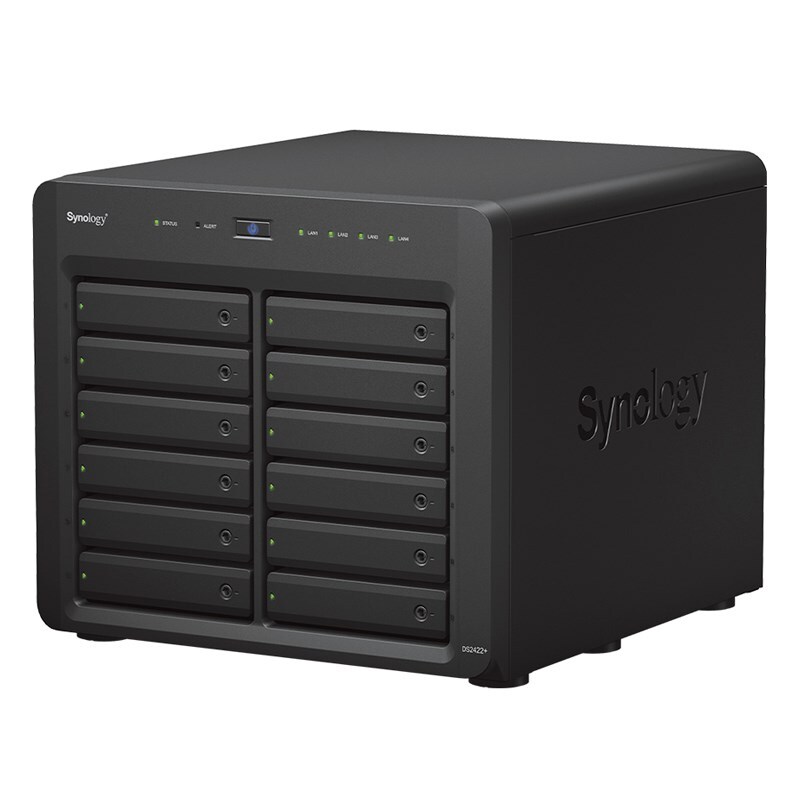

DiskStation

DS2422+

Name: Synology DiskStation DS2422+ 12-Bay Diskless R-V1500B Quad-Core 2.2GHz 4GB
Brand: SYNOLOGY
SKU: DS2422-PLUS
Price: 3794 AUD
Availability: InStock

Enterprise-grade diskstation storage solution

DS2422+ is a capable choice for small and medium businesses with large storage, file sharing, and data protection requirements in a multi-user environment.

Uncompromising performance

Throughput

4x 1GbE LAN ports

Scalability

Up to 24 drive bays with DX1222

CPU

4-core AMD Ryzen V1500B @ 2.2 GHz

Memory

4 GB DDR4 ECC SODIMM, expandable to 32 GB (16 GB x 2)

Faster performance

Comfortably run demanding applications and processes with multiple users on the DS2422+ while still enjoying a smooth and fast experience. See the improvements that help make your business productive.

Works best with Synology drives

Engineered to handle intensive 24/7 workloads, Synology drives consistently deliver top-grade performance.

Powered by Synology DiskStation Manager

Keep your business safe from data loss and minimize service downtime.

More ways to harness your NAS

Synology NAS brings speed, simplicity, and security to all your creative projects.

Powered by Synology DiskStation Manager

Enterprise-grade software solutions included

Data Protection

Keep your business safe from data loss and minimize service downtime.

User Management

Manage user accounts and devices throughout your business with powerful directory services.

Security

Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions.

File Management

Manage, sync, and share files from multiple devices through a centralized platform.

System Administration

Manage the health of your deployments and centrally administer updates with ease.

Surveillance

Secure data with comprehensive built-in security tools to protect your devices against evolving threats.

(DS2422-PLUS)

Technical Specifications

Complete hardware and software specifications

CPU

CPU Model AMD Ryzen V1500B

CPU Quantity 1

CPU Cores 4

CPU Threads 8

CPU Architecture 64-bit

CPU Frequency 2.2 GHz

Hardware Encryption Engine Yes

Memory

System Memory 4 GB DDR4 ECC SODIMM

Total Memory Slots 2

Maximum Memory Capacity 32 GB (16 GB x 2)

Notes Synology may revise pre-installed memory module specifications in response to component lifecycle and supply conditions. All revised components undergo the same rigorous validation to ensure equivalent compatibility, stability, and performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.

Storage

Drive Bays 12

Maximum Drive Bays with Expansion Unit 24 (DX1222 x 1)

Drive Type(See all supported drives) 3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD

Hot Swappable Drive* Yes

Notes Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list . The use of non-validated components may limit certain functionality and result in data loss and system instability.

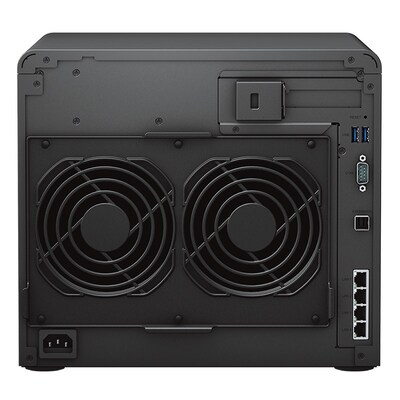

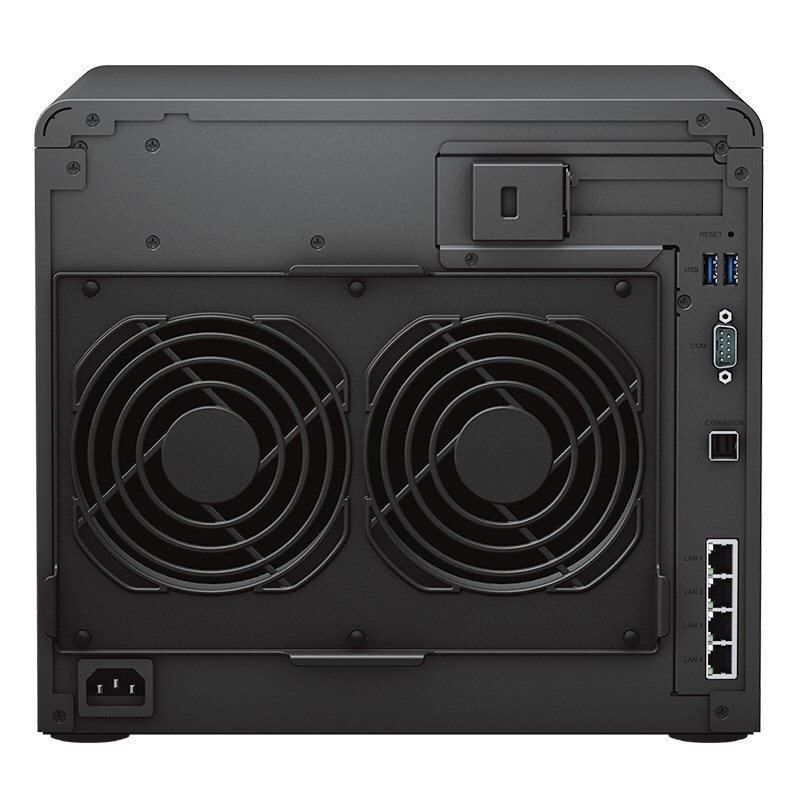

External Ports

RJ-45 1GbE LAN Port 4

USB 3.2 Gen 1 Port 2

Expansion Port 1

Expansion Port Type Mini-SAS HD

Notes MTU value of 1GbE LAN port has a limit of 1500.

PCIe

PCIe Expansion 1 x Gen3 x8 slot (x4 link)

Appearance

Size (Height x Width x Depth) 270 mm x 300 mm x 340 mm

Weight 9.5 kg

Others

System Fan 120 mm x 120 mm x 2 pcs

Fan Speed Mode Full-Speed Mode Cool Mode Quiet Mode

Easy Replacement System Fan Yes

Power Recovery Yes

Noise Level* 25 dB(A)

Scheduled Power On / Off Yes

Wake on LAN / WAN Yes

Power Supply Unit / Adapter 550 watts

AC Input Power Voltage 100V to 240V AC

Power Frequency 50/60 Hz, Single Phase

Power Consumption 73.11 watts (Access) 32.12 watts (HDD Hibernation)

British Thermal Unit 249.63 BTU/hr (Access) 109.67 BTU/hr (HDD Hibernation)

Notes Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s). Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

Operating Temperature 0°C to 40°C (32°F to 104°F)

Storage Temperature -20°C to 60°C (-5°F to 140°F)

Operating Humidity 8% to 80% RH

Storage Humidity 5% to 95% RH

Certification

Certification FCC CE BSMI VCCI RCM UKCA EAC CCC KC BIS UL

Warranty

Warranty 3-year hardware warranty, extendable to 5 years with EW202

Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) EW201/EW202 is only available in Asia, Africa, and Oceania. Refer to the Extended Warranty website for details on supported countries/regions. ( Learn more )

Environment

Environment RoHS Compliant

Packaging Content

Packaging Content Main Unit X 1 Accessory Pack X 1 AC Power Cord X 1 RJ-45 LAN Cable X 2 Quick Installation Guide X 1

Optional Accessories

Optional Accessories DDR4 ECC SODIMM: D4ES02-4G / D4ES02-8G / D4ES03-16G Expansion Units: DX1222 Enterprise Series 3.5" SATA HDD: HAT5300 Series Plus Series 3.5" SATA HDD: HAT3300 Series Enterprise Series 2.5" SATA SSD: SAT5200 Series M.2 SSD & 10GbE Combo Adapter Card: E10M20-T1 M.2 SSD Adapter Card: M2D20 25GbE Network Interface Card: E25G30-F2 10GbE Network Interface Card: E10G30-F2 / E10G30-T2 / E10G18-T1

Storage Management

Maximum Single Volume Size 108 TB

Maximum Internal Volume Number 64

SSD Read/Write Cache(Determining cache size) Yes

SSD TRIM Yes

Supported RAID Type Synology Hybrid RAID Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10

RAID Migration Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6

Volume Expansion with Larger HDDs Synology Hybrid RAID RAID 1 RAID 5 RAID 6 RAID 10

Volume Expansion by Adding a HDD Synology Hybrid RAID JBOD RAID 5 RAID 6

Global Hot Spare Supported RAID Type Synology Hybrid RAID RAID 1 RAID 5 RAID 6 RAID 10

Notes Each internal volume (may consist of multiple drives) is expandable up to 108TB. Actual maximum storage pool and volume sizes depend on drive sizes used, the number of drive bays available, and the RAID configuration. Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored.

File System

Internal Drives Btrfs ext4

External Drives Btrfs ext4 ext3 FAT32 NTFS HFS+ exFAT

File Services

File Protocol SMB AFP NFS FTP WebDAV Rsync

Maximum Number of SMB Connections (FSCT-Based) 90

Windows Access Control List (ACL) Integration Yes

NFS Kerberos Authentication Yes

Notes Connection value of this model is tested with Synology SATA HDD fully populated and all onboard network ports Models with expandable memory are tested with the maximum supported quantity installed. SMB performance was evaluated using Microsoft File Server Capacity Tool (FSCT) version 1.3, with the following configuration: Test workload: HomeFolder scenario provided by the FSCT tool Test duration: 600 seconds Domain controller & FSCT controller: Windows Server 2022 FSCT clients: 8 × Windows 10 machines SMB feature: Directory leasing enabled

Account & Shared Folder

Maximum Local User Accounts 1,024

Maximum Local Groups 256

Maximum Shared Folder 256

Maximum Shared Folder Sync Tasks 8

Hybrid Share

Hybrid Share Folder Number 10

Hyper Backup

Data & Folder Backup Yes

Entire System Backup Yes

Notes Full-system backup requires DSM 7.2 or later.

High Availability

Synology High Availability Yes

Log Center

Syslog Events per Second 1,000

Virtualization

VMware vSphere ESXi 8.0 U2, ESXi 8.0 U1, ESXi 8.0, ESXi 7.0 U3, ESXi 7.0 U2, ESXi 7.0 U1, ESXi 7.0, ESXi 6.7 U3, ESXi 6.7 U2, ESXi 6.7 U1, ESXi 6.7, ESXi 6.5 U3, ESXi 6.5 U2, ESXi 6.5 U1, ESXi 6.5

Microsoft Hyper-V Windows Server 2022

Citrix XenServer XenServer 8, Citrix Hypervisor 8.2 LTSR CU1

OpenStack Cinder

General Specifications

Supported Protocols SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

Supported Browsers Chrome Firefox Edge Safari

Supported Language English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文

Notes For an updated list of supported browser versions, check the DSM Technical Specifications .

Central Management System

Central Management System Yes

Synology AI Console

Third-Party AI Model Integration Yes

Maximum De-Identification Rate 90 words per second

Notes De-identification performance measurement: Filters for Credit Card Numbers, IBAN, Individual Taxpayer Identification Number, SSN, and Names applied to a 4,355-word English text. To enable de-identification, your device must have at least 8 GB of memory and Container Manager installed.

Synology Chat

Maximum Number of Users 150

Notes Measured with simulated users, each with an average record of 20,000 messages, emojis, or stickers. The required server response time is below ten seconds. Models with expandable memory are tested with the maximum supported quantity installed.

Download Station

Maximum Concurrent Download Tasks 80

SAN Manager

Maximum iSCSI Target Number 64

Maximum LUN 128

LUN Clone/Snapshot, Windows ODX Yes

Synology MailPlus / MailPlus Server

Free Email Accounts 5 (Additional accounts require purchase of licenses)

Maximum Number of Users 190

Notes The suggested maximum number of users is based on the following workload: 20% of users with a 20,000 item mailbox randomly performing actions and receiving 240 emails per day, and 80% of users receiving 20 emails per day. Learn more Models with SSD support are tested with a single SSD volume. Models with expandable memory are tested with the maximum supported quantity installed. Learn more about memory requirements . Operating in high-availability mode will incur additional overhead. Features enabled during evaluation: anti-spam, anti-virus, DNSBL, greylist, content scanning, and full-text search (English).

Media Server

DLNA Compliance Yes

Synology Photos

Facial Recognition Yes

Object Recognition Yes

Snapshot Replication

Maximum Snapshots per Shared Folder 256

Maximum Snapshots per LUN 64

Maximum Snapshots per System 4,096

Maximum Replication Tasks for Shared Folders 32

Maximum Replication Tasks for LUNs 16

Maximum Replication Tasks per System 32

Surveillance Station

Default Licenses 2 (Additional cameras require purchase of licenses)

Maximum IP Cameras and Total FPS (H.264) 1080p: 40 channels, 1050 FPS 3M: 40 channels, 600 FPS 5M: 40 channels, 440 FPS 4K: 32 channels, 320 FPS

Maximum IP Cameras and Total FPS (H.265) 1080p: 40 channels, 1200 FPS 3M: 40 channels, 1120 FPS 5M: 40 channels, 600 FPS 4K: 40 channels, 480 FPS

Notes Performance figures are obtained from testing conducted with the device fully populated with drives, with their default memory configuration, and under a continuous recording setup. Actual system capabilities may vary based on configuration, drive performance, enabled features, and the presence of additional workloads. Use NVR Selector to quickly find a suitable model based on your requirements. The number of video channels that can be viewed simultaneously is double the maximum number of cameras for the same codec and resolution.

Synology Drive

Maximum Number of Users 170

Maximum Number of Hosted Files 1,000,000 (applies to files indexed or hosted by Synology Drive . For file access through other standard protocols, refer to the File Services section above)

Notes The suggested maximum number of users is based on the following workload: 20% of users randomly perform file operations (upload, download, move, and delete), and 80% of users are logged in but idle. Learn more Models with SSD support are tested with a single SSD volume. Models with expandable memory are tested with the maximum supported quantity installed. Exceeding the recommended numbers above will not block application operations, but may result in longer response time. Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.

Synology Office

Maximum Number of Users 160

Notes The suggested maximum number of users is based on the following workload: 20% of users are executing random actions at an average of 30-second intervals, and 80% of users are logged in and viewing a file. Learn more Models with SSD support are tested with a single SSD volume. Models with expandable memory are tested with the maximum supported quantity installed. Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM

Virtual Machine Manager

Recommended Virtual Machine Instances 8 (Learn more)

Recommended Virtual DSM Number(Licenses required) 8 (including 1 Free License)

Notes The specifications vary depending on system configuration and memory size.

VPN Server

Maximum Connections 8

SKU	DS2422-PLUS
Barcode #	4711174723980
Brand	SYNOLOGY
Shipping Weight	9.5000kg
Shipping Width	0.430m
Shipping Height	0.440m
Shipping Length	0.470m
