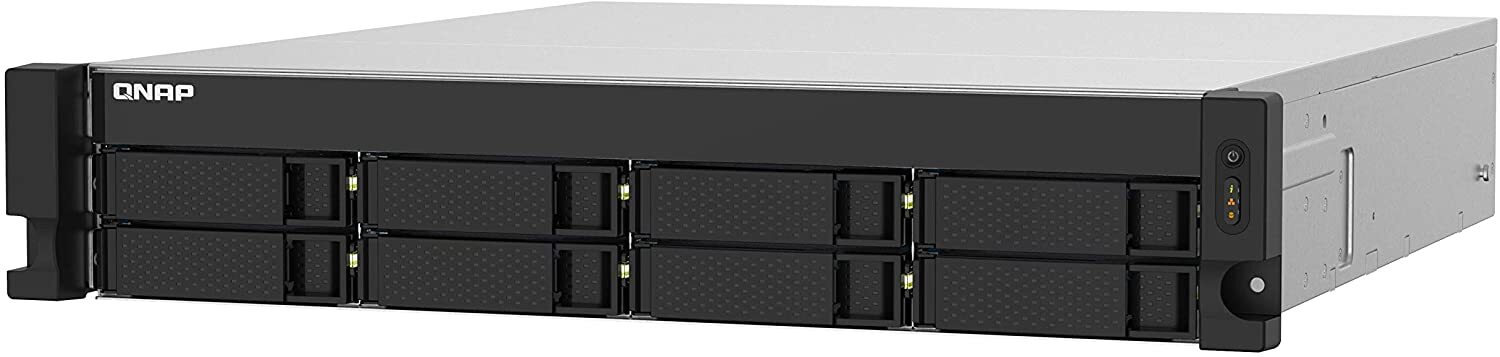

Eight-bay 2U rackmount design
The SATA bays support compatible 3.5-inch and 2.5-inch storage drives.
Special · Limited Time
QNAP TS-832PXU-4G 8-Bay 2U 10GbE Rackmount NAS - 4GB RAM
Model # TS-832PXU-4G
-
SKU: TS-832PXU-4G
$1,995.00
WAS $2,052.00
Sale Ends in:
23:59 pm, 7 September 2026
Or while stocks last!
Or while stocks last!
You Might Want To Add
- Pick Up Available
- Australian Warranty
- Checkout Securely
8-bay 2U multi-gigabit rackmount NAS
QNAP TS-832PXU-4G 8-Bay 2U NAS with Dual 10GbE and 2.5GbE
A 2U rackmount NAS with an AnnapurnaLabs Alpine AL324 quad-core processor, 4GB DDR4 memory, eight SATA bays, dual 10GbE SFP+, dual 2.5GbE and PCIe expansion.
8-bay 2U NAS2 × 10GbE SFP+2 × 2.5GbE3-year manufacturer warranty
What is the QNAP TS-832PXU-4G?
The TS-832PXU-4G is an eight-bay rackmount NAS for file access, backup, restoration and media transfer in SMB IT environments. It combines multi-gigabit networking, expandable memory, PCIe upgrades and backup, snapshot and cloud-account protection tools.
8 Bays2U rackmount SATA storage
2 × 10GbEBuilt-in SFP+ connectivity
2 × 2.5GbERJ45 multi-gigabit ports
4GB / 16GBInstalled and maximum memory
Need help choosing a NAS?
Read NAS Buying Guide Explore the DeviceDeal NAS Buying Guide
Compare NAS types, storage considerations and practical features before selecting your next network storage system.
High-speed 10GbE and 2.5GbE file access

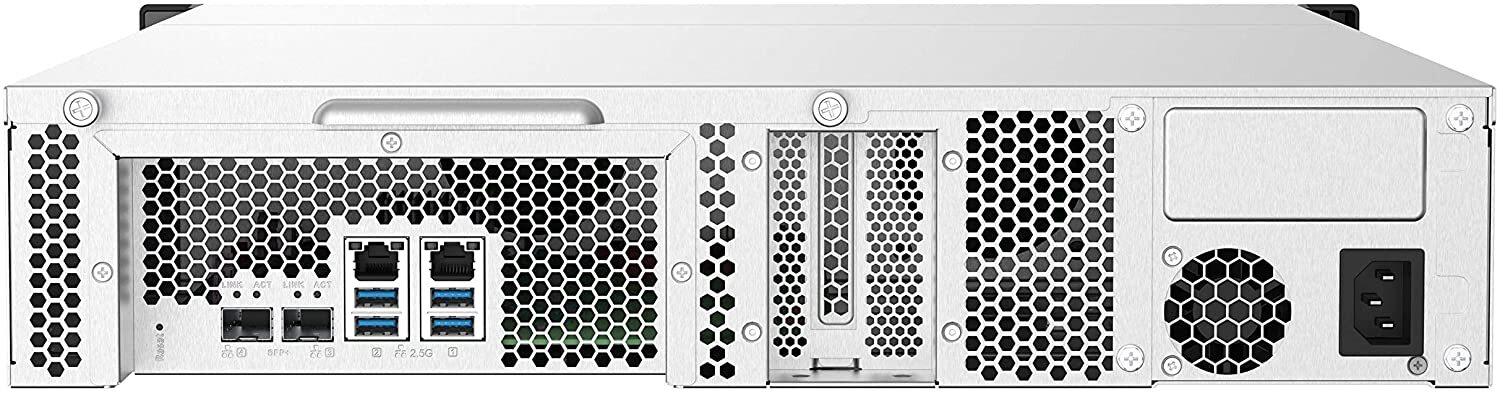

Two 10GbE SFP+ and two 2.5GbE RJ45 ports provide flexible network allocation for file access, backup, restoration and media transfer.
The 2.5GbE ports support 2.5G, 1G, 100M and 10M speeds. Wake on LAN is supported through the 2.5GbE interface, and Jumbo Frame support is included.
581MB/s uploadSupplied Windows file-transfer result using two 2.5GbE connections; download 488MB/s
2,104MB/s downloadSupplied Windows file-transfer result using two 10GbE connections; upload 649MB/s
Results were measured in the stated QNAP Labs environment and may vary with the installed drives, RAID, client and network configuration.
Quad-core ARM processing and expandable memory
The AnnapurnaLabs Alpine AL324 64-bit ARM Cortex-A57 processor provides four cores at 1.7GHz. The NAS includes 4GB UDIMM DDR4 memory and supports up to 16GB through one memory slot.
The eight SATA bays support compatible 3.5-inch and 2.5-inch drives, with hot swapping supported for the main drive bays.
- Confirm the configured package for drive inclusion.
- SSD cache acceleration is supported.
- M.2 SSDs are optional through a compatible PCIe adapter.
Backup, cloud-account protection and snapshots
Hybrid Backup Sync can back up and synchronise data to other NAS devices, servers and cloud storage. Boxafe is described for backing up Google Workspace and Microsoft 365 email, cloud-drive, contact and calendar data.
Snapshots record system status and data to help protect files from accidental deletion and malware attacks.
- Cloud storage gateway support is supplied for hybrid-cloud workflows.
- Microsoft Hyper-V certification is listed.
- Compatible QNAP TR RAID or TL JBOD enclosures can expand capacity.
PCIe expansion and SSD performance optimisation
One PCIe Gen 2 x2 slot supports compatible QNAP cards for networking, SSD caching or wireless connectivity.
The product information lists SSD cache technology, Qtier auto-tiering and SSD over-provisioning for storage-performance optimisation.
- Four USB 3.2 Gen 1 ports are included.
- The supported PCIe card dimensions are up to 220 × 68.9 × 18.76mm.
- PCIe bandwidth limitations may restrict NAS 10GbE performance.
Important purchasing and deployment notes
- Confirm the configured package and whether storage drives are included before purchase.
- M.2 SSDs are optional through a compatible PCIe adapter and are not hot-swappable.
- The PCIe Gen 2 x2 interface can restrict the performance of optional high-speed expansion.
- Published transfer figures depend on the stated QNAP Labs test configuration.
Frequently asked questions
What is the QNAP TS-832PXU-4G?
It is an eight-bay 2U rackmount NAS with a quad-core ARM processor, 4GB memory, dual 10GbE SFP+, dual 2.5GbE and PCIe expansion.
How many drive bays does it have?
It has eight 3.5-inch SATA 6Gb/s and 3Gb/s bays supporting compatible 3.5-inch hard drives, 2.5-inch hard drives and 2.5-inch solid state drives.
Which processor is installed?
It uses an AnnapurnaLabs Alpine AL324 64-bit ARM Cortex-A57 four-core processor running at 1.7GHz.
How much memory is installed and supported?
The TS-832PXU-4G includes 4GB UDIMM DDR4 memory and supports up to 16GB through one memory slot.
Which network ports are included?
It includes two 10GbE SFP+ ports and two 2.5GbE RJ45 ports.
Does it support Wake on LAN?
Yes. The specification states that Wake on LAN is supported through the 2.5GbE port.
Does the TS-832PXU support SSD caching?
Yes. SSD cache acceleration, Qtier auto-tiering and SSD over-provisioning are described in the product information.
Can it use M.2 SSDs?
M.2 SSD support is optional through a compatible PCIe adapter, and M.2 SSD hot swapping is not supported.
Which backup tools are described?
The product information includes Hybrid Backup Sync for NAS, server and cloud backup, plus Boxafe for Google Workspace and Microsoft 365 data.
Does it support snapshots?
Yes. Snapshots can record system status and data to help protect files from accidental deletion and malware attacks.
Can storage capacity be expanded?
Yes. Compatible QNAP TR RAID expansion enclosures and TL JBOD units are listed.
What warranty applies to the TS-832PXU-4G?
This product is covered by a three-year QNAP manufacturer warranty.
(TS-832PXU-4G)
Features and highlights
Key capabilities below are organised from the supplied product information for TS-832PXU-4G.
Dual 10GbE SFP+
Two built-in SFP+ ports provide high-bandwidth network connectivity.
Dual 2.5GbE RJ45
Two multi-gigabit ports support Wake on LAN and flexible network deployment.
Expandable DDR4 memory
The installed 4GB UDIMM can be expanded to a maximum of 16GB.
Backup and snapshot tools
Hybrid Backup Sync, Boxafe and snapshot protection are described in the product information.
PCIe and capacity expansion
Compatible cards and QNAP expansion enclosures can extend networking, caching and storage capacity.
Important: Check the configured package for drive inclusion. M.2 support requires a compatible PCIe adapter, and PCIe bandwidth can limit high-speed expansion.
TS-832PXU-4G specifications
Specifications below are organised from the supplied QNAP product information for TS-832PXU-4G.
Processor and Memory
| CPU | AnnapurnaLabs Alpine AL324 64-bit ARM Cortex-A57 4-core 1.7GHz processor |
|---|---|
| CPU Architecture | 64-bit ARM |
| Encryption Engine | Yes |
| System Memory | 4GB UDIMM DDR4 |
| Maximum Memory | 16GB (1 x 16GB) |
| Memory Slots | 1 x UDIMM DDR4 |
Storage
| Drive Bays | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s |
|---|---|
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-Swappable | Yes Not supported for M.2 SSD. |
| M.2 Slots | Optional via a PCIe adapter |
| SSD Cache Acceleration Support | Yes |
Networking
| 2.5 Gigabit Ethernet | 2 x 2.5GbE ports (2.5G/1G/100M/10M) |
|---|---|
| 10 Gigabit Ethernet | 2 x 10GbE SFP+ |
| Wake on LAN | Yes Supported through the 2.5GbE port only. |
| Jumbo Frame | Yes |
Expansion and Connectivity
| PCIe Slots | 1 x PCIe Gen 2 x2 PCIe bandwidth limitations will restrict NAS 10GbE performance. Maximum card dimensions: 220 x 68.9 x 18.76mm / 8.67 x 2.71 x 0.74 inches. |
|---|---|
| USB Ports | 4 x USB 3.2 Gen 1 ports |
Physical Specifications
| Form Factor | 2U rackmount |
|---|---|
| LED Indicators | HDD 18, status, LAN and storage expansion |
| Buttons | Power and reset |
| Dimensions (H x W x D) | 88.6 x 432 x 511mm Excludes the ear hook and the protruding part of the power supply unit. |
| Net Weight | 10.76kg |
| Gross Weight | 12.79kg |
Power and Cooling
| Power Supply Unit | 250W PSU, 100240V |
|---|---|
| Typical Operating Power Consumption | 56.412W Tested with drives fully populated. |
| Fans | 2 x 70mm, 12VDC |
| System Warning | Buzzer |
Operating Environment
| Operating Temperature | 040°C (32104°F) |
|---|---|
| Storage Temperature | -2070°C (-4158°F) |
| Relative Humidity | 595% RH non-condensing, wet bulb: 27°C (80.6°F) |
Warranty and Connections
| Standard Warranty | 3 years |
|---|---|
| Maximum Concurrent CIFS Connections | 700 with maximum memory installed |
Software and Data Protection
| Hybrid Backup Sync | Backs up and synchronises data to other NAS devices, servers and cloud storage. |
|---|---|
| Boxafe | Backs up Google Workspace and Microsoft 365 data. |
| Snapshots | Supported for recording system status and data. |
| Storage Expansion | Compatible QNAP TR RAID expansion enclosures and TL JBOD units are listed. |
| Virtualisation Certification | Microsoft Hyper-V |
Important Notes
| Drive inclusion | Confirm the configured package for drive inclusion. |
|---|---|
| M.2 support | M.2 SSD support is optional through a compatible PCIe adapter. |
| PCIe bandwidth | PCIe bandwidth can restrict NAS 10GbE performance. |
| SKU | TS-832PXU-4G |
| Model # | TS-832PXU |
| Barcode # | 4713213518151 |
| Brand | QNAP |
| Shipping Weight | 9.5000kg |
| Shipping Width | 0.560m |
| Shipping Height | 0.720m |
| Shipping Length | 0.270m |
3 YearsQNAP manufacturer warranty
3-year QNAP manufacturer warranty
The supplied specifications list a 3-year standard manufacturer warranty for the QNAP TS-832PXU-4G.
Warranty coverage, eligibility and claim assessment are subject to QNAPs applicable warranty terms. Please retain your DeviceDeal tax invoice as proof of purchase.
