Dual 250W power supplies
The supplied redundant-power configuration uses two 250W power supply units.
QNAP TS-464U-RP-8G 4CORE 2.9GHZ, 4GB RAM, 4X SATA, 2X 2.5GBE, 1X PCIE, 1X HDMI, 4X USB, 2X POWER SUPPLY
Model # TS-464U-RP-8G
-
SKU: TS-464U-RP-8G
- Pick Up Available
- Australian Warranty
- Checkout Securely

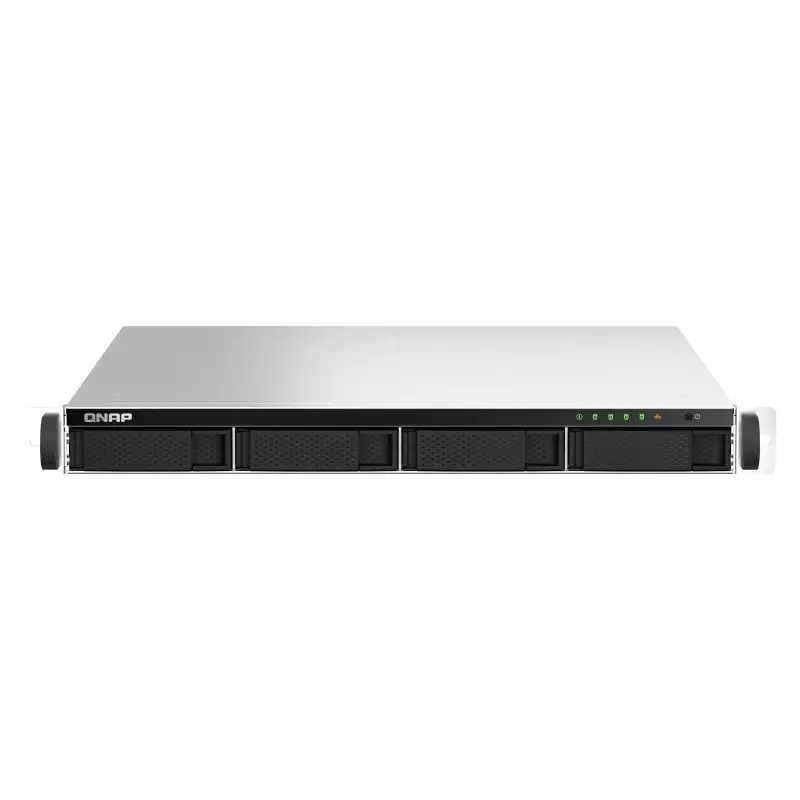

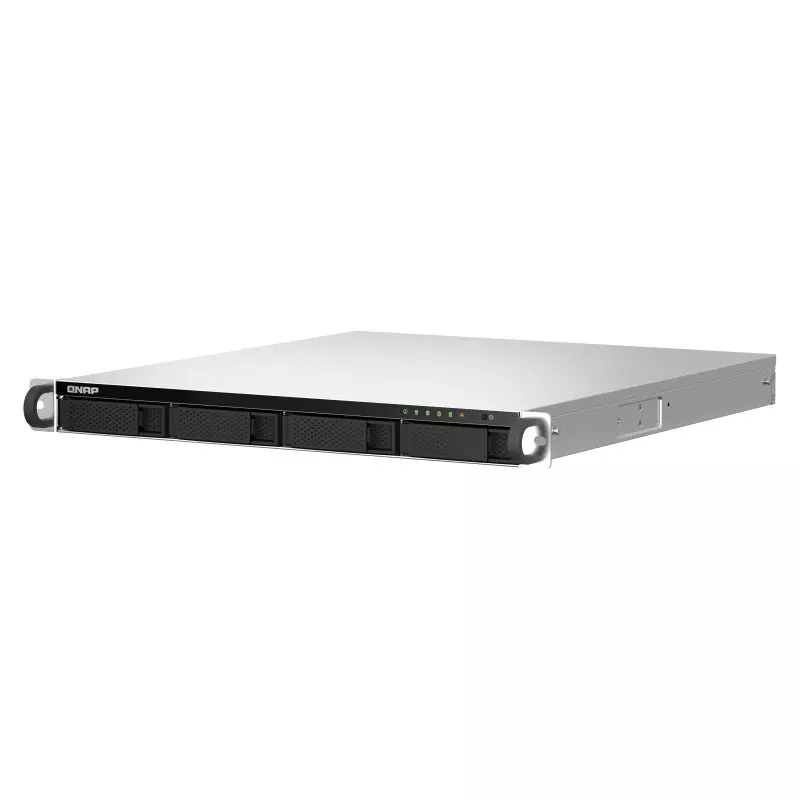

4-bay 1U NAS with redundant power supplies
QNAP TS-464U-RP-8G 4-Bay 2.5GbE NAS with Redundant PSU
A 1U rackmount NAS with an Intel Celeron N5095 quad-core processor, 8GB DDR4 memory, dual 2.5GbE, PCIe expansion, HDMI and dual 250W power supplies.
4 drive baysDual 2.5GbE2 × 250W PSU3-year manufacturer warranty
What is the QNAP TS-464U-RP-8G?
The TS-464U-RP-8G is a four-bay 1U rackmount NAS for high-speed file transmission, backup, containerised applications, multimedia display and virtualisation. Its two 250W power supplies provide the redundant power configuration listed in the supplied specifications.
2 × 250WRedundant power supplies
2 × 2.5GbEPort Trunking support
PCIe Gen 3 x2Expansion slot
8GB to 16GBExpandable memory
Need help choosing a NAS?
Read NAS Buying Guide Explore the DeviceDeal NAS Buying Guide
Compare NAS types, storage considerations and practical features before selecting your next network storage system.
Quad-core processing and protected business storage
The detailed supplied specifications identify an Intel Celeron N5095 four-core, four-thread processor with burst speeds up to 2.9GHz. The system includes 8GB SODIMM DDR4 memory and supports up to 16GB.
- Intel AES-NI supports hardware-accelerated encryption.
- Intel UHD Graphics provides hardware-accelerated transcoding.
- The supplied specifications list 1,500 maximum concurrent CIFS connections with maximum memory installed.
Dual 2.5GbE networking and PCIe expansion
Two 2.5GbE ports support 2.5G, 1G, 100M and 10M speeds. Port Trunking can combine both interfaces for supplied bandwidth up to 5Gbps.
- One PCIe Gen 3 x2 slot supports compatible Multi-Gig network, QM2 and USB expansion cards.
- Optional 5GbE or 10GbE can be added with supported adapters or PCIe cards.
- M.2 SSD support is optional through a compatible PCIe adapter.

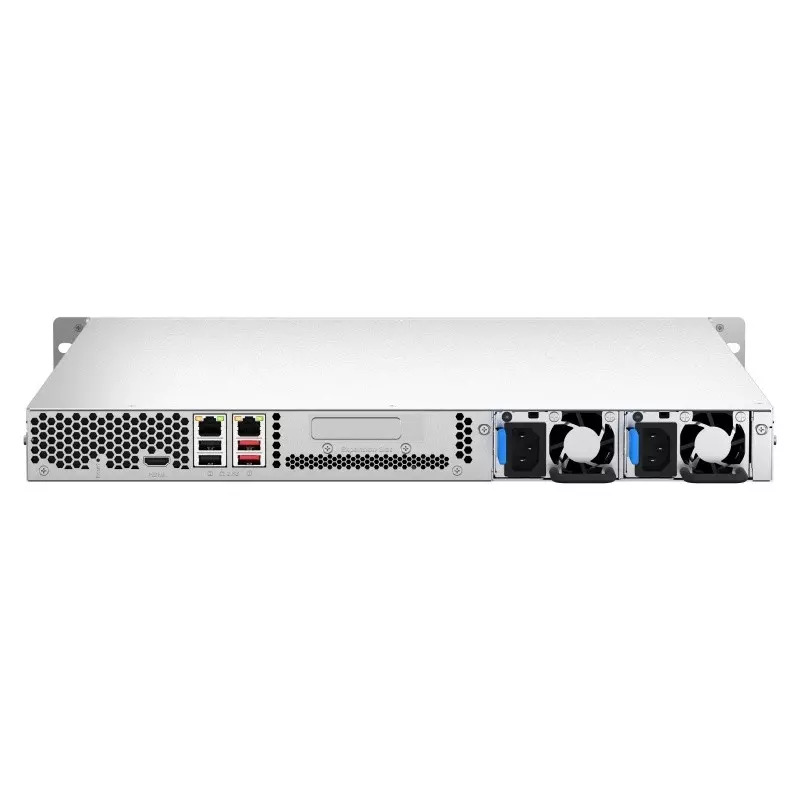

Redundant power, HDMI and USB connectivity
The supplied power specification lists two 250W power supply units in the 1U chassis.
- One HDMI 1.4b output supports local multimedia or virtual-machine display.
- Two USB 3.2 Gen 2 Type-A ports provide 10Gbps connectivity, alongside two USB 2.0 ports.
- Four hot-swappable SATA bays support 3.5-inch hard drives and 2.5-inch solid state drives.
Snapshots, virtualisation and supplied performance
The supplied information describes snapshots, Qtier, SSD caching, container applications and expansion through compatible QNAP units. QTS is used by default, with switching to QuTS hero supported from QTS 5.2.2.
- VMware Ready, Microsoft Hyper-V, Citrix and Veeam Ready are listed.
- Performance figures were measured in QNAP laboratories and may vary.
295MB/sSupplied Windows file-transfer download using one 2.5GbE connection
293MB/sSupplied Windows file-transfer upload using one 2.5GbE connection
The 2026 award reference applies to the QuTS hero operating system, not specifically to this NAS.
Important purchasing and deployment notes
- The supplied product name states 4GB RAM, while the SKU, detailed description and specification table state 8GB. Customer-facing content follows the detailed 8GB specification and the conflict is flagged for review.
- The marketing description references Intel Celeron N5105/N5095, while the detailed specification table identifies N5095. Customer-facing content uses the detailed N5095 value.
- The supplied source does not state whether hard drives are included.
- M.2 support is optional through a compatible PCIe adapter rather than built into the chassis.
Frequently asked questions
What is the QNAP TS-464U-RP-8G?
It is a four-bay 1U rackmount NAS with an Intel Celeron N5095 quad-core processor, 8GB memory, dual 2.5GbE, PCIe expansion and two 250W power supplies.
How many drive bays does the TS-464U-RP-8G have?
It has four hot-swappable SATA bays supporting 3.5-inch SATA hard drives and 2.5-inch SATA solid state drives.
Are hard drives included with the TS-464U-RP-8G?
The supplied product information does not state whether hard drives are included. Confirm the required compatible drives before ordering.
Which processor is used in the TS-464U-RP-8G?
The detailed supplied specifications identify an Intel Celeron N5095 four-core, four-thread processor with burst speeds up to 2.9GHz.
How much memory is installed and supported?
The SKU, detailed description and specifications identify 8GB SODIMM DDR4 memory, expandable to 16GB. The product-name field separately states 4GB and is flagged for review.
Which network ports are included?
It includes two 2.5GbE ports supporting 2.5G, 1G, 100M and 10M network speeds.
Can the two 2.5GbE ports be combined?
Yes. The supplied information states that Port Trunking can provide combined bandwidth up to 5Gbps.
What PCIe and M.2 expansion is available?
It includes one PCIe Gen 3 x2 slot. M.2 SSD support is optional through a compatible PCIe adapter.
Does the TS-464U-RP-8G have redundant power supplies?
Yes. The supplied specifications list two 250W power supply units.
Which HDMI and USB ports are included?
It provides one HDMI 1.4b output, two USB 3.2 Gen 2 Type-A ports at 10Gbps and two USB 2.0 ports.
Can it run QuTS hero?
Yes. It uses QTS by default and supports switching to QuTS hero starting from QTS 5.2.2.
What warranty applies to the TS-464U-RP-8G?
The supplied specifications list a three-year QNAP manufacturer warranty.
(TS-464U-RP-8G)
Features and highlights
Key capabilities below are organised from the supplied product information for TS-464U-RP-8G.
Intel quad-core processing
The detailed specifications identify a Celeron N5095 processor with burst speeds up to 2.9GHz.
Dual 2.5GbE ports
Two multi-gigabit interfaces support Port Trunking and supplied combined bandwidth up to 5Gbps.
PCIe Gen 3 expansion
One PCIe Gen 3 x2 slot supports compatible network, QM2 and USB expansion cards.
HDMI and 10Gbps USB
One HDMI 1.4b output and two USB 3.2 Gen 2 Type-A ports support display and external storage.
QTS or QuTS hero
QTS is used by default, with supported switching to QuTS hero from QTS 5.2.2.
Important: The source product name states 4GB, while the SKU, detailed description and specifications state 8GB. The detailed specification also identifies N5095 rather than the N5105/N5095 marketing reference.
TS-464U-RP-8G specifications
Specifications below are organised from the supplied QNAP product information for TS-464U-RP-8G.
Processor and Memory
| CPU | Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9GHz |
|---|---|
| CPU Architecture | 64-bit x86 |
| Graphics Processor | Intel® UHD Graphics |
| Encryption Engine | Yes (AES-NI) |
| Hardware-Accelerated Transcoding | Yes |
| System Memory | 8GB SODIMM DDR4Since 2024/01. |
| Maximum Memory | 16GB (2 x 8GB) |
Storage
| Drive Bays | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s |
|---|---|
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-Swappable | YesNot supported for M.2 SSD. |
| M.2 Slot | Optional via a PCIe adapter |
| SSD Cache Acceleration | Supported |
Networking
| 2.5 Gigabit Ethernet | 2 x 2.5GbE ports (2.5G/1G/100M/10M) |
|---|---|
| 5 Gigabit Ethernet | Optional via network adapter |
| 10 Gigabit Ethernet | Optional via network adapter or PCIe expansion card |
| Wake on LAN | Yes |
| Jumbo Frame | Yes |
Expansion and Connectivity
| PCIe Slot | 1 x PCIe Gen 3 x2 Maximum card dimensions: 210 x 68.9 x 18.76mm / 8.27 x 2.71 x 0.74 inches. |
|---|---|
| USB 2.0 Ports | 2 |
| USB 3.2 Gen 2 Ports | 2 x Type-A USB 3.2 Gen 2 (10Gbps) |
| HDMI Output | 1 x HDMI 1.4b |
Physical Specifications
| Form Factor | 1U rackmount |
|---|---|
| LED Indicators | HDD 14, status, LAN, expansion and power |
| Buttons | Power and reset |
| Dimensions (H x W x D) | 43.3 x 430 x 479mm |
| Net Weight | 9.34kg |
| Gross Weight | 11.3kg |
Power and Cooling
| Power Supply Unit | 250W x 2, 100240V |
|---|---|
| Disk Standby Power Consumption | 37.469W |
| Typical Operating Power Consumption | 51.404WTested with drives fully populated. |
| Fans | 2 x 40mm, 12VDC |
| System Warning | Buzzer |
Operating Environment
| Operating Temperature | 040°C (32104°F) |
|---|---|
| Storage Temperature | -2070°C (-4158°F) |
| Relative Humidity | 595% RH non-condensing, wet bulb: 27°C (80.6°F) |
Warranty and Connections
| Standard Warranty | 3 years |
|---|---|
| Maximum Concurrent CIFS Connections | 1,500 with maximum memory installed |
Important notes
| Memory conflict | The supplied product name states 4GB RAM, while the SKU, detailed description and specification table identify 8GB. |
|---|---|
| Processor conflict | The marketing description references N5105/N5095, while the detailed specification table identifies Intel Celeron N5095. |
| Drive inclusion | The supplied source does not state whether hard drives are included. |
| M.2 support | M.2 SSD support is optional through a compatible PCIe adapter. |
| SKU | TS-464U-RP-8G |
| Model # | TS-464U-RP |
| Barcode # | 885022024551 |
| Brand | QNAP |
| Shipping Weight | 12.1300kg |
| Shipping Width | 0.170m |
| Shipping Height | 0.670m |
| Shipping Length | 0.620m |
3 YearsQNAP manufacturer warranty
3-year QNAP manufacturer warranty
The supplied specifications list a 3-year standard manufacturer warranty for the QNAP TS-464U-RP-8G.
Warranty coverage, eligibility and claim assessment are subject to QNAPs applicable warranty terms. Please retain your DeviceDeal tax invoice as proof of purchase.
