QNAP TVS-h874T-i7-32G, 8-bay QuTS hero NAS, Intel Core i7, Thunderbolt 4
Model # TVS-h874T-i7-32G
-
SKU: TVS-h874T-i7-32G
- Pick Up Available
- Australian Warranty
- Checkout Securely
8-bay Core i7 Thunderbolt 4 creative NAS

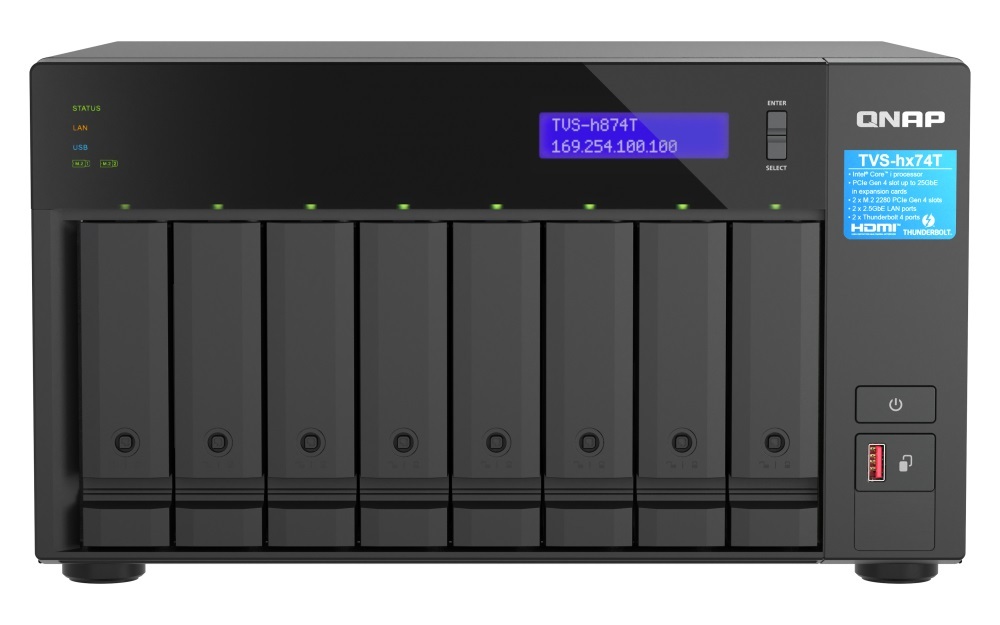

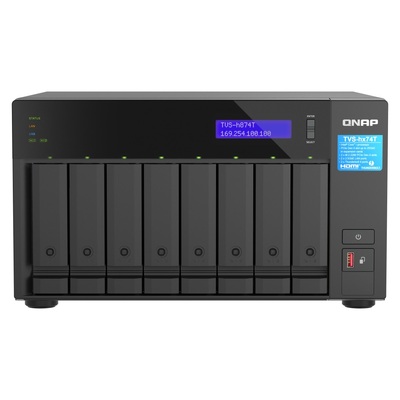

QNAP TVS-h874T-i7-32G 8-Bay Thunderbolt 4 QuTS hero NAS
The QNAP TVS-h874T-i7-32G is an eight-bay QuTS hero tower NAS with an Intel Core i7 12-core/20-thread processor, 32GB DDR4, two Thunderbolt 4 ports, dual 2.5GbE and two M.2 PCIe Gen 4 x4 slots.
8 baysCore i7 12-core32GB DDR4Dual Thunderbolt 43-year warranty
What is it? It is a ZFS-based NAS for creative teams that need direct Thunderbolt 4 host connections, shared storage, hardware-accelerated transcoding, SSD acceleration and network expansion.
Processor and memory
Core i7 processing and Intel UHD Graphics 770
The supplied configuration supports media processing, transcoding and collaborative storage workloads.
Core i7 12-core processor
The processor has 8 Performance-cores, 4 Efficient-cores and 20 processing threads.
Intel UHD Graphics 770
Integrated graphics and hardware-accelerated transcoding are listed.
32GB DDR4 installed
Two 16GB modules are installed, with support for up to 64GB using two 32GB modules.
Thunderbolt and storage
Direct workstation connectivity with eight SATA bays
Thunderbolt 4 connectivity works alongside hot-swappable SATA bays and optional M.2 NVMe acceleration.
Two Thunderbolt 4 ports
The ports support compatible Windows and Mac hosts and USB storage devices.
Eight SATA bays
Compatible 3.5-inch SATA hard drives and 2.5-inch SATA solid state drives are supported.
Dual M.2 Gen 4
Two M.2 2280 PCIe Gen 4 x4 slots support compatible NVMe SSDs using PCIe Gen 3 and above.
Need help choosing a NAS?
Read NAS Buying Guide Explore the DeviceDeal NAS Buying Guide
Compare NAS types, storage planning considerations and practical buying factors before selecting a system.
Networking and expansion
Dual 2.5GbE with PCIe upgrade options
Built-in multi-gigabit networking and PCIe expansion support flexible studio deployment.
Dual 2.5GbE
Two RJ45 ports support 2.5G, 1G, 100M and 10M connections.
Optional 5GbE or 10GbE
Compatible PCIe network cards can add faster network connectivity.
Two PCIe Gen 4 slots
Slot 2 is preinstalled with the Thunderbolt 4 add-in card; Slot 1 remains available subject to compatibility.
Creative workflow and display
Direct editing, transcoding and local output
The supplied content supports direct host connections, compatible media processing and display output.
Direct host connections
Two Thunderbolt 4 ports support compatible Mac and Windows hosts for direct shared-storage access.
Hardware transcoding
Intel UHD Graphics 770 supports compatible video conversion and playback workflows.
USB and HDMI
One USB Type-C and two Type-A 10Gbps ports are listed, with HDMI 1.4b up to 4096 × 2160 at 30Hz.
Data protection and capacity
QuTS hero storage protection with expansion options
ZFS-based self-healing and supplied capacity examples support collaborative production planning.
Self-healing data protection
The supplied content describes detection and correction of corrupted data.
Conditional capacity examples
The source states up to 154TB internally and up to 396TB with compatible QNAP JBOD expansion.
Storage expansion
Supported QNAP JBOD enclosures and migration to another compatible QNAP NAS are described as expansion paths.
Frequently asked questions
What is the QNAP TVS-h874T-i7-32G?
It is an eight-bay QuTS hero tower NAS for creative workflows, with a Core i7 12-core processor, 32GB DDR4 and two Thunderbolt 4 ports.
Which processor is installed?
It uses an Intel Core i7 processor with 8 Performance-cores, 4 Efficient-cores and 20 processing threads.
How much memory is included and supported?
It includes 32GB SODIMM DDR4 using two 16GB modules and supports up to 64GB using two 32GB modules.
Which storage drives are supported?
The eight 3.5-inch bays support compatible 3.5-inch SATA hard drives and 2.5-inch SATA solid state drives.
What do the M.2 slots support?
It has two M.2 2280 PCIe Gen 4 x4 slots for compatible NVMe SSDs using PCIe Gen 3 and above. M.2 SSD hot swapping is not supported.
How many Thunderbolt 4 ports are included?
Two Thunderbolt 4 ports are included for compatible Windows and Mac hosts and USB storage devices.
What macOS version is required?
The supplied product information specifies macOS 13.5 or later.
Does it support third-party Thunderbolt external storage?
No. The supplied specifications state that third-party Thunderbolt external storage devices are not supported.
What networking is included and can it be upgraded?
It includes two 2.5GbE ports. Compatible PCIe cards can add optional 5GbE or 10GbE networking.
Which PCIe, USB and HDMI connections are listed?
It has two PCIe Gen 4 slots, one USB Type-C and two Type-A 10Gbps ports, and HDMI 1.4b supporting up to 4096 × 2160 at 30Hz. Slot 2 is preinstalled with the Thunderbolt 4 card.
What capacity and expansion examples are supplied?
The source states up to 154TB of internal capacity and up to 396TB with compatible QNAP JBOD expansion. Actual usable capacity depends on drives, RAID and compatible expansion hardware.
What warranty applies to the TVS-h874T-i7-32G?
The supplied specifications list a three-year QNAP manufacturer warranty. Coverage is subject to QNAPs applicable warranty terms.
(TVS-h874T-i7-32G)
Features and highlights
Key product details organised from the supplied QNAP information for TVS-h874T-i7-32G.
Core i7 12-core
Eight Performance-cores, four Efficient-cores and twenty threads.
32GB DDR4
Installed as two 16GB modules and expandable to 64GB.
Dual Thunderbolt 4
Direct connections for compatible Mac and Windows hosts.
Eight SATA bays
Compatible 3.5-inch HDDs and 2.5-inch SATA SSDs are supported.
Dual M.2 PCIe Gen 4
Two slots support compatible NVMe storage and cache options.
Dual 2.5GbE
Optional 5GbE or 10GbE is available through PCIe expansion.
Purchase check: macOS 13.5 or later is specified. Third-party Thunderbolt external storage is not supported, M.2 SSDs are not hot-swappable, and storage-drive inclusion is not confirmed.
Technical specifications
The following specifications are organised from the supplied product information for QNAP TVS-h874T-i7-32G.
Product details
| Brand | QNAP |
|---|---|
| Model / SKU | TVS-h874T-i7-32G |
| Product type | 8-bay Core i7 Thunderbolt 4 QuTS hero tower NAS |
Processor and Memory
| CPU | Intel Core i7 12-core (8P + 4E), 20-thread processor |
|---|---|
| CPU Architecture | 64-bit x86 |
| Graphics Processor | Intel UHD Graphics 770 |
| Floating Point Unit | Yes |
| Encryption Engine | Yes, AES-NI |
| Hardware-Accelerated Transcoding | Yes |
| System Memory | 32GB SODIMM DDR4 (2 × 16GB) |
| Maximum Memory | 64GB (2 × 32GB) |
| Memory Slots | 2 × SODIMM DDR4 |
| Flash Memory | 5GB with dual-boot OS protection |
Storage
| Drive Bays | 8 × 3.5-inch SATA 6Gb/s, 3Gb/s |
|---|---|
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-Swappable | Yes M.2 SSD hot swapping is not supported. |
| M.2 Slots | 2 × M.2 2280 PCIe Gen 4 x4 Compatible with NVMe SSDs using PCIe Gen 3 and above. |
| SSD Cache Acceleration | Yes |
| GPU Pass-Through | Yes |
Networking and Thunderbolt
| 2.5 Gigabit Ethernet | 2 × 2.5GbE RJ45 (2.5G/1G/100M/10M) |
|---|---|
| 5 Gigabit Ethernet | Optional via compatible PCIe expansion card |
| 10 Gigabit Ethernet | Optional via compatible PCIe expansion card |
| Wake on LAN | Yes |
| Jumbo Frame | Yes |
| Thunderbolt 4 | 2 ports Supports Thunderbolt connections for Windows and Mac hosts and USB storage devices. Third-party Thunderbolt external storage devices are not supported. |

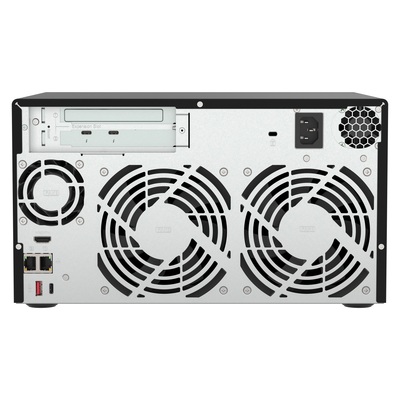

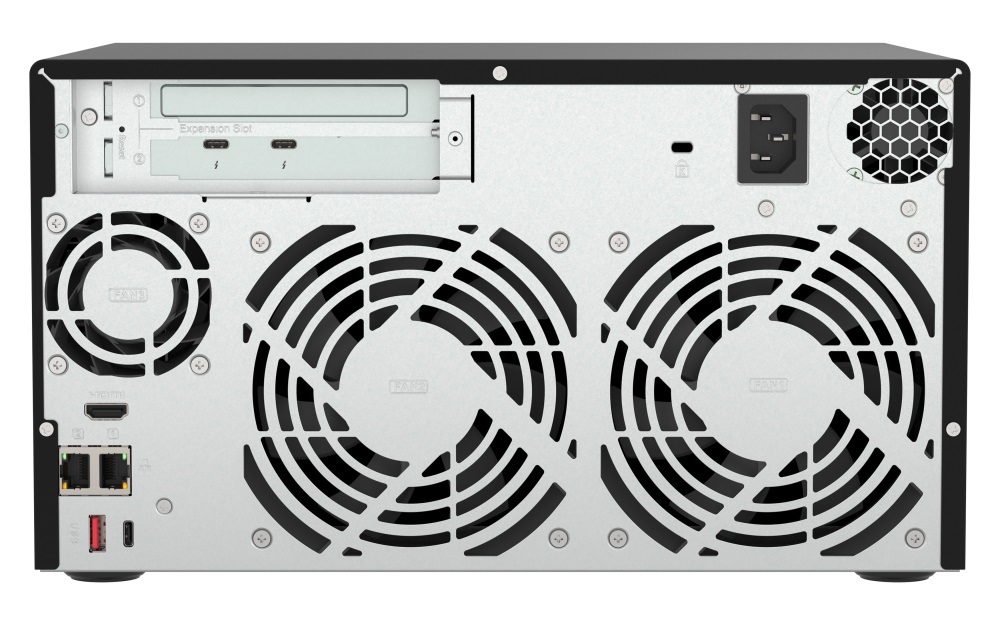

Expansion and Connectivity
| PCIe Slots | 2 total: Slot 1: PCIe Gen 4 x16 Slot 2: PCIe Gen 4 x4 Slot 2 is preinstalled with a Thunderbolt 4 add-in card. Card dimensions for slots 12: 185 × 131.15 × 18.76mm / 7.28 × 5.16 × 0.74 inches. Wider cards can be installed if the adjacent slot is not used. |
|---|---|
| USB 3.2 Gen 2 | 1 × Type-C, 10Gbps 2 × Type-A, 10Gbps |
| HDMI Output | 1 × HDMI 1.4b, up to 4096 × 2160 at 30Hz |
Physical Specifications
| Form Factor | Tower |
|---|---|
| LED Indicators | HDD 18, status, LAN, USB and M.2 |
| LCD Display / Button | Yes |
| Buttons | Power, reset and USB Copy |
| Dimensions (H × W × D) | 180.2 × 329.3 × 279.6mm Excludes the foot pad, which may be up to 30mm / 1.18 inches high. |
| Net Weight | 7.34kg |
| Gross Weight | 8.99kg |
Power and Cooling
| Power Supply | 350W (PWR-PSU-350W-DT01), 100240V |
|---|---|
| Disk Standby Power | 62.668W |
| Typical Operating Power | 104.35W Tested fully populated with WD10EFRX hard drives. |
| Fans | 2 × 120mm system fans, 12VDC 1 × 60mm CPU fan, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | Yes |
Operating Environment
| Operating Temperature | 040°C (32104°F) |
|---|---|
| Storage Temperature | -2070°C (-4158°F) |
| Relative Humidity | 595% RH non-condensing, wet bulb: 27°C (80.6°F) |
Warranty and Connections
| Standard Warranty | 3 years |
|---|---|
| Maximum Concurrent CIFS Connections | 3,500 with maximum memory installed |
| SKU | TVS-h874T-i7-32G |
| Model # | TVS-h874T |
| Barcode # | 885022024742 |
| Brand | QNAP |
| Shipping Weight | 9.0000kg |
