12-bay rackmount design
Twelve SATA bays in a 2U rackmount chassis.
QNAP TS-1264U-RP-8G 12 Bay High-Speed Rackmount NAS Intel® Celeron® N5105/N5095 4-Core CPU
Model # TS-1264U-RP-8G
-
SKU: TS-1264U-RP-8G
$4,535.00
Stock Availability
🟢Live
ONLINE: ✓ In Stock
Vermont VIC: ✓ In Stock
(Click & Collect Available)
(Click & Collect Available)
- Pick Up Available
- Australian Warranty
- Checkout Securely
12-bay Intel Celeron rackmount NAS

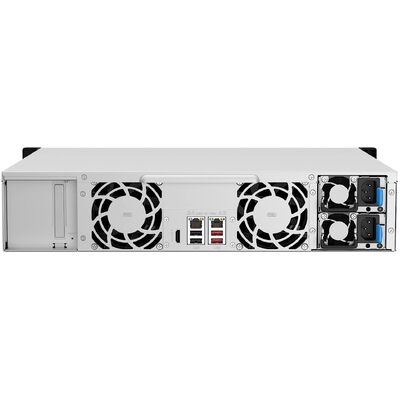

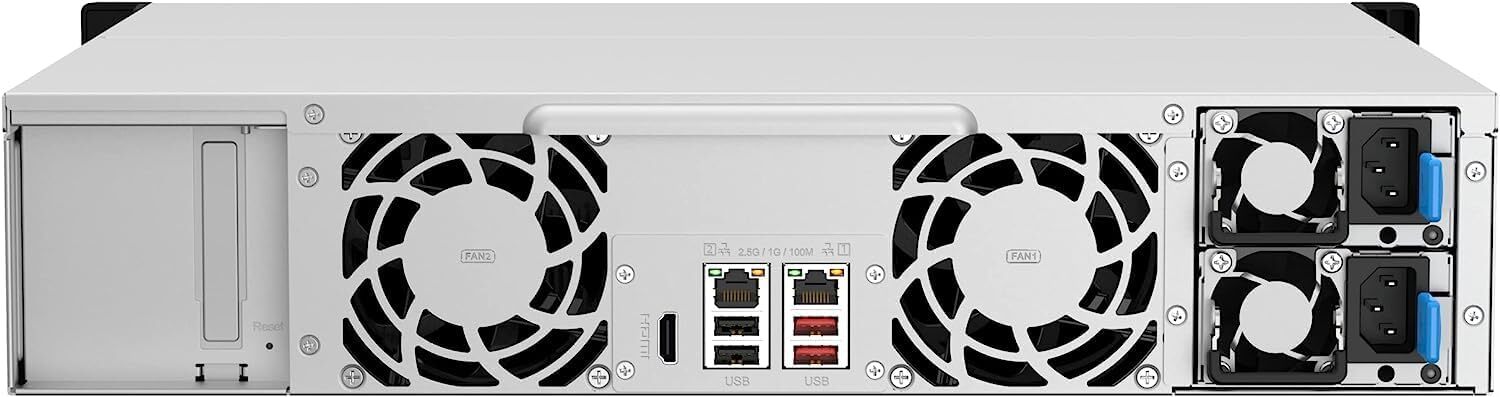

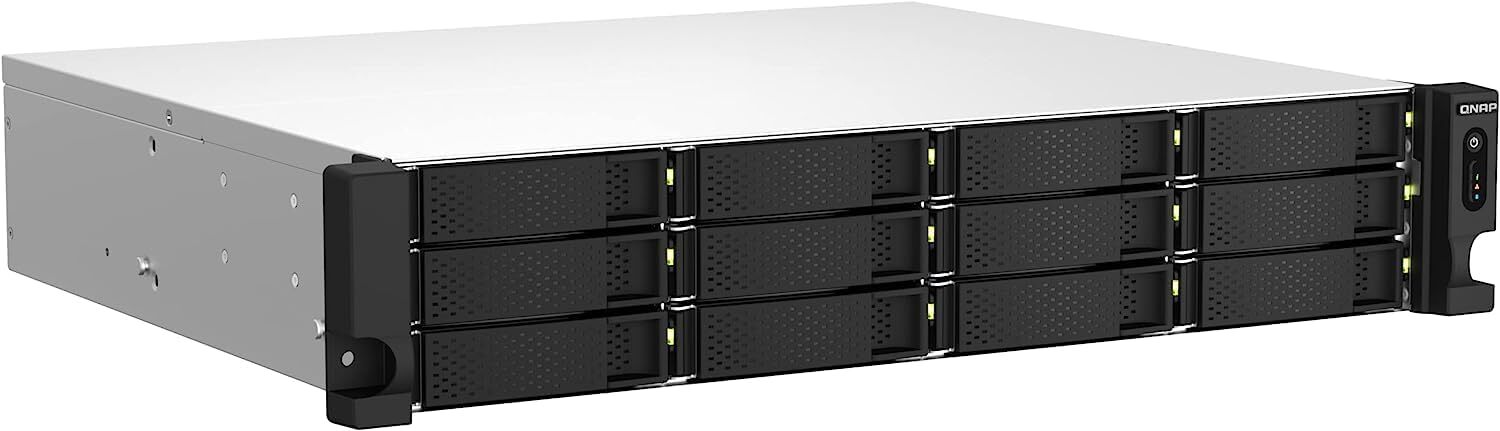

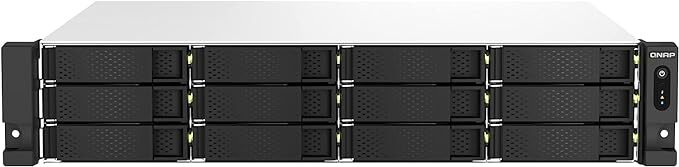

QNAP TS-1264U-RP-8G 12-Bay 2U Rackmount NAS
A 12-bay, 2U rackmount NAS with 8GB DDR4 memory, dual 2.5GbE, PCIe Gen 3 expansion, HDMI output and dual 300W power supplies.
12 baysDual 2.5GbEPCIe Gen 33-year manufacturer warranty
What is the QNAP TS-1264U-RP-8G?
It is a 12-bay, 2U rackmount NAS with an Intel Celeron quad-core processor, 8GB DDR4 memory, two 2.5GbE ports, one PCIe Gen 3 x2 slot, HDMI 1.4b output and dual 300W power supplies. The supplied product name references N5105/N5095, while the detailed description and specifications identify N5095.
12 baysSATA storage bays
Up to 5GbpsPort Trunking claim
8GB DDR4Installed memory
Dual 300WRedundant power supplies
Need help choosing a NAS?
Read NAS Buying Guide Explore the DeviceDeal NAS Buying Guide
Compare NAS types, storage considerations and practical features before selecting your next network attached storage solution.
Quad-core platform and 12-bay storage
The detailed supplied specifications identify an Intel Celeron N5095 four-core, four-thread processor with burst speed up to 2.9GHz, Intel UHD Graphics, AES-NI encryption and hardware-accelerated transcoding. The system includes 8GB SODIMM DDR4 memory and supports up to 16GB.
- Twelve 3.5-inch SATA 6Gb/s and 3Gb/s bays.
- Supports 3.5-inch SATA hard drives and 2.5-inch SATA solid state drives.
- Hot-swappable drive bays; M.2 SSDs are excluded from hot-swap support.
2.5GbE, PCIe and HDMI connectivity
Two built-in 2.5GbE ports support 2.5G, 1G, 100M and 10M connections. The supplied description states that Port Trunking can provide up to 5Gbps combined bandwidth.
- One PCIe Gen 3 x2 slot for compatible expansion cards.
- Two USB 3.2 Gen 2 Type-A ports and two USB 2.0 ports.
- One HDMI 1.4b output is supplied for display connectivity.
Storage protection and optimisation
The supplied product information lists snapshots, Qtier auto-tiering, SSD caching and supported QNAP expansion units for recovery planning, storage optimisation and capacity growth.
QTS and QuTS hero operating-system choice
QTS is installed by default. The supplied information states that switching to QuTS hero is supported starting from QTS 5.2.2, adding ZFS data-integrity and WORM capabilities.
Important buying and deployment notes
- Processor review required: the product name references N5105/N5095, while the detailed source identifies N5095.
- The optional RAIL-S01 short rail kit is listed for 19-inch rack installation under the ANSI/EIA-RS-310-D standard.
- QTS is the default operating system; switching to QuTS hero is stated as supported from QTS 5.2.2.
- Use QNAP memory modules with identical specifications in multi-module configurations.
Frequently asked questions
What is the QNAP TS-1264U-RP-8G?
It is a 12-bay, 2U rackmount NAS with 8GB DDR4 memory, dual 2.5GbE, PCIe Gen 3 expansion, HDMI output and redundant power.
Which processor is installed in the TS-1264U-RP-8G?
The detailed supplied description and specifications identify an Intel Celeron N5095 four-core, four-thread processor with burst speed up to 2.9GHz. The product name also references N5105/N5095, so the processor revision should be confirmed.
How many drives does the TS-1264U-RP-8G support?
It has twelve 3.5-inch SATA bays supporting 3.5-inch SATA hard drives and 2.5-inch SATA solid state drives.
How much memory is included and supported?
It includes 8GB SODIMM DDR4 memory and supports up to 16GB using two 8GB modules.
Can the two 2.5GbE ports be combined?
Yes. The supplied description states that Port Trunking can provide up to 5Gbps combined bandwidth.
Does the NAS support PCIe expansion?
Yes. It has one PCIe Gen 3 x2 slot for compatible expansion cards.
Which display connection is included?
The TS-1264U-RP-8G includes one HDMI 1.4b output.
Which USB ports are included?
It includes two USB 3.2 Gen 2 Type-A ports and two USB 2.0 ports.
Can the TS-1264U-RP-8G run QuTS hero?
Yes. QTS is installed by default, and the supplied information states that switching to QuTS hero is supported starting from QTS 5.2.2.
Does it have redundant power?
Yes. It includes two 300W power supply units.
Which rail kit is listed for rack installation?
The optional RAIL-S01 short rail kit is listed for installation in a 19-inch rack following the ANSI/EIA-RS-310-D standard.
What warranty applies to the TS-1264U-RP-8G?
The supplied specifications list a three-year QNAP manufacturer warranty.
(TS-1264U-RP-8G)
Features and highlights
Key supplied capabilities and purchasing considerations for this QNAP product.
Intel Celeron platform
The detailed supplied source identifies an N5095 four-core processor with burst speed up to 2.9GHz.
Dual 2.5GbE
Two built-in 2.5GbE ports with a supplied Port Trunking claim of up to 5Gbps.
PCIe and HDMI expansion
One PCIe Gen 3 x2 slot and one HDMI 1.4b output are included.
Redundant power
Two 300W power supply units are supplied.
3-year manufacturer warranty
The supplied specifications list a three-year QNAP manufacturer warranty.
Key points to review
- Confirm the exact N5105/N5095 processor revision.
- Maximum memory is 16GB.
- QTS is default; QuTS hero switching is stated from QTS 5.2.2.
- RAIL-S01 is optional.
QNAP TS-1264U-RP-8G Specifications
Review the supplied processor, memory, storage, networking, expansion, display, physical, power, environmental and warranty details.
Processor and Memory
| CPU | Detailed source: Intel Celeron N5095 4-core/4-thread processor, burst up to 2.9GHz |
|---|---|
| Processor source note | The supplied product name references N5105/N5095; confirm the exact processor revision before publishing. |
| CPU architecture | 64-bit x86 |
| Graphics processor | Intel UHD Graphics |
| Encryption engine | Yes (AES-NI) |
| Hardware-accelerated transcoding | Yes |
| System memory | 8GB SODIMM DDR4; supplied note: since 2024/01 |
| Maximum memory | 16GB (2 × 8GB) |
Storage
| Drive bays | 12 × 3.5-inch SATA 6Gb/s, 3Gb/s |
|---|---|
| Drive compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | Yes; not supported for M.2 SSD |
| M.2 slot | Optional via a PCIe adapter |
| SSD cache acceleration | Supported |
Networking
| 2.5 Gigabit Ethernet | 2 × 2.5GbE ports (2.5G/1G/100M/10M) |
|---|---|
| 5 Gigabit Ethernet | Optional via PCIe expansion card |
| 10 Gigabit Ethernet | Optional via PCIe expansion card |
| Wake on LAN | Yes |
| Jumbo Frame | Yes |
Expansion and Connectivity
| PCIe slot | 1 × PCIe Gen 3 x2 |
|---|---|
| Supported card dimensions | 160 × 68.9 × 28.76mm / 6.3 × 2.71 × 1.13 inches |
| USB 2.0 ports | 2 |
| USB 3.2 Gen 2 ports | 2 × Type-A, 10Gbps |
| HDMI output | 1 × HDMI 1.4b |
| Optional rail kit | RAIL-S01 short rail kit for a 19-inch rack following ANSI/EIA-RS-310-D |
Physical Specifications
| Form factor | 2U rackmount |
|---|---|
| LED indicators | HDD 112, status, LAN, expansion and power |
| Buttons | Power and reset |
| Dimensions (H × W × D) | 88.6 × 432 × 370.7mm |
| Net weight | 10.64kg |
| Gross weight | 14.01kg |
Power and Cooling
| Power supply | 300W × 2, 100240V |
|---|---|
| Disk standby power | 37.854W |
| Typical operating power | 70.913W; tested with drives fully populated |
| Fans | 2 × 80mm, 12VDC |
| System warning | Buzzer |
Operating Environment
| Operating temperature | 040°C (32104°F) |
|---|---|
| Storage temperature | -2070°C (-4158°F) |
| Relative humidity | 595% RH non-condensing, wet bulb: 27°C (80.6°F) |
Operating System, Warranty and Connections
| Default operating system | QTS |
|---|---|
| QuTS hero switching | Supported starting from QTS 5.2.2, according to the supplied source |
| Standard warranty | 3 years |
| Maximum concurrent CIFS connections | 1,500 with maximum memory installed |
Use only QNAP memory modules with identical specifications to maintain system performance and stability. The supplied 2026 award statement refers to the QuTS hero operating system rather than clearly to this exact NAS and is not used as a product award claim.
| SKU | TS-1264U-RP-8G |
| Model # | TS-1264U-RP |
| Brand | QNAP |
| Shipping Weight | 10.6400kg |
