AMD Ryzen⢠quad-core 2.2 GHz CPU
2x M.2 NVMe slots for SSD caching
2x 2.5GbE, 2x PCIe slots for 10GbE expansion
Â

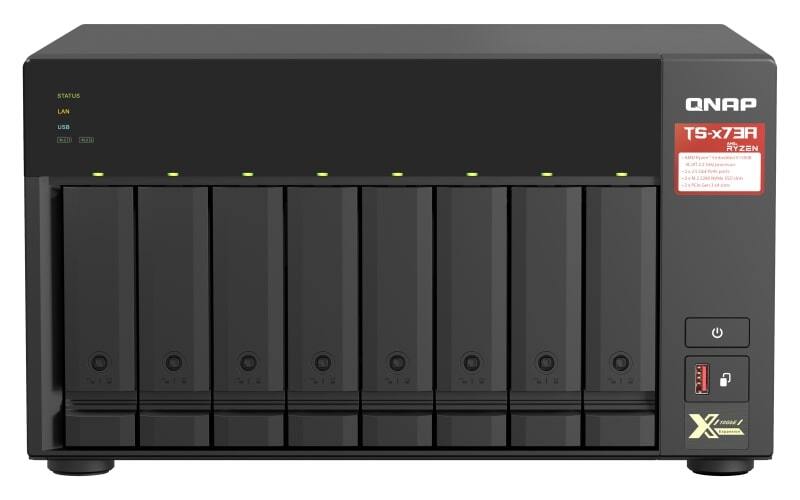

Featuring an AMD Ryzen⢠V1000 series V1500B quad-core processor that delivers great system performance with up to quad-core / 8 threads and Turbo Core up to 2.2 GHz. The TS-873A features two 2.5GbE RJ45 ports and two PCIe Gen 3 slots for you to flexibly deploy 5GbE/10GbE networks. Two M.2 NVMe SSD slots for Qtier Technology and SSD Caching enable constant storage optimization. The TS-873A supports QTS and QuTS hero, allowing users to flexibly switch operating system based on their requirements.
-
2.5GbE connectivity
Both 2.5GbE ports are backwards compatible with 1GbE/ 100MbE speeds. Up to 5 Gbps transfer speeds can be achieved by using port trunking.
-
Flexible PCIe expansion
Add extra functionality with PCIe cards, including 10GbE ports, SSD caching, extra USB 3.2 Gen 2 ports, wireless networking, or Fibre Channel.
-
GPU applications
Supports entry-level NVIDIA® graphics cards for video processing or GPU-passthrough to VMs.
-
SSD cache acceleration
Features two M.2 PCIe NVMe SSD slots for Qtier Technology and SSD Caching enable constant storage optimization.
-
Virtualization applications
Host containerized applications and virtual machines with various operating systems.
-
Supports QTS/QuTS hero OS
Features QTS operating system and supports switching to ZFS-based QuTS hero for greater reliability.
Â
Spicifacation
Â
| CPU | AMD Ryzen⢠Embedded V1500B 4-core/8-thread 2.2 GHz processor |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Optional via a PCIe adapter |
| Floating Point Unit |  |
| Encryption Engine | Â (AES-NI) |
| Hardware-accelerated Transcoding | Optional via a PCIe adapter |
| System Memory | 8 GB SODIMM DDR4 (1 x 8 GB) |
| Maximum Memory | 64 GB (2 x 32 GB) |
| Memory Slot | 2 x SODIMM DDR4 Support ECC memory For dual-DIMM configurations, you must use a pair of identical DDR4 modules.
|
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable |
The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.
|
| M.2 Slot | 2 x M.2 2280 PCIe Gen3 x1 slots
The M.2 SSD is not included as standard.
M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink on the M.2 SSD. |
| SSD Cache Acceleration Support | |
| GPU pass-through | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via a PCIe adapter |
| 10 Gigabit Ethernet Port | Optional via a PCIe adapter |
| Wake on LAN (WOL) | |
| Jumbo Frame | |

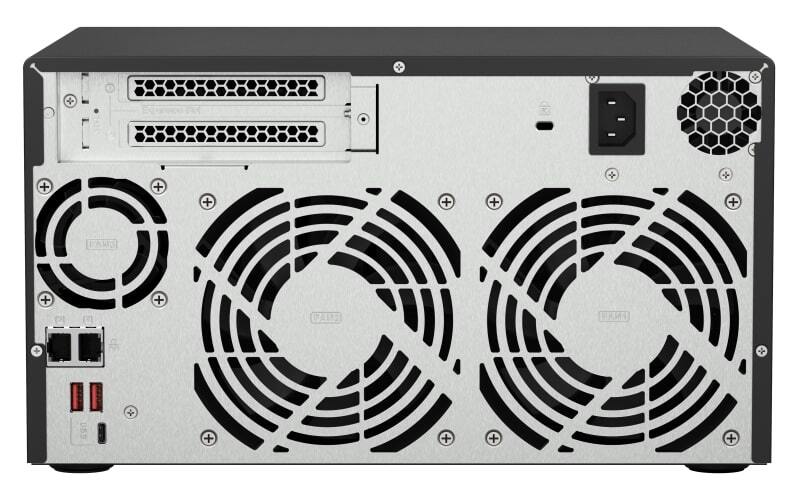

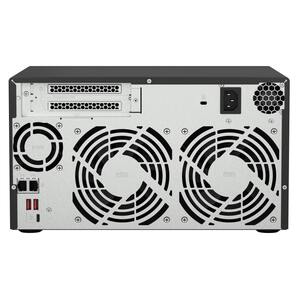

| PCIe Slot | 2 Slot 1: PCIe Gen 3 x4 Slot 2: PCIe Gen 3 x4 Card dimensions for PCIe slot 1~Slot 2ï¼200 x 131.15 x 18.76 mm / 7.87 x 5.16 x 0.74 inches.
Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 2 (10Gbps) Port | 3 x Type-A USB 3.2 Gen 2 10Gbps 1 x Type-C USB 3.2 Gen 1 5Gbps |
| HDMI⢠Output | Optional via a PCIe adapter |
| Form Factor | Tower |
| LED Indicators | Status/Power, USB, LAN, Drive 1-8, M.2 SSD 1-2 |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 180.2 Ã 329.3 Ã 279.6 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
|
| Weight (Net) | 7.4 kg |
| Weight (Gross) | 8.3 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27ËC (80.6ËF) |
| Power Supply Unit | 250W, 100-240V AC, 50-60Hz, 3.5A |
| Power Consumption: HDD Sleep Mode | 25.668 W |
| Power Consumption: Operating Mode, Typical | 54.067 W
Tested with drives fully populated.
|
| Fan | System fan: 2 x 120mm CPU fan: 1 x 60mm |
| System Warning | Buzzer |
| Kensington Security Slot | |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 2000 |
