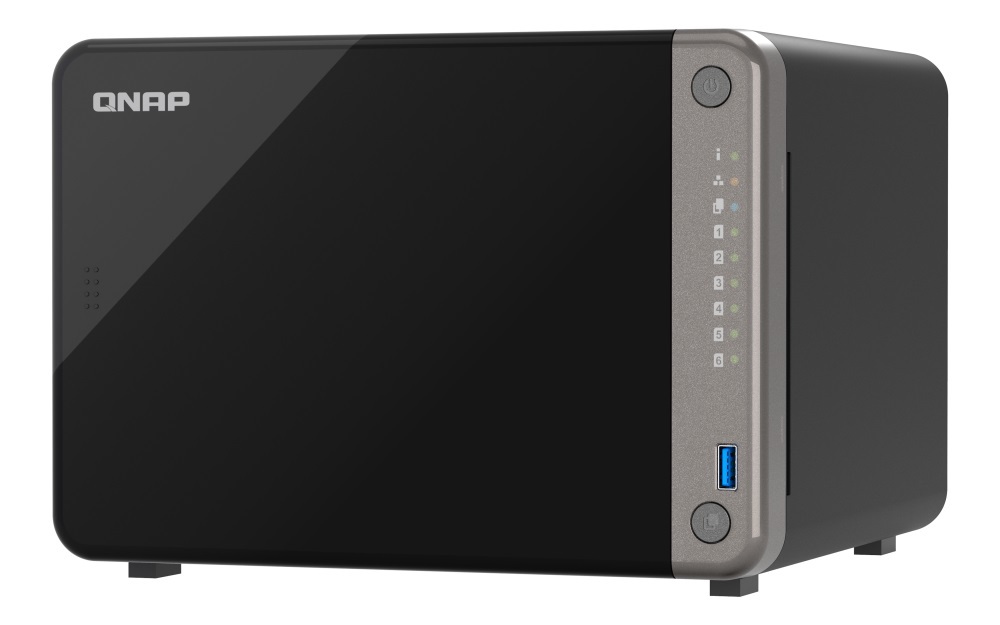

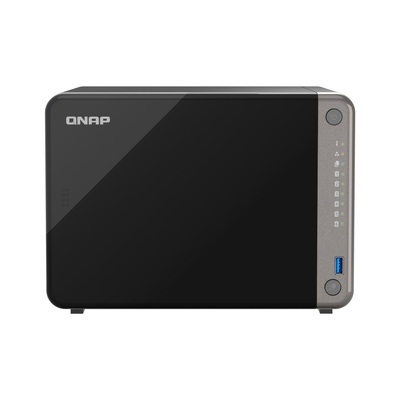

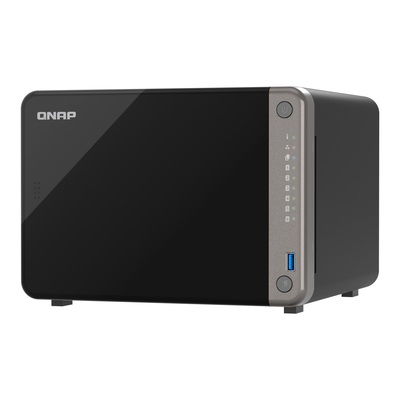

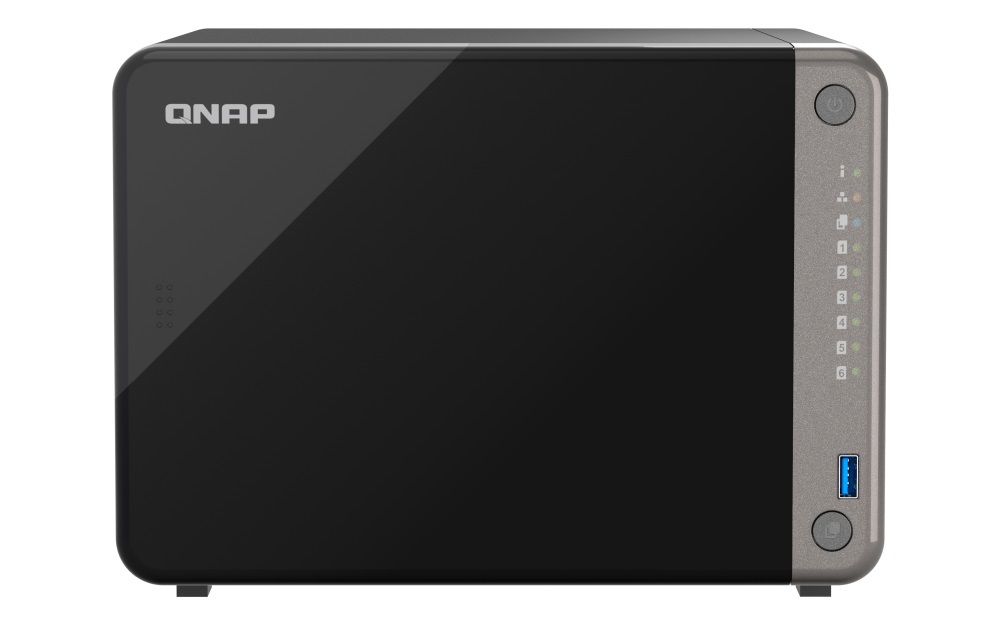

TS-AI642-8G

TS-AI642-8G 8-core ARM Cortex 64-bit Processor ( 4-core Cortex-A76 2.2 GHz + 4-core Cortex-A55 1.8 GHz ), 8 GB on board (non-expandable)

The next-generation TS-AI642 AI NAS is specifically designed for AI-powered video and image recognition applications. Adopting the 64-bit ARM Cortex-A76/-A55 SoC octa-core processor with up to 6 TOPS NPU (Neural network Processing Unit), the TS-AI642 not only tackles image processing and analysis tasks, but also offloads CPU workloads when running AI applications to reduce system operation power consumption. With powerful computing performance, high-capacity storage space and flexible I/O expandability, the TS-AI642 allows enterprises to easily deploy an AI NAS solution for video surveillance, image recognition, and face recognition applications.

2.5GbEhdhdmi

  • AI computing performance of 6 TOPS NPU

    With a built-in NPU (Neural network Processing Unit) processor, the TS-AI642 boosts performance for high-speed face and object recognition.

  • 2.5GbE is a must!

    2.5GbE provides higher transmission speeds with existing Cat 5e cables, making file backup/restore and media conversion smoother.

  • PCIe Gen 3 Expandability

    Install a 2.5/5/10GbE adapter, QM2 card, or USB 3.2 Gen 2 (10Gbps) card to increase application potential.

  • Professional surveillance NAS solution

    QVR Elite allows you to deploy up to 64 channels (2 channels are included for free).

  • Dual 4K HDMI Output

    Use two screens for surveillance or 4K high-resolution video playback.

  • ARM hardware transcoding

    Supports ARM NEON technology that accelerates video processing for a better media experience.

Expand storage capacity up to 18 hard drives

The TS-AI642 supports a storage capacity of up to 110 TB by installing six 3.5-inch 22 TB hard drives in RAID 5. By connecting a TL-D1600S QNAP storage expansion unit, you can add an additional twelve hard drives to the TS-AI642 to achieve up to 350TB storage space to meet growing storage requirements. Or connect TR Series storage expansion units to add Hardware RAID protection for expanded storage.

  • Storage capacity

    110 TB

 1. Install six 3.5-inch 22 TB hard drives in RAID 5 on TS-AI642 and six 3.5-inch 22 TB hard drives in RAID 5 on TL-D1600S.
2. The storage expansion unit can only be used as an individual storage pool or volume on the NAS. Its storage pool/volume cannot be combined into the connected NAS. NAS applications cannot be installed on the storage expansion unit.



NPU accelerates on-device AI performance. 3x Faster face recognition.

Adopting an NPU (Neural network Processing Unit), the TS-AI642 boosts QNAP AI Core (the AI-powered engine for image recognition) performance for high-speed face and object recognition.

  • QuMagie photo management

    NPU greatly accelerates image recognition performance when uploading pictures in QuMagie, realizing intelligent classification.

    200% performance boost in image recognition*

  • Qsirch full-text search engine

    NPU accelerates AI OCR image recognition technology to make capturing text in images more efficient.

    20% performance boost capturing text from images with AI OCR*

  • QVR Face Insight facial recognition

    QVR Face instantly recognizes faces and runs analytic tasks within 0.2 seconds. NPU allows more IP cameras to be analyzed at the same time.

    Learn More: QVR Face

    10 cameras for real-time attendance management analytics

  • QVR Human people counting solution

    QVR Human provides real-time counting data and analytics, and NPU allows more IP cameras to be analyzed at the same time.

    Learn More: QVR Human

    3 cameras for real-time analytics

 Note: By comparing with the same-grade 6-bay NAS.



Efficient image search with AI photo management

TS-AI642 is the best photo and file storage center. Store and organize thousands of photos and find them anytime you want with powerful AI image recognition.



Smart surveillance

The TS-AI642 provides a professional surveillance NAS solution, compatible with 6,000+ IP cameras of 190+ brands and thousands of ONVIF network cameras. Full HD (1080p) surveillance video recordings of 2 cameras can be stored for 2 years.

All-in-one surveillance

Say goodbye to expensive and complicated PC NVR. QNAP’s integrated surveillance NAS solution offers a subscription licensing solution or perpetual licensing solution for flexible deployment based on your needs.

Connect to HDMI monitors

The TS-AI642 has dual HDMI output for direct surveillance video playback to two monitors, removing the need for a dedicated workstation.

Surveillance failover

Install the high-availability QVR Guard app to automatically takeover recording tasks if a QVR Pro server fails.

Next-generation 2.5G NAS with power-efficient ARM SoC 8-core processor

The TS-AI642 adopts the ARM Cortex 64-bit-A76/A55 SoC octa-core processor with ARM Mali-G610 MC4 GPU, offering excellent computing performance at a low power comsumption. TS-AI642 has one 2.5GbE port and one PCIe slot for upgrading to 10GbE connectivity. SATA 6Gb/s drives are supported to deliver reliable read/write performance for hosting versatile NAS applications in offices.

  • Processor

    ARM Cortex 64-bit A76/A55 octa-core processor (2.2 GHz/1.8 GHz)

  • NPU

    Up to 6 TOPS NPU high compute performance for boosting high-speed face and object recognition.

  • Memory

    8 GB RAM (non-expandable)

  • Connections

    Two USB 3.2 Gen 1 (5Gbps) ports and two USB 2.0 ports



(TS-AI642-8G)



CPU 8-core ARM Cortex 64-bit Processor ( 4-core Cortex-A76 2.2 GHz + 4-core Cortex-A55 1.8 GHz )
CPU Architecture 64-bit ARM
Graphic Processors ARM Mali-G610 MC4
Floating Point Unit
Encryption Engine
Hardware-accelerated Transcoding
Neural Processing Unit (NPU)
System Memory 8 GB on board (non-expandable)
Note: Reserves some RAM for use as shared graphics memory.
Maximum Memory 8 GB
Flash Memory 4GB (Dual boot OS protection)

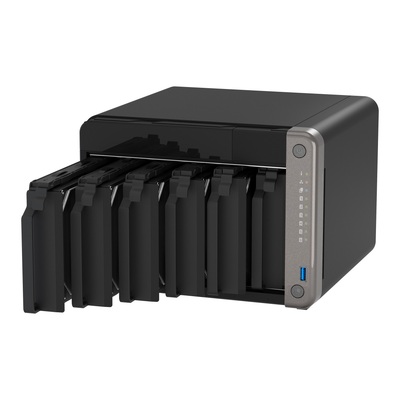

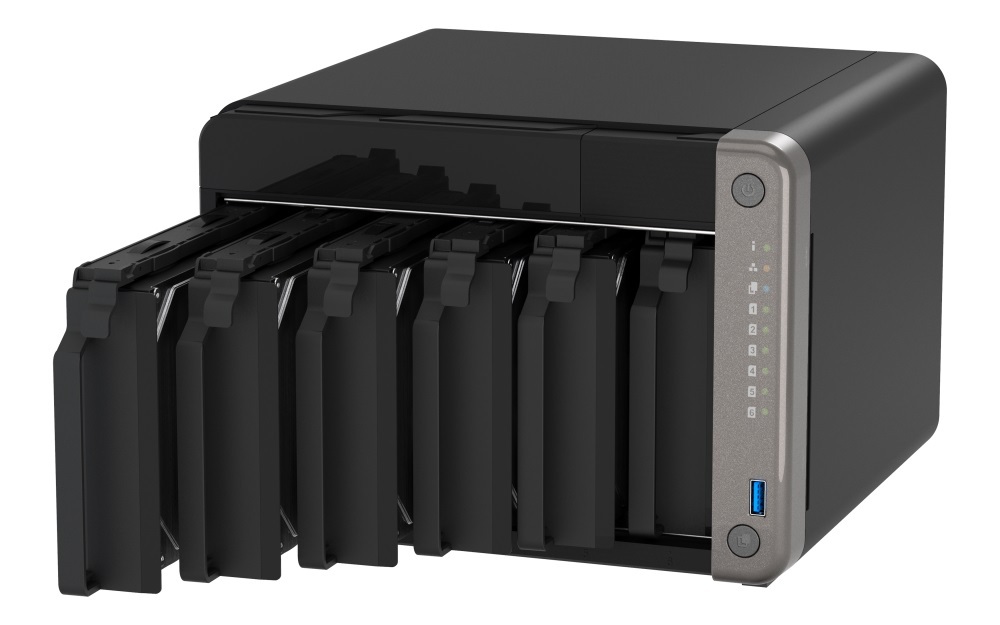

Drive Bay 6 x 3.5-inch SATA 6Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
SSD Cache Acceleration Support

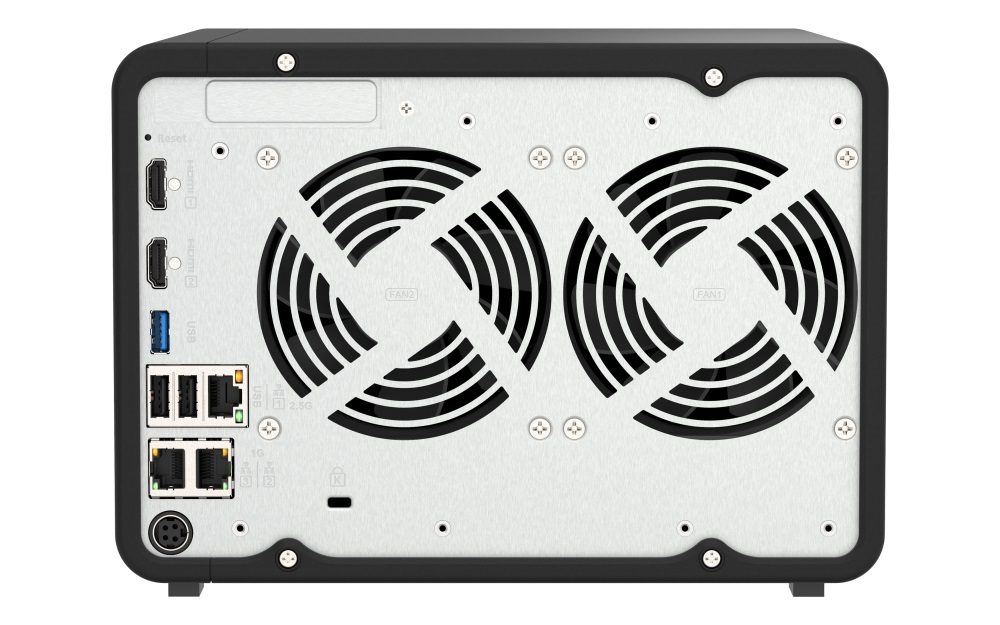

Gigabit Ethernet Port (RJ45) 2
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 1 (2.5G/1G/100M/10M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via an adapter
10 Gigabit Ethernet Port Optional via an adapter
Wake on LAN (WOL)
Jumbo Frame
PCIe Slot 1
Slot 1: PCIe Gen 3 x2
USB 2.0 port 2
USB 3.2 Gen 2 (10Gbps) Port 2 x Type-A
IR Sensor (Optional QNAP RM-IR004 remote control)
HDMI Output 2, HDMI 1.4b
Form Factor Tower
LED Indicators Power/Status, LAN, USB, HDD1-6
Buttons Power, USB copy, Reset
Dimensions (HxWxD) 171 × 235 × 226 mm
Weight (Net) 2.92 kg
Weight (Gross) 4.51 kg
Operating Temperature 0 ~ 40˚C (32˚F ~ 104˚F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 120W adapter, 100-240V
Power Consumption: HDD Sleep Mode 14.005 W
Power Consumption: Operating Mode, Typical 33.33 W
Tested with drives fully populated.
Fan 2 x 90mm, 12VDC
System Warning Buzzer
Kensington Security Slot
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 1,500
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
  1. Operating System

    QTS 5.1.0

    Supported Client Operating Systems
    1. Apple Mac OS 10.10 or later
    2. Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
    3. IBM AIX 7, Solaris 10 or later UNIX
    4. Microsoft Windows 7, 8, 10 and 11
    5. Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 and 2022
    Show more...
    Supported Browsers
    1. Apple Safari (latest version)
    2. Google Chrome (latest version)
    3. Microsoft Edge (latest version)
    4. Mozilla Firefox (latest version)
    Supported Languages

    Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish

    Storage Pool



    SED Storage Pool



    Maximum Pool size

    308 TB

    Maximum number of storage pool

    128

    Volume Type

    Thick, Thin, Static

    Maximum volume size

    250 TB

    Note: At least 4 GB RAM is required.

    Maximum number of volume

    128

    Maximum shared folder size

    250 TB

    Maximum number of shared folder

    512

    JBOD Expansion



    VJBOD / VJBOD Cloud



    iSCSI Service



    Fibre Channel Service



    LUN Type

    Thick, Thin

    File-based iSCSI LUN



    Block-based iSCSI LUN



    Maximum LUN size

    250 TB

    Note: At least 4 GB RAM is required.

    Maximum number of targets LUN

    128

    LUN feature
    1. LUN Mapping (LUN can be moved between iSCSI and FC)
    2. LUN Masking
    3. WWPN Aliases Import/Export
    4. FC Port Group
    5. FC Port Binding
    6. Multipath IO (MPIO)
    7. Online LUN capacity expansion
    8. LUN snapshot
    9. LUN snapshot replication and clone
    Show more...
    Auto Tiering



    Requires minimum 2GB memory.

    RAID Type
    1. 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
    2. 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50
    3. 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10
    4. 2-bay: JBOD, Single, RAID 0, 1
    RAID Group



    To ensure data security, system stability, and storage performance, the maximum number of drives for a single RAID group is now 16 (applicable to RAID 5, RAID 6, RAID TP, and subgroups of RAID 50 and RAID 60). Nevertheless, users can combine multiple RAID groups into a large storage pool that contains more than 16 drives, using RAID 50, RAID 60, or RAID 10 as the RAID configuration. This enhancement will only be applied to new RAID groups. All existing RAID groups and storage systems will not be affected.

    RAID Level Migration



    RAID Expansion (by adding Disk)



    RAID Expansion (by replacing bigger Disks)



    Storage Pool Expansion (by adding RAID Group)



    RAID Hot Spare

    Global, Local

    RAID Sync/Rebuild/Scrubbing



    Internal drive

    EXT4

    External drive

    EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model)

    Note: To use exFat in certain models you must purchase an exFAT driver license from License Center.

    Disk, Enclosure Locate



    Disk S.M.A.R.T. Scan



    Disk S.M.A.R.T. Data Migration



    Ironwolf Health Management



    Secure Erase



    SSD Trim



    SSD Life Estimation



    Disk Roaming



    Disk Standby



    Volume Snapshot



    LUN Snapshot



    Maximum Snapshot (Per System)

    Check maximum number of snapshots of your NAS

    Maximum Snapshot (Per Volume / LUN)

    Check maximum number of snapshots of your NAS

    Minimum Snapshot Interval

    5 minutes

    Snapshot Retention Policy



    Self-serve Snapshot Recovery



    Application Consisted Snapshot



    Snapshot Full Clone



    Snapshot Replica / Vault



    SSD read-only Cache



    SSD read-write cache



    SSD write-only cache



    SSD Cache Maximum Size

    Check your QNAP NAS cache capacity and RAM requirements

    SSD Cache RAID

    0, 1, 5, 6, 10

    SSD profiling tool



    External Device Management



    Mount Smart Phone (MTP)



    External RAID Device (QNAP so on) Management (External Device Mode)



    External RAID Device (QNAP so on) Management (NAS Mode)



    File Server
    1. File sharing across Windows, Mac, and Linux/UNIX
    2. Microsoft networking (CIFS/SMB)
    3. Apple networking (AFP)
    4. NFS version 3/4 services
    FTP Server
    1. QuFTP
    2. FTP, SFTP and TFTP protocols
    3. FTP over SSL/TLS (explicit FTPS)
    4. FXP support
    Maximum FTP connection

    1024

    File Station (Web)



    Object Storage



    Local user account

    4,096

    Local group account

    512

    Domain user/group account

    200,000

    Domain Security



    Domain Controller



    Shared folder permission



    Advanced folder permission

    , (AFP, CIFS/SMB, FTP, and File Station)

    Windows ACL

    , (CIFS/SMB)

    User quota



    Group quota



    Folder quota

    , (Snapshot shared folder)

    Home folder



    Resource Monitor



    SNMP

    V2, V3

    Network recycle bin
    1. Recover files deleted using AFP, CIFS/SMB, and File Station
    2. Automatic cleanup and file type filter
    System Log & Notification Center

    Log recording: 3,000 event per second

    Smart Fan



    Schedule on/off



    Internet protocol

    IPv4, IPv6

    Virtual Switch



    Port trunking

    , (7 modes)

    VLAN



    DHCP Server



    DDNS (Dynamic Domain Name Service)



    Network access protection with auto-blocking

    SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP

    Security Counselor



    Malware Remover



    AES 256-bit Volume Encryption validated by FIPS 140-2 CAVP



    2-step verification



    Allow/Deny List



    Access Protection



    Service binding



    Firewall



    vSphere Web Client Plug-in



    VMware vSphere VAAI for iSCSI



    VMware vSphere VAAI for NAS



    Windows ODX



    Windows/VMware Snapshot Agent



    HTTP/HTTPS Connections

    TLS 1.0/1.1/1.2/1.3

    Supports WebDAV Connection



    Supports Virtual Hosts

    32

    Qsync



    Note: At least 1 GB RAM is required.

    [Qsync] Management Mode

    User customization, Central

    [Qsync] Qsync client supported platforms

    Windows, macOS, Ubuntu, Android, and iOS

    [Qsync] Maximum number of version control

    64

    HybridMount



    Note: At least 1 GB RAM is required.

    [HybridMount] File Cloud Gateway

    Concurrent Connections = 20 Upload & 20 Download

    [HybridMount] Network Drive Mount



    [HybridMount] Free cloud gateway sessions

    2

    HBS (Hybrid Backup Sync)



    Note: At least 1 GB RAM is required.

    [HBS (Hybrid Backup Sync)] NAS to NAS backup



    [HBS (Hybrid Backup Sync)] Cloud Backup



    [HBS (Hybrid Backup Sync)] Cloud Sync



    [HBS (Hybrid Backup Sync)] 2-way and Active Sync



    [HBS (Hybrid Backup Sync)] Apple Time Machine Backup



    [HBS (Hybrid Backup Sync)] External drive backup



    [HBS (Hybrid Backup Sync)] Maximum number of backup job

    400

    Boxafe



    Note: At least 4 GB RAM is required.

    [Boxafe] Office 365 Backup



    [Boxafe] Google Workspace Backup



    [Boxafe] Full-text search



    Qsirch



    Note: This feature is supported by all QNAP NAS devices with at least 2 GB of memory

    [Qsirch] Previews

    Photos, music, videos, PDFs, Gmail, and others

    [Qsirch] Integrate Mac Finder



    [Qsirch] Advanced picture search



    [Qsirch] Search filters



    QuMagie



    Note: At least 1 GB RAM is required.

    [QuMagie] Browse photos



    [QuMagie] Virtual and smart albums



    [QuMagie] AI-assisted photo management

    People, things, places, and others

    Antivirus (free)



    QVPN Service



    Note: At least 1 GB RAM is required.

    [QVPN Service] Remote Access

    PPTP, L2TP/IPSec, OpenVPN, WireGuard, QBelt (QNAP proprietary)

    [QVPN Service] Supportedd utility and mobile app

    Windows, macOS, iOS, and Android

    [QVPN Service] Supported maximum clients

    100

    HD Station



    LDAP Server



    RADIUS



    SQL server



    License Center



    Multimedia Console



    Photo Station



    Music Station



    Video Station



    Download Station



    Notes Station



    Qfiling



    Media Streaming add-on



    QmailAgent



    QuWAN



    DA Driver Analyzer



    Q'center



    Note: The application is available in the App Center and in virtual appliance marketplaces (VMware vSphere ESXi and Microsoft Hyper-V).

    Q'center Server



    Q'center Agent



    Connect to Q'center



    Container Station



    Note: At least 1 GB RAM is required.

    [Container Station] Supported type

    LXC/LXD and Docker

    Note: LXD has been supported after Container Station 2.4

    [Container Station] Docker Hub Registry



    [Container Station] Container importing and exporting



    [Container Station] Console mode



    QVR Pro



    Note: At least 4 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.

    [QVR Pro] Recording Technique

    Index database based

    [QVR Pro] License Type

    Perpetual

    [QVR Pro] User-defined trigger events



    [QVR Pro] Metadata



    [QVR Pro] QVR Pro Client (Desktop)

    Windows, macOS, and QNAP HybridDesk Station

    [QVR Pro] QVR Pro Client (Mobile)

    Android and iOS

    [QVR Pro] Recording camera streams

    H.264

    [QVR Pro] Free built-in camera channels

    8

    QVR Elite



    Note: At least 1 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.

    [QVR Elite] Recording Technique

    Standard MP4 file based

    [QVR Elite] License Type

    Subscription-based

    [QVR Elite] User-defined trigger events



    [QVR Elite] QVR Pro Client (Desktop)

    Windows, macOS, and QNAP HybridDesk Station

    [QVR Elite] QVR Pro Client (Mobile)

    Android and iOS

    [QVR Elite] Recording camera streams

    H.264

    [QVR Elite] Free built-in camera channels

    2

    QVR Pro Client



    [QVR Pro Client] Dynamic View Layout



    [QVR Pro Client] Windows



    [QVR Pro Client] Mac



    [QVR Pro Client] HybridDesktop



    [QVR Pro Client] iOS



    [QVR Pro Client] Android



    QVR Human



    QVR Face



    The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/solution/qvr-face/en-us/

    QVR DoorAccess



Note:
QTS does not support DRM content and some IPv6 services.
Some data encryption features may be unavailable because of country-specific legislative restrictions.
Some features may vary by model.
Designs and specifications are subject to change without notice.

SKU TS-AI642-8G
Barcode # 4711103084335
Brand QNAP
Shipping Weight 4.2000kg
Shipping Width 0.350m
Shipping Height 0.260m
Shipping Length 0.390m

Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

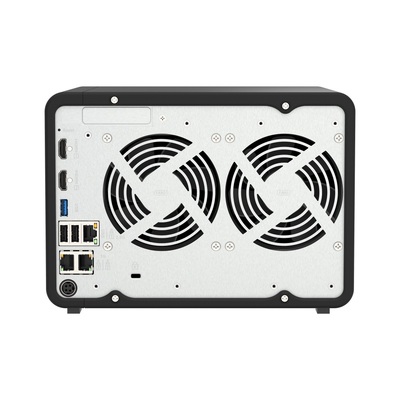

QNAP 6-BAY NAS(NO DISK) 8-core ARM Cortex-A76&A55, 8GB, 2.5GbE(1), PCIe - TS-AI642-8G

Model # TS-AI642-8G

  • SKU: TS-AI642-8G

$2,499.00
$2,999.00
SAVE $500.00 (17%)
Sold Out

Pre-ordering not available for this item.




We Also Recommend


More From This Category
