Highly-reliable ZFS-based storage with PCIe Gen 4 expandability for 10/25GbE connectivity, M.2 NVMe SSD caching and multi-threads processors for virtualization applications
Â

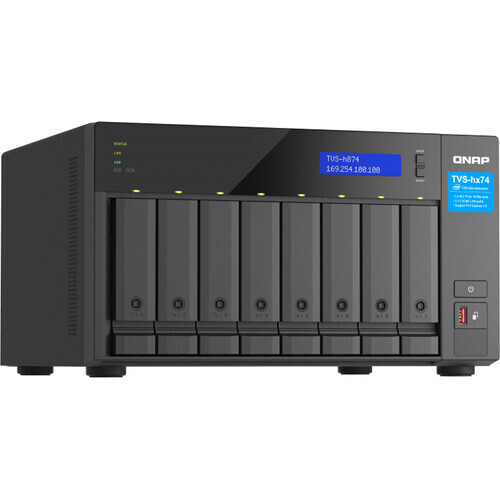

With an Intel® Core⢠multicore-core Processor to support the ZFS-based QuTS hero operating system, the TVS-h874 SMB NAS ensures data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, real-time SnapSync, and SSD optimization. Whether for mission-critical file servers, virtualization servers, collaborative video editing, or efficient data backup and recovery applications, the TVS-h874 delivers an ideal NAS solution. The high-performance TVS-h874 provides PCIe Gen 4 (up to twice the transmission speed of Gen 3) expandability, M.2 NVMe SSD caching, and 2.5GbE/10GbE connectivity for high-speed virtualization network environments.
-
M.2 PCIe Gen 4
Enable NVMe SSD caching or Edge TPU empowered AI image recognition.
-
2.5GbE/10GbE connectivity
2.5GbE ports (TVS-h874-i9-64G is preinstalled with a dual-port 10GBASE-T network card) excel in bandwidth-demanding applications (including massive file transfer, high-speed backup/restoration, multimedia streaming, and virtualization).
-
Flexible PCIe Gen4 expansion
PCIe slots allow for installing 2.5/5/10/25GbE adapters, QM2 cards, or entry-level graphics cards to increase application performance.
-
Virtual machines and containers
Host multiple virtual machines and containers with optimized resource utilization.
-
Full HD HDMIâ¢
Directly view creative works on an HDMI⢠display. Enjoy smooth full HD media playback and real-time transcoding.
-
Faster image recognition with AI acceleration
The built-in Intel® OpenVINO⢠and Intel® UHD Graphics help boost AI image recognition and offload CPU workloads.
Specification
Â
| CPU | Intel® Core⢠i9 16-core (8P+8E) /24-thread Processor |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics 770 |
| Floating Point Unit | yes |
| Encryption Engine | Â (AES-NI) |
| Hardware-accelerated Transcoding | yes |
| System Memory | 64 GB SODIMM DDR4 (2 x 32 GB) |
| Maximum Memory | 64 GB ( 2 x 32 GB) |
| Memory Slot | 2 x SODIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | yes |
| M.2 Slot | 2 x M.2 2280 PCIe Gen 4 x4 slots
Compatible with NVMe SSD PCIe Gen 3 and above.Â
|
| SSD Cache Acceleration Support | yes |
| GPU pass-through | yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 10 Gigabit Ethernet Port | 2 x 10GBASE-T |
| Wake on LAN (WOL) | yes |
| Jumbo Frame | yes |
| PCIe Slot | 2 Slot 1: PCIe Gen 4 x16 Slot 2: PCIe Gen 4 x4 *Slot 1 is preinstalled with a 10GbE network adapter.
Card dimensions for PCIe slot 1~Slot 2ï¼185 x 131.15 x 18.76 mm / 7.28 x 5.16 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 2 (10Gbps) Port | 1 x Type-C USB 3.2 Gen 2 10Gbps 2 x Type-A USB 3.2 Gen 2 10Gbps |
| HDMI⢠Output | 1, HDMI⢠1.4b (up to 4096 x 2160 @ 30Hz) |
| Form Factor | Tower |
| LED Indicators | HDD 1-8, Status, LAN, USB port, M.2 port |
| LCD Display/ Button | yes |
| Buttons | Power, Reset, USB Copy |
| Dimensions (HxWxD) | 180.2 Ã 329.3 Ã 279.6 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
|
| Weight (Net) | 7.34 kg |
| Weight (Gross) | 8.99 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27ËC (80.6ËF) |
| Power Supply Unit | 350W (PWR-PSU-350W-DT01), 100-240V |
| Power Consumption: HDD Sleep Mode | 72.331 W |
| Power Consumption: Operating Mode, Typical | 96.247 W
Tested fully populated with WD10EFRX hard drives.
|
| Fan | System fan: 2 x 120mm, 12VDC CPU fan: 1 x 60mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | yes |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 3500 |
