10-bay 1U U.2 NVMe all-flash NAS

QNAP TS-h1090FU-7232P-64G 10-Bay 25GbE NVMe NAS

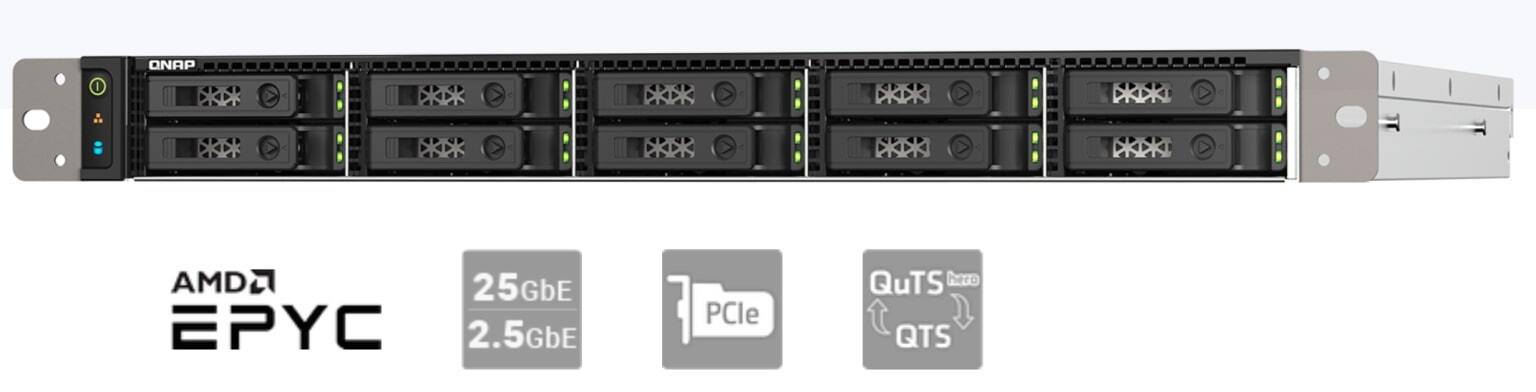

The QNAP TS-h1090FU-7232P-64G is a diskless 10-bay 1U all-flash NAS with an AMD EPYC 8-core/16-thread processor, 64GB RDIMM DDR4 ECC memory, dual 25GbE SFP28, dual 2.5GbE and two PCIe Gen 4 x16 slots.

Diskless 10-bay NAS64GB ECC memoryDual 25GbE SFP285-year warranty

QNAP TS-h1090FU-7232P-64G 10-bay 25GbE NVMe all-flash NAS

What is the QNAP TS-h1090FU-7232P-64G?

It is a high-density U.2 NVMe and SATA all-flash NAS for low-latency file services, virtualised workloads, data-centre storage, media streams and large backup or restore tasks.

10 BaysU.2 NVMe Gen 4 or SATA SSD

64GB ECC12 RDIMM slots

2 × 25GbESFP28 SmartNIC ports

2 × PCIe Gen 4 x16Low-profile expansion

Need help choosing a NAS?

Explore the DeviceDeal NAS Buying Guide

Compare NAS types, storage considerations and practical features before selecting your next network storage system.

Read NAS Buying Guide

AMD EPYC processing and large ECC memory capacity

The supplied specifications identify an AMD EPYC 7232P/7252 8-core, 16-thread processor with speeds up to 3.2GHz.

This configuration includes 64GB RDIMM DDR4 ECC memory and provides twelve RDIMM slots, with a supplied maximum listed as 1TB+ using 12 × 128GB modules.

The CPU uses a 64-bit x86 architecture.
AES-NI hardware encryption support is included.
Use compatible QNAP memory modules and follow the hardware user manual for installation.

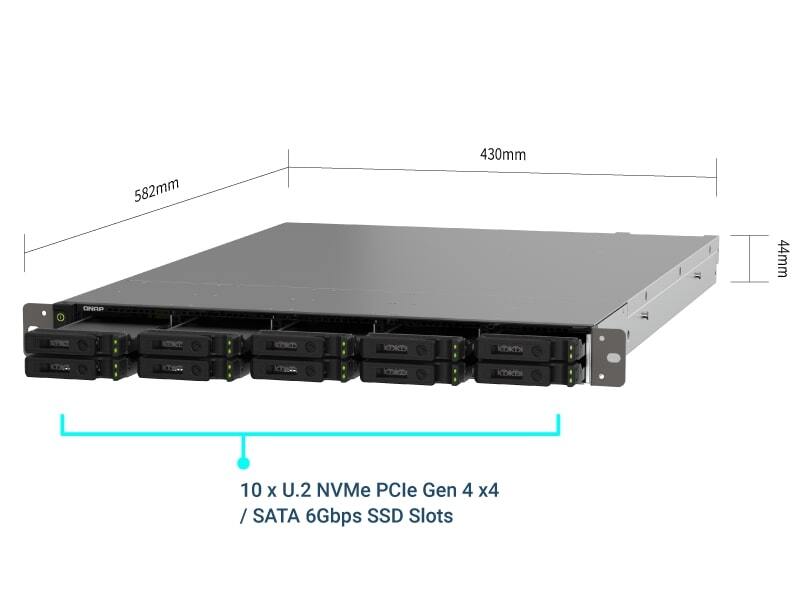

Ten U.2 NVMe or SATA SSD bays

Ten 2.5-inch bays support compatible U.2 NVMe Gen 4 x4 solid state drives and 2.5-inch SATA solid state drives.

The supplied product information positions the all-flash platform for random I/O performance and low-latency workloads.

The system is shipped without SSDs.
The drive bays are listed as hot-swappable.
SSD cache acceleration is supported.

Dual 25GbE, dual 2.5GbE and SR-IOV

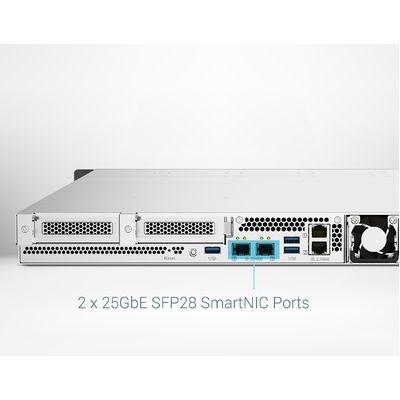

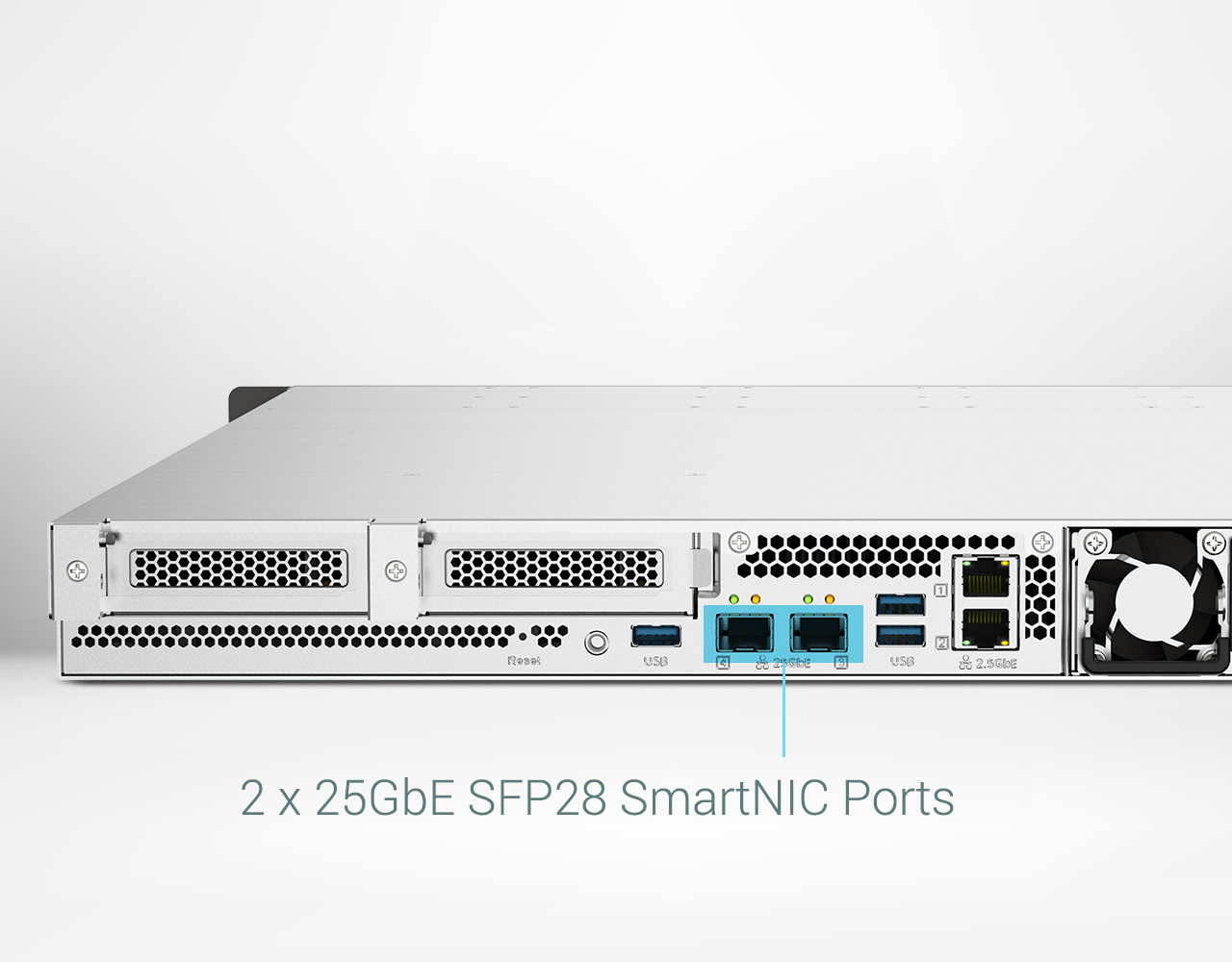

Two 25GbE SFP28 SmartNIC ports support high-bandwidth workloads, while two 2.5GbE ports provide additional multi-gigabit connectivity.

SR-IOV is supported for compatible virtualisation deployments.

Wake on LAN is supported through the 2.5GbE port.
Jumbo Frame support is included.
Three USB 3.2 Gen 1 ports are listed.

PCIe Gen 4 expansion and dual power supplies

Two PCIe Gen 4 x16 slots support low-profile expansion cards for compatible networking, QM2 or Fibre Channel configurations.

Two 550W power supply units with 100240V input are listed for the 1U rackmount chassis.

Slot 1 supports cards up to 198 × 68.9 × 18.76mm.
Slot 2 supports cards up to 250 × 68.9 × 18.76mm.
The chassis measures 44 × 430 × 582mm.

Important purchasing and deployment notes

This model is supplied without SSDs; compatible U.2 NVMe or SATA SSDs must be purchased separately.
The detailed supplied specification identifies an 8-core/16-thread AMD EPYC processor with speeds up to 3.2GHz.
Only low-profile PCIe cards are supported, with slot-specific size limits.
Confirm transceiver, cable, drive, memory and expansion-card compatibility for the planned deployment.

Frequently asked questions

What is the QNAP TS-h1090FU-7232P-64G?

It is a diskless 10-bay 1U U.2 NVMe and SATA all-flash NAS with 64GB ECC memory, dual 25GbE SFP28 and dual PCIe Gen 4 x16.

Does this model include SSDs?

No. The supplied specifications state that the system is shipped without SSDs.

Which drives are supported?

It supports compatible 2.5-inch U.2 NVMe Gen 4 x4 solid state drives and 2.5-inch SATA solid state drives.

Which processor is installed?

The detailed supplied specification identifies an AMD EPYC 7232P/7252 eight-core, sixteen-thread processor with speeds up to 3.2GHz.

How much memory is installed?

This configuration includes 64GB RDIMM DDR4 ECC memory.

What is the maximum memory capacity?

The supplied specifications list 1TB+ using twelve 128GB RDIMM modules.

Which network ports are included?

It includes two 25GbE SFP28 SmartNIC ports and two 2.5GbE ports.

Does it support SR-IOV?

Yes. SR-IOV support is listed in the supplied specifications.

How many PCIe slots are included?

It includes two low-profile PCIe Gen 4 x16 slots.

Which USB ports are included?

The supplied specifications list three USB 3.2 Gen 1 ports.

What are the chassis dimensions?

The 1U rackmount chassis measures 44 × 430 × 582mm.

What manufacturer warranty applies?

The supplied specifications list a five-year QNAP manufacturer warranty.

(TS-h1090FU-7232P-64G)

Features and highlights

Key capabilities below are organised from the supplied product information for TS-h1090FU-7232P-64G.

Ten U.2 NVMe or SATA bays

The hot-swappable 2.5-inch bays support compatible U.2 NVMe Gen 4 x4 and SATA SSDs.

AMD EPYC 8-core platform

The supplied specification lists an 8-core, 16-thread EPYC processor with speeds up to 3.2GHz.

64GB RDIMM ECC

Installed memory is supported by twelve DDR4 RDIMM slots and a supplied 1TB+ maximum.

Dual 25GbE SFP28

Two SmartNIC ports support high-bandwidth file, media and virtualisation workloads.

Dual PCIe Gen 4 x16

Two low-profile expansion slots support compatible networking, QM2 and Fibre Channel cards.

Dual 550W power

Two power supply units are listed for the 1U rackmount chassis.

Important: This system is supplied without SSDs. Confirm compatible U.2 NVMe or SATA drives, SFP28 transceivers and cables, memory and low-profile PCIe cards before purchase.

TS-h1090FU-7232P-64G specifications

Specifications below are organised from the supplied QNAP product information for TS-h1090FU-7232P-64G.

Processor and Memory

CPU	AMD EPYC 7232P/7252 8-core/16-thread processor, up to 3.2GHz
CPU Architecture	64-bit x86
Encryption Engine	Yes (AES-NI)
System Memory	64GB RDIMM DDR4 ECC
Maximum Memory	1TB+ (12 x 128GB)
Memory Slots	12 x RDIMM DDR4

Storage

Drive Bays	10 x 2.5-inch U.2 PCIe NVMe / SATA 6Gbps The system is shipped without SSDs.
Compatible Drives	2.5-inch U.2 NVMe Gen 4 x4 solid-state drives 2.5-inch SATA solid-state drives
Hot-Swappable	Yes
SSD Cache Acceleration	Supported

Networking

2.5 Gigabit Ethernet	2 x 2.5GbE ports (2.5G/1G/100M/10M)
25 Gigabit Ethernet	2 x 25GbE SFP28 SmartNIC ports
Wake on LAN	Yes Supported through the 2.5GbE port only.
Jumbo Frame	Supported
SR-IOV	Yes

Expansion and Connectivity

PCIe Slots	2 x PCIe Gen 4 x16 slots Low-profile PCIe cards only. Slot 1 card dimensions: 198 x 68.9 x 18.76mm. Slot 2 card dimensions: 250 x 68.9 x 18.76mm. Wider cards can be installed if the next PCIe slot is not used.
USB Ports	3 x USB 3.2 Gen 1 ports

Physical Specifications

Form Factor	Rackmount
LED Indicators	Disk, status, LAN and storage expansion port status
Buttons	Power and reset
Dimensions	44 x 430 x 582mm
Net Weight	11.6kg
Gross Weight	13.4kg

Power and Cooling

Power Supply	550W PSU x 2, AC 100240V
Typical Operating Power Consumption	157.97W Tested with drives fully populated.
Cooling Fans	5 x 60mm, 12VDC
System Warning	Buzzer

Environmental

Operating Temperature	040°C (32104°F)
Storage Temperature	-2070°C (-4158°F)
Relative Humidity	595% RH non-condensing, wet bulb: 27°C (80.6°F)

Warranty and Connections

Standard Warranty	5 years
Maximum Concurrent CIFS Connections	10,000 with maximum memory installed

SKU	TS-h1090FU-7232P-64G
Model #	TS-h1090FU
Barcode #	885022024476
Brand	QNAP
Shipping Weight	13.4700kg

5 YearsQNAP manufacturer warranty

5-year QNAP manufacturer warranty

The supplied specifications list a 5-year standard manufacturer warranty for the QNAP TS-h1090FU-7232P-64G.

Warranty coverage, eligibility and claim assessment are subject to QNAPs applicable warranty terms. Please retain your DeviceDeal tax invoice as proof of purchase.
