AMD Ryzen⢠7000 Series processors
2x M.2 PCIe Gen 5 slots, 2x 10GBASE-T, 3x PCIe Gen 4 slots
Long-term availability (Up to year 2030)
Â

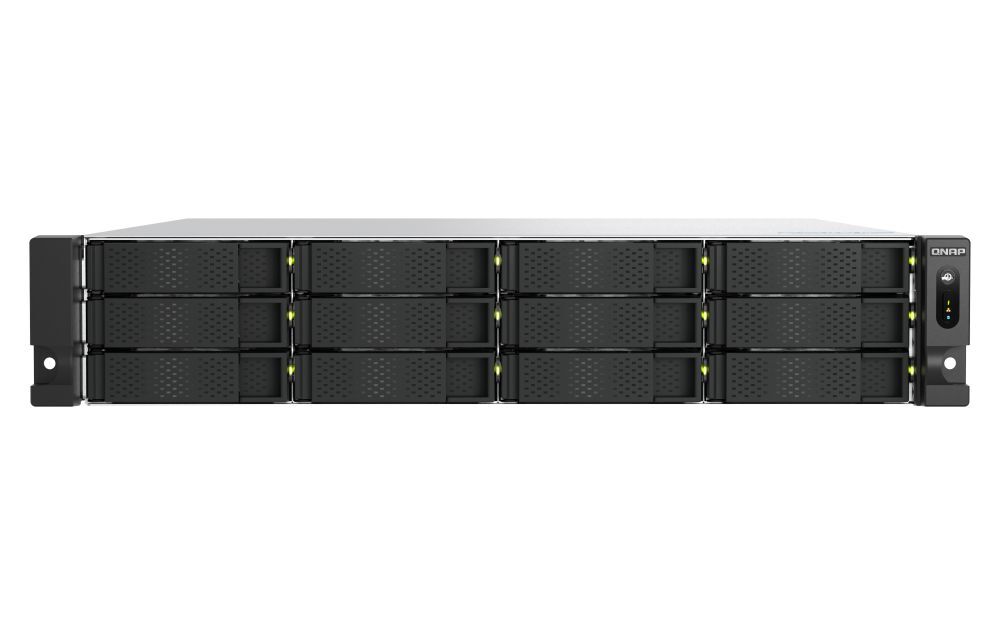

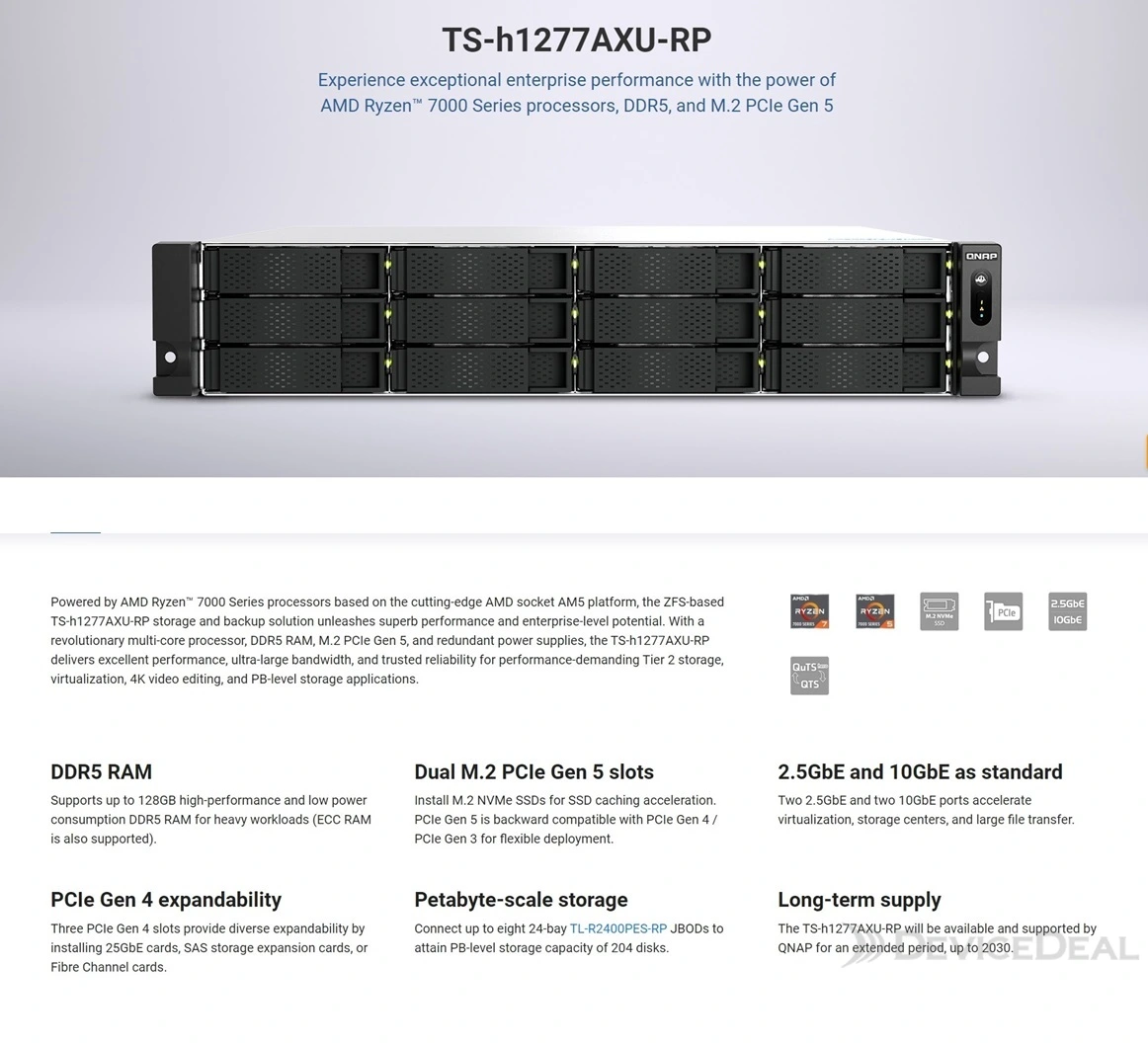

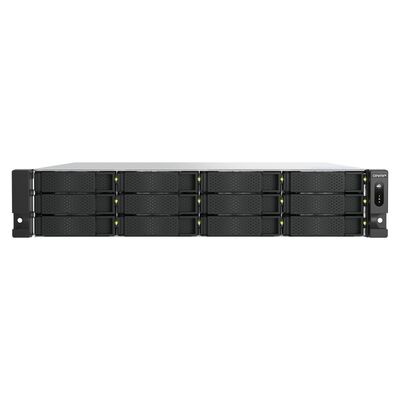

Powered by AMD Ryzen⢠7000 Series processors based on the cutting-edge AMD socket AM5 platform, the ZFS-based TS-h1277AXU-RP storage and backup solution unleashes superb performance and enterprise-level potential. With a revolutionary multi-core processor, DDR5 RAM, M.2 PCIe Gen 5, and redundant power supplies, the TS-h1277AXU-RP delivers excellent performance, ultra-large bandwidth, and trusted reliability for performance-demanding Tier 2 storage, virtualization, 4K video editing, and PB-level storage applications.
-
DDR5 RAM
Supports up to 192GB high-performance and low power consumption DDR5 RAM for heavy workloads (ECC RAM is also supported).
-
Dual M.2 PCIe Gen 5 slots
Install M.2 NVMe SSDs for SSD caching acceleration. PCIe Gen 5 is backward compatible with PCIe Gen 4 / PCIe Gen 3 for flexible deployment.
-
2.5GbE and 10GbE as standard
Two 2.5GbE and two 10GbE ports accelerate virtualization, storage centers, and large file transfer.
-
PCIe Gen 4 expandability
Three PCIe Gen 4 slots provide diverse expandability by installing 25GbE cards, SAS storage expansion cards, or Fibre Channel cards.
-
Petabyte-scale storage
Connect up to eight 24-bay JBODs to attain PB-level storage capacity of 204 disks.
-
Long-term supply
The TS-h1277AXU-RP will be available and supported by QNAP for an extended period, up to 2030.
Â
Specification
Â
| CPU | AMD Ryzen⢠7 7000 series 8-core/16-thread processor, burst up to 5.3 GHz
AMD Radeon Graphics
|
| CPU Architecture | 64-bit x86 |
| Graphic Processors | AMD Radeon⢠Graphics |
| Floating Point Unit |  |
| Encryption Engine | Â (AES-NI) |
| Hardware-accelerated Transcoding | |
| System Memory | 32 GB UDIMM DDR5 (1x 32 GB) |
| Maximum Memory | 192 GB (4 x 48 GB) |
| Memory Slot | 4 x UDIMM DDR5 Support optional ECC memory |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 12 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | |
| M.2 Slot | 2 x M.2 2280 PCIe Gen 5 x2 slots
Compatible with NVMe SSD PCIe Gen 3 and above.
|
| SSD Cache Acceleration Support | |
| GPU pass-through | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 10 Gigabit Ethernet Port | 2 x 10GBASE-T (10G/5G/2.5G/1G/100M) |
| Wake on LAN (WOL) | |
| Jumbo Frame | |
| PCIe Slot | 3 Slot 1: Gen 4 x 4 Slot 2: Gen 4 x 8 or Gen 4 x 4* Slot 3: Gen 4 x 4 *Slot 2 provides the width of PCIe Gen4 x8 when Slot 1 is not in use, and provides the width of PCIe Gen4 x4 when Slot 1 is in use.
|
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-A USB 3.2 Gen 2 10Gbps |
| Form Factor | 2U Rackmount |
| LED Indicators | Power Status, HDD 1-12, M.2 SSD 1-2, Status, LAN, storage expansion port status |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 88.6 Ã 432 Ã 511.2 mm
Excludes ear hook and the protruding part of the Power Supply Unit.
|
| Weight (Net) | 13 kg |
| Weight (Gross) | 19 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27ËC (80.6ËF) |
| Power Supply Unit | 550W(x2), 100-240V |
| Power Consumption: HDD Sleep Mode | 82.247 W |
| Power Consumption: Operating Mode, Typical | 367.65 W
Tested with drives fully populated.
|
| Fan | System fan: 3 x 60mm, 12VDC |
| System Warning | Buzzer |
| Standard Warranty | 5 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 5000 |
