QNAP TS-h1077AFU-R7-32G 10-Bay 10GbE NAS

10-bay 1U SATA all-flash NAS

QNAP TS-h1077AFU-R7-32G 10-Bay 10GbE All-Flash NAS

The QNAP TS-h1077AFU-R7-32G is a 10-bay 1U all-flash NAS with an AMD Ryzen 7 7000 series 8-core/16-thread processor, 32GB ECC DDR5 memory, dual 10GBASE-T, dual 2.5GbE and two PCIe Gen 4 x8 slots.

10-bay all-flash NAS32GB ECC DDR5Dual 10GBASE-T1U rackmount

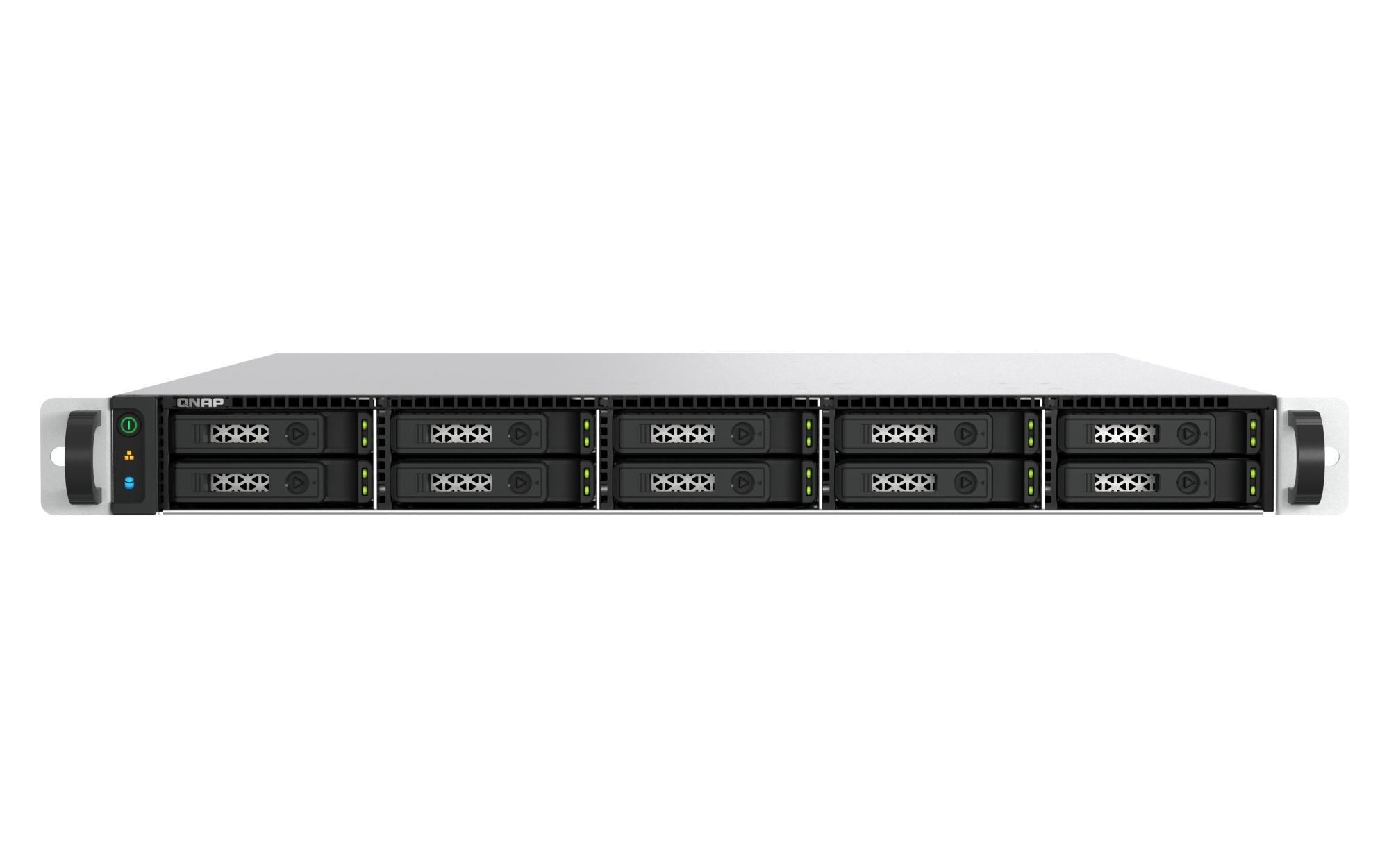

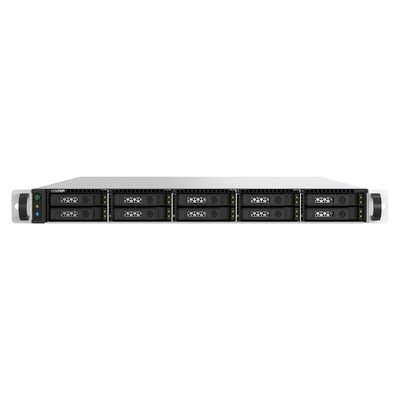

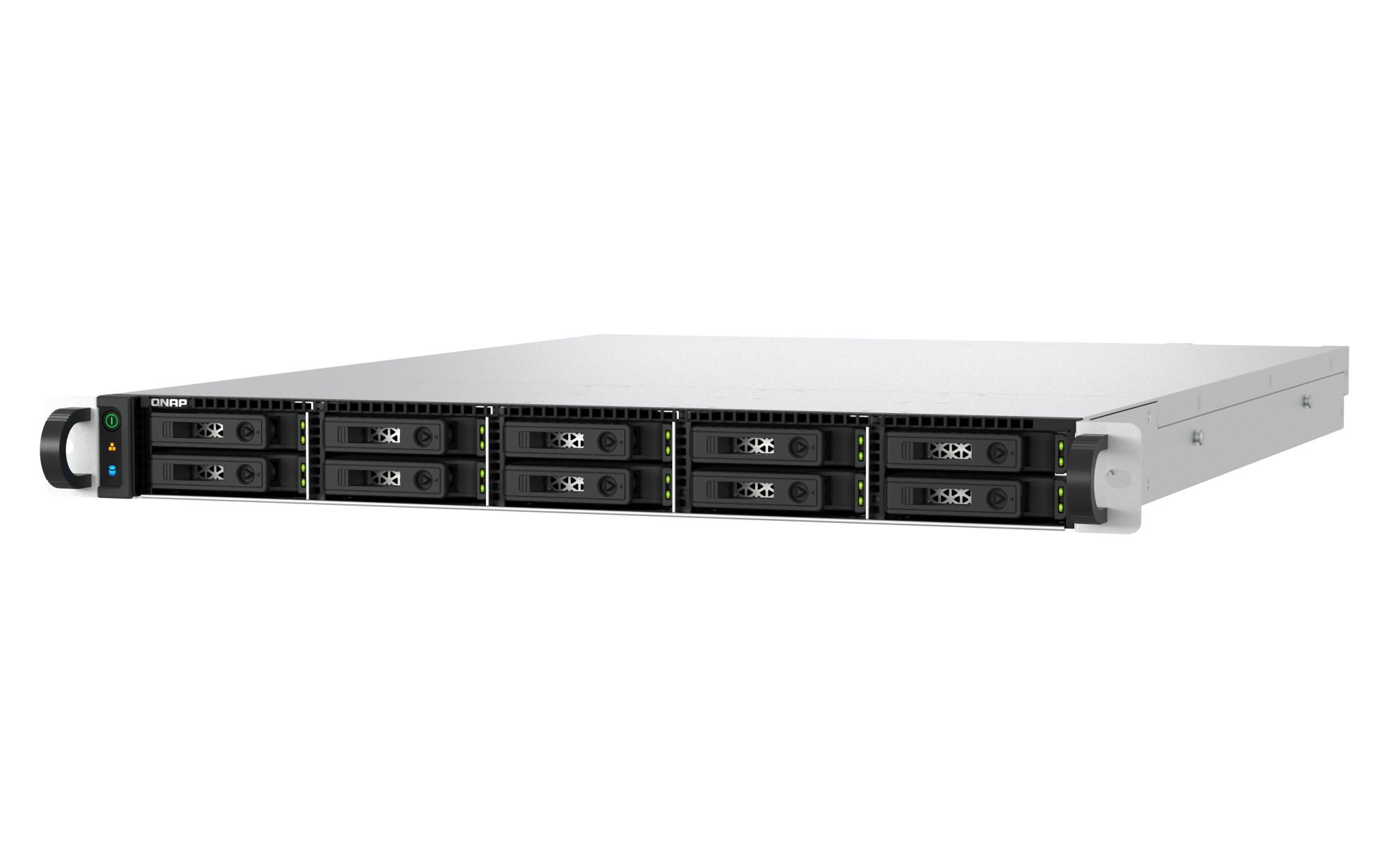

QNAP TS-h1077AFU-R7-32G 10-bay 1U all-flash NAS

What is the QNAP TS-h1077AFU-R7-32G?

It is a compact SATA all-flash QuTS hero NAS designed for virtualisation, databases, backups, high-resolution media workflows and high-availability deployments.

10 Bays2.5-inch SATA SSD storage

8 CoresRyzen 7 with 16 threads

32GB ECCExpandable to 192GB

10GbE + 2.5GbEFour built-in network ports

Need help choosing a NAS?

Explore the DeviceDeal NAS Buying Guide

Compare NAS types, storage considerations and practical features before selecting your next network storage system.

Read NAS Buying Guide

Ryzen 7 processing, ECC DDR5 and Radeon graphics

The AMD Ryzen 7 7000 series processor provides eight cores, sixteen threads and burst frequencies up to 5.3GHz.

The system includes 32GB ECC UDIMM DDR5 memory and supports up to 192GB across four UDIMM slots.

Integrated AMD Radeon Graphics support hardware-accelerated transcoding and GPU pass-through.
AES-NI provides hardware-accelerated encryption.
For dual-DIMM configurations, use a pair of identical DDR5 modules.

Ten-bay SATA all-flash storage

Ten 2.5-inch SATA 6Gb/s and 3Gb/s bays support compatible 2.5-inch SATA solid state drives.

The supplied product information describes inline data deduplication, QNAP SSD Antiwear Leveling and ZFS-based data protection through QuTS hero.

The drive bays are listed as hot-swappable.
The source does not identify whether SSDs are included in the configured package.
Storage expansion supports up to four 24-bay TL-R2400PES-RP JBOD units, adding up to 96 drives.

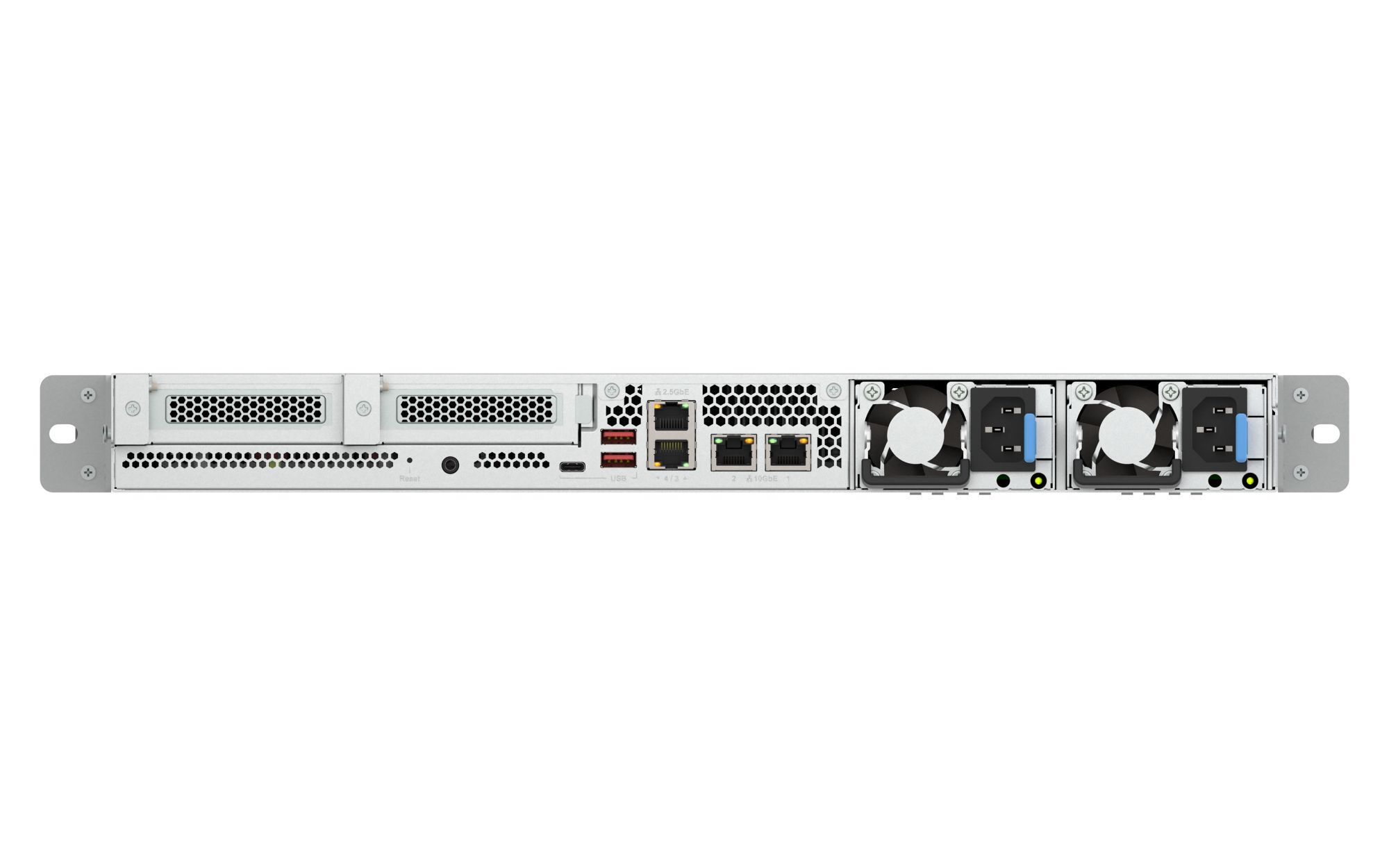

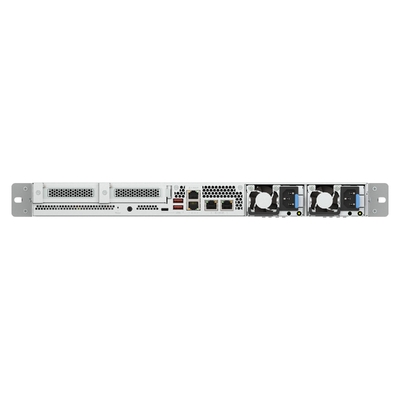

Dual 10GBASE-T, dual 2.5GbE and PCIe Gen 4

Two 10GBASE-T ports support 10G, 5G, 2.5G, 1G and 100M speeds, while two additional 2.5GbE ports support 2.5G, 1G, 100M and 10M.

Two PCIe Gen 4 x8 slots support compatible expansion, including an optional 25GbE network adapter.

Wake on LAN and Jumbo Frame support are included.
Two Type-A USB 3.2 Gen 2 ports provide up to 10Gbps connectivity.
The 1U chassis measures 44 × 430 × 582mm.

QuTS hero and high availability

QuTS hero uses the ZFS file system and is supplied with data-integrity and storage-efficiency features for SSD-focused deployments.

The supplied information states that two TS-h1077AFU units can form a dual-NAS failover cluster to maintain core services during a system interruption.

Supplied application examples include virtual machines, databases, branch-office backups and 4K/8K media workflows.
Two 350W power supply units are listed.
The 2026 award reference applies to the QuTS hero operating system rather than the exact NAS model.

Important purchasing and deployment notes

The supplied information does not identify whether SSDs are included; confirm the configured package before purchase.
Only compatible 2.5-inch SATA solid state drives are listed for the ten bays.
High Availability requires two NAS units configured as a failover cluster.
Confirm 25GbE adapter, expansion-unit, memory and rack compatibility before deployment.

Frequently asked questions

What is the QNAP TS-h1077AFU-R7-32G?

It is a 10-bay 1U SATA all-flash QuTS hero NAS with Ryzen 7 processing, 32GB ECC DDR5, dual 10GBASE-T and dual 2.5GbE.

Are SSDs included with this model?

The supplied information does not identify whether SSDs are included, so the configured package should be confirmed before purchase.

Which drives are supported?

The ten bays support compatible 2.5-inch SATA solid state drives using SATA 6Gb/s or 3Gb/s interfaces.

Which processor is installed?

It uses an AMD Ryzen 7 7000 series eight-core, sixteen-thread processor with burst speeds up to 5.3GHz.

How much memory is installed and supported?

It includes 32GB ECC UDIMM DDR5 memory and supports up to 192GB across four memory slots.

Which network ports are built in?

It includes two 10GBASE-T ports and two 2.5GbE ports.

Can 25GbE networking be added?

Yes. The supplied information lists optional 25GbE through a compatible adapter installed in a PCIe slot.

How many PCIe slots are included?

It includes two PCIe Gen 4 x8 slots.

Does it support High Availability?

Yes. The supplied information states that two NAS units can form a failover cluster for continuity of core services.

Does it include integrated graphics?

Yes. It includes AMD Radeon Graphics with hardware-accelerated transcoding and GPU pass-through support.

How far can storage be expanded?

The supplied information lists up to four TL-R2400PES-RP 24-bay JBOD units, adding up to 96 drives.

What manufacturer warranty applies?

The supplied warranty value is 5, but its unit is not identified, so the Warranty tab states QNAP manufacturer warranty without a duration.

(TS-h1077AFU-R7-32G)

Features and highlights

Key capabilities below are organised from the supplied product information for TS-h1077AFU-R7-32G.

Ryzen 7 8-core processor

The 7000 series CPU provides sixteen threads and burst speeds up to 5.3GHz.

32GB ECC DDR5 memory

Installed memory supports expansion to 192GB across four UDIMM slots.

Ten SATA SSD bays

Ten hot-swappable 2.5-inch bays support compatible SATA solid state drives.

Dual 10GBASE-T and 2.5GbE

Four built-in network ports support multi-gigabit access and flexible network design.

Dual PCIe Gen 4 x8

Two expansion slots support compatible cards, including optional 25GbE networking.

High Availability support

Two NAS units can form a failover cluster for continuity of core services.

Important: Drive inclusion is not identified in the supplied data. Confirm compatible SATA SSDs, memory, optional network adapters and expansion units before deployment.

TS-h1077AFU-R7-32G specifications

Specifications below are organised from the supplied QNAP product information for TS-h1077AFU-R7-32G.

Processor and Graphics

CPU	AMD Ryzen 7 7000 series 8-core/16-thread processor, burst up to 5.3GHz AMD Radeon Graphics
CPU Architecture	64-bit x86
Graphics Processor	AMD Radeon Graphics
Encryption Engine	Yes (AES-NI)
Hardware-Accelerated Transcoding	Yes
GPU Pass-Through	Yes

Memory

System Memory	32GB ECC UDIMM DDR5
Maximum Memory	192GB (4 x 48GB)
Memory Slots	4 x UDIMM DDR5 For dual-DIMM configurations, use a pair of identical DDR5 modules.

Storage

Drive Bays	10 x 2.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility	2.5-inch SATA solid state drives
Hot-Swappable	Yes

Networking

2.5 Gigabit Ethernet Ports	2 x 2.5GbE ports (2.5G/1G/100M/10M)
10 Gigabit Ethernet Ports	2 x 10GBASE-T (10G/5G/2.5G/1G/100M)
25 Gigabit Ethernet	Optional via an adapter
Wake on LAN	Yes
Jumbo Frame	Yes

Expansion and Connectivity

PCIe Slots	2 Slot 1: Gen 4 x8 Slot 2: Gen 4 x8
USB Ports	2 x Type-A USB 3.2 Gen 2 10Gbps

Physical Specifications

Form Factor	1U rackmount
Buttons	Power, reset
Dimensions (H x W x D)	44 x 430 x 582mm
Net Weight	9.43kg
Gross Weight	12.41kg

Power and Environmental

Power Supply Unit	350W PSU (x2), AC 100-240V
System Warning	Buzzer
Operating Temperature	0-40°C (32°F-104°F)
Storage Temperature	-20-70°C (-4°F-158°F)
Relative Humidity	5-95% RH non-condensing, wet bulb: 27°C (80.6°F)

Warranty

Standard Warranty	5 The supplied datasheet does not state the unit.

SKU	TS-h1077AFU-R7-32G
Model #	TS-h1077AFU
Barcode #	885022033980
Brand	QNAP
Shipping Weight	13.4700kg

QNAPQNAP manufacturer warranty

QNAP manufacturer warranty

The supplied specifications list a standard warranty value of 5, but the unit is not identified. No warranty duration has therefore been added.

Warranty coverage, eligibility and claim assessment are subject to QNAPs applicable warranty terms. Please retain your DeviceDeal tax invoice as proof of purchase.
