CPU and memory
AMD EPYC 7302P with 16 cores / 32 threads up to 3.3GHz, paired with 128GB RDIMM DDR4 ECC memory.
QNAP QAI-h1290FX-7302P-128G 12-Bay EPYC 7302P 128GB GPU-ready edge on-premises AI NAS
Model # QAI-h1290FX-7302P-128G
-
SKU: QAI-h1290FX-7302P-128G
- Pick Up Available
- Australian Warranty
- Checkout Securely
QNAP QAI-h1290FX-7302P-128G

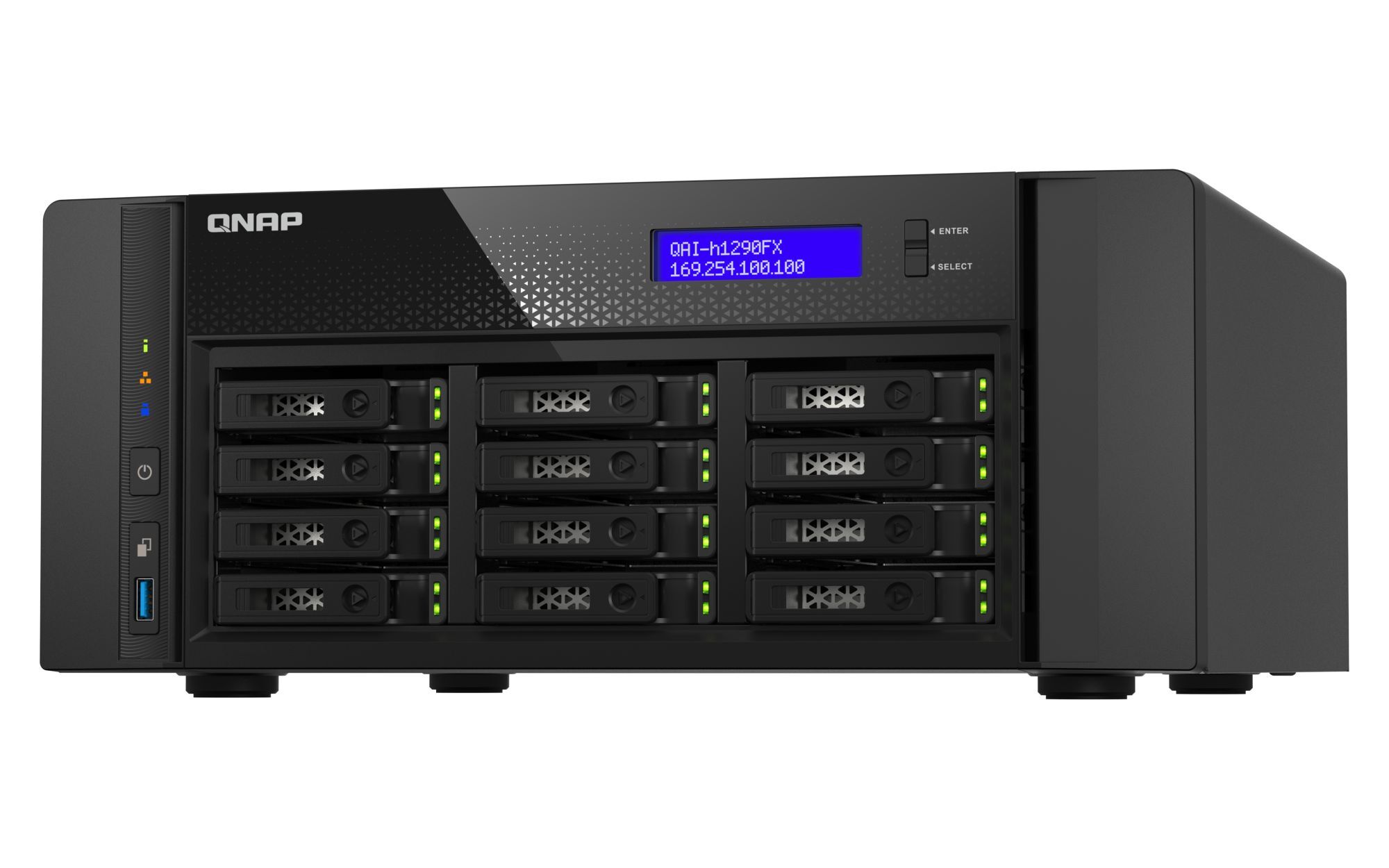

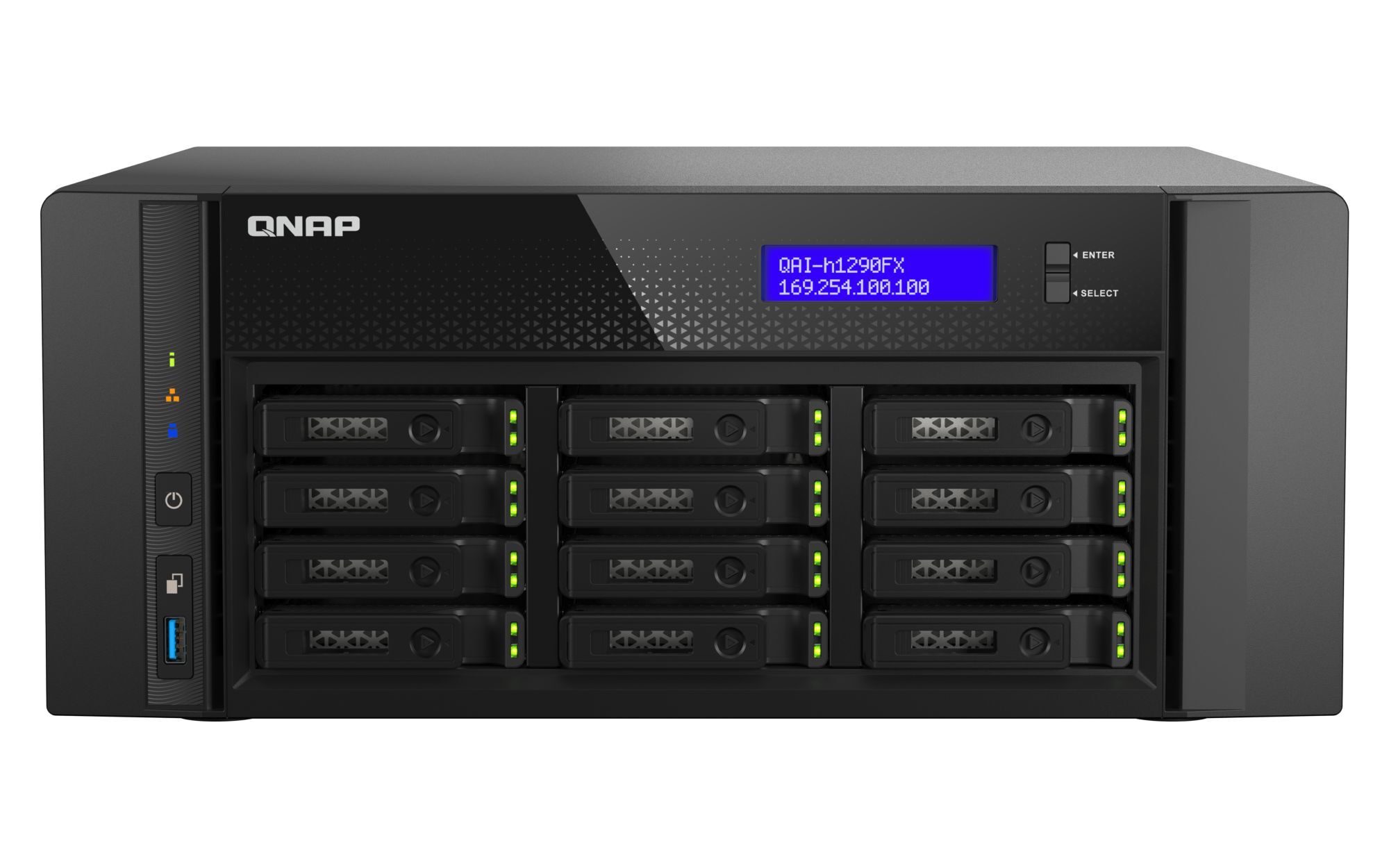

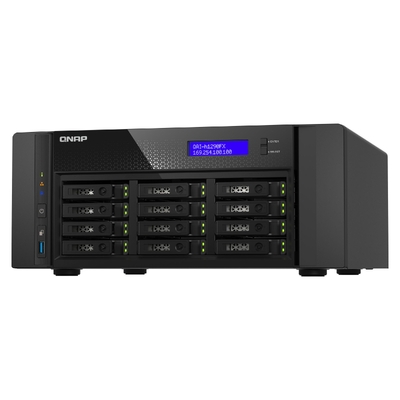

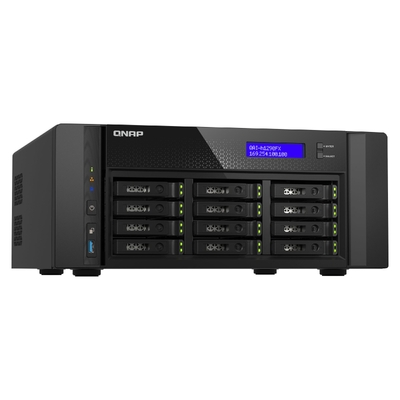

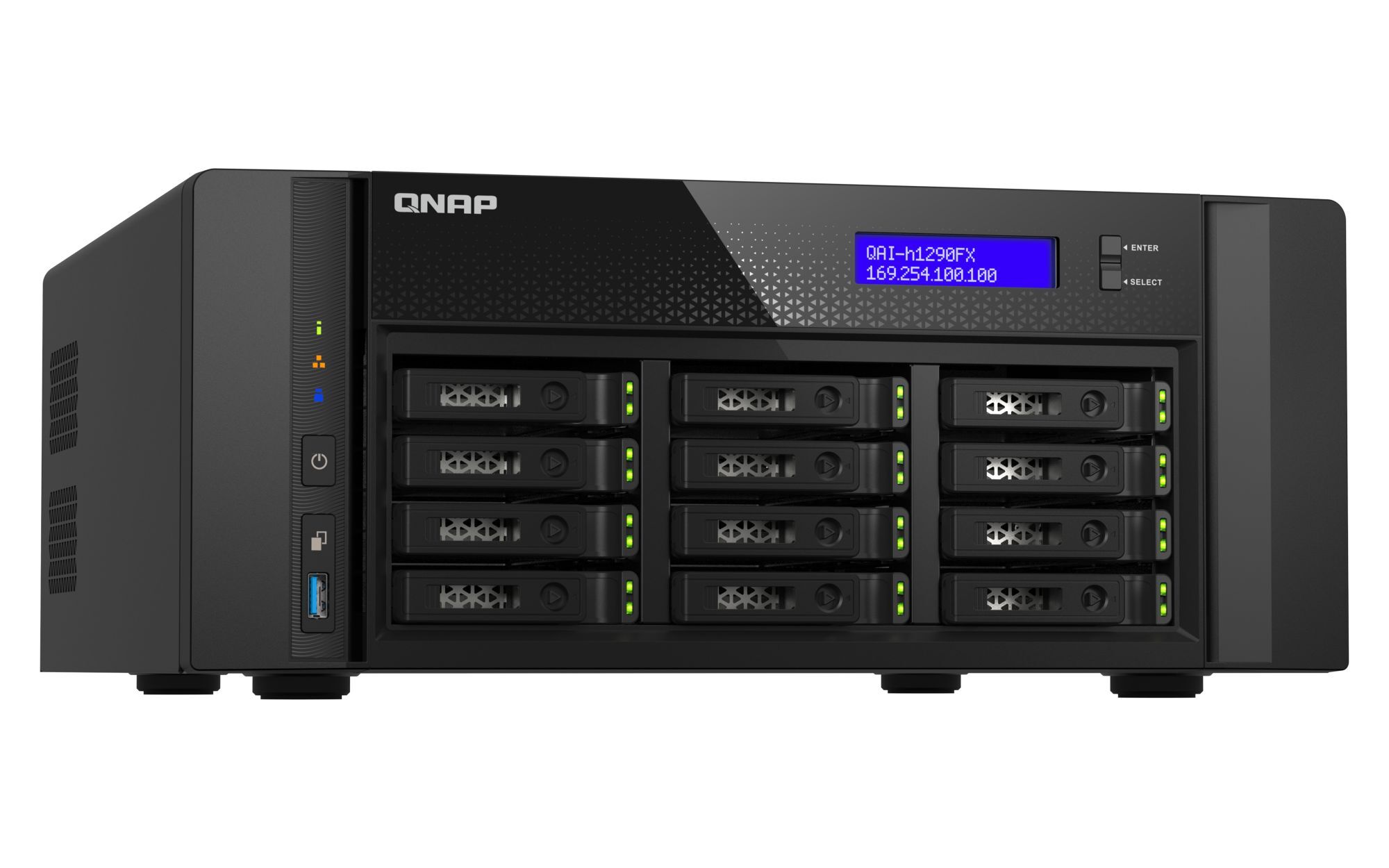

QNAP QAI-h1290FX-7302P-128G 12-Bay AI Edge Compute and All-Flash Storage Server
A tower-form AI edge compute and all-flash storage server with an AMD EPYC 7302P processor, 128GB DDR4 ECC memory, twelve 2.5-inch SSD bays, dual 25GbE and GPU-ready expansion.
Drive bays12 × 2.5-inch
ProcessorAMD EPYC 7302P
Installed memory128GB DDR4 ECC
Built-in networking2 × 25GbE + 2 × 2.5GbE
All-flash drive bays
Twelve 2.5-inch bays support compatible U.2 NVMe PCIe Gen 4 x4 SSDs or SATA SSDs. SSDs are not included.
High-speed networking
Two 25GbE SFP28 SmartNIC ports and two multi-speed 2.5GbE ports are built in.
GPU-ready expansion
The supplied information lists configurable NVIDIA RTX PRO Blackwell support, GPU acceleration and GPU pass-through.
PCIe expansion
Four PCIe Gen 4 slots are listed, with slot-specific card-size limits in the supplied specifications.
QuTS hero with ZFS
The supplied feature set includes inline compression, self-healing, snapshots and SnapSync.
Need help planning NAS storage?
Compare NAS types, capacity planning and buying considerations in the DeviceDeal NAS Buying Guide.
AI, storage and expansion capabilities
- The supplied information positions the system for local LLM inference, private RAG search, image generation and other on-premises AI workloads.
- Container Station GPU acceleration and deployment examples for Ollama, AnythingLLM and Stable Diffusion are listed in the supplied information.
- The source lists dual 25GbE, dual 2.5GbE, four PCIe Gen 4 slots, a 100GbE upgrade path and QNAP JBOD expansion.
- GPU pass-through and SR-IOV are both listed as supported.
Configuration note: The supplied information states that SSDs are not included. GPU support is configurable; no GPU is stated as included with this configuration.
Frequently asked questions
Direct answers based on the supplied QAI-h1290FX-7302P-128G information.
What is the QNAP QAI-h1290FX-7302P-128G?
It is a 12-bay tower-form AI edge compute and all-flash storage server with an AMD EPYC 7302P processor, 128GB DDR4 ECC memory and built-in 25GbE and 2.5GbE networking.
Does the QAI-h1290FX-7302P-128G include SSDs?
No. The supplied product information states that the system is shipped without SSDs.
Which processor is installed?
The supplied specification lists an AMD EPYC 7302P 16-core/32-thread processor with a speed of up to 3.3GHz.
How much memory is installed and what is the maximum?
This configuration includes 128GB RDIMM DDR4 ECC memory. The supplied maximum is 1TB using eight 128GB modules across eight RDIMM DDR4 slots.
What drive types are supported?
The twelve 2.5-inch bays support compatible 2.5-inch SATA solid state drives and 2.5-inch U.2 NVMe PCIe Gen 4 x4 solid state drives.
Are the drive bays hot-swappable?
Yes. Hot-swappable drive support is listed in the supplied specifications.
What built-in network ports are provided?
The supplied specification lists two 25GbE SFP28 SmartNIC ports and two 2.5GbE ports supporting 2.5G, 1G, 100M and 10M.
Does Wake on LAN work on every network port?
No. The supplied specification states that Wake on LAN is supported through the 2.5GbE ports only.
What PCIe expansion is available?
Four PCIe Gen 4 slots are listed: three x16 slots and one x8 slot, with card-size limits supplied for the slot groups.
Does the system support GPU pass-through and SR-IOV?
Yes. GPU pass-through and SR-IOV are both listed as supported in the supplied specifications.
What operating system and storage features are supplied?
The supplied information lists QuTS hero with ZFS, including inline compression, self-healing, snapshots and SnapSync.
What manufacturer warranty is supplied?
The supplied specifications state a five-year QNAP manufacturer warranty.
(QAI-h1290FX-7302P-128G)
Features and highlights
QNAP QAI-h1290FX-7302P-128G 12-Bay AI Edge Compute and All-Flash Storage Server
AMD EPYC compute
AMD EPYC 7302P with 16 cores / 32 threads and a supplied maximum speed of 3.3GHz.
128GB ECC memory
128GB RDIMM DDR4 ECC is installed, with a supplied maximum of 1TB across eight memory slots.
12-bay all-flash storage
Twelve 2.5-inch bays support compatible U.2 NVMe PCIe Gen 4 x4 SSDs and SATA SSDs.
Dual 25GbE networking
Two 25GbE SFP28 SmartNIC ports are joined by two 2.5GbE ports.
GPU and PCIe expansion
GPU pass-through, SR-IOV and four PCIe Gen 4 slots are listed as supported.
QuTS hero with ZFS
The supplied features include inline compression, self-healing, snapshots and SnapSync.
Configuration highlights
- SSDs are not included.
- GPU support is configurable; no GPU is stated as included.
- Built-in networking: 2 × 25GbE SFP28 SmartNIC + 2 × 2.5GbE.
- Expansion: 4 × PCIe Gen 4 slots.
- Standard manufacturer warranty in the supplied specifications: 5 years.
QNAP QAI-h1290FX-7302P-128G 12-Bay AI Edge Compute and All-Flash Storage Server specifications
Processor, memory, storage, networking, expansion, physical and environmental specifications organised from the supplied product information.
| Specification | Details |
|---|---|
| Product Details | |
| Brand | QNAP |
| SKU / Model | QAI-h1290FX-7302P-128G |
| Product Type | AI edge compute and storage server |
| Form Factor | Tower |
| Processor and Memory | |
| CPU | AMD EPYC 7302P 16-core/32-thread processor, up to 3.3GHz |
| CPU Architecture | 64-bit x86 |
| Encryption Engine | Yes (AES-NI) |
| System Memory | 128GB RDIMM DDR4 ECC |
| Maximum Memory | 1TB (8 × 128GB) |
| Memory Slots | 8 × RDIMM DDR4 |
| Flash Memory | 8GB (dual boot OS protection) |
| Storage | |
| Drive Bays | 12 × 2.5-inch U.2 PCIe NVMe / SATA 6Gbps; system is shipped without SSDs |
| Drive Compatibility | 2.5-inch SATA solid state drives; 2.5-inch U.2 NVMe PCIe Gen 4 x4 solid state drives |
| Hot-Swappable | Yes |
| SSD Cache Acceleration | Supported |
| GPU Pass-Through | Yes |
| SR-IOV | Yes |
| Networking | |
| 2.5 Gigabit Ethernet | 2 × 2.5GbE ports (2.5G/1G/100M/10M) |
| 25 Gigabit Ethernet | 2 × 25GbE SFP28 SmartNIC ports |
| Wake on LAN | Yes; supported through the 2.5GbE ports only |
| Jumbo Frame | Yes |
| Expansion and Connectivity | |
| PCIe Slots | 4: Slot 1 PCIe Gen 4 x16; Slot 2 PCIe Gen 4 x16; Slot 3 PCIe Gen 4 x8; Slot 4 PCIe Gen 4 x16 |
| PCIe Card Dimensions | Slots 12: up to 185 × 111.15 × 18.76mm. Slots 34: up to 280 × 111.15 × 18.76mm. Wider cards can be installed if the next PCIe slot is not used. |
| USB Ports | 3 × USB 3.2 Gen 1 ports |
| Physical | |
| LED Indicators | Power/status, LAN, USB and SSD 112 |
| LCD Display / Button | Yes |
| Buttons | Power, reset and USB Auto Copy |
| Dimensions (H × W × D) | 150 × 368 × 362mm |
| Dimension Note | Dimensions do not include the foot pad, which may be up to 10mm high depending on the model. |
| Net Weight | 10.4kg |
| Gross Weight | 11.3kg |
| Kensington Security Slot | Yes |
| Power and Cooling | |
| Power Supply | 750W, 100240V |
| Fans | 2 × 92mm, 12VDC |
| System Warning | Buzzer |
| Operating Environment | |
| Operating Temperature | 040°C (32104°F) |
| Storage Temperature | -2070°C (-4158°F) |
| Relative Humidity | 595% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Warranty and Connections | |
| Standard Warranty | 5 years |
| Maximum Concurrent CIFS Connections | 10,000 with maximum memory installed |
Storage note: The supplied information states that the system is shipped without SSDs.
Memory note: The supplied specification recommends using QNAP memory modules with identical specifications in multi-slot systems and warns that unsupported modules may affect stability or startup.
| SKU | QAI-h1290FX-7302P-128G |
| Model # | QAI-h1290FX |
| Brand | QNAP |
| Shipping Weight | 9.9900kg |
5 yearsManufacturer warranty
QNAP manufacturer warranty
The QNAP QAI-h1290FX-7302P-128G is supplied with a 5 years QNAP manufacturer warranty, as stated in the supplied product information.
Warranty coverage, eligibility and claim assessment are subject to QNAP terms. Please retain your DeviceDeal tax invoice as proof of purchase.
