18-bay 2U QuTS hero hybrid NAS

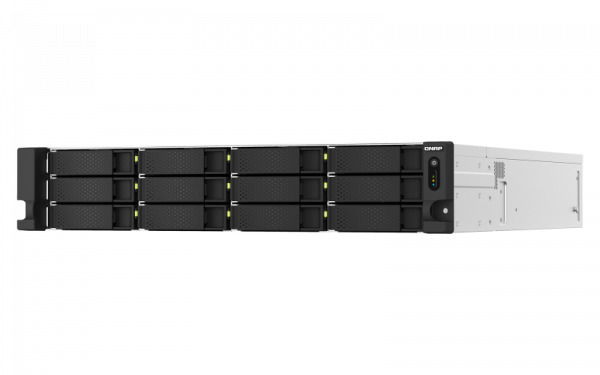

QNAP TS-h1887XU-RP-E2336-32G 18-Bay Xeon 10GbE Rackmount NAS

The QNAP TS-h1887XU-RP-E2336-32G is an 18-bay 2U rackmount NAS with an Intel Xeon E-2336 6-core/12-thread processor, 32GB ECC DDR4 memory, 12 3.5-inch SATA bays, 6 2.5-inch SATA bays, dual 10GBASE-T, dual 2.5GbE, three PCIe Gen 4 slots and dual 550W redundant power.

18-bay 2U NASXeon E-233632GB ECC DDR4Redundant power

QNAP TS-h1887XU-RP-E2336-32G 18-bay 2U Xeon 10GbE rackmount NAS

What is the TS-h1887XU-RP-E2336-32G?

It is a ZFS-based QuTS hero hybrid HDD and SSD storage platform designed for file services, virtualisation, VDI, backup and restore, and other demanding business storage workloads.

6C / 12TXeon E-2336

18 Bays12 HDD/SSD + 6 SSD

2 × 10GbEPlus dual 2.5GbE

32GBECC DDR4 installed

Need help choosing a NAS?

Explore the DeviceDeal NAS Buying Guide

Compare NAS types, storage considerations and practical features before selecting your next network storage system.

Read NAS Buying Guide

Intel Xeon E-2336 processing and ECC memory

The Intel Xeon E-2336 processor provides 6 cores, 12 threads, a 2.9GHz base frequency and speeds up to 4.8GHz.

This configuration includes 32GB ECC DDR4 memory (1 x 32GB) and supports up to 128GB across four ECC UDIMM DDR4 slots.

AES-NI hardware encryption is listed.
The platform includes 5GB flash memory with dual-boot operating-system protection.
For a dual-DIMM configuration, use a pair of identical compatible DDR4 modules.

18-bay hybrid HDD and SSD storage

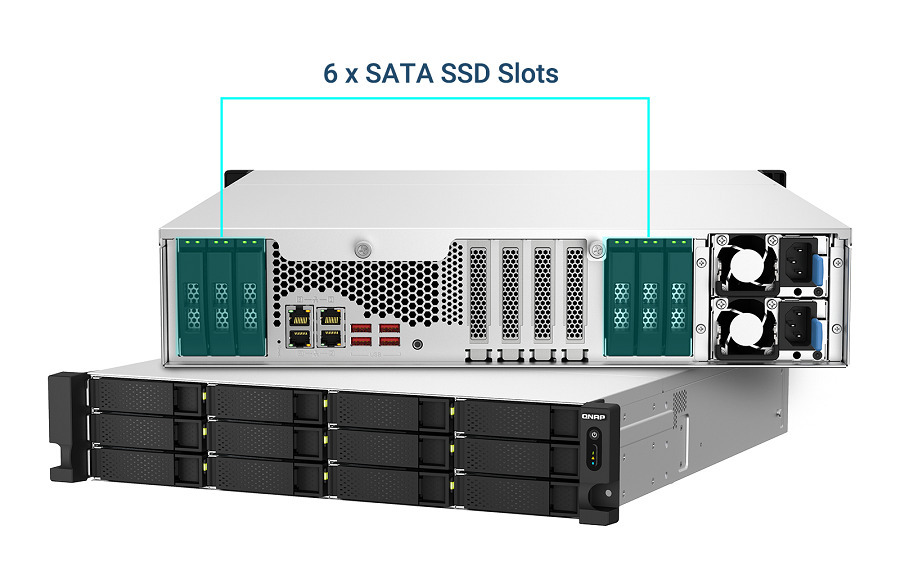

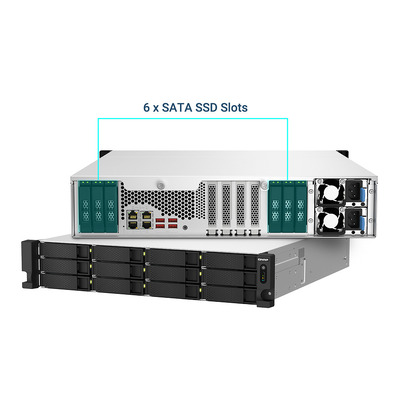

The chassis combines 12 3.5-inch SATA bays with 6 dedicated 2.5-inch SATA bays.

The 3.5-inch bays support compatible 3.5-inch SATA hard drives and 2.5-inch SATA SSDs, while the 2.5-inch bays support SATA SSDs.

The NAS is supplied without storage drives; compatible hard drives and SSDs must be purchased separately.
The supplied specification lists hot-swappable drive bays.
SSD cache acceleration is supported, and M.2 support can be added through a compatible QM2 PCIe adapter.
M.2 SSD hot swapping is not supported.

Dual 10GbE, dual 2.5GbE and PCIe Gen 4 expansion

Two 10GBASE-T ports support 10G, 5G, 2.5G, 1G and 100M network speeds, while two 2.5GbE ports support 2.5G, 1G and 100M.

Three PCIe Gen 4 slots provide two x4 slots and one x8 slot for compatible network, QM2, Fibre Channel or graphics adapters.

Optional 25GbE connectivity is listed through a compatible PCIe adapter.
Four Type-A USB 3.2 Gen 2 ports provide up to 10Gbps.
Graphics processing and HDMI output are optional through compatible PCIe adapters.
Confirm card dimensions and available adjacent-slot clearance before installation.

QuTS hero data protection and business deployment

The supplied description identifies the ZFS-based QuTS hero operating system with inline data deduplication, snapshots, real-time SnapSync and QNAP SSD Antiwear Leveling.

Supplied use cases include virtualisation storage, virtual machines, containerised applications, Microsoft 365 and Google Workspace backup, VMware and Hyper-V backup, and hybrid cloud storage gateway workflows.

Two 550W redundant power supply units support continuity if one power supply becomes unavailable.
Maximum concurrent CIFS connections are listed as 11,000 with maximum memory installed.
Net weight is 14.87kg; gross weight is 19kg.
Power consumption is listed as 118.77W in disk standby and 148.94W in typical operating mode.

Important purchasing and deployment notes

The NAS is supplied without storage drives; compatible hard drives and SSDs must be purchased separately.
Confirm drive, SSD, memory, QM2, network-adapter, rail-kit and other accessory compatibility before purchase.
Use a pair of identical compatible DDR4 modules for a dual-DIMM configuration.
The supplied product information explicitly lists a five-year standard warranty.

Frequently asked questions

What is the QNAP TS-h1887XU-RP-E2336-32G?

It is an 18-bay 2U QuTS hero rackmount NAS with Xeon processing, ECC memory, hybrid HDD/SSD storage, multi-gigabit networking and redundant power.

Are storage drives included?

No. The supplied information explicitly states that this NAS is diskless and compatible drives must be purchased separately.

How are the 18 drive bays configured?

It has 12 3.5-inch SATA bays and 6 2.5-inch SATA bays. The 3.5-inch bays support SATA hard drives and 2.5-inch SATA SSDs, while the 2.5-inch bays support SATA SSDs.

Which processor is installed?

It uses an Intel Xeon E-2336 6-core, 12-thread processor with a 2.9GHz base frequency and speeds up to 4.8GHz.

How much memory is installed and supported?

It includes 32GB ECC DDR4 memory and supports up to 128GB across four ECC UDIMM DDR4 slots.

Can M.2 SSDs be installed?

M.2 support is available through an optional compatible QM2 PCIe adapter. The supplied information states that M.2 SSD hot swapping is not supported.

Which network ports are built in?

It includes two 10GBASE-T ports and two 2.5GbE ports. Optional 25GbE connectivity is listed through a compatible PCIe adapter.

How many PCIe expansion slots are included?

It provides three PCIe Gen 4 slots: two Gen 4 x4 slots and one Gen 4 x8 slot.

Which USB ports are included?

It includes four Type-A USB 3.2 Gen 2 ports, rated up to 10Gbps and listed at 5V/1A.

Which operating system and data-protection features are supplied?

The supplied description identifies QuTS hero with ZFS-based storage, inline data deduplication, snapshots, real-time SnapSync and QNAP SSD Antiwear Leveling.

Does it include redundant power supplies?

Yes. It includes two 550W redundant power supply units.

What manufacturer warranty applies?

The supplied product information explicitly lists a five-year standard warranty, presented as QNAP manufacturer warranty.

(TS-h1887XU-RP-E2336-32G)

Features and highlights

Key capabilities below are organised from the supplied product information for TS-h1887XU-RP-E2336-32G.

Xeon E-2336 processor

6 cores, 12 threads and speeds up to 4.8GHz support demanding business storage workloads.

32GB ECC DDR4

Installed ECC memory is expandable to 128GB across four ECC UDIMM DDR4 slots.

18-bay hybrid storage

12 3.5-inch SATA bays and 6 2.5-inch SATA bays balance capacity and SSD performance.

Dual 10GbE and dual 2.5GbE

Built-in multi-gigabit networking supports intensive file access, virtualisation and backup workflows.

Three PCIe Gen 4 slots

Compatible network, QM2, Fibre Channel and graphics adapters can extend the platform.

Redundant 550W power

Two power supply units support continuity for rackmount business deployments.

Important: The NAS is supplied without storage drives; compatible hard drives and SSDs must be purchased separately. Confirm compatible drives, memory, QM2 cards, network adapters, rail kits and other accessories before purchase.

TS-h1887XU-RP-E2336-32G specifications

Specifications below are organised from the supplied QNAP product information for TS-h1887XU-RP-E2336-32G.

Product Platform

Product Type	18-bay 2U rackmount QuTS hero NAS
Operating System	QuTS hero
Supplied Storage Configuration	Diskless; storage drives are purchased separately.

Processor and Memory

CPU	Intel Xeon E-2336, 6 cores, 12 threads, 2.9GHz, up to 4.8GHz
CPU Architecture	64-bit x86
Graphics Processor	Optional via a PCIe adapter
Floating Point Unit	Yes
Encryption Engine	Yes, AES-NI
System Memory	32GB ECC DDR4 (1 x 32GB)
Maximum Memory	128GB (4 x 32GB)
Memory Slots	4 x ECC UDIMM DDR4 For a dual-DIMM configuration, use a pair of identical DDR4 modules.
Flash Memory	5GB with dual-boot OS protection

Storage

Drive Bays	18 total: 12 x 3.5-inch SATA and 6 x 2.5-inch SATA
Drive Compatibility	3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch SATA solid state drives
Hot-Swappable	Yes M.2 SSD hot swapping is not supported.
M.2 Slot	Optional via a QM2 PCIe adapter
SSD Cache Acceleration Support	Yes
GPU Pass-Through	Yes

Networking

2.5 Gigabit Ethernet	2 x 2.5GbE RJ45 ports (2.5G/1G/100M)
10 Gigabit Ethernet	2 x 10GBASE-T ports (10G/5G/2.5G/1G/100M)
25 Gigabit Ethernet	Optional via a PCIe adapter
Wake on LAN	Yes

Expansion and Connectivity

PCIe Slots	3 total: 2 x PCIe Gen 4 x4 and 1 x PCIe Gen 4 x8 Slot 1 card dimensions: 250 x 68.9 x 23.76mm / 9.84 x 2.71 x 0.94 inches. Slot 2 card dimensions: 250 x 68.9 x 18.76mm / 9.84 x 2.71 x 0.74 inches. Slot 3 card dimensions: 250 x 68.9 x 18.76mm / 9.84 x 2.71 x 0.74 inches. Wider cards can be installed if the next PCIe slot is not used.
USB 3.2 Gen 2 Ports	4 x Type-A USB 3.2 Gen 2, 5V/1A, up to 10Gbps
HDMI Output	Optional via a PCIe adapter

Physical Specifications

Form Factor	2U rackmount
LED Indicators	Status: green/red LAN: green USB: blue HDD status: green/red
Buttons	Power and reset
Dimensions (H x W x D)	88.6 x 432 x 511.2mm
Net Weight	14.87kg
Gross Weight	19kg

Power and Cooling

Power Supply Unit	550W x 2 redundant power supply units
Power Consumption: Disk Standby	118.77W
Power Consumption: Typical Operating Mode	148.94W
Fan	4 x 60mm, 12VDC

Operating Environment

Operating Temperature	040°C (32104°F)
Storage Temperature	-2070°C (-4158°F)
Relative Humidity	595% RH non-condensing, wet bulb: 27°C (80.6°F)

Warranty and Connections

Standard Warranty	5 years
Maximum Concurrent CIFS Connections	11,000 with maximum memory installed

SKU	TS-h1887XU-RP-E2336-32G
Model #	TS-h1887XU-RP
Barcode #	885022024636
Brand	QNAP
Shipping Weight	13.8000kg
Shipping Width	0.540m
Shipping Height	0.540m
Shipping Length	0.540m

5-YearQNAP manufacturer warranty

QNAP manufacturer warranty

The supplied product information explicitly lists a 5-year standard warranty for TS-h1887XU-RP-E2336-32G. This product is presented with QNAP manufacturer warranty.

Warranty coverage, eligibility and claim assessment are subject to QNAPs applicable warranty terms. Please retain your DeviceDeal tax invoice as proof of purchase.
