16-bay 3U enterprise QuTS hero NAS

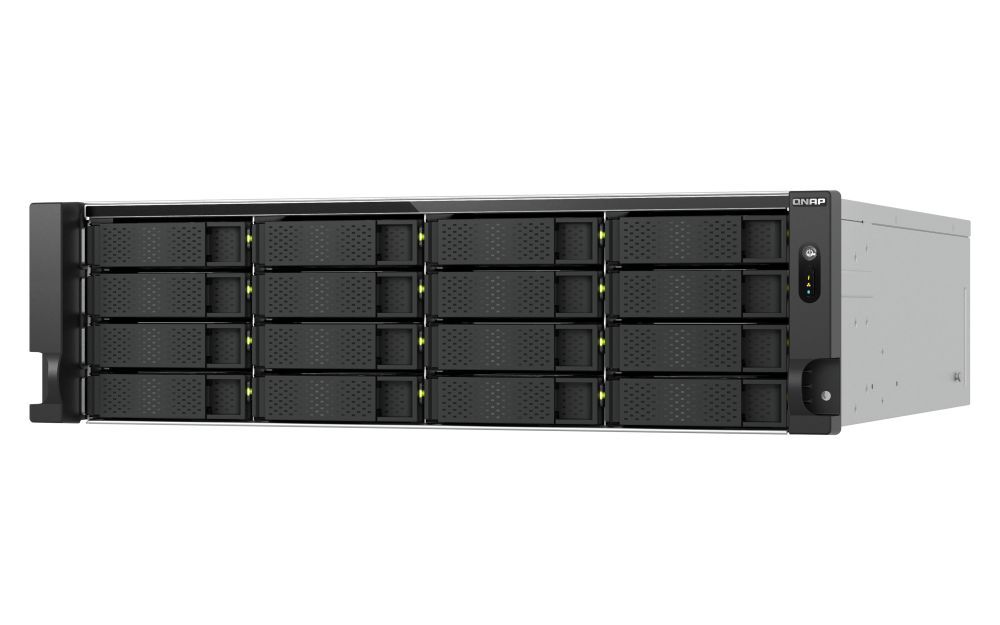

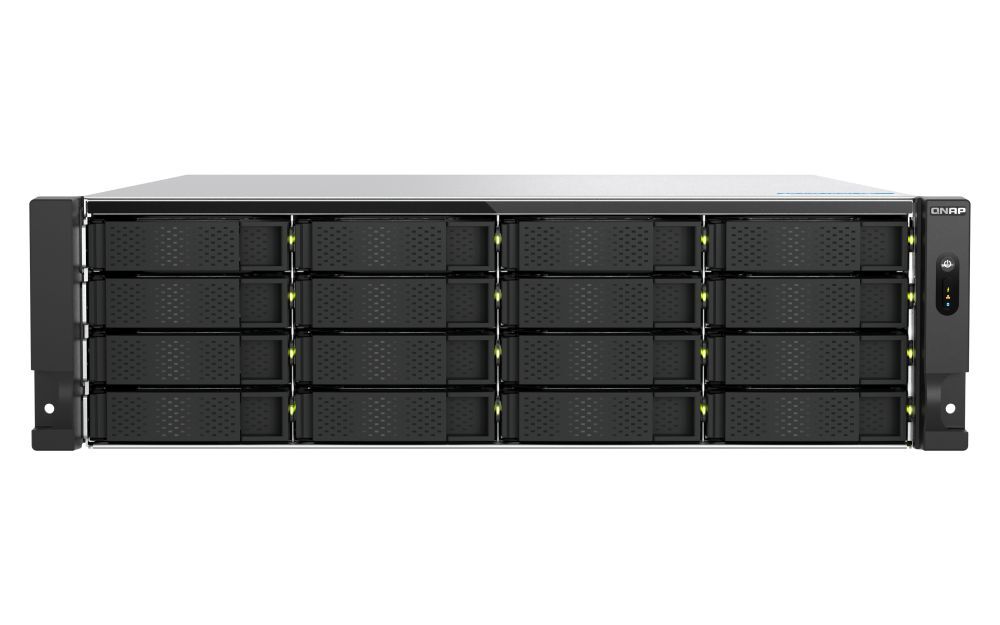

QNAP TS-h1677AXU-RP-R7-32G 16-Bay 10GbE Rackmount NAS

The QNAP TS-h1677AXU-RP-R7-32G is a 16-bay 3U rackmount NAS with an AMD Ryzen 7 7000 Series 8-core/16-thread processor, 32GB DDR5 memory, dual 10GBASE-T, dual 2.5GbE, dual M.2 PCIe Gen 5 slots and redundant 550W power.

16-bay 3U NASRyzen 7 7000 Series32GB DDR5Redundant power
QNAP TS-h1677AXU-RP-R7-32G 16-bay 10GbE rackmount NAS

What is the QNAP TS-h1677AXU-RP-R7-32G?

It is a ZFS-based enterprise storage and backup platform designed for Tier 2 storage, virtualisation, 4K video editing and petabyte-scale expansion.

8C / 16TRyzen 7 7000 Series
16 Bays3.5-inch SATA storage
2 × 10GbEPlus dual 2.5GbE
2 × M.2 Gen 5NVMe cache slots
Need help choosing a NAS?

Explore the DeviceDeal NAS Buying Guide

Compare NAS types, storage considerations and practical features before selecting your next network storage system.

Read NAS Buying Guide

AMD Ryzen 7 processing and DDR5 memory

The AMD Ryzen 7 7000 Series processor provides eight cores, sixteen threads and burst speeds up to 5.3GHz.

This configuration includes 32GB UDIMM DDR5 memory across four slots with optional ECC support.

  • AMD Radeon graphics are included.
  • The system includes 5GB flash memory with dual-boot operating-system protection.
  • Use compatible memory modules and confirm the supported maximum before expansion.

Sixteen SATA bays and dual M.2 PCIe Gen 5

Sixteen 3.5-inch SATA 6Gb/s drive bays support 3.5-inch SATA hard drives and 2.5-inch SATA solid state drives.

Two M.2 2280 PCIe Gen 5 x2 slots support compatible NVMe SSDs from PCIe Gen 3 and above for SSD cache acceleration.

  • The supplied source does not identify whether drives are included.
  • The source does not provide a clear hot-swap value.
  • M.2 SSD compatibility should be checked before purchase.

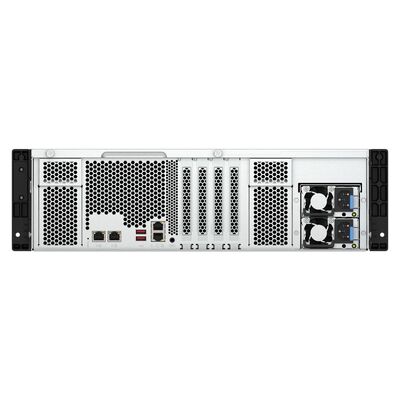

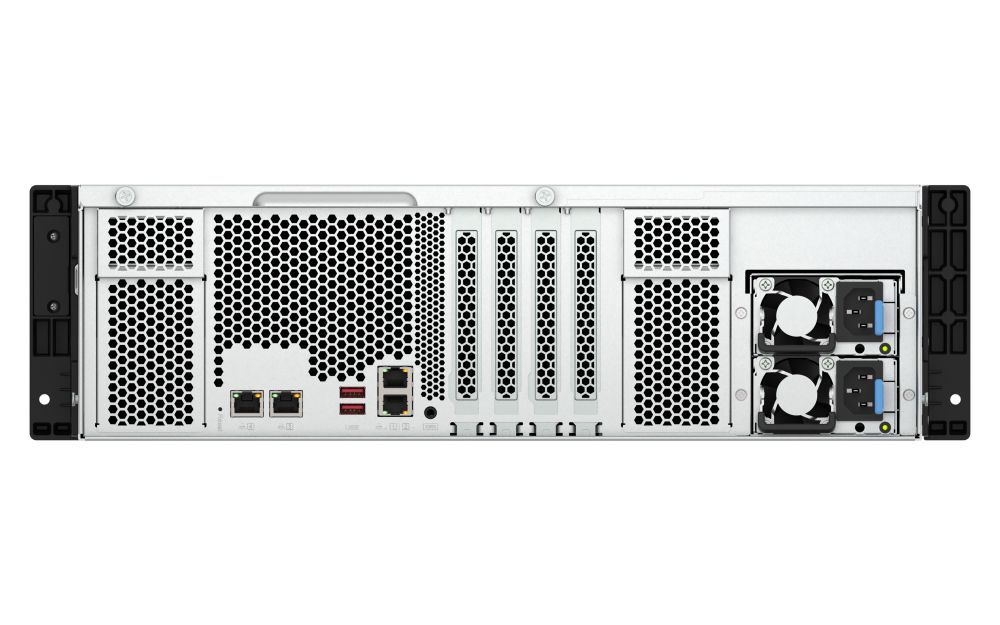

Dual 10GbE, dual 2.5GbE and PCIe Gen 4 expansion

Two 10GBASE-T ports and two 2.5GbE ports provide built-in multi-gigabit networking.

Three PCIe Gen 4 slots provide supplied x4 and x8 lane configurations for compatible 25GbE, SAS expansion or Fibre Channel cards.

  • Two Type-A USB 3.2 Gen 2 10Gbps ports are included.
  • Slot 2 lane width changes depending on whether Slot 1 is in use.
  • The chassis is a 3U rackmount design.

Petabyte-scale expansion and long-term supply

The supplied information states that up to eight 24-bay JBOD units can be connected, providing a stated total of 208 disks.

QNAP states that the TS-h1677AXU-RP platform will remain available and supported up to 2030.

  • Two 550W power supply units provide redundant power.
  • Typical operating power is listed as 349.96W with drives fully populated.
  • The system is positioned for Tier 2 storage, virtualisation and 4K video workflows.

Important purchasing and deployment notes

  • Drive inclusion is not specified, and the supplied information does not provide a clear hot-swap value.
  • Confirm the supported maximum memory before expansion.
  • The supplied warranty value is 5, but the unit is not identified; no warranty duration is claimed.
  • Confirm drive, M.2 SSD, memory, network and PCIe-card compatibility before deployment.

Frequently asked questions

What is the QNAP TS-h1677AXU-RP-R7-32G?

It is a 16-bay 3U QuTS hero rackmount NAS with Ryzen 7 processing, 32GB DDR5, dual 10GbE, dual 2.5GbE and redundant power.

Which processor is installed?

It uses an AMD Ryzen 7 7000 Series eight-core, sixteen-thread processor with burst speeds up to 5.3GHz.

How much memory is installed?

This configuration includes 32GB UDIMM DDR5 memory using one 32GB module.

Does it support ECC memory?

Yes. The supplied information lists optional ECC memory support across four UDIMM DDR5 slots.

Which drives are supported?

The sixteen bays support 3.5-inch SATA hard drives and 2.5-inch SATA solid state drives.

Does the supplied source confirm that drives are included?

No. The supplied row does not identify whether drives are included, so the exact configuration should be confirmed before purchase.

Can M.2 NVMe SSDs be used for caching?

Yes. The supplied description lists two M.2 2280 PCIe Gen 5 x2 slots for compatible NVMe SSD cache acceleration.

Which network ports are built in?

It includes two 10GBASE-T ports and two 2.5GbE ports.

How many PCIe slots are included?

It provides three PCIe Gen 4 slots with supplied x4 and x8 lane configurations.

How far can storage capacity be expanded?

The supplied information states that up to eight 24-bay JBOD units can be connected, for a stated total of 208 disks.

Does it have redundant power supplies?

Yes. It includes two 550W power supply units.

What manufacturer warranty applies?

The supplied row lists a standard warranty value of 5, but does not identify the unit, so no warranty duration is claimed.

(TS-h1677AXU-RP-R7-32G)

Features and highlights

Key capabilities below are organised from the supplied product information for TS-h1677AXU-RP-R7-32G.

Ryzen 7 eight-core CPU

The processor provides sixteen threads and supplied burst speeds up to 5.3GHz.

32GB DDR5 memory

The system has four UDIMM slots and supports optional ECC memory.

Sixteen SATA drive bays

The bays support 3.5-inch SATA hard drives and 2.5-inch SATA SSDs.

Dual M.2 PCIe Gen 5

Two M.2 2280 slots support compatible NVMe SSDs for cache acceleration.

Dual 10GbE and 2.5GbE

Two 10GBASE-T and two 2.5GbE ports provide built-in networking.

Redundant 550W power

Two power supplies support the 3U enterprise rackmount design.

Important: Drive inclusion and hot-swap status are not identified. Confirm the supported maximum memory and compatible storage, network and PCIe hardware before purchase.

TS-h1677AXU-RP-R7-32G specifications

Specifications below are organised from the supplied QNAP product information for TS-h1677AXU-RP-R7-32G.

Processor and Memory
CPUAMD Ryzen™ 7 7000 Series 8-core/16-thread processor, burst up to 5.3GHz
CPU Architecture64-bit x86
Graphics ProcessorAMD Radeon™ Graphics
Encryption EngineAES-NI
System Memory32GB UDIMM DDR5 (1 x 32GB)
Memory Slots4 x UDIMM DDR5
Supports optional ECC memory.
Flash Memory5GB with dual-boot operating-system protection
Storage
Drive Bays16 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
M.2 Slots2 x M.2 2280 PCIe Gen 5 x2 slots
Compatible with NVMe SSD PCIe Gen 3 and above.
SSD Cache AccelerationSupported through compatible M.2 NVMe SSDs, according to the supplied description
Networking
2.5 Gigabit Ethernet2 x 2.5GbE ports (2.5G/1G/100M/10M)
10 Gigabit Ethernet2 x 10GBASE-T ports (10G/5G/2.5G/1G/100M)
Expansion and Connectivity
PCIe Slots3 slots
Slot 1: PCIe Gen 4 x4
Slot 2: PCIe Gen 4 x8 or Gen 4 x4
Slot 3: PCIe Gen 4 x4
Slot 2 provides PCIe Gen 4 x8 width when Slot 1 is not in use and PCIe Gen 4 x4 when Slot 1 is in use.
USB Ports2 x Type-A USB 3.2 Gen 2 10Gbps ports
Physical Specifications
Form Factor3U rackmount
LED IndicatorsPower status, HDD 1–16, M.2 SSD 1–2, status, LAN and storage expansion port status
ButtonsPower and reset
Dimensions (H x W x D)131.3 x 482.2 x 550.8mm
Excludes ear hooks and the protruding part of the power supply unit.
Net Weight15.64kg
Gross Weight22.08kg
Power and Cooling
Power Supply550W x 2, 100–240V
HDD Sleep Power Consumption99.99W
Typical Operating Power Consumption349.96W
Tested with drives fully populated.
FanSystem fan: 3 x 60mm, 12VDC
System WarningBuzzer
Environmental
Operating Temperature0–40°C (32–104°F)
Storage Temperature-20–70°C (-4–158°F)
Relative Humidity5–95% RH non-condensing, wet bulb: 27°C (80.6°F)
Warranty and Connections
Standard Warranty5
The supplied row does not identify the unit.
Maximum Concurrent CIFS Connections5,000 with maximum memory installed
SKU TS-h1677AXU-RP-R7-32G
Model # TS-h1677AXU-RP
Barcode # 885022027002
Brand QNAP
Shipping Weight 22.0000kg
QNAPQNAP manufacturer warranty

QNAP manufacturer warranty

The supplied product information lists a standard warranty value of 5, but the unit is not identified. No warranty duration has therefore been added.

Warranty coverage, eligibility and claim assessment are subject to QNAP’s applicable warranty terms. Please retain your DeviceDeal tax invoice as proof of purchase.
