Flashstor 12

ASUSTOR FS6712X Flashstor 12 NVMe NAS

A twelve-slot M.2 NVMe NAS with an Intel Celeron N5105 quad-core processor, 4GB DDR4-2933 memory, 10-Gigabit Ethernet, HDMI and S/PDIF connectivity.

12xM.2 NVMe Slots

N5105Quad-Core CPU

4GBDDR4-2933 RAM

10GbEEthernet

Key Features

Quad-Core 10 nm Intel Celeron N5105 CPU
12x M.2 NVMe slots
Megafast 10-Gigabit Ethernet
4 GB of fast and efficient DDR4-2933 RAM
Dual USB 3.2 Gen 2
HDMI 2.0b
S/PDIF output for amazing sound quality
Smooth 4K hardware transcoding
Supports Wake on LAN

Technical Overview

Processor	Quad-Core 10 nm Intel Celeron N5105 CPU; supplied product name lists 2.0GHz
Processor Speed	Up to 2.9 GHz is stated in the supplied description
M.2 NVMe Slots	12
Ethernet	10-Gigabit Ethernet
Memory	4 GB DDR4-2933 RAM
USB	Dual USB 3.2 Gen 2
Display Output	HDMI 2.0b
Audio Output	S/PDIF over TOSLINK
Transcoding	Smooth 4K hardware transcoding
Remote Wake	Wake on LAN

Post-Quantum Cryptography (PQC) Ready: ADM Prepared for Future Threats

ASUSTOR has officially upgraded ADM to support PQC Hybrid TLS encryption certified by the US NIST. This fully adopts the official version of the Kyber algorithm, X25519+ML-KEM 768, and in ADM 5.1 and later, automatically enables this feature through TLS 1.3 without requiring any configuration. This protects against the Harvest Now, Decrypt Later threat. As long as your browser supports PQC, it will immediately establish a post-quantum cryptography (PQC) encrypted secure connection, and the connection status will be clearly displayed through the ADM interface, ensuring that data stored on your ASUSTOR NAS can withstand future quantum computer threats.

Your ASUSTOR Brings Virtually Unlimited Potential to Final Cut Pro

Archiving and unfinished raw content are among the most common storage problems content creators encounter when working on a Mac. Final Cut Pro Libraries can grow rapidly and out of control. Content creators often turn to USB external drives to store material for Final Cut Pro. When using a Mac, especially portable Macs like the MacBook Pro, external drives are often connected and disconnected, which can lead to wear and tear of the port. External drives are also inconvenient as the files cannot be conveniently shared with coworkers or collaborators and external drives are susceptible to damage in ways a NAS is not. A NAS remains stationary while digitally making your files available to you while an external drive is portable, increasing the risk of drops, spills or other types of damage.

Store Games on an iSCSI Drive

A NAS’s enormous capacity helps expand storage for a PC. According to modern operating systems, iSCSI drives appear as local drives and programs which cannot be installed on network shares may be installed. This enables certain games to be played from a NAS when they can’t be run on a network share.

Efficient and Fast

The 10 nm Quad-Core Intel Celeron N5105 processor brings speeds of up to 2.9 GHz. Performance is up to 31% higher than the previous generation, ensuring maximum speed for your workflow in an efficient package.

Keeping SSDs Cool

The silent fan and efficient air duct design achieve rapid heat dissipation to ensure that SSDs get the cooling they need.

Roon Server and S/PDIF

The Flashstor series come with S/PDIF over TOSLINK. Enjoy high quality sound with S/PDIF combined with Roon or High-Res Player for an unmatched audio experience.

Frequently Asked Questions

Product FAQs

Answers based only on the product information supplied for this item.

How many M.2 NVMe slots does the ASUSTOR FS6712X have?

The supplied description lists twelve M.2 NVMe slots.

Which processor is included?

It uses a quad-core 10 nm Intel Celeron N5105 CPU. The supplied description states speeds of up to 2.9 GHz.

Which Ethernet connectivity is listed?

The supplied description lists 10-Gigabit Ethernet.

How much memory is included?

It includes 4 GB of DDR4-2933 RAM.

Does the FS6712X support 4K transcoding?

Yes. Smooth 4K hardware transcoding is included in the supplied feature list.

Can it be used with Final Cut Pro workflows?

The supplied description explains that an ASUSTOR NAS can make Final Cut Pro files available without relying on frequently connected and disconnected external drives.

Can games be stored on an iSCSI drive?

The supplied description states that certain games can be played from an iSCSI drive when they cannot be run from a network share.

Which audio output is included?

The supplied description lists S/PDIF over TOSLINK for use with Roon or High-Res Player.

Does it support Wake on LAN?

Yes. Wake on LAN is included in the supplied feature list.

(FS6712X)

Hardware Specifications
CPU	CPU Model	Intel Celeron N5105
	CPU Architecture	x64 64-bit
	CPU Frequency	Quad-Core 2.0GHz (burst up 2.90 GHz)
Memory	Memory	4GB SO-DIMM DDR4
	Memory Module Pre-installed	4GB (1x 4GB)
	Total Memory Slots	2
	Memory Expandable up to	16GB (2x 8GB) Support mixed capacity
	Flash Memory	8GB eMMC
Storage	M.2 Drive Slots	12
	Compatible Drive Type	M.2 2280 NVMe Heatsinks for compatible NAS devices may be purchased separately if needed
	M.2 PCIe Interface	PCIe 3.0 x1
	Maximum Drive Bays with	8

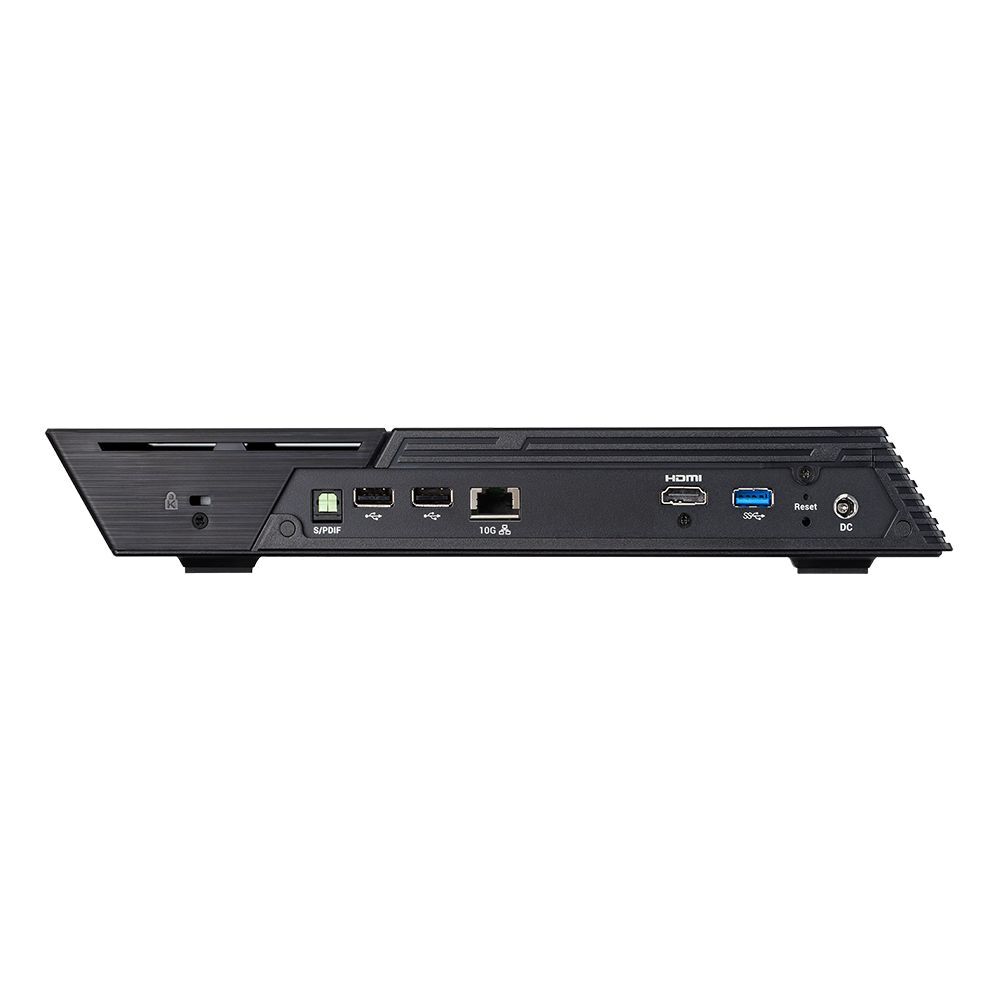

External Ports	Expansion	2x USB 3.2 Gen 2 (10Gbps); 2 x USB 2.0
	Network	1 x 10 Gigabit Ethernet (10G/5G/2.5G/1G/100M/10M)
	Multimedia Output	1x HDMI 2.0b, 1x S/PDIF
Others	System Fan	1 x 80mm
	Power Supply Unit / Adapter	90W x1
	Input Power Voltage	100V to 240V AC
	Certification	FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA
	Warranty	3 Years
Operation	Power Consumption	26 W
	Noise Level	18.7dB
	Operation Temperature	0°C~40°C (32°F~104°F)
	Storage Temperature	-20°C~70°C (-4°F~158°F)
	Humidity	5% to 95% RH
Size and Weight	Size	48.3 (H) x 308.26 (W) x 193 (D) mm
	Weight	1.37 kg / 3 lb
