Short-depth design, Intel® quad-core CPU
Built-in GPU and Intel® OpenVINOâ¢
2x 2.5GbE, 1x PCIe slot for 10GbE expansion
Â

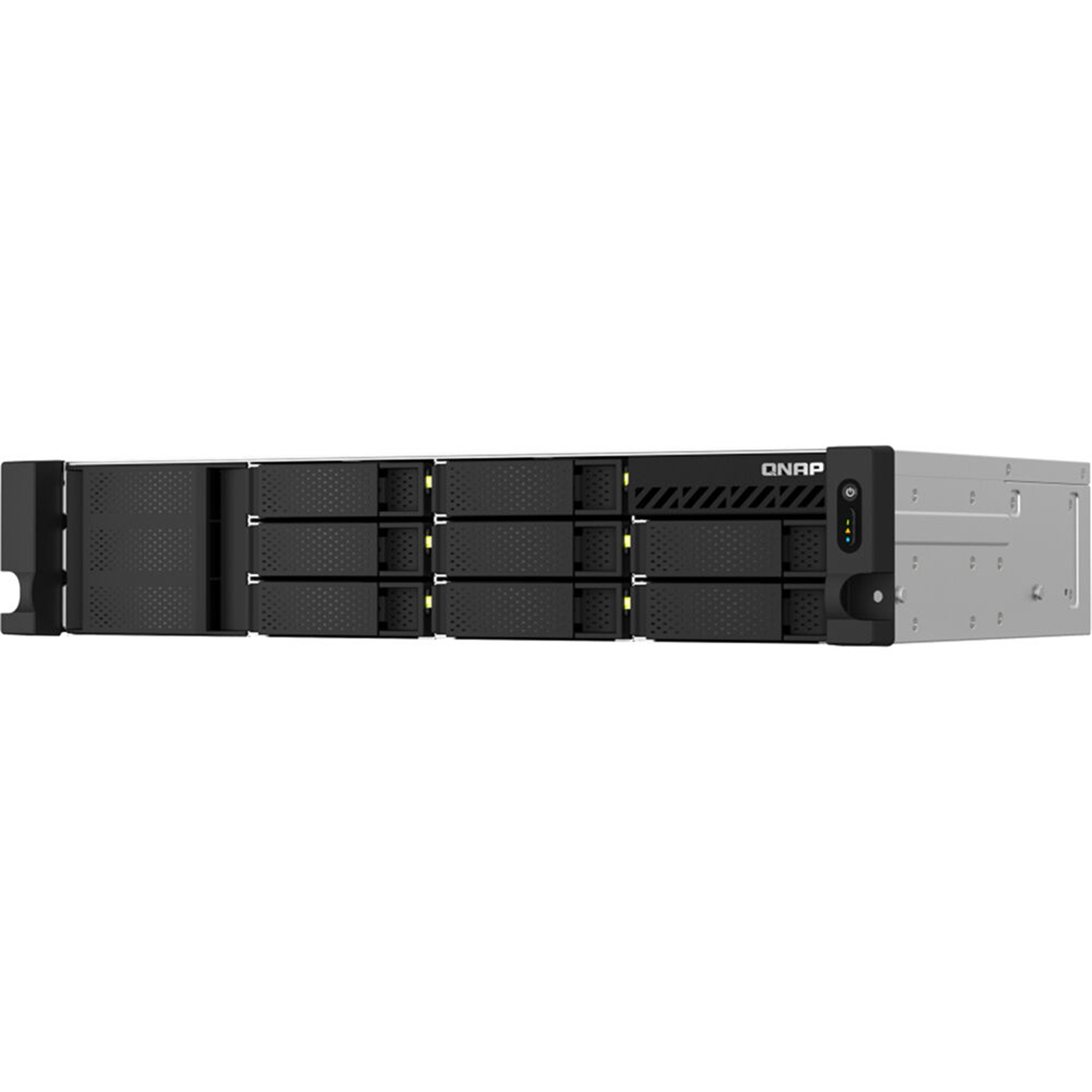

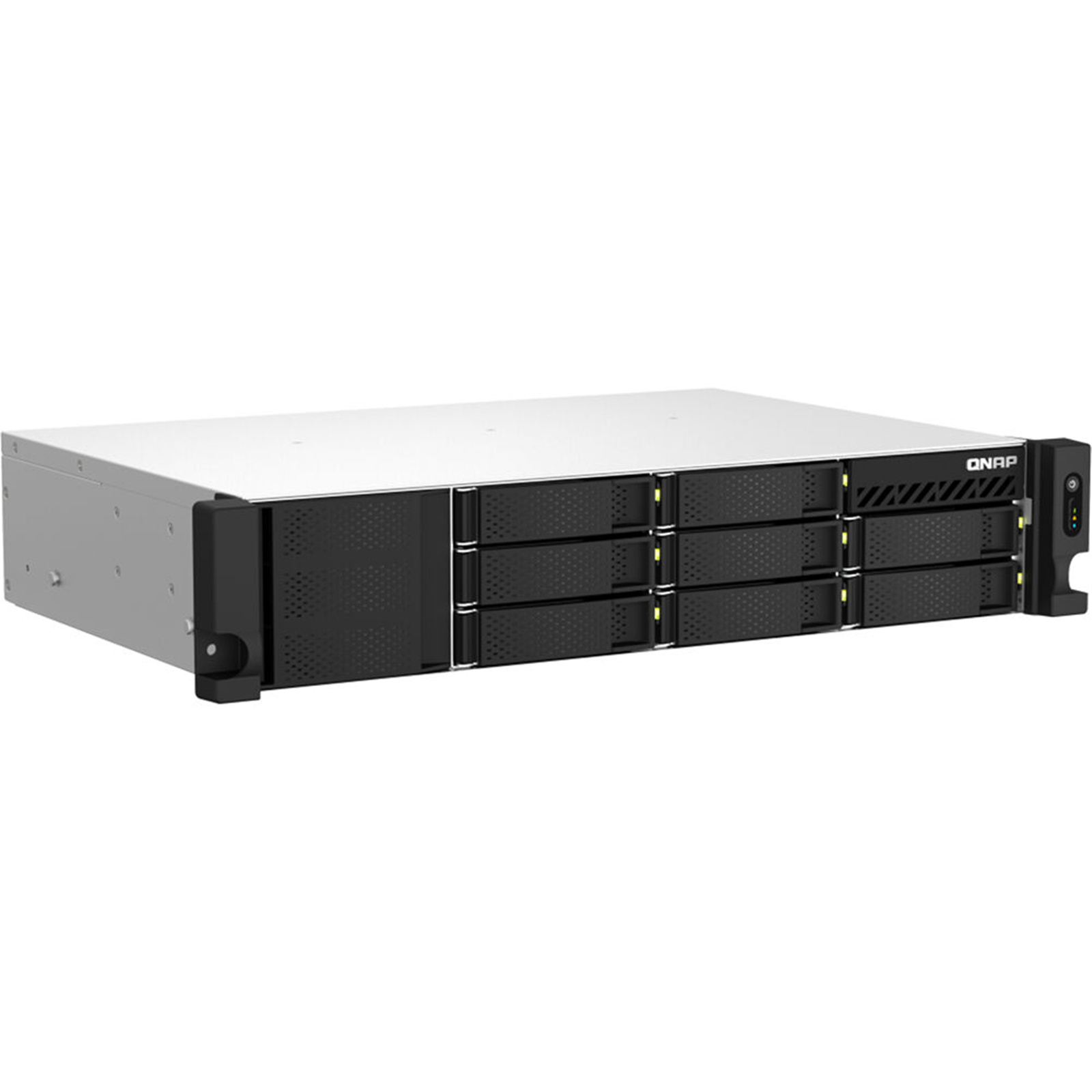

The TS-864eU is powered by Intel® Celeron® N5095 quad-core processor (burst up to 2.9 GHz). The space-efficient short depth design makes it easy to install in small media cabinets or places with a lot of cabling. With expandable storage capacity and feature-rich apps, the TS-864eU surpasses the previous generation.
The TS-864eU uses the QTS operating system by default. You will be able to switch to using the QuTS hero operating system. QuTS hero provides benefits such as ZFS data integrity and WORM technology to prevent data tampering. (Switching to QuTS hero is supported starting from QTS 5.2.2.)
-
2.5GbE connectivity
Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE ports.
-
HDMI⢠Output
Supports 4K media playback and real-time transcoding.
-
PCIe expandability
One PCIe slots allow for installing 2.5/5/10GbE adapters, QM2 cards, or USB 3.2 Gen 2 (10Gbps) expansion cards.
-
USB interface
Two USB 3.2 Gen 2 10Gbps ports for faster data transfer.
-
Backup and data recovery
Protects PC/Macs, virtual machines, software containers, cloud data, and SaaS services.
-
Hybrid cloud applications
Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS.
Â
Specification
Â
| CPU | Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics |
| Floating Point Unit | yes |
| Encryption Engine | Â (AES-NI) |
| Hardware-accelerated Transcoding | yes |
| System Memory | 8 GB SODIMM DDR4 (1 x 8 GB)
Since 2024/01
|
| Maximum Memory | 16 GB (2 x 8GB) |
| Memory Slot | 8 GB |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bay | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | yes |
| M.2 Slot | Optional via a PCIe adapter |
| SSD Cache Acceleration Support | yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via network adaptor |
| 10 Gigabit Ethernet Port | Optional via network adaptor
Optional via PCIe expansion card
|
| Wake on LAN (WOL) | yes |
| Jumbo Frame | yes |
| PCIe Slot | 1 Slot 1: PCIe Gen 3 x2 Card dimensions for PCIe slot 1ï¼97 x 68.9 x 18.76 mm / 3.82 x 2.71 x 0.74 inches.
|
| USB 2.0 port | 2 |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type A USB 3.2 Gen 2 |
| HDMI⢠Output | 1, HDMI⢠1.4b |
| Form Factor | 2U Short Depth Rackmount |
| LED Indicators | HDD 1-8, Status, LAN, Expansion, Power |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 88.6 Ã 432 Ã 297.4 mm |
| Weight (Net) | 7.78 kg |
| Weight (Gross) | 9.27 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27ËC (80.6ËF) |
| Power Supply Unit | 300W, 100-240V |
| Power Consumption: HDD Sleep Mode | 24.776 W |
| Power Consumption: Operating Mode, Typical | 51.022 W
Tested with drives fully populated.
|
| Fan | 3 x 60mm, 12VDC |
| System Warning | Buzzer |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 1500 |
