292.3mm short-depth chassis
The compact 1U design supports installation in small cabinets and wall-mounted racks.

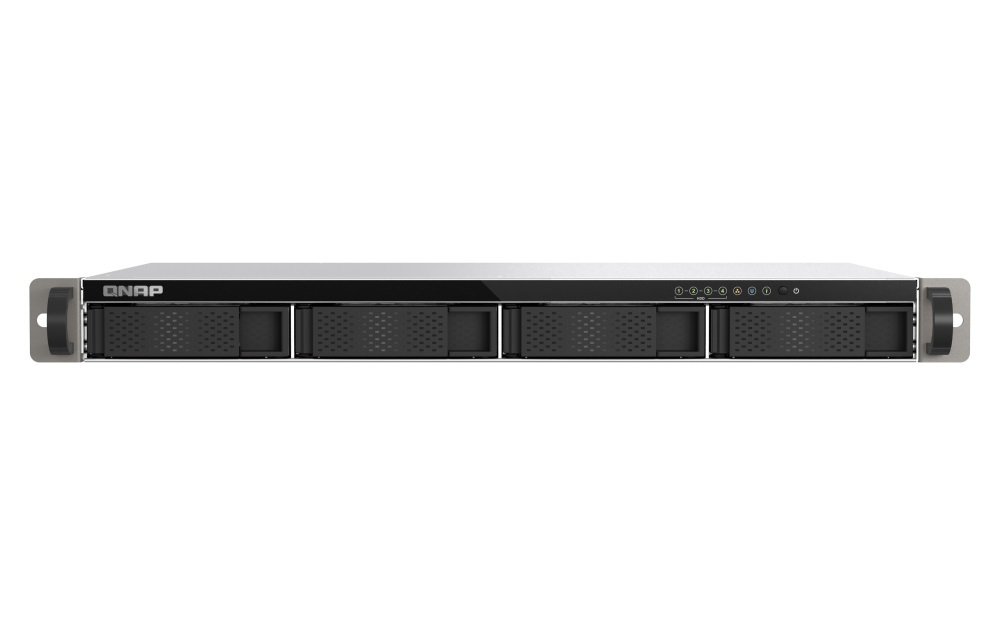

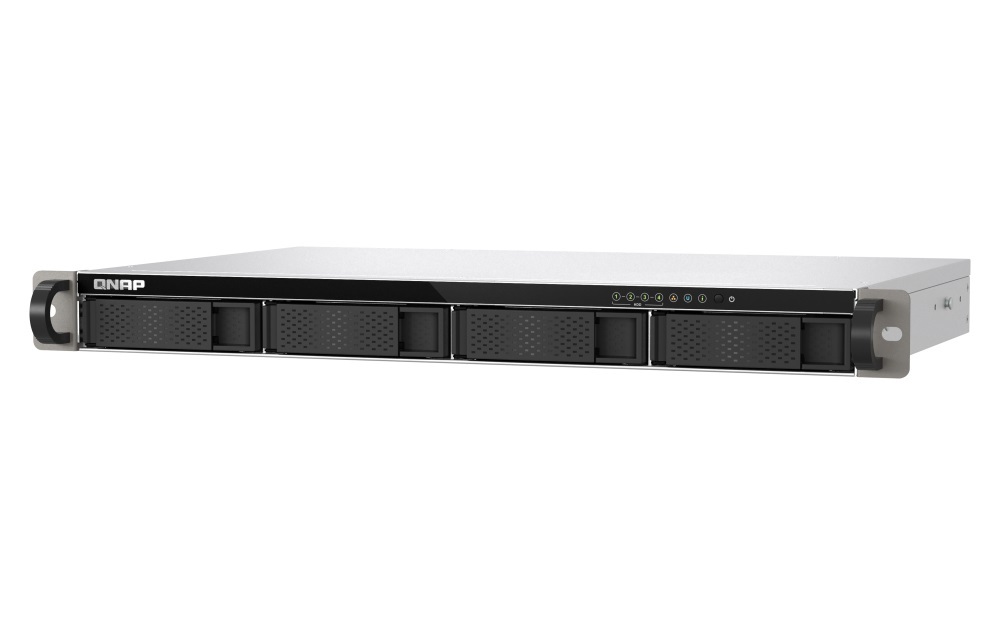

QNAP TS-433eU 4-bay 1U short-depth rackmount ARM 4-core Cortex-A55 2.0GHz processor, 4 GB on board (non-expandable)
Model # TS-433eU
-
SKU: TS-433eU
- Pick Up Available
- Australian Warranty
- Checkout Securely
4-bay short-depth edge storage NAS
QNAP TS-433eU 4-Bay Short-Depth 2.5GbE Rackmount NAS
A compact 1U rackmount NAS with a 292.3mm chassis depth, an ARM Cortex-A55 quad-core 2.0GHz processor, 4GB onboard memory, dual 2.5GbE and a built-in NPU.
4 drive bays292.3mm depthDual 2.5GbE3-year manufacturer warranty
What is the TS-433eU?
The TS-433eU is a four-bay short-depth 1U edge-storage NAS for space-limited business environments. It combines an ARM Cortex-A55 quad-core 2.0GHz processor, 4GB non-expandable onboard memory, dual 2.5GbE and a built-in NPU for accelerated image recognition.
292.3mmShort chassis depth
2 × 2.5GbEMulti-gigabit ports
Built-in NPUAI image recognition
4GB onboardNon-expandable memory
Need help choosing a NAS?
Read NAS Buying Guide Explore the DeviceDeal NAS Buying Guide
Compare NAS types, storage considerations and practical features before selecting your next network attached storage solution.
Compact edge storage for tight spaces
The 1U chassis is 292.3mm deep and is designed for small media cabinets, wall-mounted network racks and other locations where a conventional rackmount server may not fit.

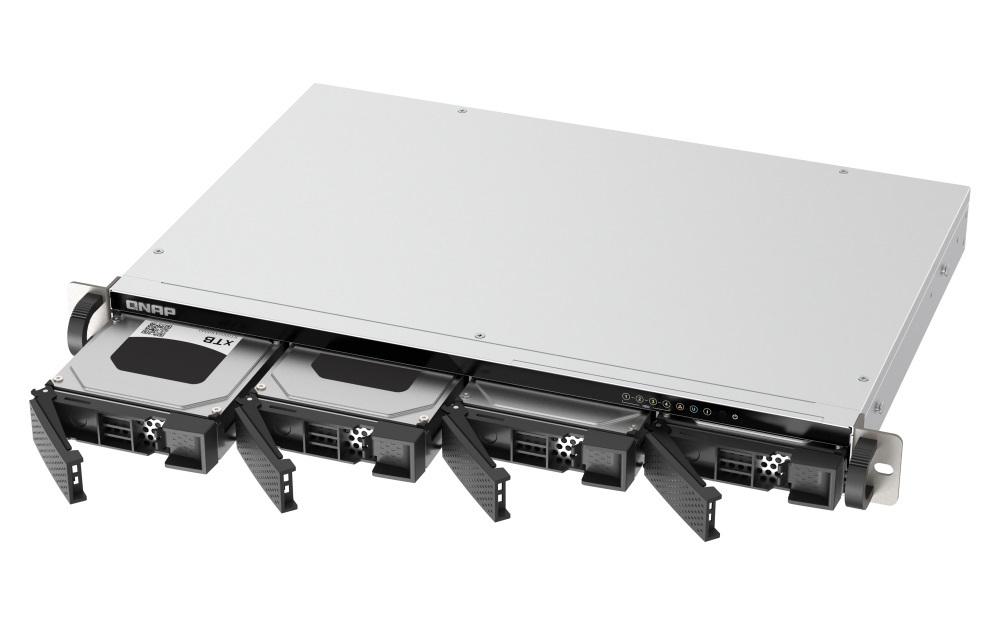

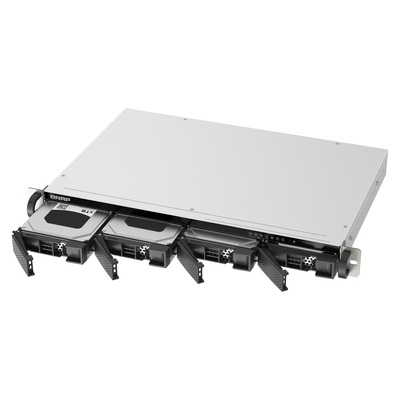

- Four hot-swappable SATA bays support 3.5-inch hard drives and 2.5-inch solid state drives.
- The supplied deployment examples include factories, small offices, audiovisual rooms and surveillance rooms.

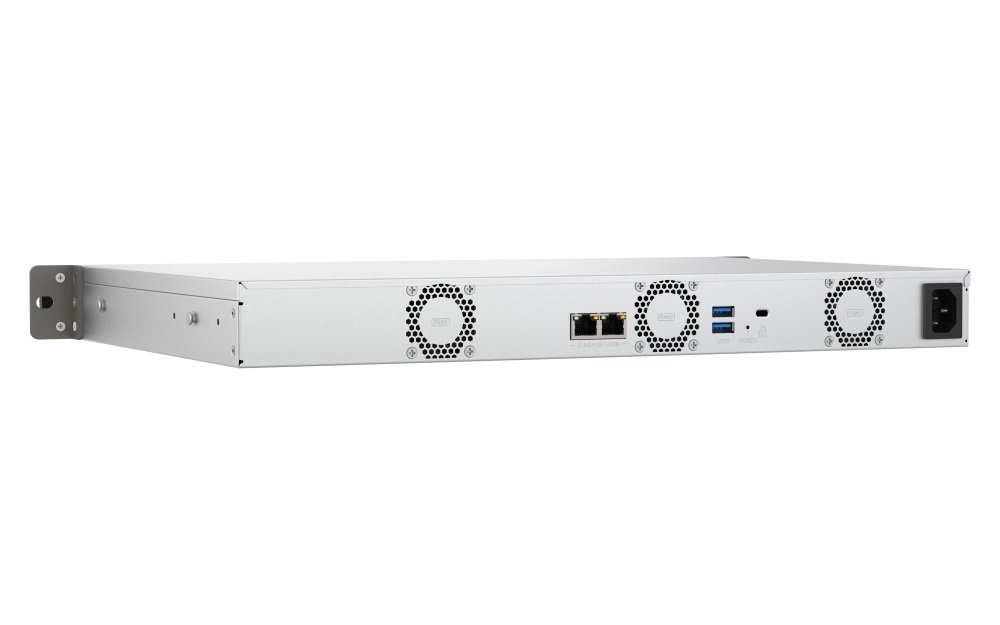

- Three 40mm cooling fans are specified.
ARM processing, onboard memory and NPU acceleration
A 64-bit ARM Cortex-A55 quad-core 2.0GHz processor, 4GB onboard memory and hardware-accelerated encryption support everyday backup and application workloads.
- The 4GB memory is non-expandable, and some RAM is reserved for shared graphics memory.
- The built-in NPU accelerates image recognition and subject identification in QNAP QuMagie.
- The supplied information reports face recognition up to six times faster while reducing CPU workload.
Dual 2.5GbE networking and supplied throughput
Two 2.5GbE ports support file access, backup, restore and container application traffic. Port Trunking or SMB Multichannel can increase available bandwidth and connection resilience.
282MB/s readSMB sequential throughput using one 2.5GbE connection
286MB/s writeSMB sequential throughput using one 2.5GbE connection
282MB/s readEncrypted SMB sequential throughput
288MB/s writeEncrypted SMB sequential throughput
The figures were measured in QNAP laboratories with the stated TS-433eU test environment and may vary.
Backup, snapshots and supplied expansion example
The supplied information lists centralised backup, regular snapshots and Docker container applications. A QNAP short-depth USB JBOD TR-004U is identified as an expansion option.
- The supplied example supports up to 144TB using 24TB hard drives in RAID 5.
- Two USB 3.2 Gen 1 ports are included.
- Wake on LAN and Jumbo Frame support are listed.
Important deployment and capacity notes
- The supplied source does not state whether drives are included, so no diskless claim has been added.
- The 4GB onboard memory is non-expandable.
- The 144TB figure is a supplied example using a TR-004U, 24TB hard drives and RAID 5.
- Performance and NPU acceleration figures were measured or stated under supplied conditions and may vary.
Frequently asked questions
What is the QNAP TS-433eU?
It is a four-bay short-depth 1U rackmount NAS with an ARM Cortex-A55 quad-core processor, 4GB onboard memory, dual 2.5GbE and a built-in NPU.
How deep is the TS-433eU chassis?
The supplied dimensions list a chassis depth of 292.3mm, or 11.51 inches.
How many drive bays does it have?
It has four hot-swappable 3.5-inch SATA bays supporting 3.5-inch SATA hard drives and 2.5-inch SATA solid state drives.
Which processor is installed?
It uses a 64-bit ARM Cortex-A55 four-core processor running at 2.0GHz.
How much memory is installed and can it be upgraded?
It includes 4GB onboard memory. The supplied specifications state that the memory is non-expandable.
What does the built-in NPU do?
The NPU accelerates AI image recognition and subject identification in QNAP QuMagie while reducing processor workload.
Which network ports are included?
It includes two 2.5GbE ports supporting 2.5G, 1G and 100M network speeds.
Can it use Port Trunking or SMB Multichannel?
Yes. The supplied information lists both options for increasing available bandwidth and improving connection resilience.
Which USB ports are included?
It provides two USB 3.2 Gen 1 ports.
Can the storage capacity be expanded?
Yes. The supplied example uses a QNAP TR-004U short-depth USB JBOD and 24TB drives in RAID 5 for up to 144TB.
What performance was reported over 2.5GbE?
QNAP laboratory results list 282MB/s read and 286MB/s write, with encrypted results of 282MB/s read and 288MB/s write.
What warranty applies to the TS-433eU?
The supplied specifications list a three-year QNAP manufacturer warranty.
(TS-433eU)
Features and highlights
Key capabilities below are organised from the supplied product information for TS-433eU.
Dual 2.5GbE ports
Two multi-gigabit ports support Port Trunking or SMB Multichannel.
ARM quad-core processor
A 64-bit Cortex-A55 four-core 2.0GHz processor supports everyday business workloads.
Built-in NPU
Dedicated neural processing accelerates image recognition and reduces CPU workload.
Four hot-swappable bays
The SATA bays support 3.5-inch hard drives and 2.5-inch solid state drives.
USB expansion support
Two USB 3.2 Gen 1 ports support external storage, including the supplied TR-004U example.
Important: The supplied source does not identify the drive-inclusion status. The 144TB capacity and up-to-six-times NPU figures are supplied examples or claims and depend on the stated configuration and environment.
Technical specifications
Specifications below are organised from the supplied QNAP product information for TS-433eU.
Processor and memory
| CPU | ARM four-core Cortex-A55 2.0GHz processor |
|---|---|
| CPU architecture | 64-bit ARM |
| Graphics processor | Mali-G52 |
| Encryption engine | Yes |
| Hardware-accelerated transcoding | Yes |
| Neural Processing Unit | Yes |
| System memory | 4GB onboard, non-expandableSome RAM is reserved for shared graphics memory. |
| Maximum memory | 4GB onboard, non-expandable |
Storage
| Drive bays | 4 × 3.5-inch SATA 6Gb/s, 3Gb/s |
|---|---|
| Drive compatibility | 3.5-inch SATA hard disk drives; 2.5-inch SATA solid state drives |
| Hot-swappable | Yes |
Networking and connectivity
| 2.5 Gigabit Ethernet ports | 2 × 2.5GbE ports (2.5G/1G/100M) |
|---|---|
| Wake on LAN | Yes |
| Jumbo Frame | Yes |
| USB ports | 2 × USB 3.2 Gen 1 ports |
| LED indicators | System status, LAN, USB, HDD14 |
| Buttons | Power, reset |
| Kensington security slot | Yes |
| System warning | Buzzer |
| Maximum concurrent CIFS connections | 200 with maximum memory |
Physical specifications
| Form factor | 1U short-depth rackmount |
|---|---|
| Dimensions (H × W × D) | 43.3 × 430 × 292.3mm |
| Net weight | 4.01kg |
| Gross weight | 5.9kg |
Power, cooling and environment
| Power supply unit | 60W, 100240VAC |
|---|---|
| Disk standby power consumption | 9.32W |
| Typical operating power consumption | 23.74WTested with drives fully populated. |
| Fans | 3 × 40mm, 12VDC |
| Operating temperature | 040°C (32104°F) |
| Storage temperature | -2070°C (-4158°F) |
| Relative humidity | 595% RH non-condensing, wet bulb: 27°C (80.6°F) |
Warranty
| Standard warranty | 3 years |
|---|
| SKU | TS-433eU |
| Model # | TS-433eU |
| Barcode # | 885022028368 |
| Brand | QNAP |
| Shipping Weight | 3.5000kg |
| Shipping Width | 0.320m |
| Shipping Height | 0.250m |
| Shipping Length | 0.310m |
3 YearsQNAP manufacturer warranty
3-year QNAP manufacturer warranty
The supplied specifications list a 3-year standard manufacturer warranty for the QNAP TS-433eU.
Warranty coverage, eligibility and claim assessment are subject to QNAPs applicable warranty terms. Please retain your DeviceDeal tax invoice as proof of purchase.
