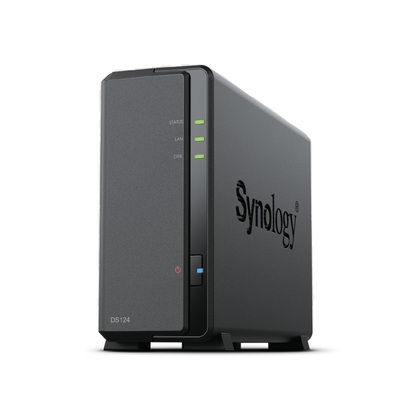

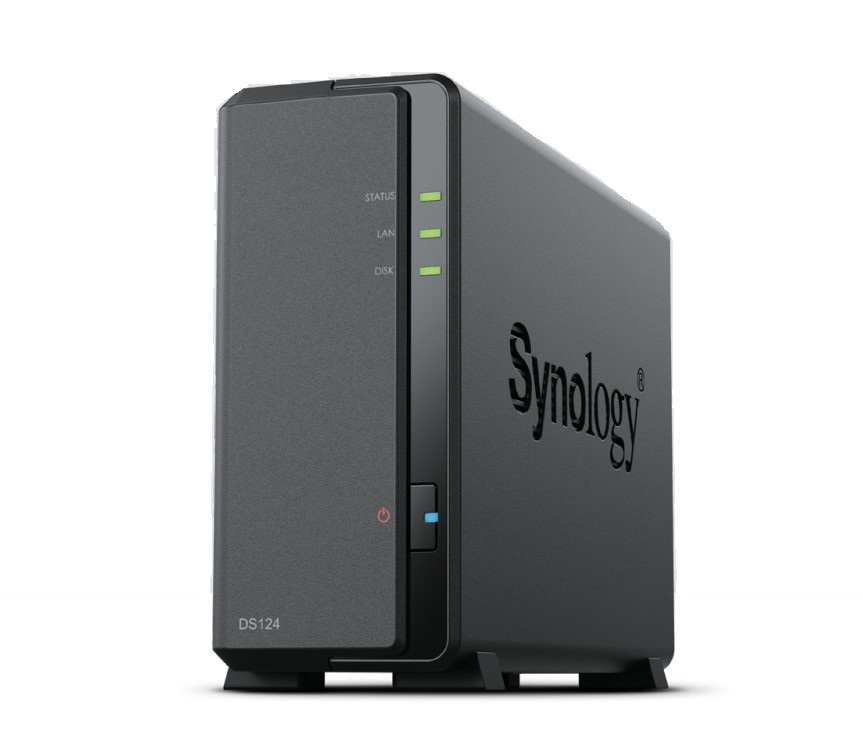

DiskStation

DS124

Enterprise-grade diskstation storage solution

DS124

DS124 is designed for professionals to share, sync, and work together more efficiently.

Uncompromising performance

Throughput
Throughput
1x 1GbE LAN ports
Scalability
Scalability
1 drive bays
CPU
CPU
4-core Realtek RTD1619B @ 1.7 GHz
Memory
Memory
1 GB DDR4 non-ECC

Take command of your most important data

Anywhere, anytime secure access to all your data.

Productivity in the private cloud

DS124 is designed for professionals to share, sync, and work together more efficiently.

Store, share, and protect

Use your DS124 to manage all your documents, photos, and other files, or protect your physical assets with professional video surveillance.

Works best with Synology drives

Engineered to handle intensive 24/7 workloads, Synology drives consistently deliver top-grade performance.

More ways to harness your NAS

Store, access, and share files securely and efficiently with the native solutions available in Synology DSM.

Powered by Synology DiskStation Manager

Enterprise-grade software solutions included

Secure private cloud

Anywhere, anytime secure access to all your data.

Data sharing made easy

Streamline teamwork and access to shared files.

Hassle-free backups

Effortlessly protect files using intuitive tools.

Anytime, anywhere access

Access, manage, and share your files and media from anywhere withSynology Drive. Available on PC, Mac, Linux, Chromebook, Android, iOS, or any device equipped with a browser.

Intelligent backup and syncing

Safeguard against ransomware attacks or accidental deletion with real-time or scheduled folder backups. Reduce local storage use withon-demand sync, only downloading files as needed.

Seamless cloud syncing

Synchronize files between your DS124 and public cloud services usingSynology Cloud Sync. Retain local backup copies of data stored on Google Drive, Dropbox, Microsoft OneDrive, and more, and ensure da

(DS124)

Technical Specifications

Complete hardware and software specifications

CPU

CPU Model Realtek RTD1619B
CPU Quantity 1
CPU Cores 4
CPU Threads 4
CPU Architecture 64-bit
CPU Frequency 1.7 GHz
Hardware Encryption Engine Yes

Memory

System Memory 1 GB DDR4 non-ECC
Notes Synology may revise pre-installed memory module specifications in response to component lifecycle and supply conditions. All revised components undergo the same rigorous validation to ensure equivalent compatibility, stability, and performance.

Storage

Drive Bays 1
Drive Type(See all supported drives) 3.5" SATA HDD 2.5" SATA SSD (with optional 2.5" Disk Holder)
Hot Swappable Drive* -

External Ports

RJ-45 1GbE LAN Port 1
USB 3.2 Gen 1 Port 2
Notes MTU value of 1GbE LAN port has a limit of 1500.

Appearance

Size (Height x Width x Depth) 166 mm x 71 mm x 224 mm
Weight 0.7 kg

Others

System Fan 60 mm x 60 mm x 1 pcs
Fan Speed Mode Full-Speed Mode Cool Mode Quiet Mode Low-power Mode
Brightness Adjustable Front LED Indicators Yes
Power Recovery Yes
Noise Level* 19.0 dB(A)
Scheduled Power On / Off Yes
Wake on LAN / WAN Yes
Power Supply Unit / Adapter 36 watts
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption 10.69 watts (Access) 3.44 watts (HDD Hibernation)
British Thermal Unit 36.50 BTU/hr (Access) 11.75 BTU/hr (HDD Hibernation)
Notes For more information on how power consumption is measured, refer to this article . Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Operating Humidity 8% to 80% RH
Storage Humidity 5% to 95% RH

Certification

Certification FCC CE BSMI VCCI RCM UKCA EAC CCC KC BIS

Warranty

Warranty 2-year hardware warranty
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) In the event that a valid receipt of purchase of Product or Product invoice is not presented, or is apparently erroneous or falsified, the Warranty Period for the presented Product shall commence from the manufacturing date in accordance with Synology's internal records.

Environment

Environment RoHS Compliant

Packaging Content

Packaging Content Main Unit X 1 Accessory Pack X 1 AC Power Adapter X 1 RJ-45 LAN Cable X 1 Quick Installation Guide X 1

Optional Accessories

Optional Accessories Plus Series 3.5" SATA HDD: HAT3300 Series

Storage Management

Maximum Single Volume Size 108 TB
Maximum Internal Volume Number 1
SSD TRIM Yes
Supported RAID Type Basic
Notes Actual maximum storage pool and volume sizes depend on drive sizes used, the number of drive bays available, and the RAID configuration. Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored.

File System

Internal Drives Btrfs ext4
External Drives Btrfs ext4 ext3 FAT32 NTFS HFS+ exFAT

File Services

File Protocol SMB AFP NFS FTP WebDAV Rsync
Maximum Number of SMB Connections (FSCT-Based) 5
Windows Access Control List (ACL) Integration Yes
NFS Kerberos Authentication Yes
Notes Connection value of this model is tested with Synology SATA HDD fully populated and all onboard network ports SMB performance was evaluated using Microsoft File Server Capacity Tool (FSCT) version 1.3, with the following configuration: Test workload: HomeFolder scenario provided by the FSCT tool Test duration: 600 seconds Domain controller & FSCT controller: Windows Server 2022 FSCT clients: 8 × Windows 10 machines SMB feature: Directory leasing enabled

Account & Shared Folder

Maximum Local User Accounts 256
Maximum Local Groups 64
Maximum Shared Folder 64
Maximum Shared Folder Sync Tasks 2

Hyper Backup

Data & Folder Backup Yes

Log Center

Syslog Events per Second 400

General Specifications

Supported Protocols SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers Chrome Firefox Edge Safari
Supported Language English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
Notes For an updated list of supported browser versions, check the DSM Technical Specifications .

Synology Chat

Synology Chat Yes

Download Station

Maximum Concurrent Download Tasks 80

SAN Manager

Maximum iSCSI Target Number 2
Maximum LUN 4
LUN Clone/Snapshot, Windows ODX Yes

Media Server

DLNA Compliance Yes

Synology Photos

Facial Recognition Yes

Snapshot Replication

Maximum Snapshots per Shared Folder 128
Maximum Snapshots per LUN 32
Maximum Snapshots per System 1,024
Maximum Replication Tasks for Shared Folders 16
Maximum Replication Tasks for LUNs 8
Maximum Replication Tasks per System 16

Surveillance Station

Default Licenses 2 (Additional cameras require purchase of licenses)
Maximum IP Cameras and Total FPS (H.264) 1080p: 12 channels, 300 FPS 3M: 12 channels, 200 FPS 5M: 12 channels, 140 FPS 4K: 9 channels, 90 FPS
Maximum IP Cameras and Total FPS (H.265) 1080p: 12 channels, 360 FPS 3M: 12 channels, 240 FPS 5M: 12 channels, 200 FPS 4K: 12 channels, 140 FPS
Notes Performance figures are obtained from testing conducted with the device fully populated with drives, with their default memory configuration, and under a continuous recording setup. Actual system capabilities may vary based on configuration, drive performance, enabled features, and the presence of additional workloads. Use NVR Selector to quickly find a suitable model based on your requirements. The number of video channels that can be viewed simultaneously is double the maximum number of cameras for the same codec and resolution.

Synology Drive

Maximum Number of Users 5
Maximum Number of Hosted Files 100,000 (applies to files indexed or hosted by Synology Drive . For file access through other standard protocols, refer to the File Services section above)
Notes The suggested maximum number of users is based on the following workload: 20% of users randomly perform file operations (upload, download, move, and delete), and 80% of users are logged in but idle. Learn more Models with SSD support are tested with a single SSD volume. Exceeding the recommended numbers above will not block application operations, but may result in longer response time. Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.

Synology Office

Maximum Number of Users 5
Notes The suggested maximum number of users is based on the following workload: 20% of users are executing random actions at an average of 30-second intervals, and 80% of users are logged in and viewing a file. Learn more Models with SSD support are tested with a single SSD volume. Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM

VPN Server

Maximum Connections 2
SKU DS124
Barcode # 846504005017
Brand SYNOLOGY
Shipping Weight 1.6000kg
Shipping Width 0.210m
Shipping Height 0.320m
Shipping Length 0.090m
Shipping Cubic 0.006048000m3
Manufacturer Warranty


Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

Synology DiskStation DS124 1 Bay Diskless NAS 1.7GHz quad-core CPU 1GB RAM

Model# DS124

  • SKU: DS124

$275.00
$359.70
SAVE $84.70 (24%)
In Stock
