30TB enterprise capacity
The exact-SKU specifications list 30TB CMR capacity in a 3.5-inch form factor.
Seagate 30TB Exos ST30000NM004K M 3.5" SATA HDD 7200RPM Server Hard Drive
Model # ST30000NM004K
-
SKU: ST30000NM004K
$2,499.00
Stock Availability
🟢Live
ONLINE: ✓ In Stock
Vermont VIC: ✓ In Stock
(Click & Collect Available)
(Click & Collect Available)
- Pick Up Available
- Australian Warranty
- Checkout Securely
Seagate Exos M Enterprise Hard Drive

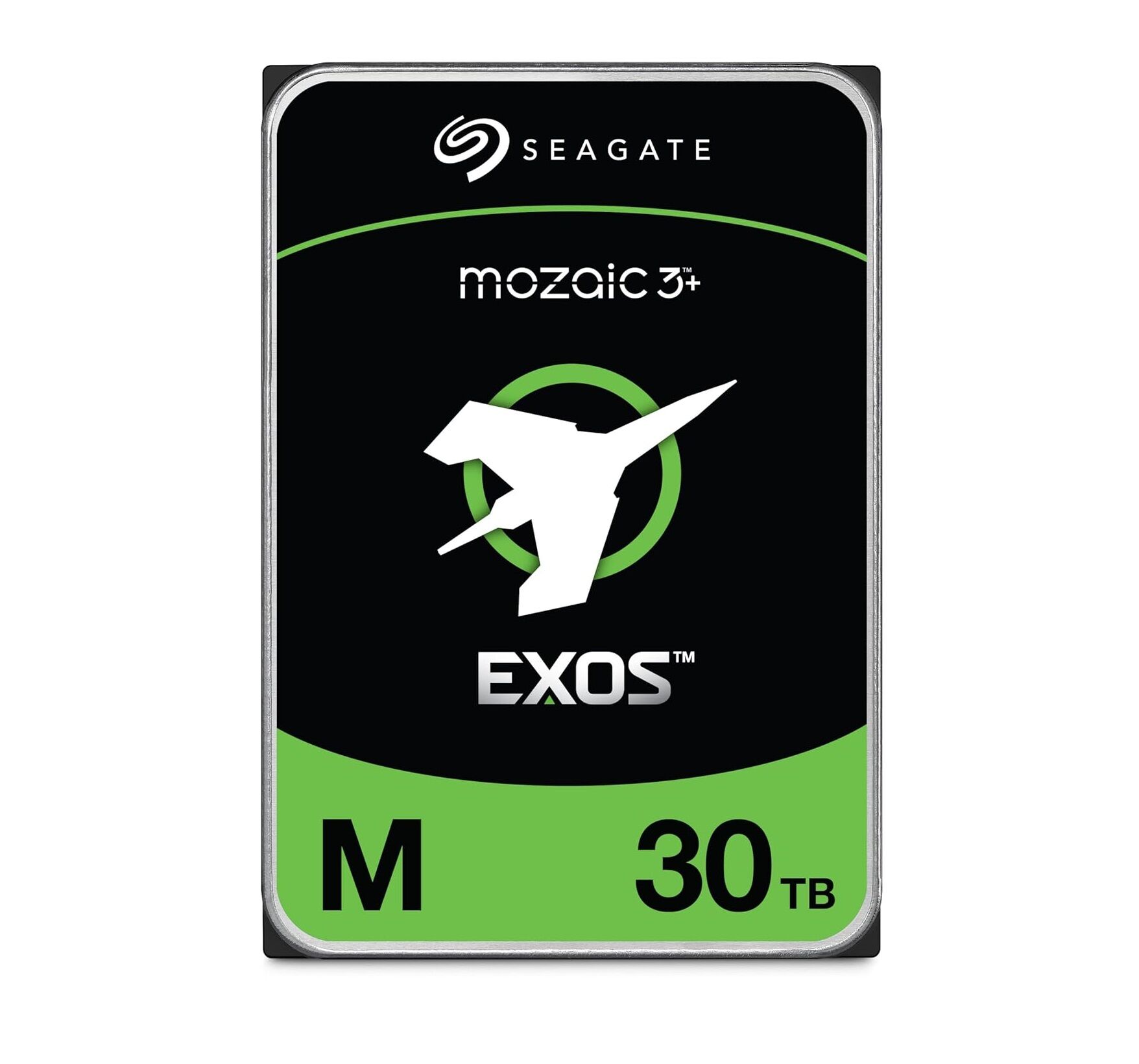

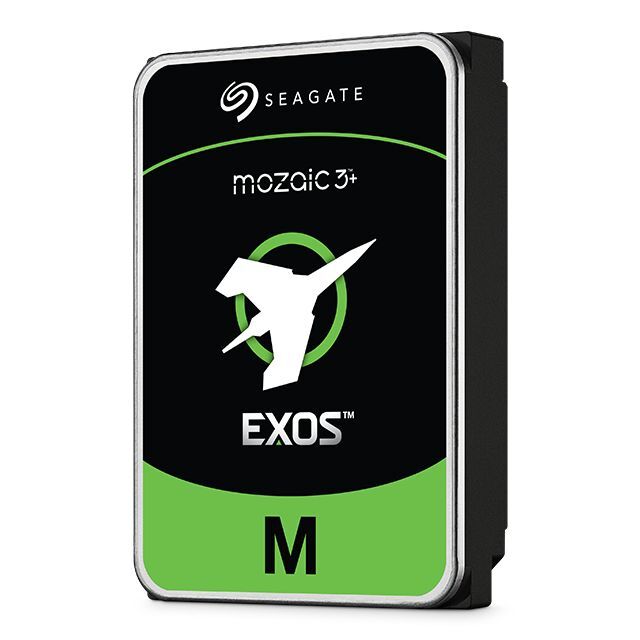

Seagate Exos M 30TB SATA Enterprise Hard Drive ST30000NM004K
A 30TB Seagate Exos M enterprise hard drive with CMR, 3TB-per-platter density, SATA 6Gb/s, 7,200 RPM, 512MB cache, a 275MB/s sustained transfer rate and a 5-year limited warranty.
30TB enterprise capacityCMR and helium design512MB cache5-year warranty
Product overview
The supplied product information identifies ST30000NM004K as a 30TB Exos M 3.5-inch SATA enterprise hard drive designed for server, cloud and data-intensive environments.
The exact-SKU specifications list CMR, a helium-sealed design, Seagate ISE 512e, 7,200 RPM, 512MB cache, a 275MB/s maximum sustained transfer rate, a 2.5-million-hour MTBF figure and a 0.35% AFR.
The supplied description highlights 3TB-per-platter density, Mozaic 3+ technology, power-efficiency improvements per terabyte, integration with existing form-factor and cooling requirements, and Seagate Secure data-protection functionality.
Choosing the right HDD or SSD?
Compare storage types, capacities and options in the DeviceDeal Storage & Hard Drives guide.
Manufacturer warranty and authorised reseller
The supplied specifications list a 5-year limited Seagate manufacturer warranty for ST30000NM004K.
DeviceDeal is an authorised reseller of Seagate products.
Frequently asked questions
What is the Seagate ST30000NM004K?
It is a 30TB Seagate Exos M 3.5-inch SATA enterprise hard drive.
What recording technology and sector format are listed?
The supplied specifications list CMR recording, Seagate ISE and a 512e sector format.
What speed, cache and transfer rate are supplied?
The source lists 7,200 RPM, a 512MB cache and a 275MB/s maximum sustained transfer rate.
What reliability figures are provided?
The supplied specifications list a 2.5-million-hour MTBF figure, a 0.35% AFR and 8,760 power-on hours per year.
Which enterprise drive technologies are listed?
The source lists a helium-sealed design, SuperParity, PowerChoice, PowerBalance, hot-plug support and RSA 3072 firmware verification.
What manufacturer warranty applies?
The supplied specifications list a 5-year limited Seagate manufacturer warranty. DeviceDeal is an authorised reseller of Seagate products.
(ST30000NM004K)
Features and highlights
A 30TB Exos M enterprise HDD with CMR, 3TB-per-platter density, 7,200 RPM, 512MB cache, enterprise reliability figures and a 5-year limited warranty.
3TB-per-platter density
The supplied description highlights breakthrough 3TB-per-platter areal density.
7,200 RPM and 512MB cache
The product information lists a 7,200 RPM spindle speed and 512MB cache.
Enterprise reliability
The source lists a 2.5-million-hour MTBF figure, 0.35% AFR and 8,760 power-on hours per year.
Power and platform technologies
PowerChoice, PowerBalance, hot-plug support and a helium-sealed design are listed.
5-year manufacturer warranty
The supplied specifications list a 5-year limited Seagate manufacturer warranty.
Key supplied details
- SATA 6Gb/s interface with 512e sector format
- 275MB/s / 262MiB/s maximum sustained transfer rate
- 170 / 350 random read/write 4K QD16 WCD IOPS
- 4.16ms average latency
- Operating temperature: 10°C to 60°C
- 695g drive weight
Technical specifications
Seagate Exos M 30TB SATA Enterprise Hard Drive ST30000NM004K
Product details
| Brand | Seagate |
|---|---|
| SKU | ST30000NM004K |
| Product family | Exos M |
| Drive type | Enterprise hard drive |
| Capacity | 30TB |
| Form factor | 3.5-inch |
| Interface | SATA 6Gb/s |
| Recording technology | CMR |
| Seagate ISE | Yes (512e) |
| Sector size | 512e |
| Helium sealed-drive design | Yes |
| Interface ports | Single |
Enterprise technologies
| SuperParity | Yes |
|---|---|
| Low halogen | Yes |
| PowerChoice technology | Yes |
| PowerBalance technology | Yes |
| Hot-plug support | Yes |
| Organic solderability preservative | Yes |
| RSA 3072 firmware verification | Yes |
Reliability
| MTBF | 2,500,000 hours |
|---|---|
| AFR | 0.35% |
| Nonrecoverable read errors | 1 sector per 10E15 |
| Power-on hours per year | 8,760 |
Performance
| Cache | 512MB |
|---|---|
| Spindle speed | 7,200 RPM |
| Interface access speed | 6.0, 3.0Gb/s |
| Maximum sustained transfer rate | 275MB/s / 262MiB/s |
| Random read/write 4K QD16 WCD | 170 / 350 IOPS |
| Average latency | 4.16ms |
| Rotational vibration at 201500Hz | 12.5rad/s |
Power and environmental
| Idle power | 6.9W |
|---|---|
| Maximum operating power | 9.5W |
| Power-supply requirements | +12V and +5V |
| Operating temperature | 10°C to 60°C |
| Non-operating vibration | 2.27Grms |
| Operating shock, 2ms read/write | 30Gs |
| Non-operating shock, 2ms | 200Gs |
Physical and packaging
| Height | 26.1mm / 1.028in |
|---|---|
| Width | 101.85mm / 4.010in |
| Depth | 147.0mm / 5.787in |
| Weight | 695g / 1.532lb |
| Carton unit quantity | 20 |
| Cartons per pallet / per layer | 40 / 8 |
Warranty
| Manufacturer warranty | 5 years limited |
|---|
| SKU | ST30000NM004K |
| Brand | Seagate |
| Shipping Weight | 0.7000kg |
| Shipping Width | 0.034m |
| Shipping Height | 0.146m |
| Shipping Length | 0.108m |
Manufacturer warranty
Seagate warranty coverage
The supplied specifications list a 5-year limited Seagate manufacturer warranty for ST30000NM004K.
Warranty coverage and claims are subject to the applicable manufacturer warranty terms, eligibility requirements and product assessment. Please retain your DeviceDeal tax invoice as proof of purchase.
DeviceDeal is an authorised reseller of Seagate products.
