16TB storage capacity
The supplied product information lists an 16TB capacity.

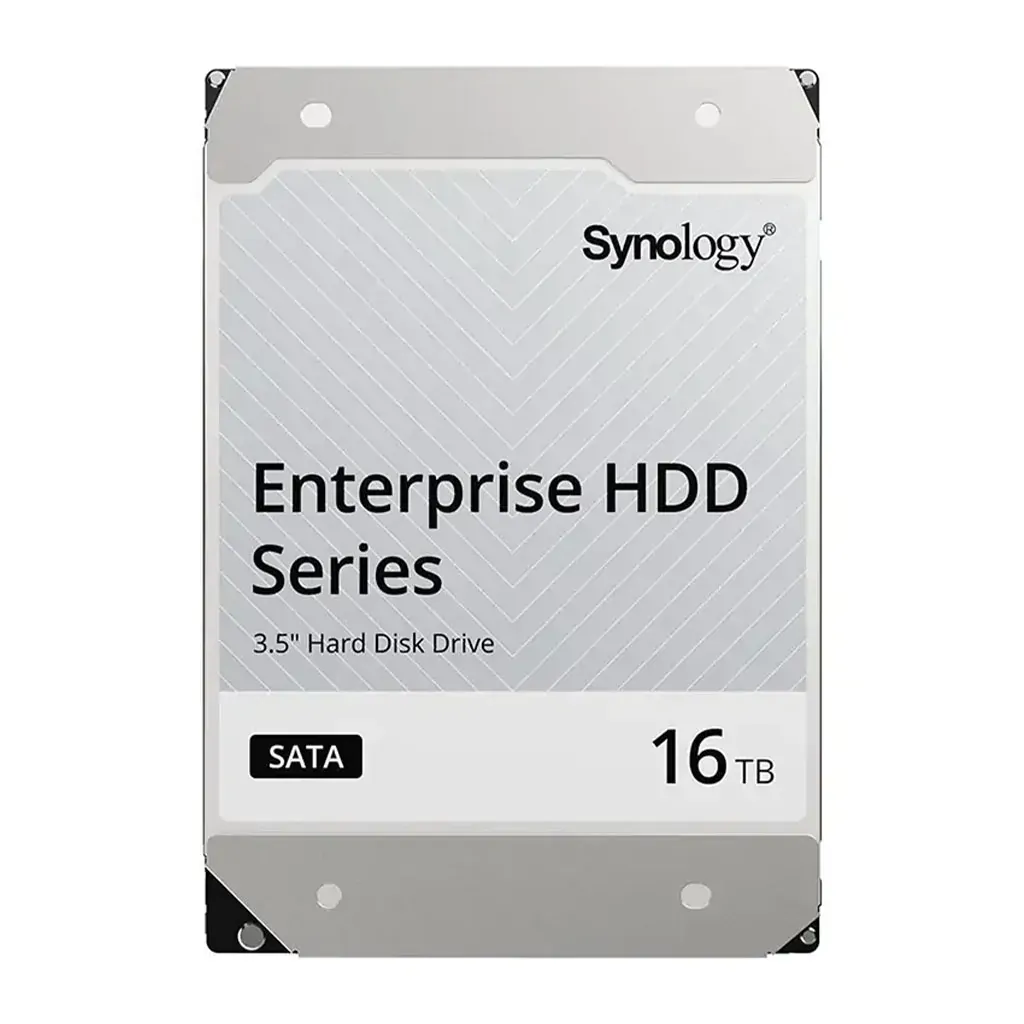

Synology HAT5310 16TB 3.5" SATA 6Gb/s 512e 7200RPM Enterprise Server Hard Drive
Model # HAT5310-16T
-
SKU: HAT5310-16T
- Pick Up Available
- Australian Warranty
- Checkout Securely
Synology HAT5310 Enterprise Hard Drive
Synology HAT5310 16TB SATA 6Gb/s Enterprise Hard Drive - HAT5310-16T
A 16TB Synology HAT5310 3.5-inch enterprise hard drive with a helium-sealed design, SATA 6Gb/s interface, 7,200 RPM rotational speed, 512e sector format, 512 MB buffer and a typical maximum sustained data transfer speed of 281 MB/s.
16TB capacity3.5-inch internal HDDSATA 6Gb/s7,200 RPM550 TB/year workload
Product overview
The Synology HAT5310-16T is a 16TB internal hard drive in a 3.5-inch form factor with a SATA 6Gb/s interface. It is engineered for demanding, high-volume workloads in supported Synology systems.
The HAT5310-16T uses a helium-sealed design and is specified with a 512e sector size, 512 MB buffer, 2.5-million-hour MTBF rating and workload support of 550 TB transferred per year.
Choosing the right HDD or SSD?
Compare storage types, capacities and options in the DeviceDeal Storage & Hard Drives guide.
Five-year manufacturer warranty
The HAT5310-16T is backed by a five-year Synology limited warranty beginning from the purchase date stated on the purchase receipt. DeviceDeal is an authorised reseller of Synology products.
Frequently asked questions
What is the Synology HAT5310-16T?
The Synology HAT5310-16T is a 16TB, 3.5-inch enterprise SATA hard drive designed for supported Synology systems.
What interface and rotational speed does the HAT5310-16T use?
The HAT5310-16T uses a SATA 6Gb/s interface and operates at 7,200 RPM.
What sector size and buffer does the HAT5310-16T have?
The HAT5310-16T uses a 512e sector format and has a 512 MB buffer.
What sustained transfer speed is listed for the HAT5310-16T?
The typical maximum sustained data transfer speed is 281 MB/s.
What reliability and workload ratings apply to the HAT5310-16T?
The HAT5310-16T is rated for 2.5 million hours MTBF and 550 TB transferred per year. MTBF is a statistical value and is not a guarantee or estimate of product life.
What warranty applies to the HAT5310-16T?
The HAT5310-16T is covered by a five-year Synology limited warranty beginning from the purchase date stated on the purchase receipt.
(HAT5310-16T)
Features and highlights
An 16TB Synology HAT5310 3.5-inch internal hard drive with SATA 6Gb/s, 7,200 RPM, 512e sector format, 512 MiB buffer/cache and a listed maximum sustained data transfer speed of 268 MiB/s.
3.5-inch form factor
The supplied specification lists a 3.5-inch internal hard-drive form factor.
SATA 6Gb/s interface
The listed drive interface is SATA 6Gb/s.
7,200 RPM
The supplied data lists a rotational speed of 7,200 RPM.
512e sector format
The supplied specification lists a 512e sector size.
512 MiB buffer / cache
The supplied specification lists a 512 MiB buffer / cache.
281 MiB/s sustained transfer
The listed maximum sustained data transfer speed is 268 MiB/s.
2.5 million hours MTBF / MTTF
The supplied reliability figure is listed as 2.5 million hours MTBF / MTTF.
Key product details
- 16TB capacity
- 3.5-inch form factor
- SATA 6Gb/s
- 7,200 RPM
- 512e sector size
- 512 MiB buffer / cache
- 281 MiB/s maximum sustained transfer speed
- 2.5 million hours MTBF / MTTF
Technical specifications
Synology HAT5310 16TB SATA 6Gb/s Enterprise Hard Drive - HAT5310-16T
Product details
| Manufacturer part number | HAT5310-16T |
|---|---|
| Product family | HAT5300 Series |
| Brand | Synology |
| Product type | Enterprise 3.5-inch SATA hard drive |
Storage and performance
| Capacity | 16 TB |
|---|---|
| Form factor | 3.5-inch |
| Drive design | Helium-sealed |
| Interface | SATA 6 Gb/s |
| Rotational speed | 7,200 RPM |
| Sector size | 512e |
| Buffer size | 512 MB |
| Maximum sustained data transfer speed | 281 MB/s typical |
Reliability
| Mean time between failures (MTBF) | 2.5 million hours |
|---|---|
| Workload rating | 550 TB transferred per year |
| Warranty | 5 years |
Power and temperature
| Supply voltage | 12 V (±10%) / 5 V (+10/-7%) |
|---|---|
| Idle power average | 4.16 W |
| Average operating power | 8.35 W |
| Operating temperature | 5°C to 60°C (41°F to 140°F) |
| Non-operating temperature | -40°C to 70°C (-40°F to 158°F) |
Physical and environmental
| Dimensions (H × W × D) | 26.1 × 101.85 × 147 mm |
|---|---|
| Weight | 720 g |
| Operating shock | 490 m/s² (2 ms duration) |
| Non-operating shock | 1,960 m/s² (2 ms duration) |
| Operating vibration | 5 Hz to 300 Hz: 7.35 m/s²; 300 Hz to 500 Hz: 2.45 m/s² |
| Non-operating vibration | 5 Hz to 500 Hz: 29.4 m/s² |
| Operating altitude | -304.8 m to 3,048 m |
| Non-operating altitude | -304.8 m to 12,192 m |
| Operating relative humidity | 5% to 90% R.H. (no condensation) |
| Non-operating relative humidity | 5% to 95% R.H. (no condensation) |
| Certifications | CE, BSMI, RCM, KC, ICES, UKCA, TUV, UL and RoHS |
Important notes
| Capacity | One terabyte (TB) is defined as 1,000,000,000,000 bytes. Reported available capacity varies according to formatting, settings, software and operating system. |
|---|---|
| Reliability | MTBF is a statistical value and is not a guarantee or estimate of product life. |
| Power | Power consumption may differ according to configurations and platforms. |
| Warranty period | The warranty period starts from the purchase date stated on the purchase receipt. |
