Seagate Exos X24 Enterprise Hard Drive

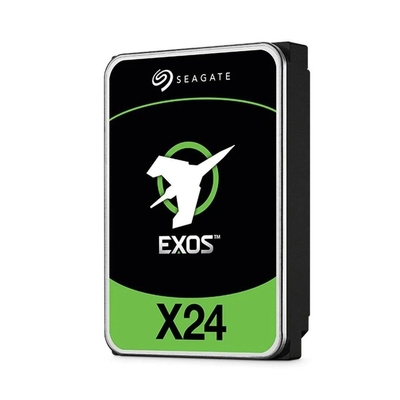

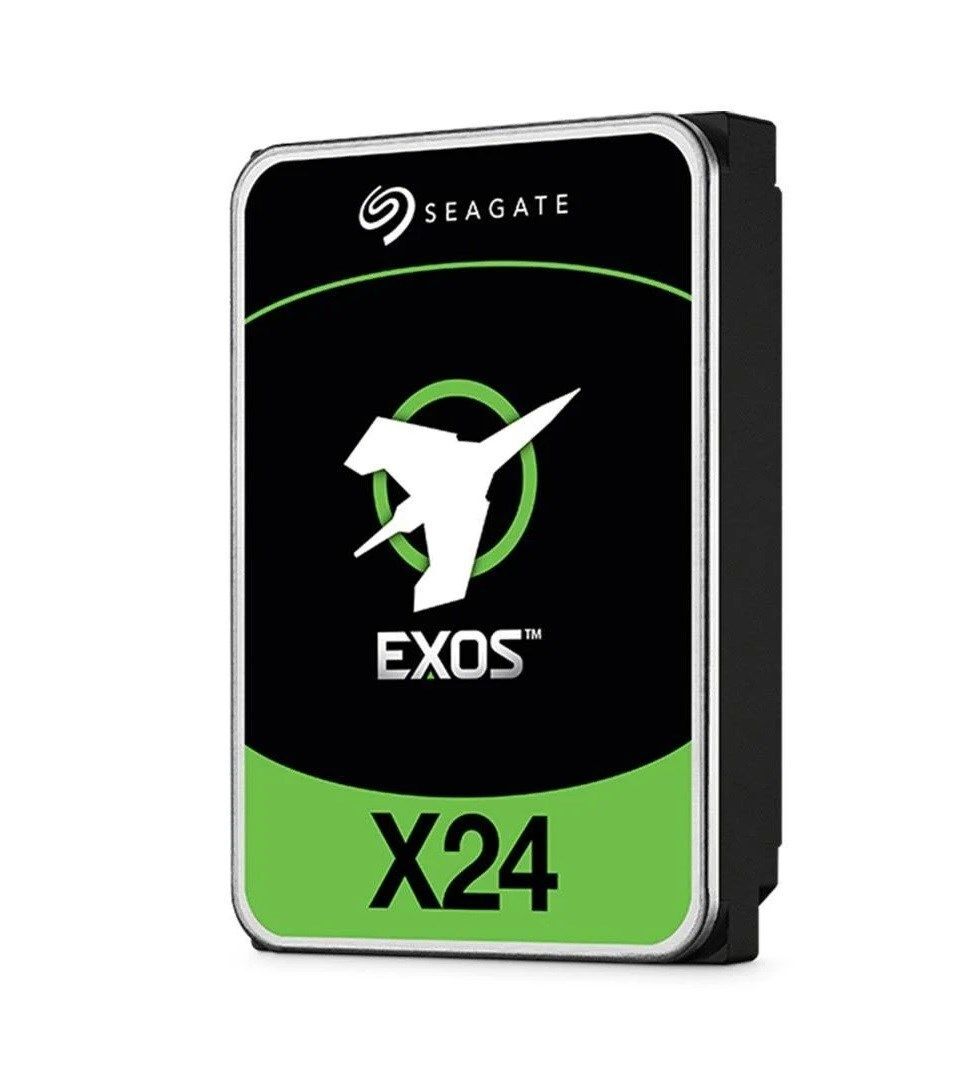

Seagate Exos X24 12TB SATA Enterprise HDD ST12000NM002H

A 12TB Seagate Exos X24 3.5-inch enterprise hard drive with SATA 6Gb/s, 7,200 RPM, 512MB buffer, 512e/4Kn formats, ISE designation and a helium design.

12TB capacityExos X24512MB buffer2.5M-hour MTBF

Seagate Exos X24 12TB SATA Enterprise HDD ST12000NM002H

Product overview

The supplied product information identifies ST12000NM002H as a 12TB Seagate Exos X24 enterprise hard disk drive with a 3.5-inch form factor, SATA 6Gb/s and 7,200 RPM.

The listed configuration includes a 512MB buffer, 512e/4Kn sector formats, ISE designation, helium construction and a supplied 256MB/s transfer-rate figure with CMR.

The source describes the drive for hyperscale and big-data applications and lists enhanced caching, a 2.5-million-hour MTBF rating and a 5-year limited warranty.

Choosing the right HDD or SSD?

Compare storage types, capacities and options in the DeviceDeal Storage & Hard Drives guide.

View the storage guide

Manufacturer warranty and authorised reseller

The supplied product information lists a 5-year limited Seagate manufacturer warranty.

DeviceDeal is an authorised reseller of Seagate products.

Frequently asked questions

What is the Seagate ST12000NM002H?

It is a 12TB Seagate Exos X24 3.5-inch enterprise hard disk drive.

What interface and rotational speed are listed?

The supplied description lists SATA 6Gb/s and 7,200 RPM.

What buffer and transfer figure are supplied?

The source lists a 512MB buffer and a 256MB/s transfer-rate figure.

Which sector formats and security designation are listed?

The product information lists 512e/4Kn sector formats and an ISE designation.

What reliability figure is supplied?

The supplied description lists a 2.5-million-hour MTBF rating.

What warranty applies to ST12000NM002H?

The supplied product information lists a 5-year limited Seagate manufacturer warranty, and DeviceDeal is an authorised reseller of Seagate products.

(ST12000NM002H)

Features and highlights

A 12TB Seagate Exos X24 3.5-inch enterprise hard drive with SATA 6Gb/s, 7,200 RPM, 512MB buffer, 512e/4Kn formats, ISE designation and a helium design.

12TB Exos X24 capacity

The product is listed as a 12TB Seagate Exos X24 enterprise hard drive.

512MB buffer

The supplied description lists a 512MB buffer.

SATA 6Gb/s and 7,200 RPM

The source lists SATA 6Gb/s and a 7,200 RPM rotational speed.

512e/4Kn and ISE

The supplied product information lists 512e/4Kn sector formats and an ISE designation.

Helium construction

The description identifies the drive as a helium model.

256MB/s supplied transfer figure

The supplied description lists a 256MB/s figure alongside CMR.

2.5-million-hour MTBF

The source lists a 2.5-million-hour MTBF rating.

5-year limited warranty

The supplied product information lists a 5-year limited warranty.

Key product details

12TB storage capacity
3.5-inch Exos X24 enterprise HDD
SATA 6Gb/s interface
7,200 RPM
512MB buffer
512e / 4Kn formats
2.5-million-hour MTBF
5-year limited Seagate manufacturer warranty

Technical specifications

Seagate Exos X24 12TB SATA Enterprise HDD ST12000NM002H

Product details

Brand	Seagate
Manufacturer part number	ST12000NM002H
Product family	Exos X24
Product type	Enterprise Hard Disk Drive
Form factor	3.5-inch
ISE designation	Listed

Storage and performance

Capacity	12TB
Interface	SATA 6Gb/s
Rotational speed	7,200 RPM
Buffer	512MB
Sector formats	512e / 4Kn
Recording technology	CMR
Supplied transfer-rate figure	256MB/s

Reliability and design

Drive construction	Helium
Mean time between failures (MTBF)	2.5 million hours
Supplied positioning	Hyperscale and big-data applications; enhanced caching and rack-space efficiency

Physical details

Dimensions (H × W × D)	26.1mm × 101.85mm × 147mm
Weight	685g / 1.51lb

Warranty

Limited warranty	5 years

SKU	ST12000NM002H
Barcode #	8719706431576
Brand	Seagate
Shipping Weight	0.3000kg
Shipping Width	0.026m
Shipping Height	0.152m
Shipping Length	0.104m

Manufacturer warranty

Seagate warranty coverage

The supplied product information lists a 5-year limited Seagate manufacturer warranty for ST12000NM002H.

Warranty coverage and claims are subject to Seagate's applicable manufacturer warranty terms, eligibility requirements and product assessment. Please retain your DeviceDeal tax invoice as proof of purchase.

DeviceDeal is an authorised reseller of Seagate products.
