ARM quad-core 2.0 GHz CPU
Built-in NPU accelerates AI image recognition
1x 1GbE, 1x 2.5GbE, 1x USB 3.2 Gen 1 (5Gbps)
Â

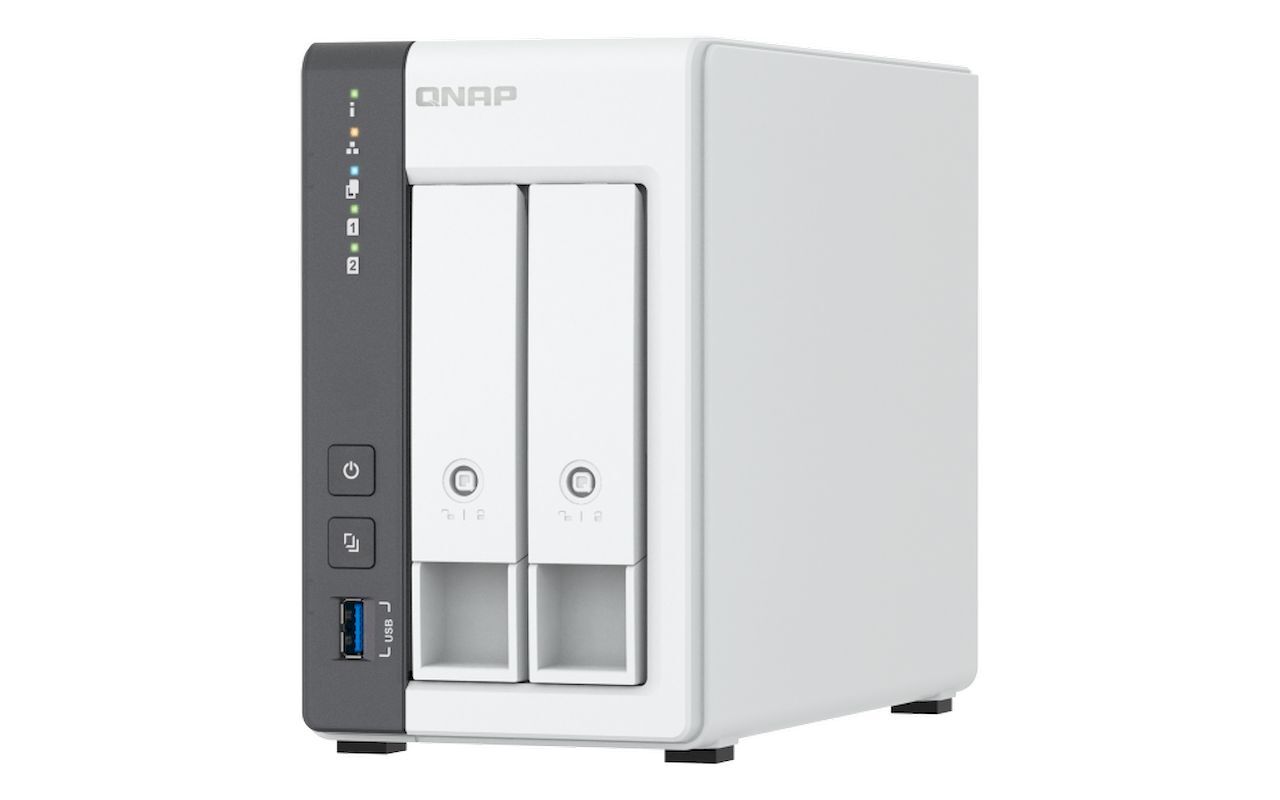

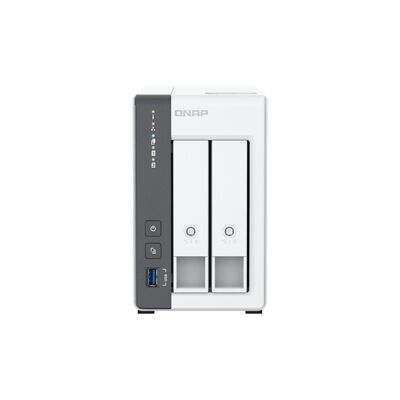

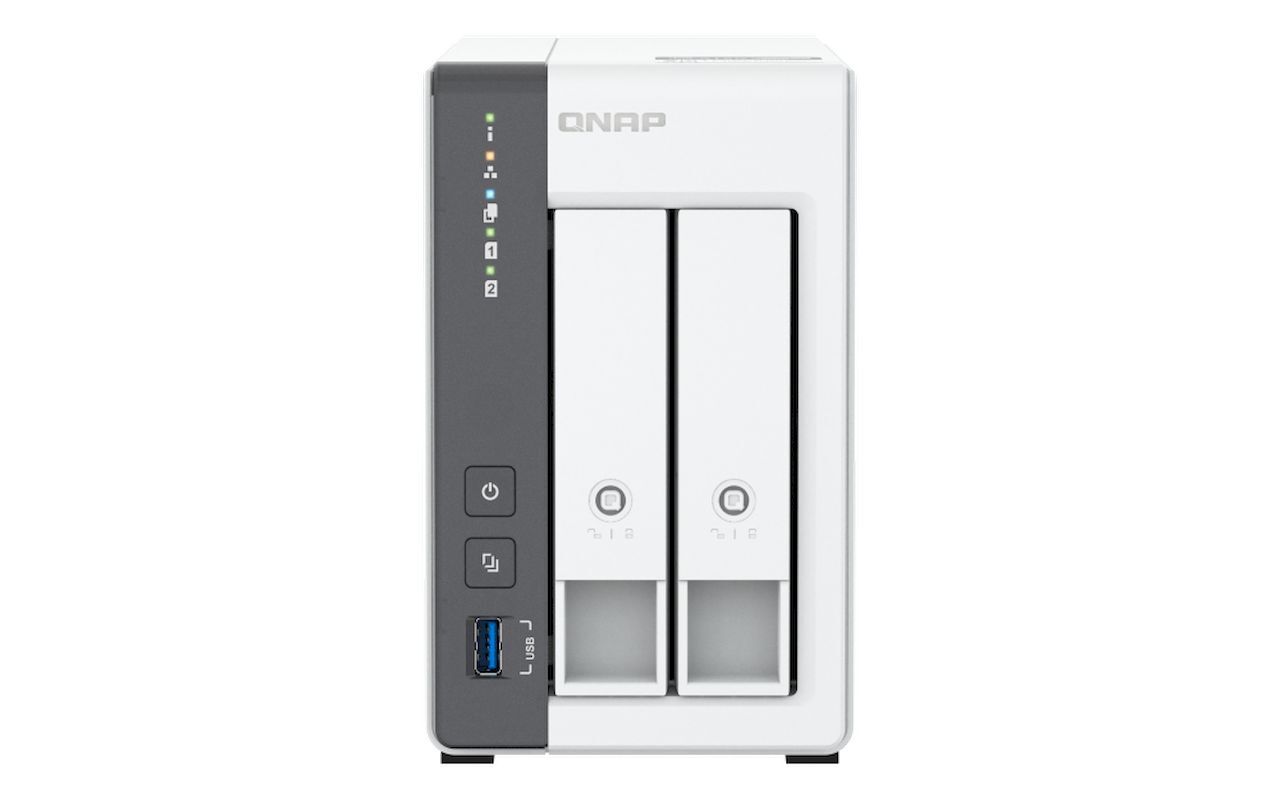

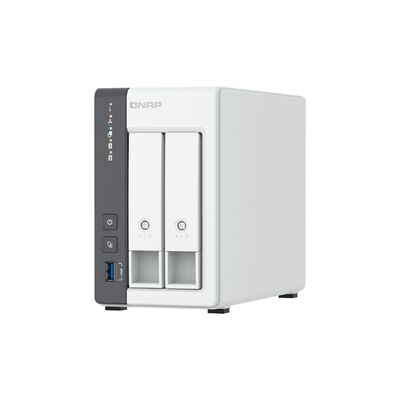

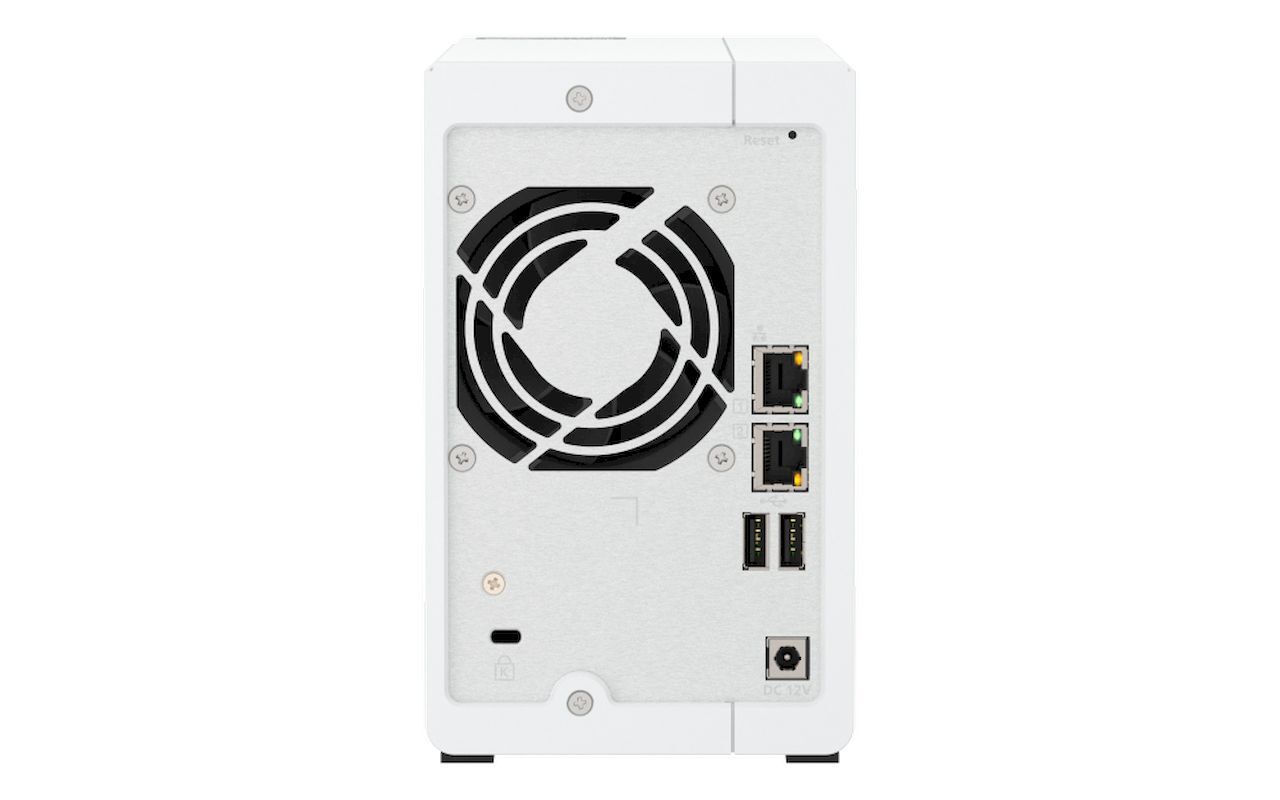

Designed for home and small office users, the 2-bay 2.5GbE NAS TS-216G achieves high performance and smart management as an efficient and reliable file storage. You can not only enjoy easy file access, sharing, and synchronization with multiple devices, but also run productivity tools and multimedia applications to streamline your workflows and data management.
-
2.5GbE-ready!
Experience faster file transfer and backup/restore with the TS-216G.
-
High-performance and energy efficient
Powered by an ARM® quad-core processor and 4GB RAM for multitasking with low power consumption.
-
Built-in NPU for AI Acceleration
NPU empowers QNAPâs AI Core to boost performance for high-speed face and object recognition.
-
Quick USB One -Touch Copy
Easily back up the contents of USB devices to the TS-216G by pressing the âOne-Touch-Copyâ button.
-
Snapshot protection against Ransomware
Protect your files and data from accidental deletion and malware attacks with snapshots.
-
Up to 39 TB capacity
Enjoy 38.6 TB storage capacity by using two 22 TB disks; you can set up RAID 1 to protect data with 19.3 TB usable capacity.
Â
Specification
Â
| CPU | ARM 4-core Cortex-A55 2.0GHz processor |
| CPU Architecture | 64-bit ARM |
| Graphic Processors | Mali-G52 |
| Floating Point Unit |  |
| Encryption Engine | |
| Hardware-accelerated Transcoding | |
| Neural Processing Unit (NPU) | |
| System Memory | 4 GB on board (non-expandable)
Note: Reserves some RAM for use as shared graphics memory.
|
| Maximum Memory | 4 GB on board (non-expandable) |
| Flash Memory | 4 GB (Dual boot OS protection) |
| Drive Bay | 2x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | yes |
| Gigabit Ethernet Port (RJ45) | 1 |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 1 (2.5G/1G/100M) |
| Wake on LAN (WOL) | |
| Jumbo Frame | |
| USB 2.0 port | 2 |
| USB 3.2 Gen 1 port | 1 |
| Form Factor | Tower |
| LED Indicators | System Status, LAN, USB, HDD1~2 |
| Buttons | Power, Reset, USB Copy |
| Dimensions (HxWxD) | 165 Ã 102 Ã 220.6 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
|
| Weight (Net) | 1.45 kg |
| Weight (Gross) | 2.41 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27ËC (80.6ËF) |
| Power Supply Unit | Minimum 48W adapter (12VDC), 100-240VAC |
| Power Consumption: HDD Sleep Mode | 4.973 W |
| Power Consumption: Operating Mode, Typical | 13.907 W
Tested with drives fully populated.
|
| Fan | 1 x 70mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | yes |
| Standard Warranty | 2 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 200 |
