Enthusiast-Grade NAS

The No-Compromises 2.5GbE NAS

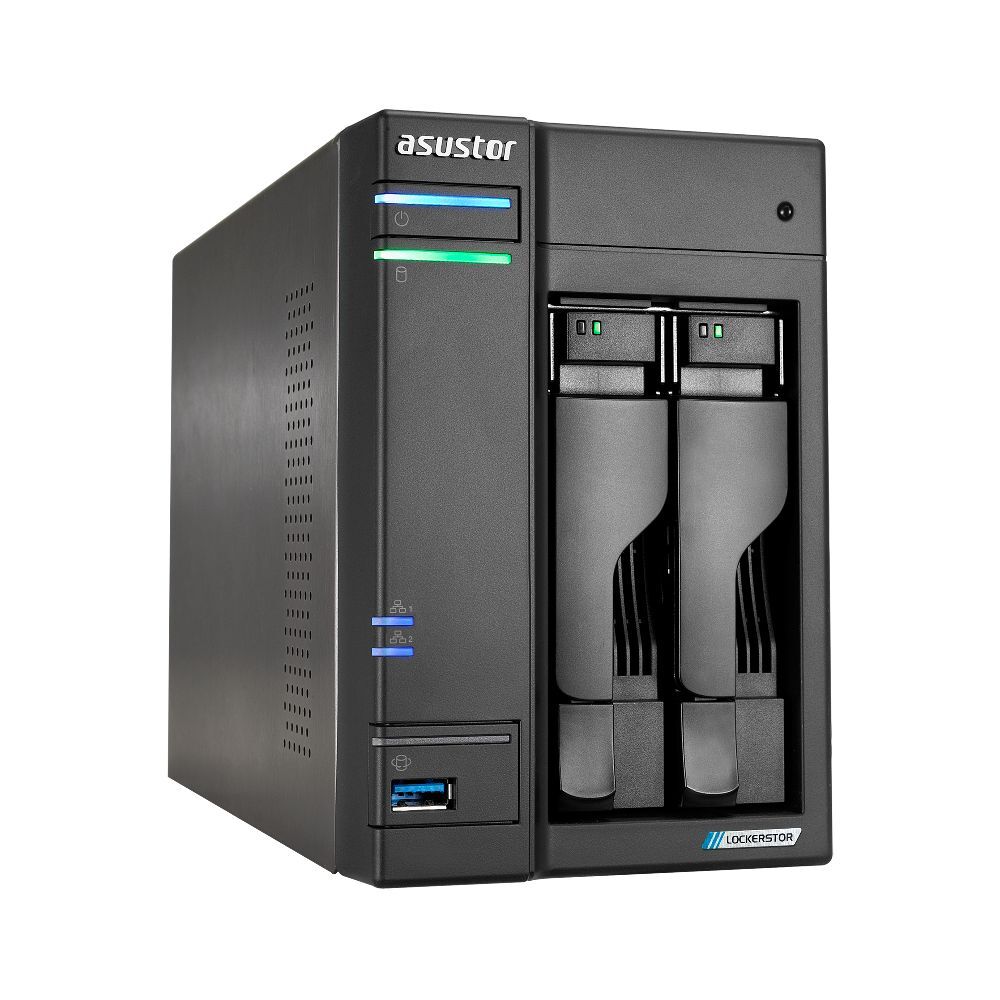

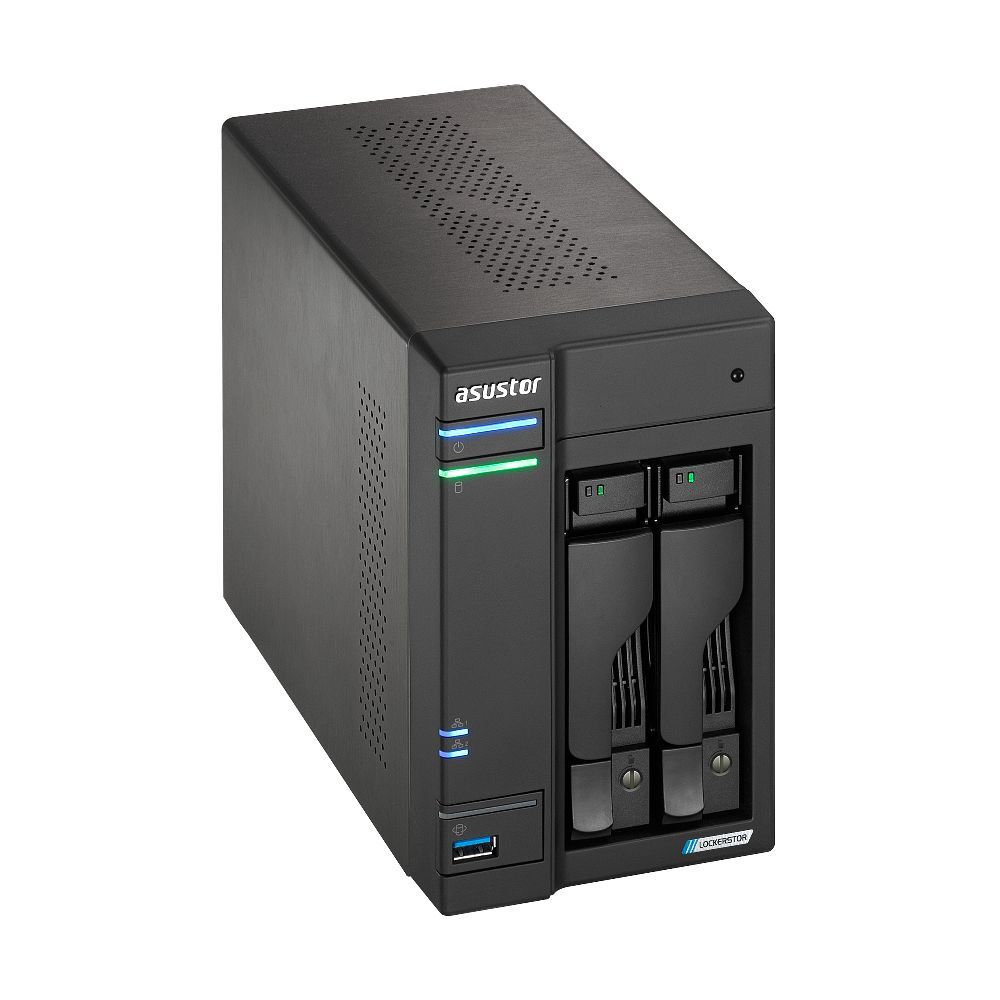

ASUSTOR AS6702T Lockerstor two-bay NAS with an Intel Celeron N5105 quad-core processor, 4GB DDR4 and support for M.2 SSDs.

2 BayLockerstor NAS

2.0GHzIntel Celeron N5105

4GBDDR4 RAM

4x M.2SSD Slots

Key Features

Quad-Core 10 nm Intel Celeron N5105 CPU - 31% more performance over Gemini Lake
Superfast 2.5-Gigabit Ethernet ports
Flexible PCIe slot for M.2 SSDs
Supports PCIe 3.0 SSDs for up to twice the performance of PCIe 2.0.
Uses DDR4-2933 with 40% more performance
USB 3.2 Gen2 ports – 10Gbps speed
Enjoy, download, upload and stream content with 4K transcoding
Increased ventilation for SSDs
Supports Wake on LAN and Wake on WAN

Powered by the Latest 10 nm Intel Jasper Lake Celeron Quad-Core Processors

The Lockerstor Gen2/Gen2+ comes with Intel’s newest Quad-Core Celeron CPUs. The N5105 comes with Intel 10 nm technology and is up to 31% faster than Gemini Lake SoCs. The Celeron N5105 is clocked at 2.0 GHz with 2.9 GHz, enabling efficient content creation with the added flexibility of 10-Gigabit Ethernet upgrades.

Compatibility note: Lockerstor 2 Gen2/Gen2+ (AS6702T/AS6702T v2) 10GbE not supported.

Four M.2 Slots - Have Your Cake and Eat it Too

The Lockerstor Gen2 series of NAS devices come with four M.2 slots for caching or storage or both. Either use all slots for one purpose or mix and match depending on your needs.

Four M.2 SSD slots bring a number of custom scenarios to your NAS when it comes to accelerating your storage.

Tool-Free M.2 SSD Installation

Uses latches instead of screws for easier installation.

2.5 + 2.5 = Extreme Speeds

The Lockerstor Gen2 has two 2.5GbE ports which more than doubles the performance of Gigabit Ethernet devices. But that’s not all, with the recent introduction of support for SMB Multichannel, your NAS will be able to combine the speed of multiple Ethernet ports for speeds way beyond 2.5-Gigabit Ethernet.

PCIe 3.0 – Doubled SSD Performance

PCIe 3.0 is supported by the Lockerstor Gen2+ series of NAS devices which almost double the performance of M.2 SSDs installed in your NAS, ensuring a smoother SSD experience.

USB 3.2 Gen 2 – A First for ASUSTOR

The Lockerstor Gen2 series now support USB 3.2 Gen 2 for the first time on an ASUSTOR NAS. Enjoy up to double the performance compared with USB 3.2 Gen 1 at up to 10 Gbps.

Removing Your Storage Constraints

Edit videos directly on your NAS with Adobe Premiere or Final Cut Pro. Both applications, as well as the full suite of Adobe software are supported on an ASUSTOR NAS ensuring that the SSD on your laptop is no longer a constraint.

Adobe and ASUSTOR – A Winning Combination

Local Adobe Creative Cloud folders can be synchronized and backed up to and from your NAS. Take advantage of snapshots to increase protection of your data.

Frequently Asked Questions

Product FAQs

Answers based only on the product information supplied for this item.

Which processor does the ASUSTOR AS6702T use?

The supplied description lists an Intel Celeron N5105 quad-core CPU using 10 nm technology, clocked at 2.0 GHz with 2.9 GHz.

How much memory does the AS6702T include?

The product name lists 4GB DDR4 RAM, while the supplied feature list states DDR4-2933 with 40% more performance.

How many M.2 slots are included?

The supplied description states that the Lockerstor Gen2 series has four M.2 slots for caching, storage or a combination of both.

Does the AS6702T support tool-free M.2 SSD installation?

Yes. The supplied description states that it uses latches instead of screws for easier installation.

Which network ports are described?

The supplied content states that the Lockerstor Gen2 has two 2.5GbE ports and supports SMB Multichannel.

Does the AS6702T support a 10GbE upgrade?

No. The supplied note specifically states that Lockerstor 2 Gen2/Gen2+ models AS6702T and AS6702T v2 do not support 10GbE.

Which USB speed is listed?

The supplied description lists USB 3.2 Gen 2 ports at up to 10 Gbps.

Does the AS6702T support 4K transcoding?

Yes. The supplied feature list includes downloading, uploading and streaming content with 4K transcoding.

Which content-creation applications are mentioned?

The supplied description mentions Adobe Premiere, Final Cut Pro and the full suite of Adobe software.

Does the AS6702T support Wake on LAN and Wake on WAN?

Yes. Both are included in the supplied feature list.

(AS6702T)

Hardware Specifications
CPU	CPU Model	Intel Celeron N5105
	CPU Architecture	x64 64-bit
	CPU Frequency	Quad-Core 2.0GHz (burst up 2.90 GHz)
Memory	Memory	4GB SO-DIMM DDR4
	Memory Module Pre-installed	4GB (1x 4GB)
	Total Memory Slots	2
	Memory Expandable up to	16GB (2x 8GB) Support mixed capacity
	Flash Memory	8GB eMMC
Storage	Drive Bays	2
	M.2 Drive Slots	4
	Compatible Drive Type	3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD M.2 2280 NVMe
	M.2 PCIe Interface	PCIe 3.0 x1
	Maximum Drive Bays with	10
	Supports Hot Swappable Drives

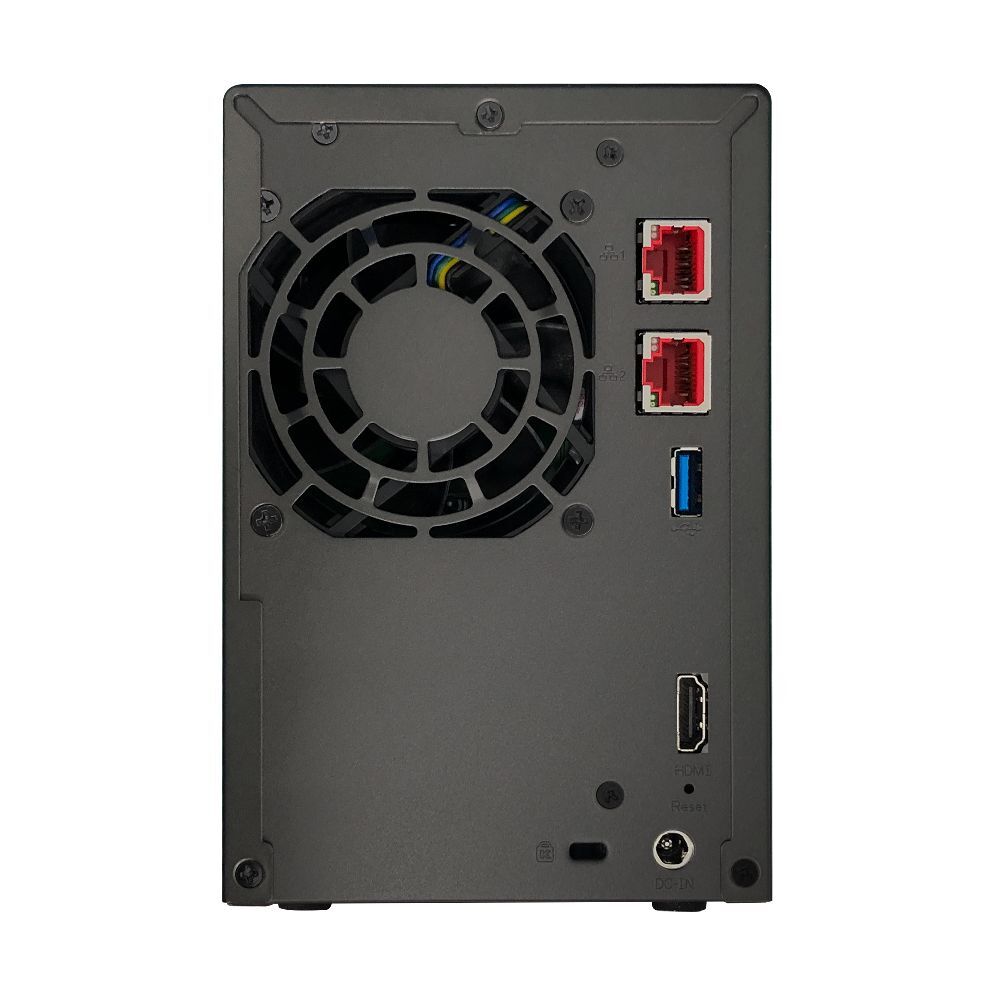

External Ports	Expansion	2x USB 3.2 Gen 2 (10Gbps)
	Network	2x 2.5 Gigabit Ethernet (2.5G/1G/100M)
	Multimedia Output	1x HDMI 2.0b
Others	System Fan	1x 70mm
	Infrared Receiver
	Power Supply Unit / Adapter	65W x1
	Input Power Voltage	100V to 240V AC
	Certification	FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA
	Warranty	3 Years
Operation	Power Consumption	21 W (Operation); 13.5 W (Disk Hibernation); 0.79 W (Sleep Mode)
	Noise Level	17.7dB (HDD idle)
	Operation Temperature	0°C~40°C (32°F~104°F)
	Storage Temperature	-20°C~70°C (-4°F~158°F)
	Humidity	5% to 95% RH
Size and Weight	Size	163.5 (H) x 108 (W) x 230 (D) mm
	Weight	2 kg / 4.4 lb
