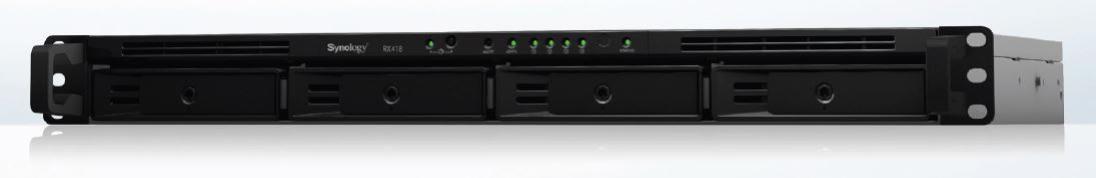

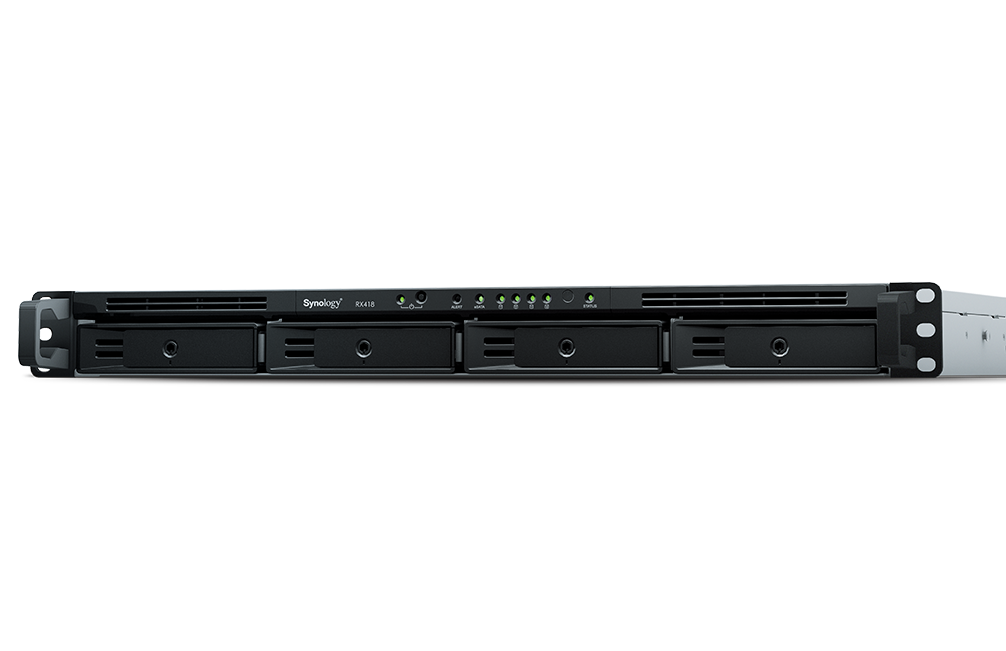

Expansion Unit
RX418
Enterprise-grade expansion unit storage solution
When the storage capacity on Synology 1U RackStation reaches its limit, Synology expansion unit RX418 provides easy capacity expansion by adding 4 3.5"/2.5" SATA drives to the system. Synology RX418 can also be used as a dedicated local backup destination of Synology 1U RackStation for comprehensive data protection.
Uncompromising performance
Storage capacity expansion
When the storage capacity on Synology 1U RackStation reaches its limit, Synology expansion unit RX418 provides easy capacity expansion by adding 4 3.5"/2.5" SATA drives to the system. Synology RX418 can also be used as a dedicated local backup destination of Synology 1U RackStation for comprehensive data protection.
Reliable plug-and-play design
When the storage capacity on Synology 1U RackStation reaches its limit, Synology expansion unit RX418 provides easy capacity expansion by adding 4 3.5"/2.5" SATA drives to the system. Synology RX418 can also be used as a dedicated local backup destination of Synology 1U RackStation for comprehensive data protection.
Green and easy to manage
When the storage capacity on Synology 1U RackStation reaches its limit, Synology expansion unit RX418 provides easy capacity expansion by adding 4 3.5"/2.5" SATA drives to the system. Synology RX418 can also be used as a dedicated local backup destination of Synology 1U RackStation for comprehensive data protection.
Backed by Synology drives
Leverage high sustained performance and reliability with enterprise-grade drives with built-in data protection designed for Synology systems.
(RX418)
Technical Specifications
Complete hardware and software specifications
Applied Models
Supports creating volumes across different units 22 series: RS822RP+, RS822+ 21 series: RS1221RP+, RS1221+ 20 series: RS820RP+, RS820+ 19 series: RS1219+, RS819 18 series: RS818RP+, RS818+ 16 series: RS816 15 series: RS815RP+, RS815+, RS815
Supports creating volumes on a single unit only RS217
Notes For more information on the compatibility of each expansion unit, please refer to this article . To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit. DSM version requirement: 6.1.4-15217-3 or later version
Storage
Drive Bays 4
Drive Type(See all supported drives) 3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD
Hot Swappable Drive* Yes
RAID Management through Synology DSM Yes
Notes Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list . The use of non-validated components may limit certain functionality and result in data loss and system instability.
Appearance
Size (Height x Width x Depth) 44 mm x 430.5 mm x 290 mm
Size (Height x Width x Depth) (with server ears) 44 mm x 480 mm x 325 mm
Weight 4.28 kg
Rack Installation Support* 4-post 19" rack (Synology Rail Kit - RKM114 / RKS-02 ) 2-post 19" rack (direct mounting)
Notes The rail kit is sold separately
Power
Power Recovery Synchronized with the Synology RackStation
Power Supply Unit / Adapter 100 W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 23.26 W (Access) 6.39 W (HDD Hibernation)
British Thermal Unit 79.42 BTU/hr (Access) 21.82 BTU/hr (HDD Hibernation)
Notes Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Temperature
Operating Temperature 5°C to 35°C (40°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Operating Humidity 8% to 80% RH
Storage Humidity 5% to 95% RH
Others
System Fan 40 mm x 40 mm x 3 pcs
Noise Level* 25.1 dB(A)
Notes Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Certification
Certification FCC CE BSMI EAC VCCI RCM KC BIS
Warranty
Warranty 3-year hardware warranty, extendable to 5 years with EW201 or Extended Warranty Plus
Notes Availability varies by region. Before purchasing, please visit the official web pages of EW201/202 and Extended Warranty Plus for a list of eligible regions. The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
Environment RoHS Compliant
Packaging Content
Packaging Content Main Unit X 1 User's Guide X 1 Accessory Pack X 1 AC Power Cord X 1 Expansion Cable: eSATA X 1
Optional Accessories
Optional Accessories Enterprise Series 3.5" SATA HDD: HAT5300 Series Plus Series 3.5" SATA HDD: HAT3300 Series Enterprise Series 2.5" SATA SSD: SAT5200 Series Rail Kit Sliding: RKS-02 Rail Kit Mounted: RKM114*
Notes Certain items may not be available in your location. Please contact your local distributors for more information.
| SKU |
RX418 |
| Barcode # |
846504002986 |
| Brand |
SYNOLOGY |
| Shipping Weight |
8.0000kg |
| Shipping Width |
0.400m |
| Shipping Height |
0.530m |
| Shipping Length |
0.140m |
| Shipping Cubic |
0.029680000m3 |
- Manufacturer Warranty
- 3 Years Limited Warranty
- Manufacturer Contact Info
- http://www.synology.com
