QNAP TL-R1200C-RP, 12 Bay Expansion Unit
Model # TL-R1200C-RP
-
SKU: TL-R1200C-RP
- Pick Up Available
- Australian Warranty
- Checkout Securely
12-bay rackmount USB JBOD expansion

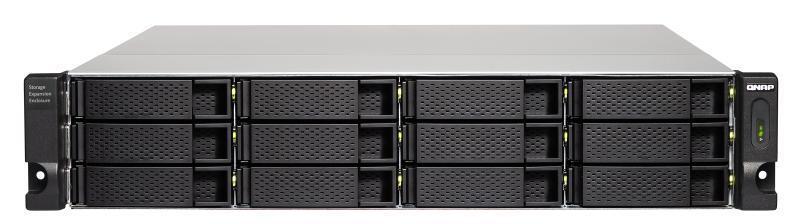

QNAP TL-R1200C-RP 12-Bay 2U USB JBOD Expansion Enclosure
The QNAP TL-R1200C-RP is a 2U rackmount JBOD enclosure with twelve hot-swappable SATA drive bays, one USB 3.2 Gen 2 Type-C host interface and dual 250W power supplies. It is supplied without drives.
TL-R1200C-RP12 baysQNAP manufacturer warranty
What is the QNAP TL-R1200C-RP?
It is a twelve-bay direct-attached USB JBOD enclosure for expanding or backing up compatible QNAP NAS, Windows and Ubuntu storage. The enclosure connects directly to a supported host through USB 3.2 Gen 2 Type-C.
Planning a NAS or storage expansion?
Read NAS Buying Guide Explore the DeviceDeal NAS Buying Guide
Review NAS types, storage planning and practical buying considerations before selecting your QNAP storage solution.
Key capabilities
The following points are organised from the supplied QNAP product information.
High-capacity expansion
Twelve SATA bays support 3.5-inch SATA HDDs and 2.5-inch SATA SSDs for independent storage expansion and backup.
Direct USB connectivity
The USB 3.2 Gen 2 Type-C host interface supports up to 10Gb/s. The enclosure should be connected directly to the host.
QNAP NAS management
On a compatible QNAP NAS, Storage & Snapshots Manager can configure storage pools, software RAID and snapshots.
Computer support
The supplied specifications list Windows and Ubuntu support in addition to QTS and QuTS hero.
JBOD migration
Configured storage can be moved between supported hosts for large file transfers; software RAID migration is limited to the same operating system.
Redundant power
Two 250W power supply units provide power redundancy for rackmount storage operation.
Compatibility and deployment notes
- The enclosure is supplied without HDDs or SSDs.
- QNAP NAS use requires QTS 4.4.2 or later, or QuTS hero.
- Connect the enclosure directly to the host; a USB hub or docking station must not be placed between the host and the JBOD.
- The supplied information recommends a USB cable no longer than one metre and lists one USB 3.2 Gen 2 Type-C to Type-A cable in the package.
- ASM1142 USB controller IC-based ports and PCIe expansion cards are not supported.
- The enclosure must be configured as an independent storage pool or volume. Its storage cannot be combined with the connected NAS, and NAS applications cannot be installed on it.
- Only one disk type, HDD or SSD, may be used within a RAID group.
- Non-Server versions of Windows have a 63TB limit for a single volume.
Frequently asked questions
Does the QNAP TL-R1200C-RP include drives?
No. The enclosure is supplied without HDDs or SSDs.
Which drives does the TL-R1200C-RP support?
Its 3.5-inch bays support 3.5-inch SATA 6Gb/s or 3Gb/s hard drives and 2.5-inch SATA 6Gb/s or 3Gb/s solid state drives. A RAID group must use only one disk type.
How does the TL-R1200C-RP connect to a host?
It uses one USB 3.2 Gen 2 Type-C host interface with transfer speeds up to 10Gb/s. Connect it directly to the host without an intermediate USB hub or docking station.
Can its storage be merged with the connected NAS storage pool?
No. The TL-R1200C-RP must be used as an independent storage pool or volume, and NAS applications cannot be installed on it.
Which host platforms are listed as supported?
The supplied information lists QTS or QuTS hero, Windows and Ubuntu. QNAP NAS use requires QTS 4.4.2 or later, or QuTS hero.
What warranty applies to the TL-R1200C-RP?
The TL-R1200C-RP is supplied with QNAP manufacturer warranty. Coverage is subject to QNAP's applicable warranty terms.
(TL-R1200C-RP)
Features and highlights
Key capabilities for the QNAP TL-R1200C-RP, based on the supplied product information.
High-capacity expansion
Twelve SATA bays support 3.5-inch SATA HDDs and 2.5-inch SATA SSDs for independent storage expansion and backup.
Direct USB connectivity
The USB 3.2 Gen 2 Type-C host interface supports up to 10Gb/s. The enclosure should be connected directly to the host.
QNAP NAS management
On a compatible QNAP NAS, Storage & Snapshots Manager can configure storage pools, software RAID and snapshots.
Computer support
The supplied specifications list Windows and Ubuntu support in addition to QTS and QuTS hero.
JBOD migration
Configured storage can be moved between supported hosts for large file transfers; software RAID migration is limited to the same operating system.
Redundant power
Two 250W power supply units provide power redundancy for rackmount storage operation.
Purchase check: Drives are sold separately. Confirm host USB support, operating-system requirements and drive compatibility before deployment.
Technical specifications
Specifications are organised from the supplied QNAP product information.
Storage
| JBOD Connection Interface | USB |
|---|---|
| Drive Bays | 12 × 3.5-inch The system is shipped without HDDs. |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives 2.5-inch SATA 6Gb/s, 3Gb/s solid state drives Only one disk type, HDD or SSD, can be used in a RAID group. Combining different disk types in one RAID group is not supported. |
| Hot-Swappable | Yes |
Connectivity and Controls
| Host Interface | 1 × USB 3.2 Gen 2 Type-C |
|---|---|
| LED Indicators | HDD 112, Status, Link, Fan error |
| Buttons | Power switch |
| Fan Mode Switch | Yes (Auto, high, medium, low) |
| System Warning | Buzzer |
Physical Specifications
| Form Factor | 2U rackmount |
|---|---|
| Dimensions (H × W × D) | 88.6 × 482 × 562.5 mm Excludes the ear hook and protruding part of the power supply unit. |
| Net Weight | 13.17 kg |
| Gross Weight | 15.22 kg |
Power and Cooling
| Power Supply Unit | 250W × 2 PSU, 100240V |
|---|---|
| Typical Operating Power Consumption | 82.26 W Tested with drives fully populated. |
| Fans | 2 × 70 mm, 12VDC |
Operating Environment
| Operating Temperature | 040°C (32104°F) |
|---|---|
| Storage Temperature | -2070°C (-4158°F) |
| Relative Humidity | 595% RH non-condensing, wet bulb: 27°C (80.6°F) |
Host Support
| QTS / QuTS hero | Yes |
|---|---|
| Windows | Yes |
| Ubuntu | Yes |
Warranty
| Standard Warranty | 3; unit not stated in the supplied data |
|---|
Connection and deployment notes
| Maximum stated USB speed | Up to 10Gb/s |
|---|---|
| Supported USB host level | USB 3.2 Gen 1 or later |
| Unsupported USB controller | ASM1142 USB controller IC-based ports and PCIe expansion cards are not supported |
| Recommended maximum USB cable length | 1 metre |
| Included cable | 1 × USB 3.2 Gen 2 Type-C to Type-A cable |
| NAS software requirement | QTS 4.4.2 or later, or QuTS hero |
| NAS storage limitation | Independent storage pool or volume only; cannot be combined with connected NAS storage |
| Application installation | NAS applications cannot be installed on the enclosure |
| Windows volume limitation | Non-Server versions of Windows have a 63TB limit for a single volume |
| SKU | TL-R1200C-RP |
| Model # | TL-R1200C-RP |
| Barcode # | 885022018215 |
| Brand | QNAP |
| Shipping Weight | 7.3000kg |
| Shipping Width | 0.230m |
| Shipping Height | 0.230m |
| Shipping Length | 0.230m |
