Expansion Unit

RX1222sas

Enterprise-grade expansion unit storage solution

RX1222sas

Expand your Synology rackmount SAS storage 12 bays at a time, for up to 84 additional 3.5"/2.5" SAS/SATA drives with a maximum of seven Synology RX1222sas expansion units.Add volumes when and where needed without interrupting services, thanks to Synology DiskStation Manager (DSM)’s online volume expansion and powerful volume management options.

Uncompromising performance

Scalability
Scalability
12 drive bays

Accommodate massive storage growth

Expand your Synology rackmount SAS storage 12 bays at a time, for up to 84 additional 3.5"/2.5" SAS/SATA drives with a maximum of seven Synology RX1222sas expansion units.Add volumes when and where needed without interrupting services, thanks to Synology DiskStation Manager (DSM)’s online volume expansion and powerful volume management options.

Easy setup and management

Connect the RX1222sas through the included expansion cable and start managing the additional storage in minutes with Storage Manager and other intuitive tools in Synology DSM. Online volume expansion enables you to add a new volume or expand RAID volumes without reformatting drives.

Fast and stable with Synology drives

Achieve higher levels of reliability with Synology’s SAS and SATA enterprise drives. Backed by hundreds of thousands of hours of rigorous testing, they ensure maximum integration and optimal performance when paired with your Synology deployment.

Built with service uptime in mind

RX1222sas’s hot-swappable drive trays, fans, and power supplies reduce the impact of maintenance on service availability, while the redundant power supply units keep your system online even in case one power source fails.

5-year warranty

At Synology, we are committed to product innovation and quality. Synology guarantees a robust and reliable data management experience with a 5-year limited warranty,providing responsive technical support and hardware replacement services to maximize your return on investment.Learn more

(RX1222sas)

Technical Specifications

Complete hardware and software specifications

Applied Models

Supports creating volumes across different units FS series: FS6400, FS3600, FS3400 SA series: SA3610, SA3600, SA3410, SA3400
Notes To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit. DSM version requirement: 6.2.4-25556 Update 3, 7.0.1-42218 Update 2 or later versions. ( Learn more )

Storage

Drive Bays 12
Drive Type(See all supported drives) 3.5" SAS HDD 2.5" SAS SSD 3.5" SATA HDD 2.5" SATA SSD
Hot Swappable Drive* Yes
RAID Management through Synology DSM Yes
Notes Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list . The use of non-validated components may limit certain functionality and result in data loss and system instability. "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

External Ports

SAS IN-port 1
SAS OUT-port 1

Appearance

Size (Height x Width x Depth) 88 mm x 430.5 mm x 692 mm
Size (Height x Width x Depth) (with server ears) 88 mm x 482 mm x 724 mm
Weight 13.5 kg
Rack Installation Support* 4-post 19" rack (Synology Rail Kit - RKS-02 )
Notes The rail kit is sold separately

Power

Power Supply Unit / Adapter 500 W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 194.4 W (Access) 82.56 W (HDD Hibernation)
British Thermal Unit 663.48 BTU/hr (Access) 281.77 BTU/hr (HDD Hibernation)
Redundant Power Supply Yes
Notes Power consumption is measured when it is fully loaded with Synology HAS5300-8T hard drive(s).

Temperature

Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Operating Humidity 8% to 80% RH
Storage Humidity 5% to 95% RH

Others

System Fan 80 mm x 80 mm x 4 pcs
Easy Replacement System Fan Yes
Noise Level* 54.5 dB(A)
Notes Noise Level Testing Environment: Fully loaded with Synology SAT5200-480G SSD in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Certification

Certification FCC CE BSMI UKCA EAC VCCI RCM KC BIS

Warranty

Warranty 5 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Environment

Environment RoHS Compliant

Packaging Content

Packaging Content Main Unit X 1 Accessory Pack X 1 AC Power Cord X 2 Expansion Cable: Mini-SAS HD X 2 Quick Installation Guide X 1

Optional Accessories

Optional Accessories Enterprise Series 3.5" SAS HDD: HAS5300 Series Enterprise Series 3.5" SATA HDD: HAT5300 Series Enterprise Series 2.5" SATA SSD: SAT5200 Series Rail Kit Sliding: RKS-02
SKU RX1222sas
Barcode # 846504004362
Brand SYNOLOGY
Shipping Weight 9.9900kg
Shipping Width 0.620m
Shipping Height 0.850m
Shipping Length 0.220m

Manufacturer Warranty: 5 Years Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

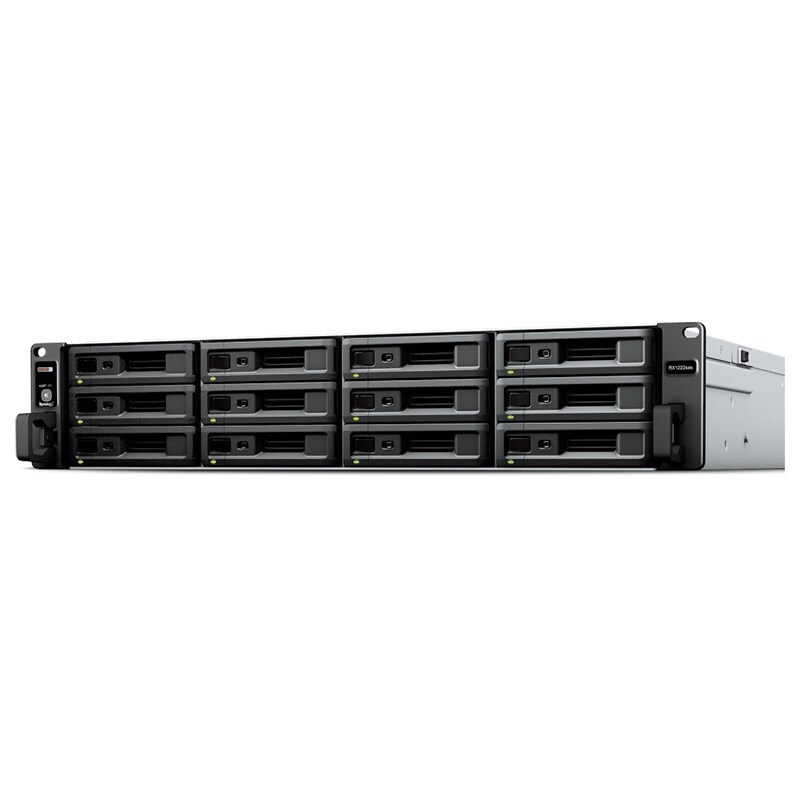

Synology RX1222sas 12-Bay Diskless NAS Expansion Unit

Model # RX1222sas

  • SKU: RX1222sas

$5,799.00
$6,589.00
SAVE $790.00 (12%)
Sold Out
