Synology DX1215 delivers an effortless volume expansion and data backup solution for selected Synology DiskStation servers by providing an additional 12 drive slots with SATA III 6Gb/s interface support. Synology DX1215 is backed with Synology's 5-year limited warranty.

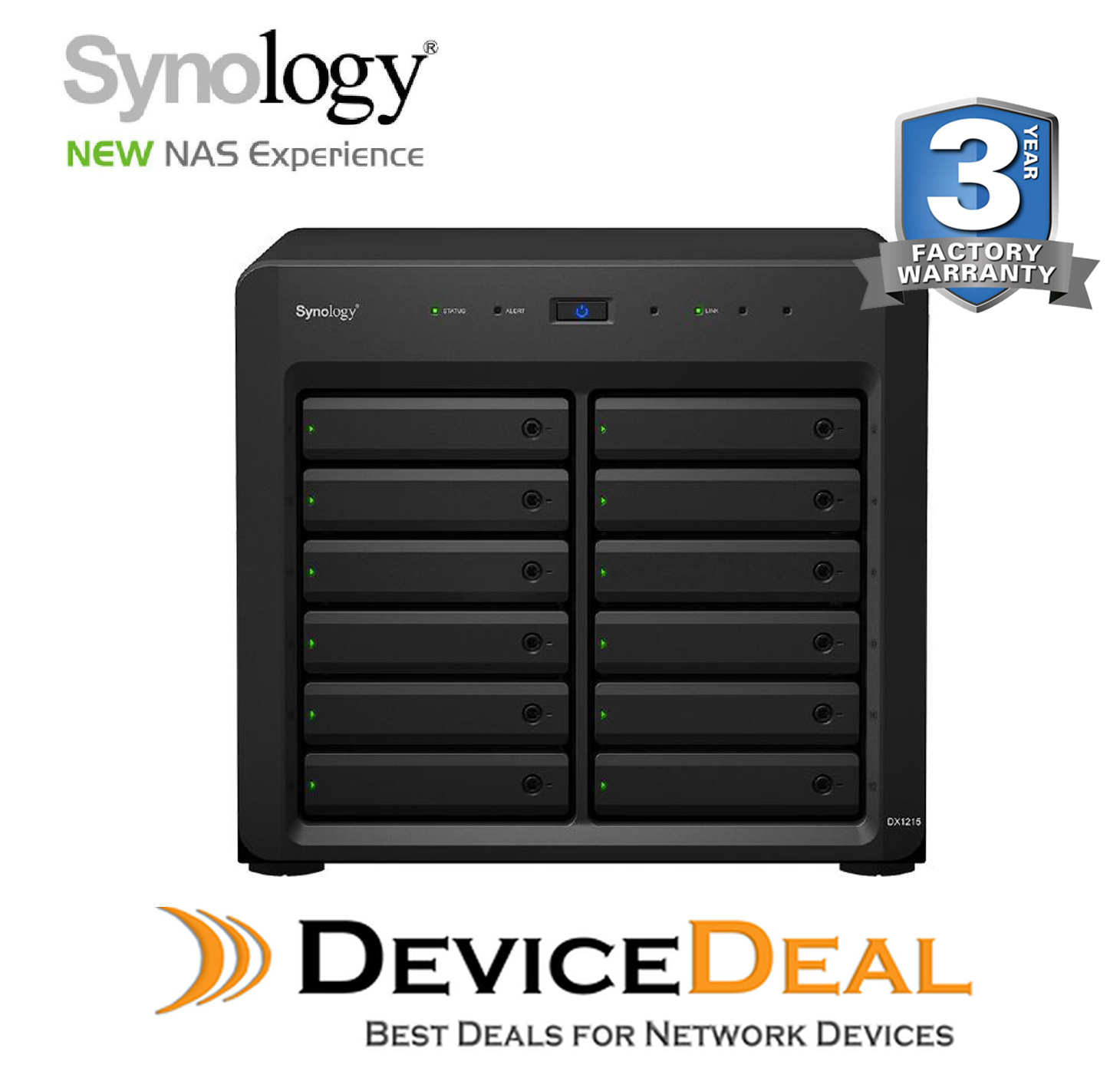

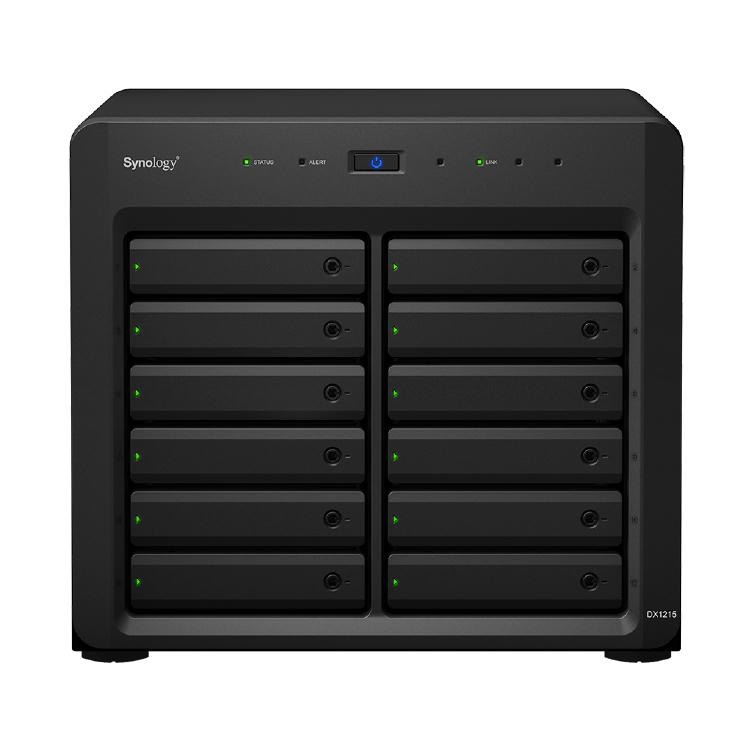

Synology DX1215

12-Bay Expansion Unit scales up your Synology DiskStation capacity effortlessly

Synology DX1215 delivers an effortless volume expansion and data backup solution for selected Synology DiskStation servers by providing an additional 12 drive slots with SATA III 6Gb/s interface support. Synology DX1215 is backed with Synology’s 5-year limited warranty.



Highlight

  • Plug-and-Use design for seamless storage space upgrade
  • Online volume expansion
  • SATA III 6Gb/s interface support
  • Perfect for local backup solution
  • Energy-saving hibernation mode
  • Managed from Synology DiskStation Manager (DSM)

Volume Expansion & Backup

When drive capacity is running low on a Synology DiskStation, Synology DX1215 provides an easy way to immediately scale capacity by providing an additional 12 drive slots. A RAID volume on the Synology DiskStation can be expanded directly without having to reformat the existing drives, ensuring the Synology DiskStation continues providing services during capacity expansion.

Synology DX1215 can serve as a dedicated local backup solution for a Synology DiskStation. When created as a separate volume, the Synology DX1215 provides a great backup solution for local drives in case of system failure.

Reliable Plug-and-Use Design

DX1215 securely connects to Synology’s DiskStation servers with a specially designed expansion cable, ensuring easy connection and maximum data throughput. The 6Gb/s connection speed allows the drives in the connected Synology DX1215 to operate as the internal ones of Synology DiskStation.

Green & Easy to Manage

Hibernation mode can be manually configured to start automatically when the system has been inactive for a period of time. This not only saves energy but also extends the lifespan of hard drives. DX1215 will also smartly power on/off with the attached DiskStation, so no user intervention is needed to keep this system running smartly and efficiently.

DX1215 comes with a fast detachable fan module with two 120 X 120mm fans and screwless drive trays, making system components replacement fast and tool-free.



(DX1215)

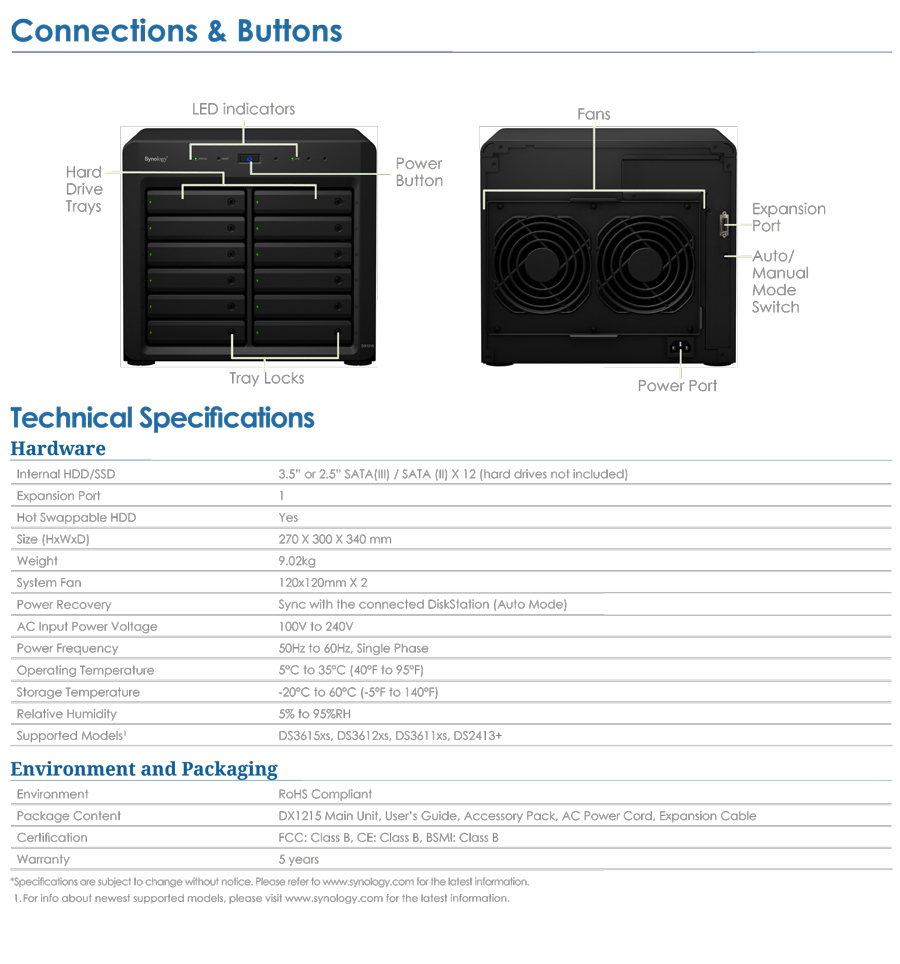

Hardware Specifications
Applied Models
  • DS3617xs
  • DS3615xs
  • DS3612xs
  • DS3611xs
  • DS2015xs
  • DS2415+
  • DS2413+
  • DS2411+
Note DSM version requirement: 5.1-5004 or later version
Storage
Drive Bay(s) 12
Compatible Drive Type*
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
Maximum Internal Raw Capacity 120 TB (10 TB HDD x 12) (Capacity may vary by RAID types)
Hot Swappable Drive
RAID Management through Synology DSM
External Ports
Infiniband port 1
Appearance
Size (Height x Width x Depth) 270 mm x 300 mm x 340 mm
Weight 9.02 kg
Power
Power Recovery Synchronized with the Synology DiskStation
Power Supply Unit / Adapter 500W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 51.23 W (Access)
21.71 W (HDD Hibernation)
British Thermal Unit 174.80 BTU/hr (Access)
74.08 BTU/hr (HDD Hibernation)
Note Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Temperature
Operating Temperature 5°C to 35°C (40°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Others
System Fan 120 mm x 120 mm x 2 pcs
Easy Replacement System Fan
Noise Level* 27.2 dB(A)
Note Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Certification
  • FCC Class B
  • CE Class B
  • BSMI Class B
Warranty 5 Years
Environment & Packaging
Environment RoHS Compliant
Packaging Content
  • Main Unit X 1
  • User's Guide X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
  • Expansion Cable: Infiniband X 1
SKU DX1215
Barcode # 846504001859
Brand SYNOLOGY
Shipping Weight 22.3000kg
Shipping Width 0.440m
Shipping Height 0.430m
Shipping Length 0.470m
Shipping Cubic 0.088924000m3
Manufacturer Warranty
5 Years Limited Warranty
Manufacturer Contact Info
http://www.synology.com
