Expansion Unit

DX525

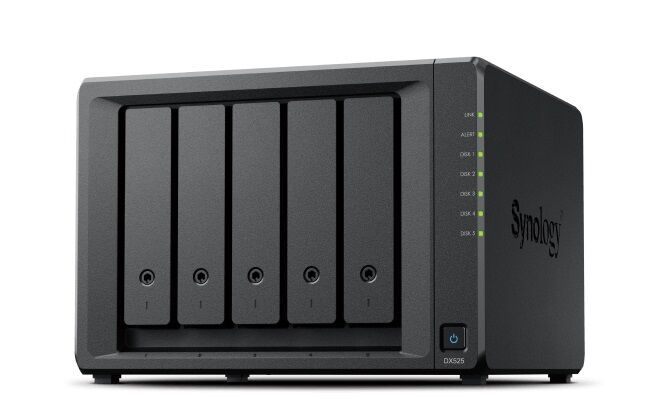

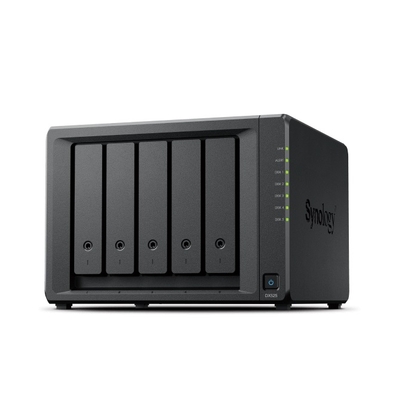

Name: Synology DX525 ,5-Bay 3.5" Diskless Expansion NAS ,Expansion Unit
Brand: SYNOLOGY
SKU: DX525
Price: 831 AUD
Availability: InStock

Enterprise-grade expansion unit storage solution

The Synology DX525 provides a dedicated local backup solution for your Synology DiskStation.

Uncompromising performance

Scalability

5 drive bays

Performance backed by Synology drives

Designed for Synology systems, Synology drives deliver consistent performance and unmatched reliability for your deployments.

(DX525)

Technical Specifications

Complete hardware and software specifications

Applied Models

Supports creating volumes across different units 25 series: DS1825+, DS1525+, DS925+, DS725+

Notes To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit.

Storage

Drive Bays 5

Drive Type(See all supported drives) 3.5" SATA HDD 2.5" SATA SSD

Hot Swappable Drive* Yes

RAID Management through Synology DSM Yes

Notes Compatible drives are mandatory. Please consult our compatibility list before purchasing hard drives. For more details, please refer to this article .

External Ports

Expansion Port 1

Appearance

Size (Height x Width x Depth) 166 mm x 230 mm x 223 mm

Weight 2.46 kg

Power

Power Recovery Synchronized with the Synology DiskStation

Power Supply Unit / Adapter 90 W

AC Input Power Voltage 100V to 240V AC

Power Frequency 50/60 Hz, Single Phase

Power Consumption* 35.37 W (Access) 7.0 W (HDD Hibernation)

British Thermal Unit 120.69 BTU/hr (Access) 24.02 BTU/hr (HDD Hibernation)

Notes For more information on how power consumption is measured, refer to this article .

Temperature

Operating Temperature 0°C to 40°C (32°F to 104°F)

Storage Temperature -20°C to 60°C (-5°F to 140°F)

Operating Humidity 8% to 80% RH

Storage Humidity 5% to 95% RH

Others

System Fan 92 mm x 92 mm x 2 pcs

Noise Level* 20.4 dB(A)

Notes Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Certification

Certification FCC CE BSMI UKCA EAC VCCI RCM KC BIS

Warranty

Warranty 3-year hardware warranty, extendable to 5 years with EW201 or Extended Warranty Plus

Notes Availability varies by region. Before purchasing, please visit the official web pages of EW201/202 and Extended Warranty Plus for a list of eligible regions. The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Environment

Environment RoHS Compliant

Packaging Content

Packaging Content Main Unit X 1 Expansion Cable: USB Type-C X1 Accessory Pack X 1 AC Power Adapter X 1 AC Power Cord X 1

Optional Accessories

Optional Accessories Enterprise Series 3.5" SATA HDD: HAT5300 Series Plus Series 3.5" SATA HDD: HAT3300 Series Enterprise Series 2.5" SATA SSD: SAT5200 Series
