Special · Limited Time
QNAP TR-002 2 BAY DAS(NO DISK) HARDWARE RAID EXPANSION FOR QNAP NAS WINMAC
-
SKU: TR-002
$319.00
WAS $398.00
Sale Ends in:
23:59 pm, 24 August 2026
Or while stocks last!
Or while stocks last!
Stock Availability
🟢Live
ONLINE: ✓ In Stock
Vermont VIC: ✓ In Stock
(Click & Collect Available)
(Click & Collect Available)
- Pick Up Available
- Australian Warranty
- Checkout Securely
2-bay USB Type-C hardware RAID enclosure

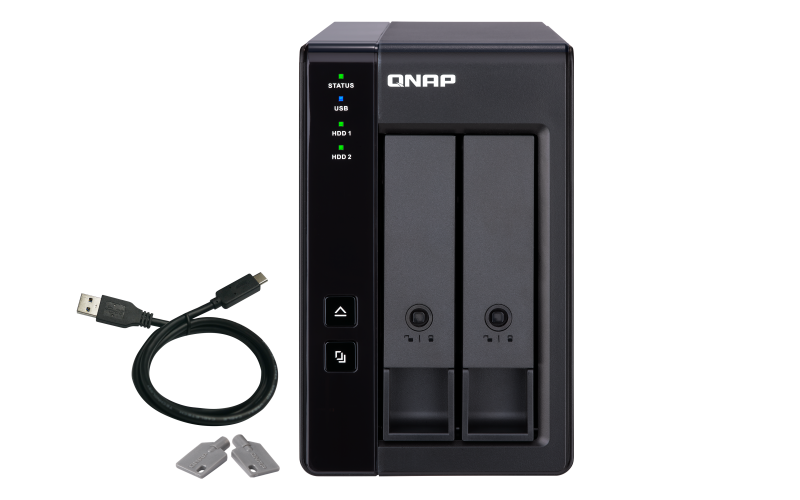

QNAP TR-002 2-Bay USB 3.2 Gen 2 Hardware RAID DAS
The QNAP TR-002 is a diskless two-bay tower enclosure that can expand compatible QNAP NAS or computer storage and can operate as direct-attached storage. It provides USB 3.2 Gen 2 Type-C connectivity and hardware RAID support.
TR-0022 baysUSB 3.2 Gen 2Hardware RAID
What is the QNAP TR-002?
It is a two-bay USB RAID enclosure with a microprocessor for hardware RAID. It supports Individual, JBOD, RAID 0, RAID 1 and Software Control modes for use with a compatible QNAP NAS, Windows, Ubuntu or Mac system.
Planning a NAS or storage setup?
Read NAS Buying GuideExplore the DeviceDeal NAS Buying Guide
Compare NAS types, storage planning considerations and practical buying information before choosing your system or expansion accessory.
Storage and control features
The TR-002 combines direct USB storage access with hardware- and software-controlled RAID options.
NAS expansion or DAS
Use it to expand compatible QNAP NAS storage or connect it directly to a PC or Mac as direct-attached storage.
Hardware RAID processor
A microprocessor provides hardware RAID support for the supplied operating modes.
Physical RAID selection
The disk-mode DIP switch selects hardware-controlled or software-controlled RAID configuration.
Lockable drive trays
The two drive trays are listed as lockable to help prevent accidental drive removal.
Software control
RAID settings can be controlled from a QNAP NAS or computer using the supplied software-control workflow.
Eject function
The supplied description lists an eject button that requires the QNAP External RAID Manager utility.
Connection and drive limitations
Follow the supplied connection and drive-mixing requirements.
- Direct USB connection: Connect the enclosure directly to the host USB port; do not place a USB hub or docking station between the devices.
- Cable length: A maximum 1-metre USB cable is recommended.
- Drive types: Supports 3.5-inch and 2.5-inch SATA HDDs and 2.5-inch SATA SSDs.
- RAID group mixing: Only one disk type, HDD or SSD, can be used within a RAID group.
- Hot-swap limitation: The enclosure is listed as hot-swappable, but drive hot-swap is not supported in Individual mode.
- Adapter limitation: The TR-002 does not support QDA-A2AR or QDA-A2MAR.
Frequently asked questions
Useful answers based on the supplied information for the QNAP TR-002.
Can the QNAP TR-002 be used as direct-attached storage?
Yes. It can operate as a DAS device, providing direct USB access to the installed drives.
Which RAID modes does the TR-002 support?
It supports Individual, JBOD, RAID 0 and RAID 1, plus Software Control mode for managing RAID from a supported QNAP NAS or computer.
Which drives can be installed in the TR-002?
It supports 3.5-inch SATA hard drives, 2.5-inch SATA hard drives and 2.5-inch SATA solid-state drives at 6Gb/s or 3Gb/s.
Can HDDs and SSDs be mixed in one RAID group?
No. A RAID group must use one disk type only; mixing HDDs and SSDs in the same RAID group is not supported.
Can the TR-002 be connected through a USB hub?
No. Connect it directly to the USB port of the NAS, PC or Mac. A maximum 1-metre USB cable is recommended.
Is drive hot-swap supported on the TR-002?
The enclosure is listed as hot-swappable, but the supplied information states that drive hot-swap is not supported in Individual mode.
(TR-002)
Features and highlights
Key capabilities based on the supplied product information.
10Gbps USB Type-C
Provides one USB 3.2 Gen 2 Type-C port with a listed 10Gbps transfer rate.
Hardware RAID
A dedicated microprocessor supports hardware RAID operation.
Flexible disk modes
Supports Individual, JBOD, RAID 0, RAID 1 and Software Control modes.
Lockable trays
Two lockable drive trays support controlled drive access.
Cross-platform support
The supplied specification lists QTS or QuTS hero, Windows, Ubuntu and Mac.
Compact tower enclosure
The two-bay tower form factor measures 168.5 × 102 × 219mm.
Purchase check: Use a direct host USB connection, a cable no longer than 1 metre, one disk type per RAID group and compatible drives. The enclosure is supplied without hard drives.
Technical specifications
Specifications below are organised from the supplied product information.
Product details
| Brand | QNAP |
|---|---|
| Model | TR-002 |
| Product type | USB hardware RAID DAS and NAS expansion enclosure |
| JBOD connection interface | USB |
| Main chip | Microprocessor with hardware RAID |
| Form factor | Tower |
| Drive bays | 2 × 3.5-inch The system is shipped without hard drives. |
Drive support
| 3.5-inch drives | SATA 6Gb/s and 3Gb/s hard disk drives |
|---|---|
| 2.5-inch drives | SATA 6Gb/s and 3Gb/s hard disk drives SATA 6Gb/s and 3Gb/s solid-state drives |
| RAID-group disk type | Only one disk type, HDD or SSD, may be used in a RAID group |
| Unsupported adapters | QDA-A2AR and QDA-A2MAR |
| Hot-swappable | Yes; drive hot-swap is not supported in Individual mode |
Connectivity and controls
| USB port | 1 × USB 3.2 Gen 2 Type-C, 10Gbps |
|---|---|
| Recommended USB cable length | Maximum 1 metre |
| Connection requirement | Connect directly to the host USB port without a hub or docking station |
| Drive trays | Lockable |
| Eject function | Requires the QNAP External RAID Manager utility, as stated in the supplied description |
| Security slot | Kensington security slot |
| System warning | Buzzer |
RAID and management
| Hardware RAID DAS | Yes |
|---|---|
| Individual / Single Disk | Yes |
| JBOD | Yes |
| RAID 0 | Yes |
| RAID 1 | Yes |
| Software Control mode | Controls RAID configuration from a QNAP NAS or computer |
Physical specifications
| Dimensions (H × W × D) | 168.5 × 102 × 219mm, excluding a foot pad of up to 30mm / 1.18 inches depending on model |
|---|---|
| Net weight | 1.37kg |
| Gross weight | 1.54kg |
Power and cooling
| Power supply | Minimum 36W adapter, 12VDC, 100240VAC |
|---|---|
| HDD sleep power consumption | 2.98W |
| Typical operating power | 10.15W, tested with drives fully populated |
| Fan | 1 × 70mm, 12VDC |
Operating environment
| Operating temperature | 040°C (32104°F) |
|---|---|
| Storage temperature | -2070°C (-4158°F) |
| Relative humidity | 595% RH non-condensing, wet bulb: 27°C (80.6°F) |
System support
| QTS / QuTS hero | Yes |
|---|---|
| Windows | Yes; non-Server Windows versions have a 63TB single-volume limit, and Windows Server is recommended for larger volumes |
| Ubuntu | Yes |
| Mac | Yes |
Warranty
| Standard warranty | 2; the unit is not stated in the supplied specification |
|---|
| SKU | TR-002 |
| Model # | TR-002 |
| Barcode # | 885022017249 |
| Brand | QNAP |
| Shipping Weight | 2.2000kg |
| Shipping Width | 0.280m |
| Shipping Height | 0.200m |
| Shipping Length | 0.240m |
| Shipping Cubic | 0.013440000m3 |
QNAPManufacturer warranty
QNAP manufacturer warranty
The QNAP TR-002 is supplied with the applicable QNAP manufacturer warranty.
The supplied specification lists a standard warranty value of 2 but does not identify the unit. No duration is stated here. Warranty coverage, eligibility and claim assessment are subject to QNAP terms. Please retain your DeviceDeal tax invoice as proof of purchase.
