Expansion Unit

RXD1219sas

Name: Synology RXD1219sas 12-Bay Diskless Storage Expansion Unit
Brand: SYNOLOGY
SKU: RXD1219SAS
Price: 6399 AUD
Availability: OutOfStock

Enterprise-grade expansion unit storage solution

RXD1219sas is a 2U expansion unit designed to work automatically when connected, providing an effortless storage space upgrade solution for your Synology servers .

Uncompromising performance

Scalability

12 drive bays

On-the-fly SAS expansion up to 12 additional bays

RXD1219sas is a 2U expansion unit designed to work automatically when connected, providing an effortless storage space upgrade solution for your Synology servers. You can add up to 12 additional 2.5" / 3.5" SAS drive bays on the fly when connected directly with a mini-SAS HD cable.

Designed for maximum reliability

The redundant power supplies ensure maximum service uptime. On the rare occasion when a failure occurs, you can instantly replace the hot-swappable drive trays, and with the key system components modularized, SAS modules and system fans can also be replaced with ease.

High-performance data transmission

The mini-SAS HD provides high bandwidth connectivity to achieve maximum throughput during data transfer between your Synology server and RXD1219sas. It allows the drives in the connected RXD1219sas to operate as if they are the internal drives of the Synology server with no data latency.

5-year warranty

At Synology, we are committed to product innovation and quality. Synology guarantees a robust and reliable data management experience with a 5-year limited warranty, providing responsive technical support and hardware replacement services to maximize your return on investment.

Backed by Synology drives

Engineered to handle high-intensity workloads, Synology hard drives consistently deliver top-grade performance.

(RXD1219SAS)

Technical Specifications

Complete hardware and software specifications

Applied Models

Supports creating volumes across different units SA series: SA3400D, SA3200D

Supports creating volumes on a single unit only UC series: UC3400, UC3200

Storage

Drive Bays 12

Drive Type(See all supported drives) 2.5" dual-port SAS SSD 2.5" dual-port SAS HDD 3.5" dual-port SAS HDD

Hot Swappable Drive* Yes

Notes Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list . The use of non-validated components may limit certain functionality and result in data loss and system instability. "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

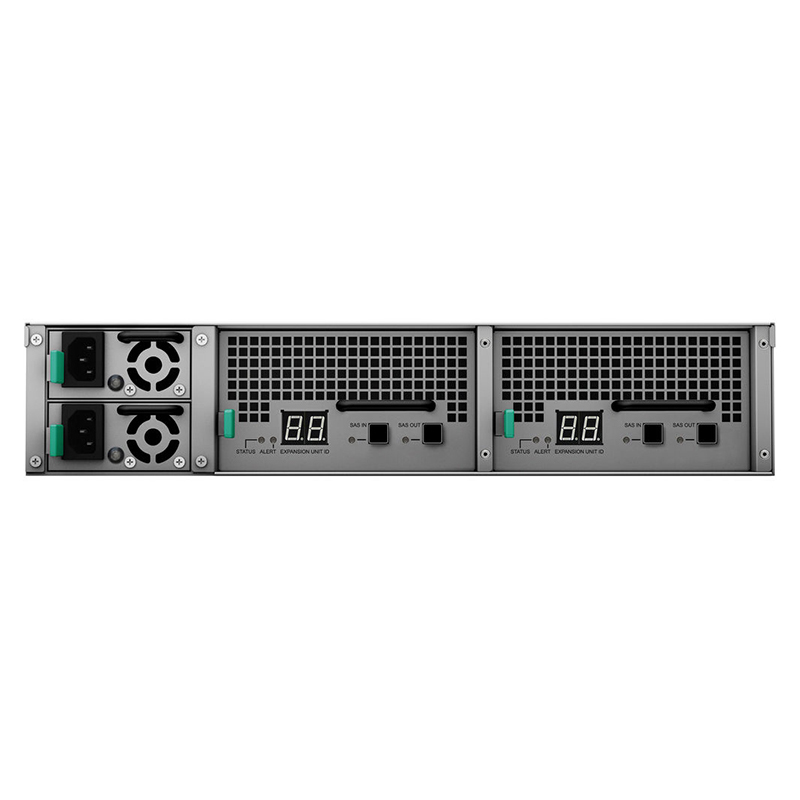

External Ports

SAS IN-port 2

SAS OUT-port 2

Appearance

Size (Height x Width x Depth) 88 mm x 430.5 mm x 692 mm

Size (Height x Width x Depth) (with server ears) 88 mm x 482 mm x 724 mm

Weight 18.2 kg

Rack Installation Support* 4-post 19" rack (Synology Rail Kit - RKS-02 )

Notes The rail kit is sold separately

Power

Power Supply Unit / Adapter 500 W

AC Input Power Voltage 100V to 240V AC

Power Frequency 50/60 Hz, Single Phase

Power Consumption* 299.79 W (Access)

British Thermal Unit 1022.93 BTU/hr (Access)

Redundant Power Supply Yes

Notes Power consumption is measured when it is fully loaded with Seagate ST3600057SS hard drive(s).

Temperature

Operating Temperature 0°C to 35°C (32°F to 95°F)

Storage Temperature -20°C to 60°C (-5°F to 140°F)

Operating Humidity 8% to 80% RH

Storage Humidity 5% to 95% RH

Others

System Fan 60 mm x 60 mm x 4 pcs

Easy Replacement System Fan Yes

Noise Level* 60.9 dB(A)

Notes Noise Level Testing Environment: Fully loaded with Seagate ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology expansion unit at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.
