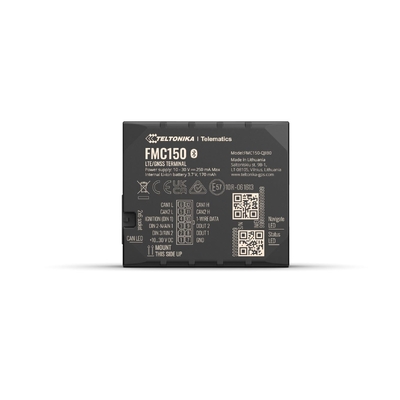

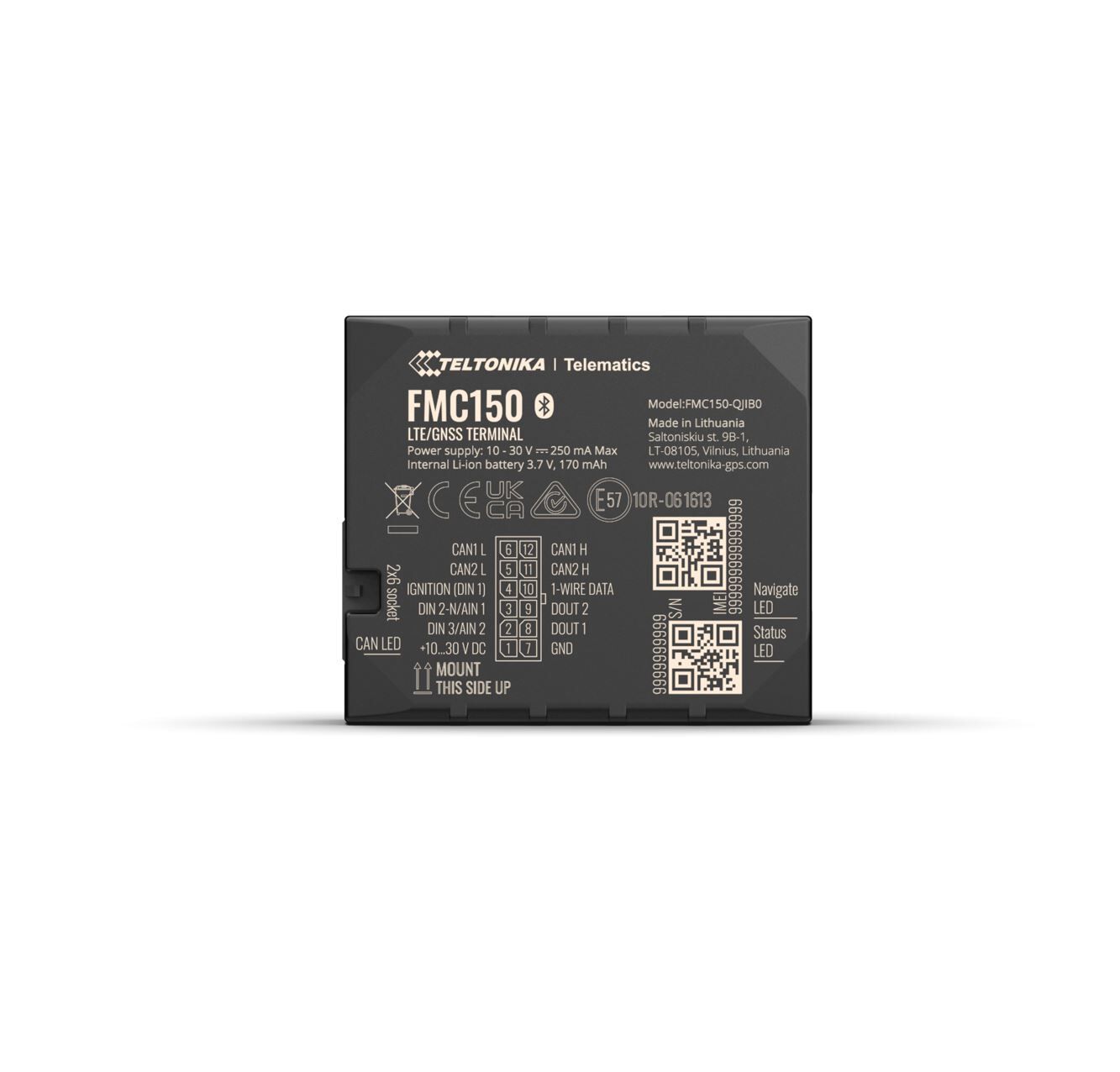

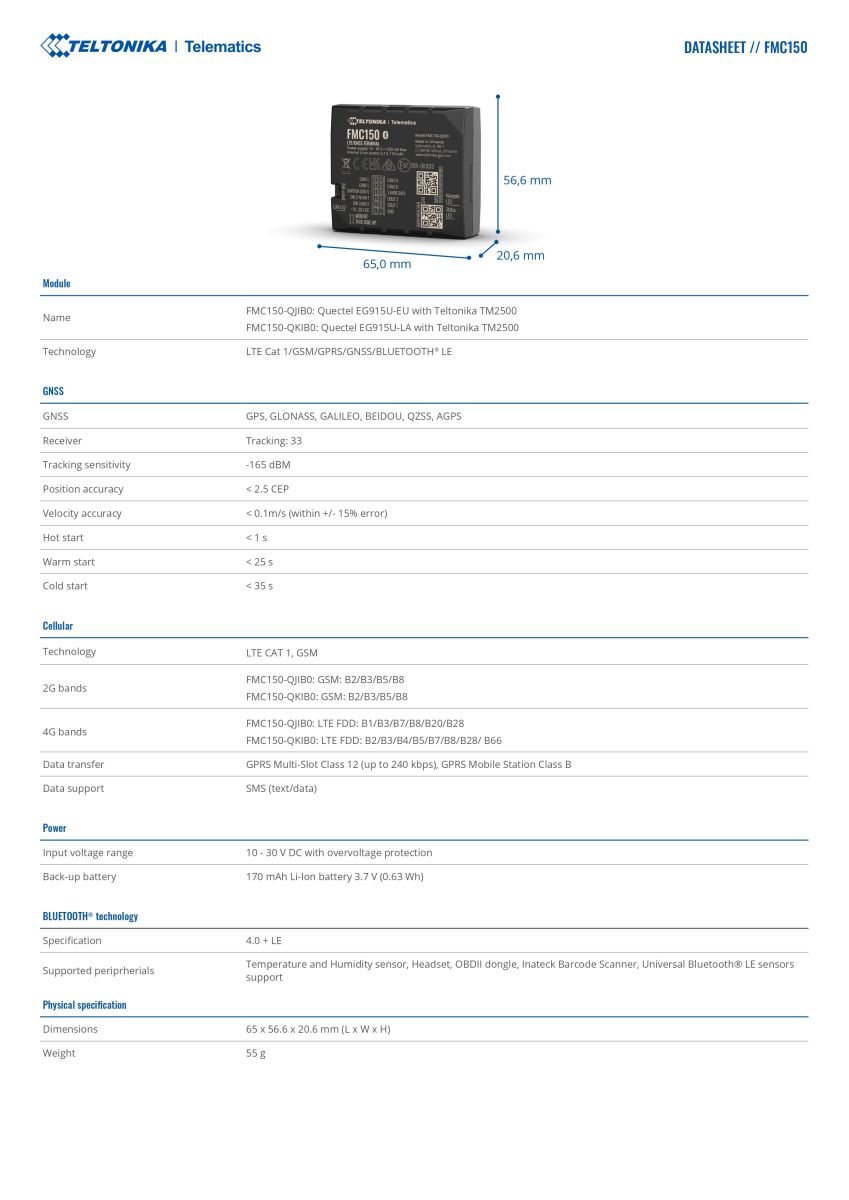

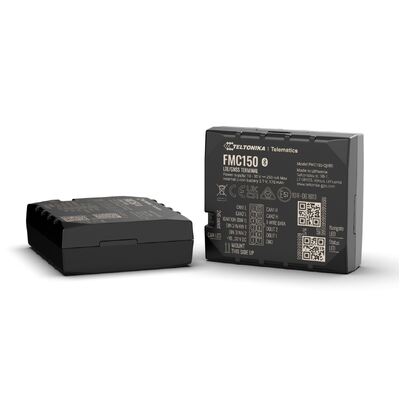

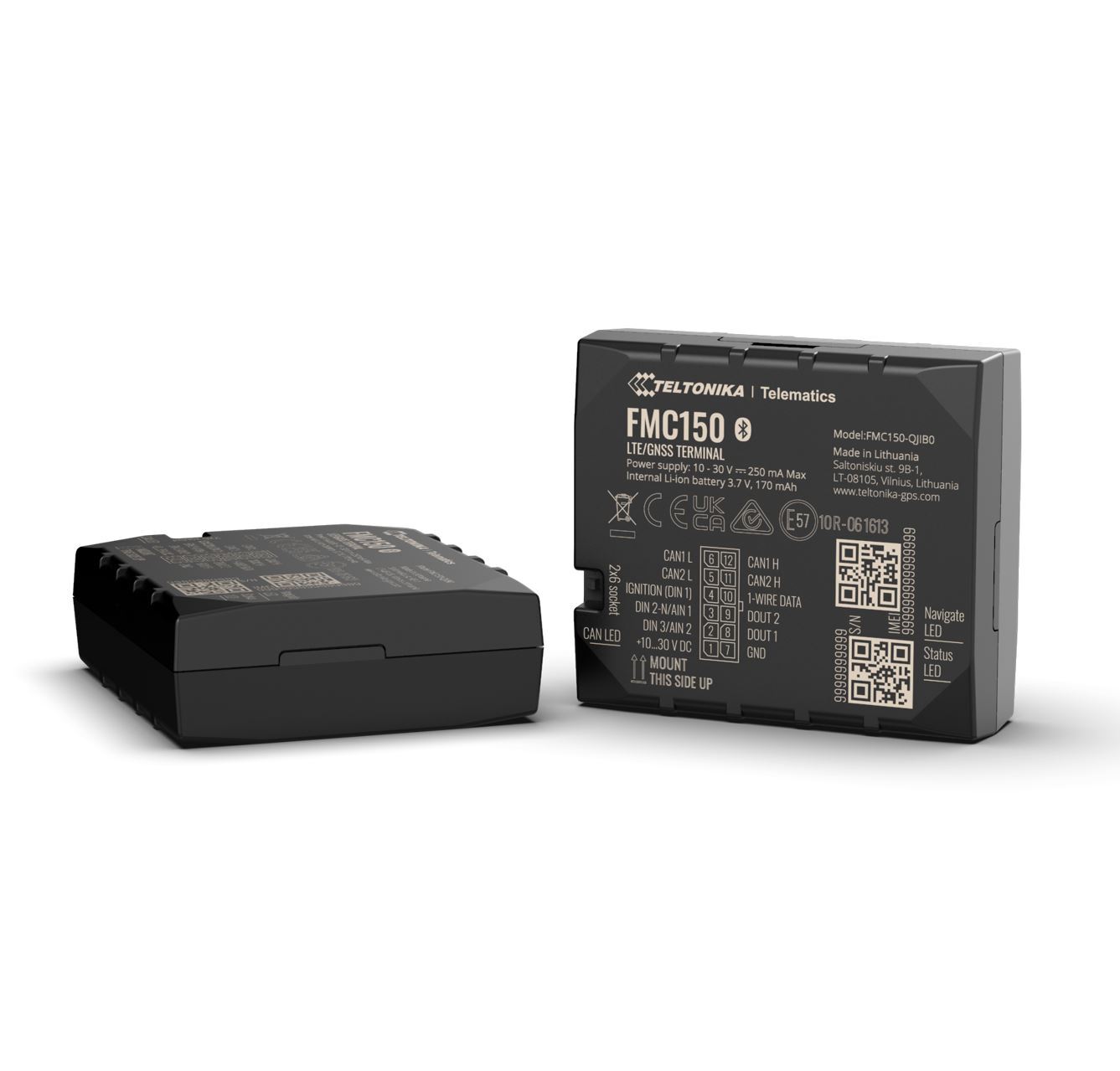

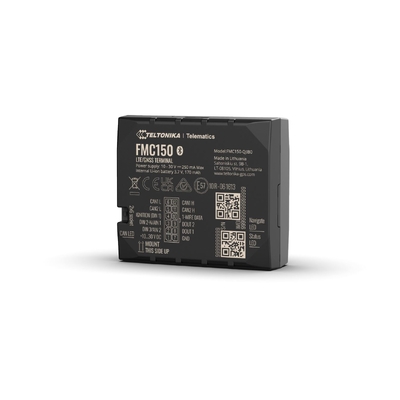

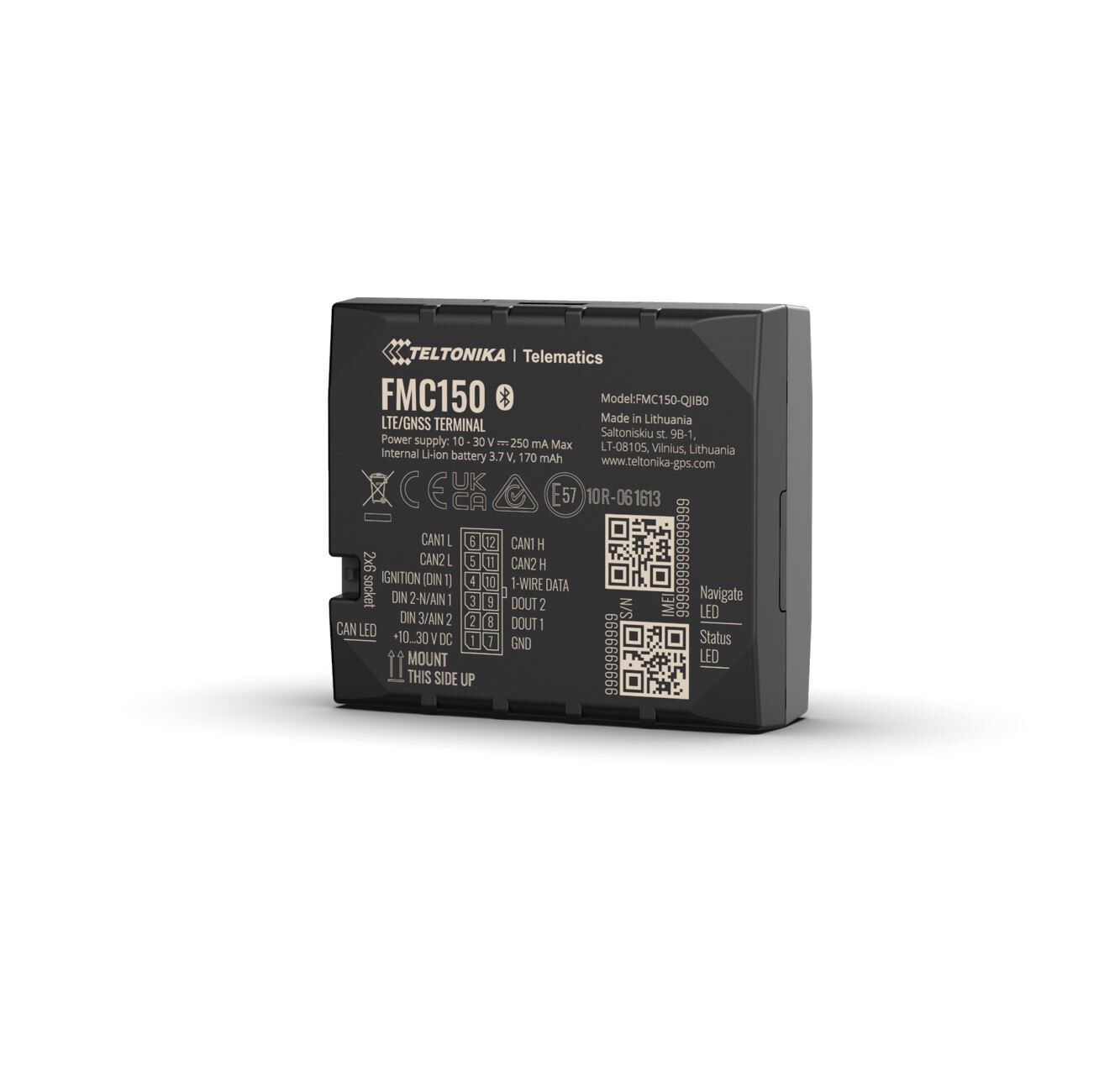

View PDF BrochureTeltonika FMC150 - Advanced 4G LTE Cat 1 GPS tracker with integrated CAN data processor
Model # FMC150
-
SKU: FMC150UAXW01
You Might Want To Add
- Pick Up Available
- Australian Warranty
- Checkout Securely

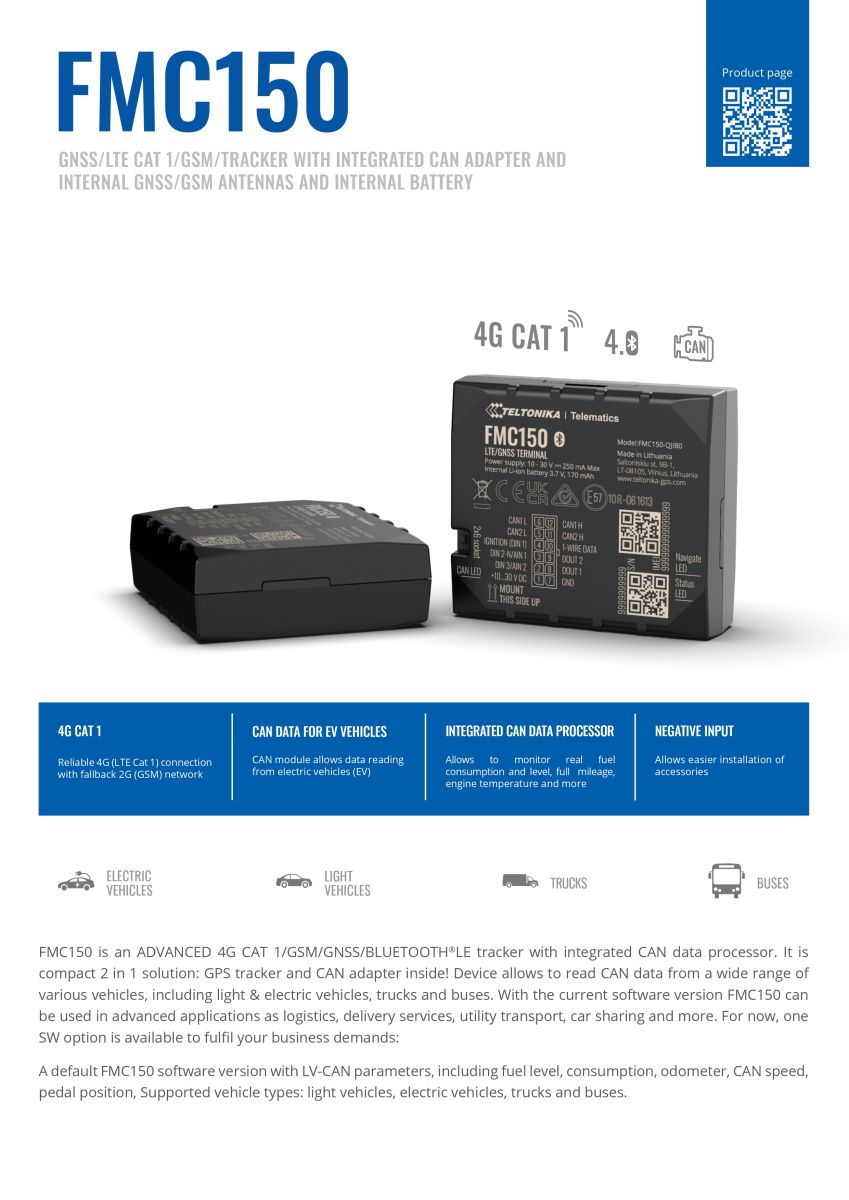

GNSS/LTE CAT 1/GSM/TRACKER WITH INTEGRATED CAN ADAPTER AND INTERNAL GNSS/GSM ANTENNAS AND INTERNAL BATTERY
Supported vehicle and data list
Know in advance what vehicle parameters are available to optimise your fleet operations
CAN data reading from EVs
Bringing new value and expanding usage scenarios with more than 100 supported vehicles in the EV market
SUPPORTING OVER 100 CAN PARAMETERS
Extensive data collection enables detailed analysis of vehicle operations, facilitating effective maintenance and performance optimisation
Built-in CAN bus data reading chip
Reading CAN data from light & electric vehicles, trucks, buses and special machinery
Standard package contains
- CAN-CONTROL adapter
- Power wires For FMB1YX, FM36YX, FMU1XY, FMC1XY, FMM1XY, FMB2XY, FMC2YX and FMM2XY devices)
Custom order codes
| Product code | Standard package* |
|---|---|
|
CANCONCD0101 |
|
|
CANCONCIGL01 |
|
|
CANCONP18601 |
|
|
CANCONGH4S01 |
|
|
CANCONGH0101 |
|
|
CAN-CONTROL3 |
|
(FMC150UAXW01)
Product code
Module
Region
Frequency
Standard package*
FMC150UAXW01
-
EU, MEA, APAC
- 4G (LTE-FDD):B1/B3/B7/B8/B20/B28
- 2G (GSM): B2/B3/B5/B8
Standard package (Standard parameters)
Suitable for
Supported by
FMB1YX, FMC1YX, FMM1YX, FMB225, FMC225, FMB23X, FMC23X, FMM23X
Power
Input voltage range
9 - 16 V DC
Power consumption
At 12V < 23,6 mA (Standby)
At 12V < 23,5 mA (Working)
Operating environment
Operating temperature (without battery)
-40 °C to +85 °C
Operating humidity
Max 85 % non-condensing
Interface
LED indication
1 status LED light

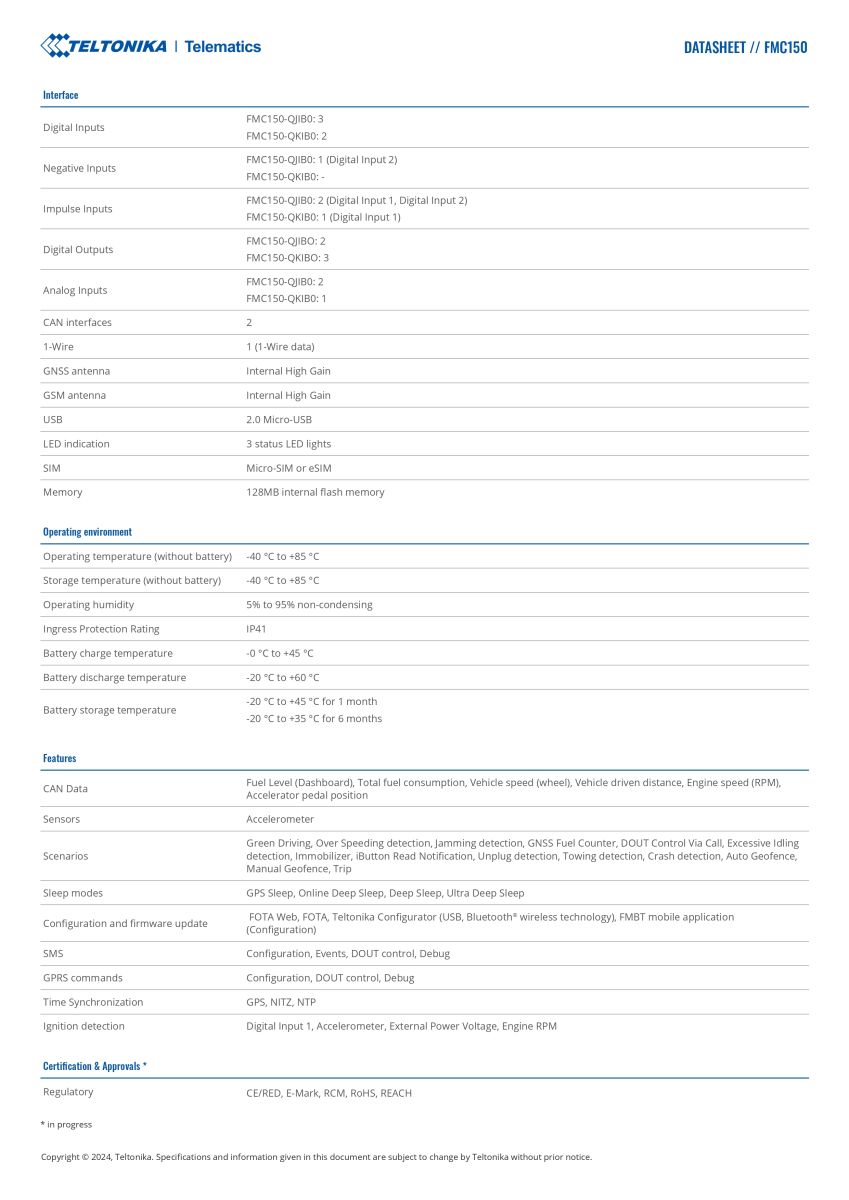

Technical data
Features*
Central lock control
Windows closure
Turn lights control
Trunk release
Door status
Lock status
Handbrake status
Lights status
Vehicle range
Vehicle driven distance
Total fuel consumption
Fuel level (dashboard)
Engine speed (RPM)
Vehicle speed
For electric cars:
Battery level
Charging status
Charging cable status
Vehicle range on battery
DTC reading**
Engine block**
*Data and control functions are available depending on vehicle’s
equipment, model, type and year of production.
**Feature is available with special order code
Physical specification
Dimensions
51 x 36 x 16 mm (L x W x H)
| SKU | FMC150UAXW01 |
| Brand | Teltonika |
| Shipping Weight | 0.2000kg |
Manufacturer Warranty: 2 Years Manufacturer Warranty
