WIFI6
The Wi-Fi system includes UniFi Controller software that can be installed on a PC, Mac, or Linux machine within the network, and is easily accessible through a standard Web browser. Using the UniFi Controller software, an Enterprise Wi-Fi network can be quickly configured and administered, without any special training. Real-time status, automatic UAP device detection, map loading, and advanced security options are all seamlessly integrated in the system.



Weather-Resistant Form Factor
The enclosure of the UniFi AC Mesh Pro AP is designed to withstand the elements, making it ideal for outdoor deployment.
LED Indicators
Unique provisioning LED provides administrator location tracking and alerts for each device.
Powerful Coverage
Built-in dual-band omni-directional antennas deliver expanded range coverage outdoors.
Mounting Flexibility
The UniFi AC Mesh Pro AP can be mounted on a wall or pole. (All accessories are included.)

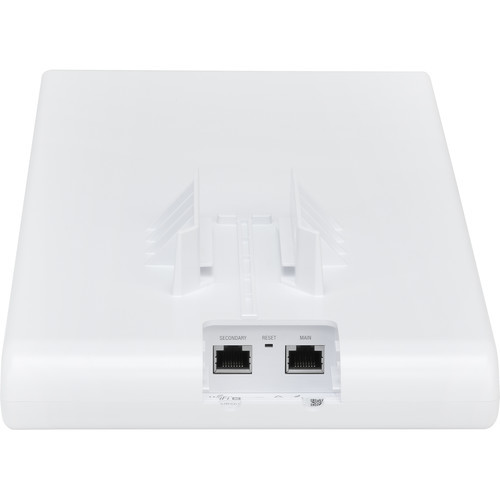

Dual Gigabit Ethernet Ports
The primary port is for data and PoE; the secondary port is for bridging.
Multiple Power Options
You can power the UniFi AC Mesh Pro AP with an 802.3af compatible switch, UniFi PoE Switch, or the included Gigabit PoE adapter.
UniFi Controller
Packed with Features
Use the UniFi Controller to provision thousands of UniFi APs, map out networks, quickly manage system traffic, and provision additional UniFi APs.

RF Map
Use the RF map to monitor and analyze radio frequencies for optimal AP placement, configuration, and troubleshooting.

Powerful RF Performance Features
Advanced RF performance and configuration features include spectral analysis, airtime fairness, and band steering.

Detailed Analytics
Use the configurable reporting and analytics to manage large user populations and expedite troubleshooting.

Wireless Uplink
Wireless Uplink functionality enables wireless connectivity between APs for extended range. One wired UniFi AP uplink supports up to four wireless downlinks on a single operating band, allowing wireless adoption of devices in their default state and real-time changes to network topology.
For devices that support Plug & Play Mesh, this functionality is extended to allow multi-hop wireless uplink - so wirelessly uplinked APs can support uplink to other wirelessly uplinked APs.

Guest Portal/Hotspot Support
Easy customization options for Guest Portals include authentication, Hotspot setup, and the ability to use your own external portal server. Use UniFi's rate limiting for your Guest Portal/Hotspot package offerings. Apply different bandwidth rates (download/upload), limit total data usage, and limit duration of use.
All UniFi APs include Hotspot functionality:
• Built-in support for billing integration using major credit cards.
• Built-in support for voucher-based authentication.
• Built-in Hotspot Manager for voucher creation, guest management, and payment refund.
• Full customization and branding of Hotspot portal pages.
Multi-Site Management
A single cloud-based UniFi Controller can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and admin read/write and read-only accounts.

WLAN Groups
Manage flexible configurations of large deployments. Create multiple WLAN groups and assign them to an AP's radio.

(UAP-AC-M-PRO-5)

Networking Interface 2 x 10/100/1000 Ethernet Ports
Buttons Reset
Power Method 802.3af PoE
(Supported Voltage Range: 44 to 57 VDC)
Power Supply 48 V, 0.5 A PoE Gigabit Adapter (Included)
Power Save Supported
Maximum Power Consumption 9 W
Maximum TX Power 2.4 GHz: 22 dBm
5 GHz: 22 dBm
Antennas 3 x Internal Dual-Band Antennas
8 dBi
Wi-Fi Standards 802.11a/b/g/n/ac
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID Up to Four per Radio
Mounting Wall/Pole (Pole Kit Included)
Temperature & Humidity Operating Temperature: -40 to 158°F / -40 to 70°C
Operating Humidity: 5 to 95% non-condensing
Certifications CE, FCC, IC
Traffic Management and QoS VLAN
802.1Q
Advanced QoS
Per-User Rate Limiting
Guest Traffic Isolation
Supported
WMM
Voice, Video, Best Effort, and Background
Concurrent Clients
200+
Supported Data Rates 802.11ac
6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)
802.11n
6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
Dimensions 13.51 x 7.13 x 2.37" / 343.20 x 181.20 x 60.20 mm
Weight 1.40 lb / 633 g
Packaging Info
Package Weight 5.05 lb
Box Dimensions (LxWxH) 15.8 x 8.8 x 3.6"
SKU UAP-AC-M-PRO-5
Barcode # 0817882020572
Brand Ubiquiti
Shipping Weight 6.1650kg
