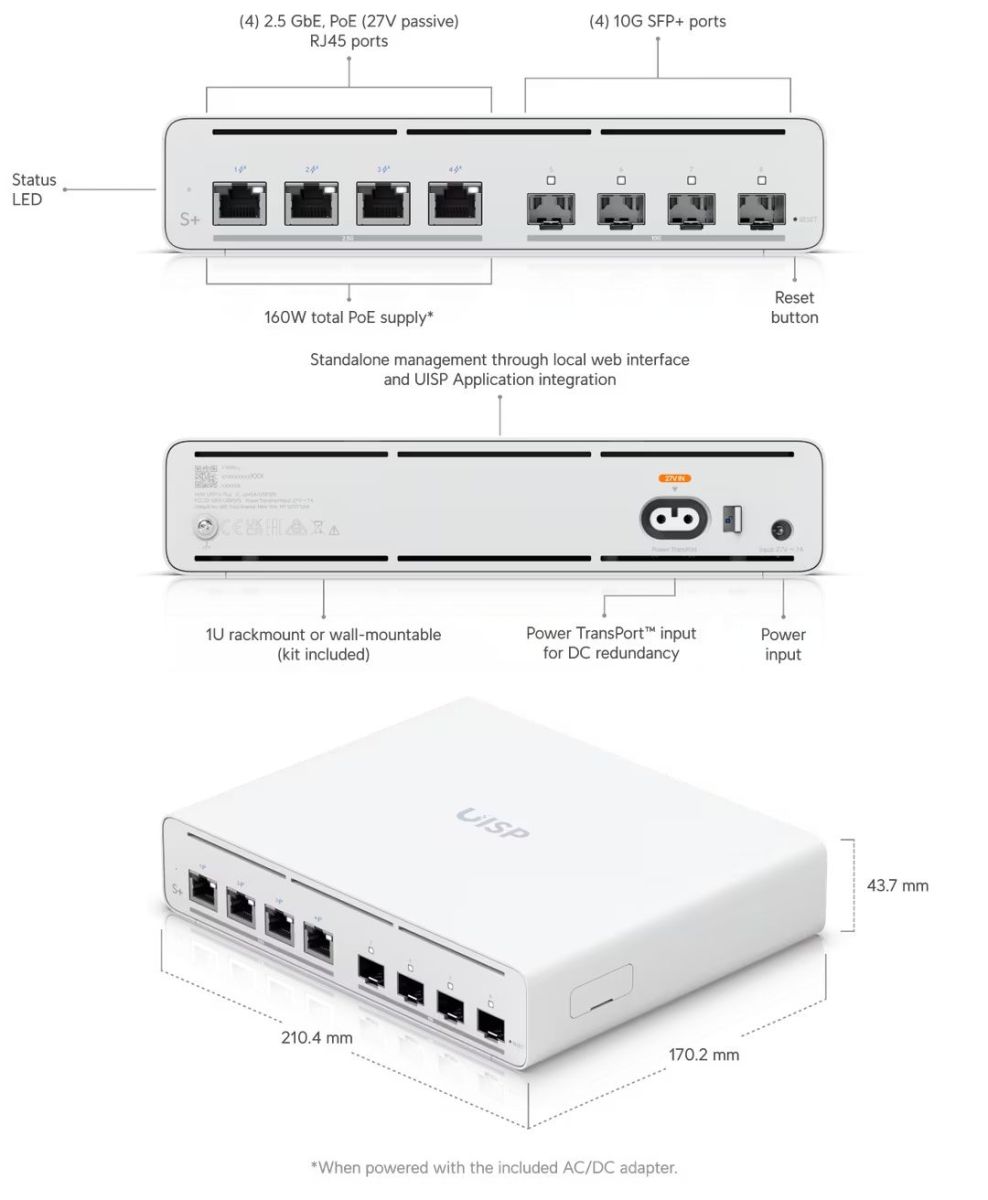

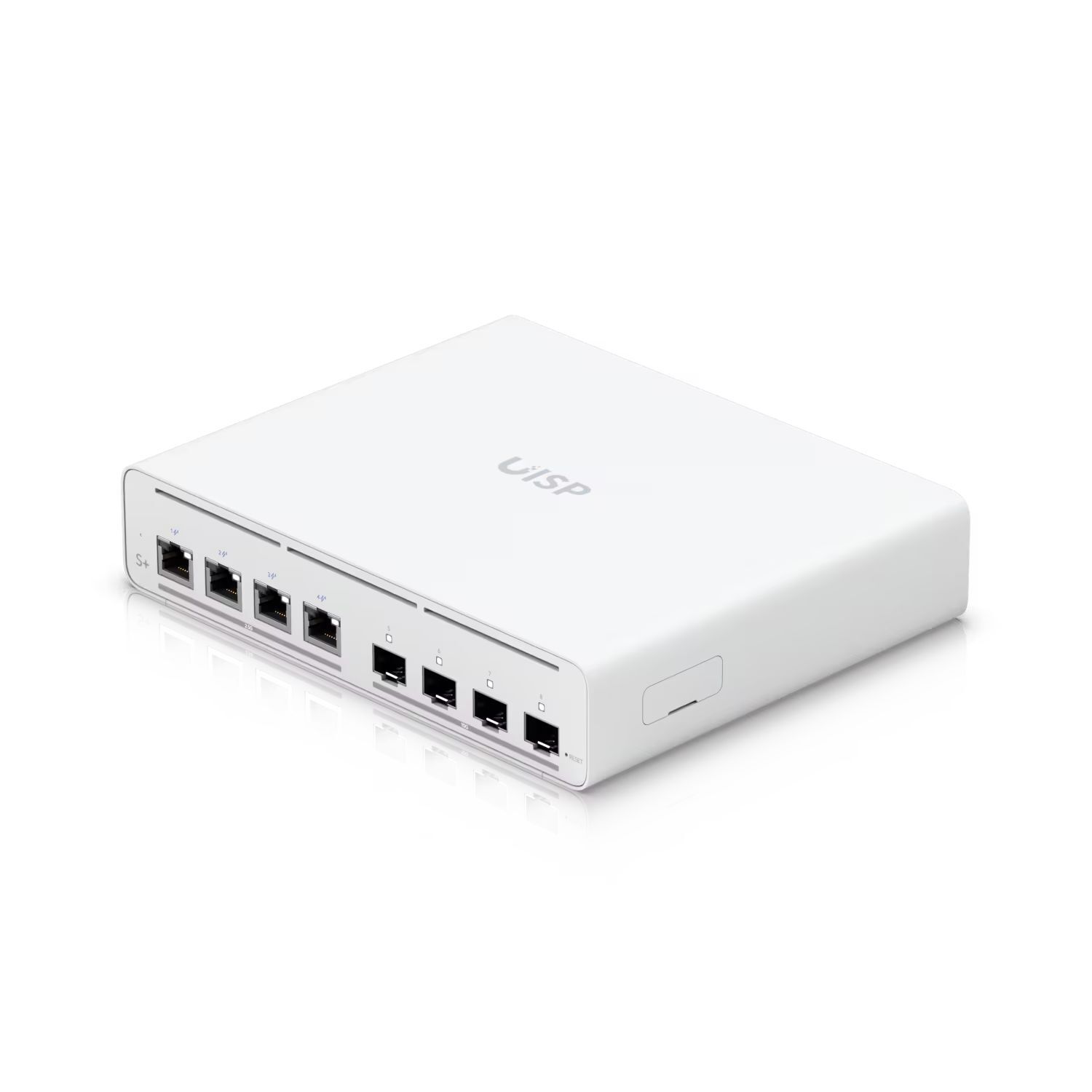

2.5 GbE PoE switch for ISP applications.

(4) 2.5 GbE RJ45 ports with 27V passive PoE output

(4) 10G SFP+ ports

160W (27V) total PoE availability*, 20W/port (2-pair) / 40W/port (4-pair)

Port isolation, speed limiting, and DHCP snooping functionality

(1) Power TransPort™ input for DC redundancy

Desk, wall, 1U rack, and outdoor** mounting

Standalone management through local web interface and UISP Application integration

*When powered with the included AC/DC adapter.

**When enclosed in the UISP Box Plus (sold separately).



(UISP-S-PLUS)

Mechanical
Dimensions 210.4 x 170.2 x 43.7 mm (8.3 x 6.7 x 1.7")
Weight 1.75 kg (3.9 lb)
Enclosure materials SGCC steel, polycarbonate/acrylonitrile butadiene styrene
Hardware
Processor Dual-core ARM®v8 Cortex®-A55 at 1.4 GHz
Memory 1 GB DDR4
Onboard flash storage 256 MB NAND
Networking interface (4) 1/2.5 GbE RJ45 LAN ports
(4) 1/10G SFP+ ports
Management interface Ethernet In-band
Bluetooth
Total non-blocking throughput 50 Gbps
Switching capacity 100 Gbps
Forwarding rate 74.4 Mpps
Power method (1) External AC/DC adapter
(1) Power TransPort DC input 27V DC, 7.04A
Power supply 27V DC, 7.04A power adapter (included)
Supported voltage range 24–28V DC
Max. power consumption 25W (Excluding PoE output.)
ESD/EMP protection Air: ± 15 kV, contact: ± 8 kV
Ambient operating temperature -10 to 50° C (14 to 122° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
PoE
PoE interface (4) 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-); Ports 1 to 4
Total available PoE 160W (With included power adapter.)
Max. passive PoE wattage per port 2-pair mode: 20W/27V DC
4-pair mode: 40W/27V DC
Passive PoE voltage range 27V DC
LEDs
System Status
RJ45 data ports PoE
Speed/link/activity
SFP+ data ports Link/activity
Software
Management application UISP
SKU UISP-S-PLUS
Barcode # 810084691908
Brand Ubiquiti
Shipping Weight 2.0000kg
Manufacturer Warranty : 1 Year Manufacturer Warranty
