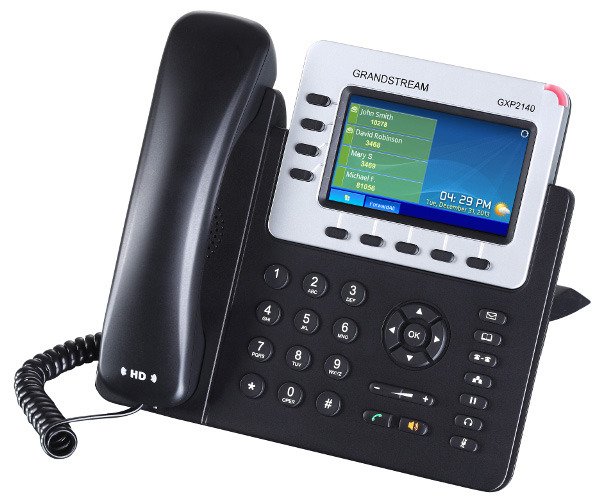

A versatile Enterprise IP phone, the GXP2140 is a Linux-based device that includes 4 lines, 5 XML programmable soft keys, and 5-way conferencing. A 4.3 inch color LCD screen and HD audio allow for a crisp display and high quality calls. The GXP2140 comes equipped with Bluetooth, USB and EHS capabilities for flexibility. The phone also comes pre-loaded with weather & currency exchange apps. Add up to 4 GXP2200EXT modules to view an additional 160 lines, and customize your language for global use.

480x272 TFT color LCD
Automated provisioning using TR-069 or AES encrypted XML configuration file, TLS/SRTP/HTTPS for advanced security and privacy protection
Integrated real-time web applications [weather, currency, RSS news (pending), etc.

(GXP2140)

Features :

•	480x272 TFT color LCD
•	Dual switched auto-sensing 10/100/1000Mbps Gigabit network ports, PoE, Bluetooth, USB, EHS (Electronic Hook-Switch) with Plantronics headsets, and capability to connect/power up to 4 cascaded extension modules with LCD display
•	Up to 4 SIP accounts, 5 programmable context-sensitive soft keys, and up to 5-way conferencing
•	Automated provisioning using TR-069 or AES encrypted XML configuration file, TLS/SRTP/HTTPS for advanced security and privacy protection
•	Integrated real-time web applications [weather, currency, RSS news (pending), etc.]

Network Interfaces
•	Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE
Graphic Display
•	4.3 inch (480x272) TFT color LCD
Feature Keys
•	4 line keys with up to 4 SIP accounts, 5 programmable context sensitive softkeys, 5 navigation/menu keys, 11 dedicated function keys for: MESSAGE (with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL
Voice Codec
•	Support for G.729A/B, G.711µ/a-law, G.726, G.722 (wide-band), and iLBC, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)
Auxiliary Ports
•	RJ9 headset jack (allowing EHS with Plantronics headsets), USB, extension module port
HD Audio
•	Yes, both on handset and speakerphone
Base Stand
•	Yes, allow 2 angle positions
Wall Mountable
•	Yes
Upgrade/Provisioning
•	Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or encrypted XML configuration file
Power & Green Energy Efficiency
•	Universal power adapter included: Input: 100-240V; Output: +12V, 1.0A;
•	Integrated Power-over-Ethernet (802.3af)
•	Max power consumption: 6W (without GXP2200EXT),
•	10W(with 4 cascaded GXP2200EXTs )
Physical
•	Dimension: 228mm (W) x 206mm (L) x 46.5mm (H)
•	Unit weight: 0.98kg
•	Package weight: 1.55kg
Temperature and Humidity
•	0 ~ 40ºC (32 ~ 104ºF )
•	10 ~ 90% (non-condensing)

SKU	GXP2140
Barcode #	6947273701354
Brand	GRANDSTREAM
Shipping Weight	3.0000kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.150m
Shipping Cubic	0.000750000m3
