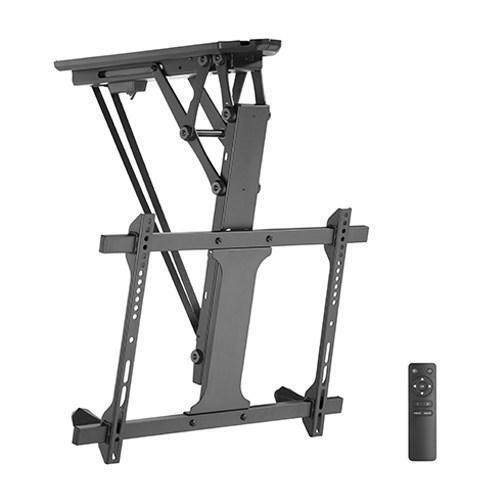

Brateck Motorized Flip Down TV Ceiling Mount for Most 32-70" TVs
Model # PLB-M0546
-
SKU: PLB-M0546
- Pick Up Available
- Australian Warranty
- Checkout Securely
Brateck Motorized Flip Down TV Ceiling Mount for Most 32-70inch TVs, Ceiling Mounted, Up to 35kg, 1.5m Power Cord, Remote Control Included, Built-in Level Adjustment
DESCRIPTION

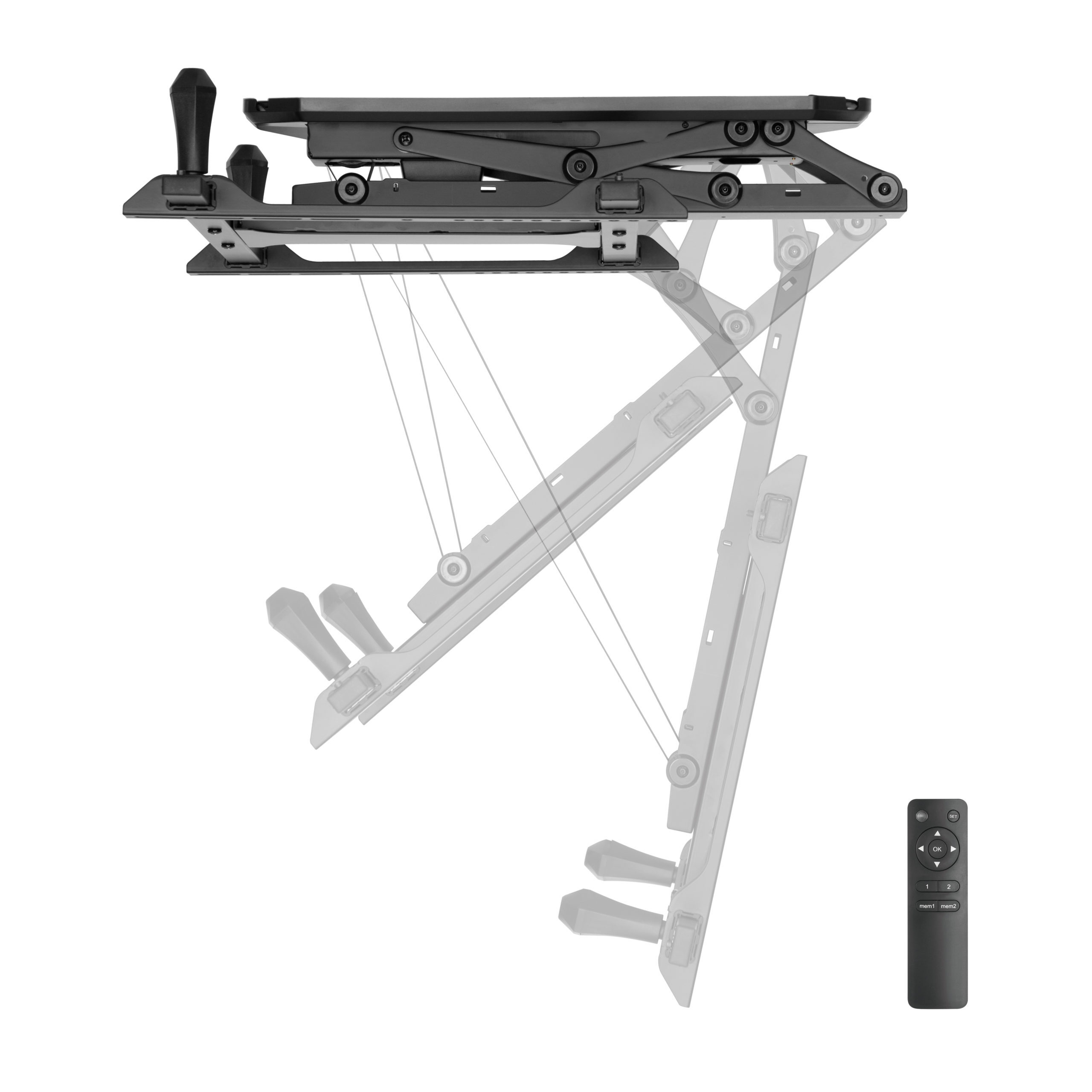

PLB-M0546 Motorized Flip Down TV Ceiling Mount is the perfect choice to saves space for the room with low ceiling (flat and pitched) – retracts and keeps flush to the top. Best of all, combined with the balanced mechanism to stop TV shaking on the ceiling. Quality motor holds TVs up to 70” (35 kg/77lbs) and provides automatic flip up and down function with the press of a button. The convenient RF remote allows operation through walls and from greater distances. Keyhole pattern allows for easy installation and height-adjustment.
Weight
10.36 Kg
Height
51.6 (cm)
Width
66.4 (cm)
Length
71 (cm)
(PLB-M0546)
Specifications
| Material | Steel,Plastic |
|---|
| Metal Sheet Thickness | Bracket Arm THK=2mm cold-rolled sheet,VESA Panel THK=2mm cold-rolled sheet,Wall Plate THK=2mm cold-rolled sheet (Bracket Arm THK=0.079" cold-rolled sheet,VESA Panel THK=0.079" cold-rolled sheet,Wall Plate THK=0.079" cold-rolled sheet) |
|---|
| Surface Finish | Powder Coating |
|---|
| Color | Matte Black |
|---|
| Dimensions | 710x664x516mm (28"x26.1"x20.3") |
|---|
| Fit Screen Size | 32"-70" |
|---|
| Mounting Hole Pattern | VESA Only |
|---|
| VESA Compatible | 200x100,200x200,300x200,200x400,400x200,300x300,400x300,400x400,600x400 |
|---|
| Max. Mounting Hole | 600x400 |
|---|
| Weight Capacity | 35kg (77lbs) |
|---|
| Strength Tested | 3 Times Approved |
|---|
| Profile | 108mm (4.3") |
|---|
| Tilt Range | 0~-75° |
|---|
| Screen Level | +2°~-2° |
|---|
| Screen Freely Tilting | No |
|---|
| Installation | Ceiling Mounted |
|---|
| Panel Type | Detachable Panel |
|---|
| Wall Plate Type | Fixed Wall Plate |
|---|
| AV Component Shelf | No |
|---|
| Cable Management | Yes |
|---|
| Anti-theft | No |
|---|
| Power Supply | Input：AC 100~240V,50/60Hz；Output：DC 24V, 1.5A |
|---|
| Power Cord Length | 1.5m (4.9ft) |
|---|
| Controller Type | Radio Frequency(RF) Remote |
|---|
| Bubble Level | No |
|---|
| Accessory Kit Package | Normal/Ziplock Polybag,Compartment Polybag |
|---|
| Instruction Manual Included | Yes |
|---|
| Certification | CE,RoHS |
|---|
| Power Plug Included | Yes |
|---|
| Magnetic | Yes |
|---|
| SKU | PLB-M0546 |
| Barcode # | 6956745165778 |
| Brand | BRATECK |
| Shipping Weight | 10.3600kg |
Manufacturer Warranty: 5 Years Manufacturer Warranty
