Ergotron 24-198-055

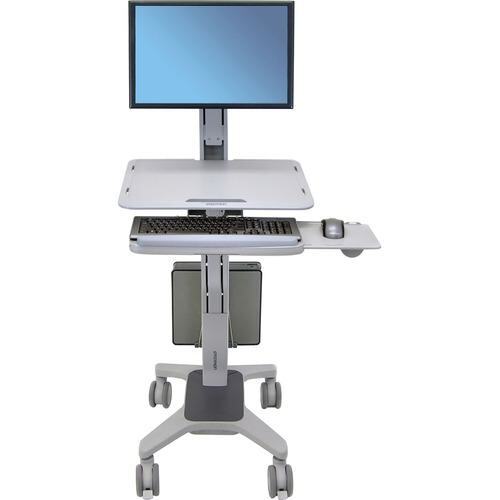

Ergotron 24-198-055 WorkFit-C Single Display Sit-Stand Workstation

A mobile floor-standing workstation for one LCD up to 27 inches, with 635 mm of height adjustment, integrated worksurface, keyboard tray and CPU holder.

Maximum screen68.6 cm (27 inches)

Maximum load12.25 kg

Height adjustment635 mm / 25 inches

MountingVESA 75 × 75 and 100 × 100

Product overview

The WorkFit-C brings the display, keyboard and work surface together on a mobile sit-stand platform. Counterbalanced Constant Force lift-and-pivot technology supports tool-free repositioning, while four dual casters provide mobility within the workspace.

Important product details

The LCD pivot supports 5 to 18 lbs.
The CPU holder supports up to 40 lbs.
The maximum load on the height-adjustment assembly is 27 lbs.
Assembly is required.

Australian manufacturer warranty

DeviceDeal is an authorised reseller. This Australian-version Ergotron product is covered by the applicable Ergotron manufacturer warranty in Australia.

Frequently asked questions

What screen size does the Ergotron 24-198-055 support?

The supplied compatibility information states support for an LCD screen up to 27 inches.

What is the workstation's maximum load capacity?

The listed maximum load capacity is 12.25 kg.

How much height adjustment is provided?

The WorkFit-C provides 635 mm, or 25 inches, of height adjustment.

Which VESA patterns are supported?

The supplied specifications list 75 × 75 mm and 100 × 100 mm VESA patterns.

Can the screen rotate?

Yes. The supplied information lists 360-degree portrait-to-landscape rotation and 25-degree tilt.

What computer accessories are included?

The package includes a CPU holder, mouse holder, wrist rest, cable storage box, work surface and keyboard tray, along with the display mounting components.

Is assembly required?

Yes. Assembly is required.

(24-198-055)

Features and highlights

Ergotron 24-198-055 WorkFit-C Single Display Sit-Stand Workstation

A mobile, single-display sit-stand workstation with integrated computer and cable-management components.

Sit-stand movement635 mm (25 inches) of supplied height adjustment.

Single-display supportCompatible with an LCD screen up to 27 inches.

Constant Force technologyPatented CF lift-and-pivot motion supports one-touch repositioning.

Ergonomic keyboard areaIncludes a negative-tilt keyboard tray and wrist rest.

Mobile workstationFour dual, lockable casters support movement and positioning.

Integrated organisationIncludes a CPU holder, mouse holder and cable storage box.

Key highlights

25-degree tilt and 360-degree portrait/landscape rotation
VESA 75 × 75 mm and 100 × 100 mm support
Two-tone grey aluminium, steel and plastic construction
Integrated work surface and left/right mouse tray
Australian-version product supplied by authorised reseller DeviceDeal with Ergotron manufacturer warranty in Australia

Specifications Ergotron 24-198-055 WorkFit-C Single Display Sit-Stand Workstation

SKU: 24-198-055

General information

Brand	Ergotron
Manufacturer	Ergotron, Inc
Manufacturer part number	24-198-055
Product line	WorkFit-C
Product name	WorkFit-C, Single LD Sit-Stand Workstation
Product type	Computer Stand
Application/usage	Workstation
Manufacturer website address	http://www.ergotron.com/Home/tabid/36/language/en-AU/Default.aspx

Display and adjustment

Maximum screen size supported	68.6 cm (27 in)
Maximum load capacity	12.25 kg
Maximum adjustable stand height	635 mm
Lift	25 in
Tilt	25°
Rotation	360° portrait/landscape
LCD pivot weight capacity	5 to 18 lbs
Maximum load on height-adjustment assembly	27 lbs

Mounting and computer support

VESA mount standard	100 × 100 mm; 75 × 75 mm
Mounting standard detail	VESA FDMI MIS-D, 100/75, C
CPU holder weight capacity	40 lbs

Mobility and features

Number of casters	4
Wheel-to-wheel base dimensions	17 in W × 20.5 in D
Features	360° Rotation; Wrist Rest; Tilt; Powder Coated; Pivot; Lockable Casters; Lift Mechanism; Keyboard Tray; Ergonomic; Cable Management; Durable; Easy to Clean; CPU Holder

Physical characteristics

Form factor	Floor
Product colour	Two-tone Grey
Product material	Aluminium; Steel; Plastic

Package and installation

Compatibility	LCD screen up to 27 in
Package contents	WorkFit C-Mod Single Display Sit-Stand Workstation; LCD Pivot; Wrist Rest; CPU Holder; Mouse Holder; 4 × Dual Casters; Cable Storage Box; VESA Adaptor Brackets; Integrated Work Surface; Keyboard Tray with Left/Right Mouse Tray
Assembly required	Yes

Source review note: One marketing bullet in the supplied source ends mid-sentence ('rolling in the si') and has been excluded rather than completed by inference.

SKU	24-198-055
Barcode #	698833010893
Brand	ERGOTRON
Shipping Weight	36.3000kg
Shipping Width	0.507m
Shipping Height	0.625m
Shipping Length	1.150m
