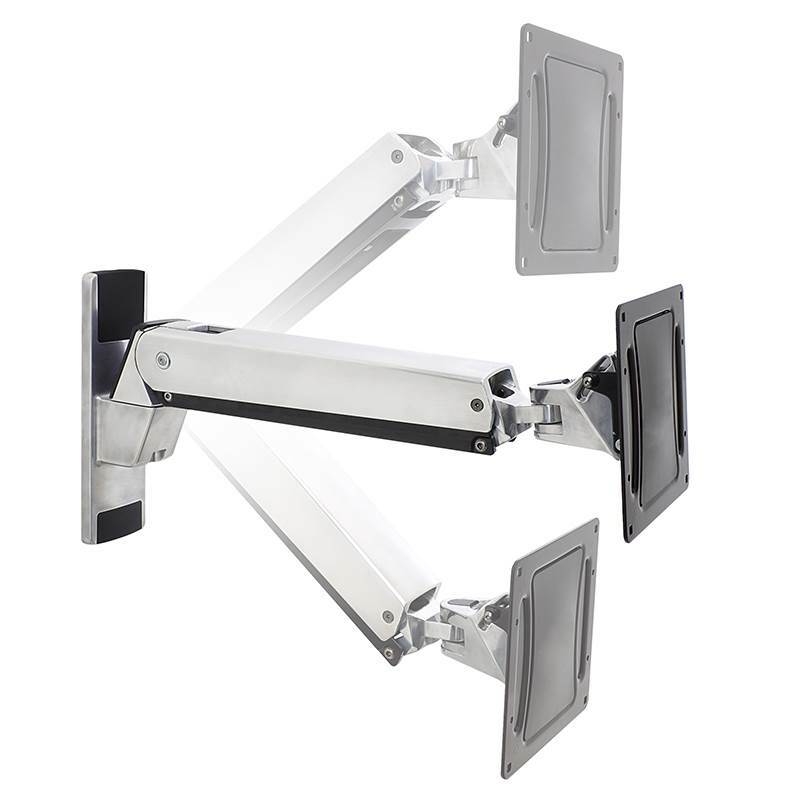

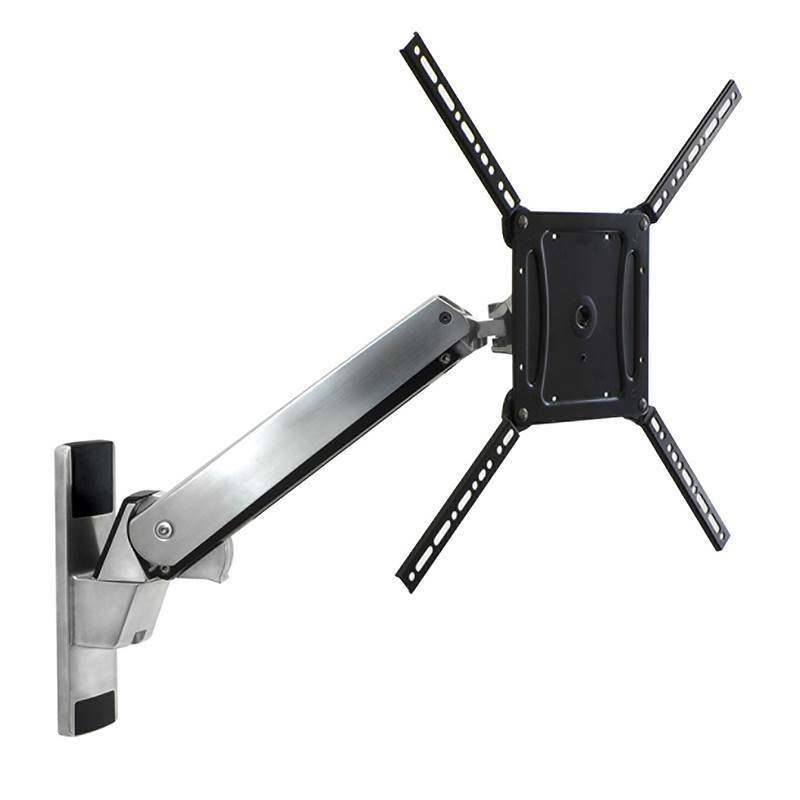

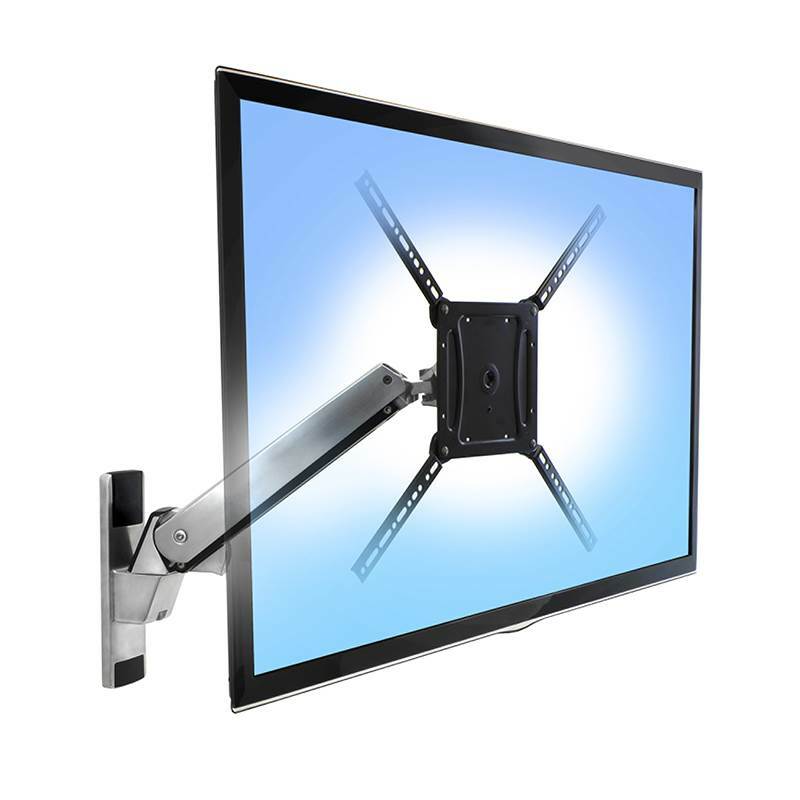

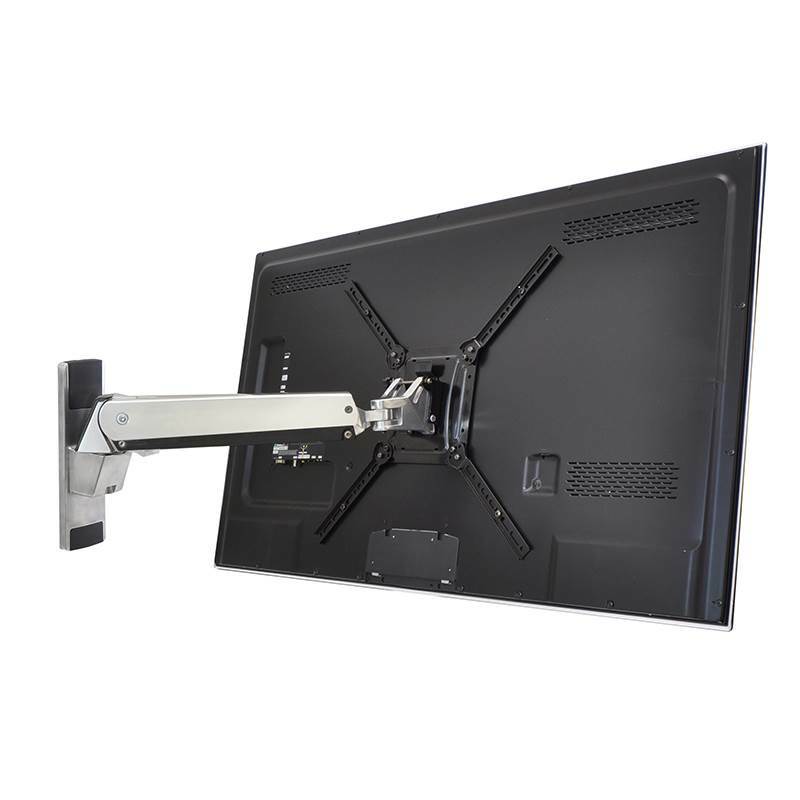

Ergotron 45-304-026 Interactive Arm, VHD - Suggested Screen Size: 40" - 60" - Maximum Load Capacity: 31.8kg - Profile: 17 ~ 71cm - Tilt: +15° ~ -10° - Pan: 180° - Rotation: +/-5° - VESA Mounting Pattern: 200 x 100, 200 x 400 - Includes: Arm, Wall Mount Bracket, VESA Adapter Brackets, Complete Hardware Kit - Pan/Pivot/Rotate/Tilt Adjustable - Polished Aluminium - Weight: 11.9kg - 45-304-026 - 5 Years Limited Warranty

(45-304-026)

Miscellaneous

Additional Information

Patented Constant Force technology enables light-touch adjustments
Gravity pivot enables tilting capabilities without the need of knobs or levers
Tilts forward 15°, tilts back 5°
Rotation of +/-5° provides leveling adjustment of screen in any position
Level the screen at any position with +/- 5º of post-installation rotation
Provides smooth, continuous vertical and horizontal movement of the TV/display in all directions
Extends 28" (71 cm) from wall when in use and can be fully retracted to 6.5" (17 cm) when not in use

Compatibility

LCD Screen

Product Information

Adjustable Height	Yes
Device Supported	Flat Panel Display
Features	Pivot
	Heavy Duty
	Cable Management
	Tilt
	Leveling System
	Adjustable Width
	Pan
	Rotate
Maximum Load Capacity	31.75 kg
Minimum Screen Size Supported	76.2 cm
Maximum Screen Size Supported	152.4 cm (60")
Maximum Adjustable Height	50.8 cm
Minimum Load Capacity	15.88 kg

General Information

Product Type	Mounting Arm
Manufacturer Part Number	45-304-026
Manufacturer Website Address	http://www.ergotron.com/Home/tabid/36/language/en-AU/Default.aspx
Manufacturer	Ergotron, Inc
Product Name	Interactive Arm, VHD
Brand Name	Ergotron

Physical Characteristics

Height	35.6 cm
Width	72.6 cm
VESA Mount Compatible	Yes
VESA Mount Standard	200 x 400
VESA Mount Standard	200 x 100
Product Color	Polished Aluminum
Product Color	Black
Product Material	Aluminium

SKU	45-304-026
Barcode #	698833021905
Brand	ERGOTRON
Shipping Weight	13.6800kg
Shipping Width	0.330m
Shipping Height	0.190m
Shipping Length	0.780m
Shipping Cubic	0.048906000m3
