DC600M Series 2.5” SATA Enterprise SSD

6Gbps SATA 3.0 storage for mixed-use server workloads

Part Number: SEDC600ME/1920G | Brand: Kingston

Key Features

  • Designed for data center environments
  • Hardware-based power loss protection
  • Latency and IOPS consistency
  • AES 256-bit encryption with DC600ME
  • Capacities of up to 7.68TB1

Overview

Kingston’s DC600M SSD Series provides high-performance storage solutions for data centers, system integrators and more. Delivering consistent latency and reliability, the drives were designed for mixed-use workloads, featuring 3D TLC NAND, hardware-based power loss protection and capacities of up to 7.68TB, making them ideal for enterprise applications. For additional security, DC600ME is available with AES 256-bit encryption and supports TCG OPAL 2.0 security standards.

Description

Kingston’s DC600M and DC600ME SSDs are fourth-generation data center SATA 3.0, 6Gbps SSDs utilising 3D TLC NAND intended for “mixed use” server workloads. Both are well suited for a wide variety of server applications and include on-board power loss protection via hold-up capacitors. DC600M and DC600ME are designed to protect data against unexpected power failure and to ensure the drive will successfully reinitialise on the next power-up of the system. Designed to deliver low latency and IO consistency for system integrators, hyperscale data centers and cloud service providers. DC600ME features AES 256-bit encryption and supports TCG OPAL 2.0 security standards. Capacities available from 480GB–7.68TB 1 to meet your data storage requirements. Designed for data center environments Hardware-based power loss protection Latency and IOPS consistency AES 256-bit encryption with DC600ME Capacities of up to 7.68TB 1

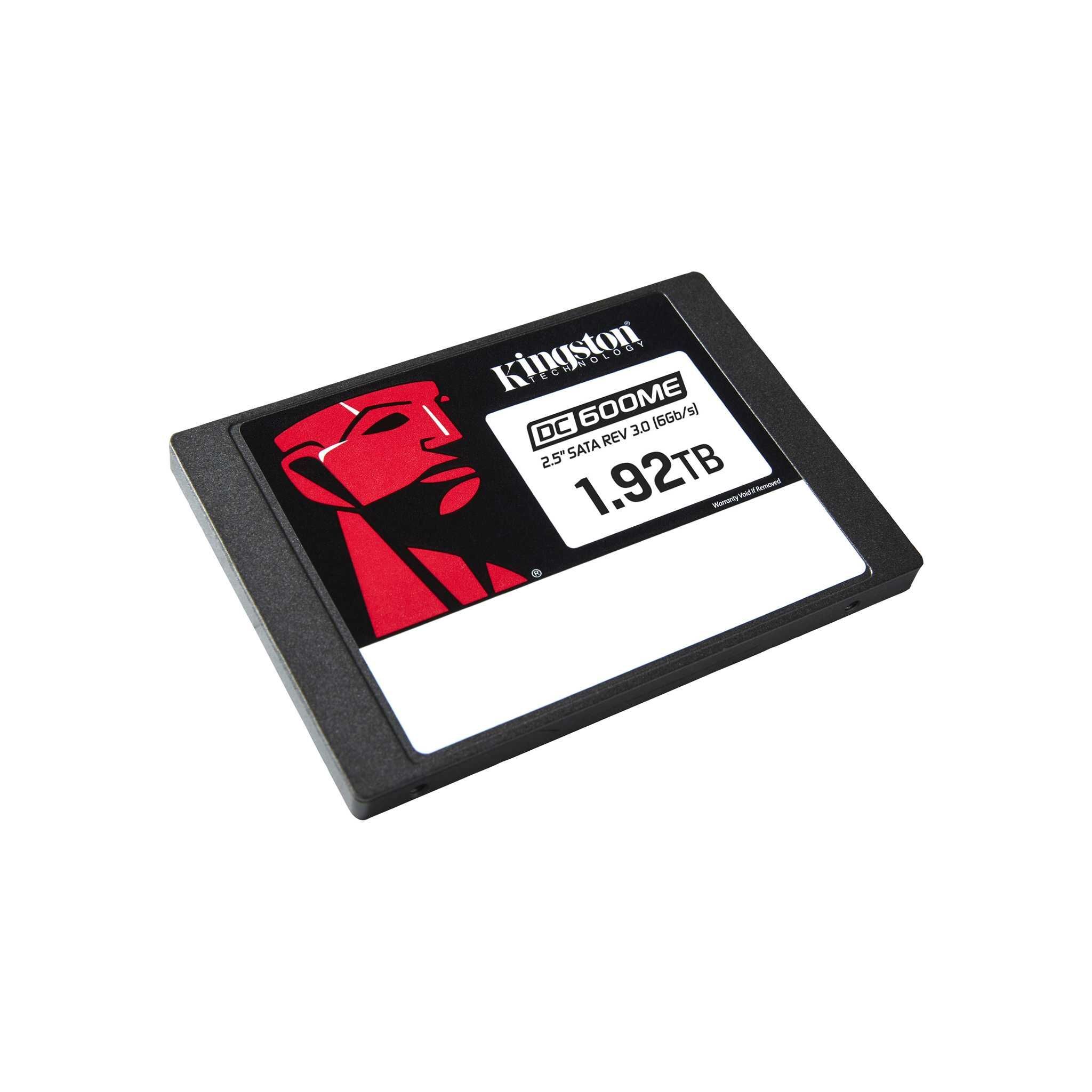

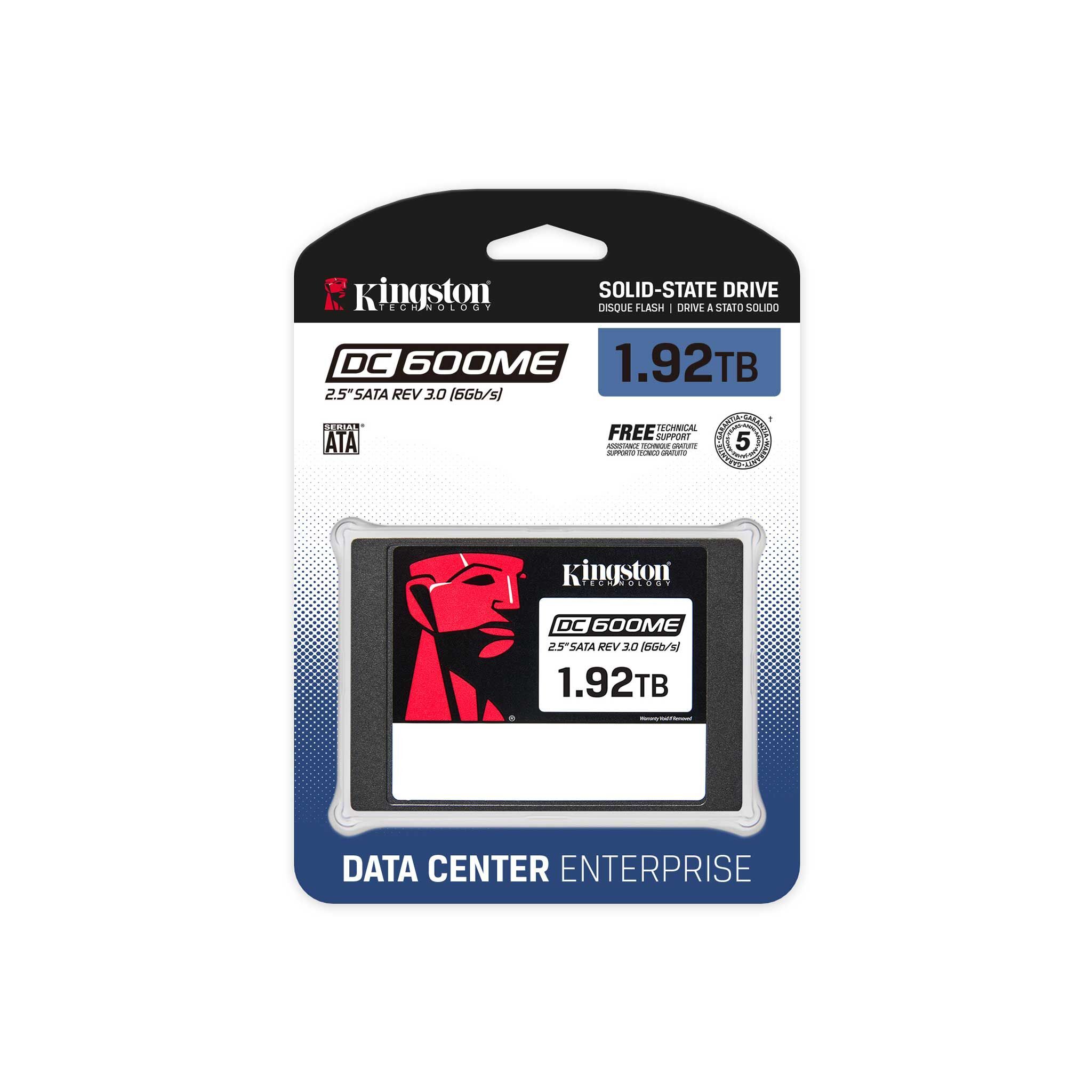

Product Images

SEDC600ME/1920G SEDC600ME/1920G SEDC600ME/1920G SEDC600ME/1920G SEDC600ME/1920G SEDC600ME/1920G
×

(SEDC600ME-1920G)

Specifications - SEDC600ME/1920G

General

Form factor 2.5 inch
Interface SATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3Gb/s)
Capacities1 480GB, 960GB, 1.92TB, 3.84TB, 7.68TB
NAND 3D TLC
DRAM Cache Yes
Sequential read/write 480GB – 560MBs/470MBs960GB – 560MBs/530MBs1.92TB – 560MBs/530MBs3.84TB – 560MBs/530MBs7.68TB – 560MBs/530MBs
Steady-state 4k random read/write 480GB – 94,000/41,000 IOPS960GB – 94,000/65,000 IOPS1.92TB – 94,000/78,000 IOPS3.84TB – 94,000/59,000 IOPS7.68TB – 94,000/34,000 IOPS
Quality of service (latency)2,3,4(99.999) Read/Write480GB – 180/110 uSec960GB – 3.84TB – 200/300 uSec7.68TB – 240/170 uSec
Typical latency - read/write <130 µs / <70 us2,3,4
Hot-plug capable Static and dynamic wear levelling
Enterprise SMART tools Reliability tracking, usage statistics, life remaining, wear levelling, temperature
Hardware-based power loss protection Yes
Endurance (TBW)5 480GB – 876TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)960GB – 1752TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)1.92TB – 3504TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)3.84TB – 7008TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)7.68TB – 14016TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)
Power consumption Idle: 1.30WAverage: 1.45WMax read: 1.6WMax write: 3.6W
Storage temperature -40℃ ~ 85℃
Operating temperature 0℃ ~ 70℃
Dimensions 69.9mm x 100mm x 7mm
Weight 92.34g
Vibration operating 2.17G Peak (7–800Hz)
Vibration non-operating 20G peak (10–2000Hz)
MTBF 2 million hours
UBER ≤10 -17
Warranty/support Limited 5-year warranty with free technical support6
Encryption TCG Opal 2.0, AES 256-bit encryption
DC600M - Quality of service (latency)2,3,4(99.999) Read/Write480GB – 180/110 uSec960GB – 3.84TB – 200/300 uSec7.68TB – 240/170 uSec
DC600ME - Quality of service (latency)2,3,4(99.999) Read/Write480GB – 500/130 uSec960GB - 200/400 uSec1.92TB – 450/210 uSec3.84TB - 410/500 uSec7.68TB – 200/100 uSec
Power consumption4 Idle: 1.30WAverage: 1.45WMax read: 1.6WMax write: 3.6W
Warranty/support6 Limited 5-year warranty with free technical support6
SKU SEDC600ME-1920G
Brand KINGSTON
Shipping Weight 0.3000kg

Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

KINGSTON 1920G DC600ME TCG Opal 2.5" Enterprise SATA SSD - SEDC600ME-1920G

Model # SEDC600ME/1920G

  • SKU: SEDC600ME-1920G

$608.78
