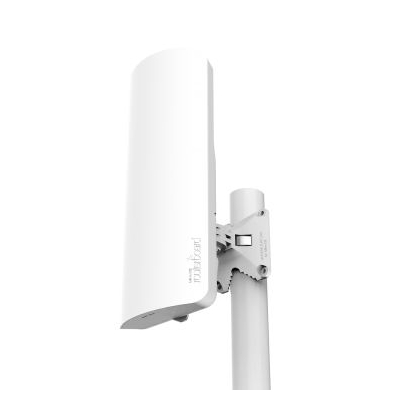

mANT 15s - compact, lightweight, and easy to install The mANT family of sector antennas are the perfect companion for the BaseBox, NetBox, NetMetal or any other outdoor wireless device. The mANT is a dual-polarization 15dBi 120 degree beamwidth antenna with two RP-SMA connectors. It is compatible with the SXT type mount, so you can use it with our durable and adjustable QuickMount systems. It comes with quickMOUNT PRO. Product Speciciations: product Brochure
(MTAS-5G-15D120)
| Specifications |
| Product code | MTAS-5G-15D120 |
| Certification & Approvals |
| Certification | CE, ROHS |
| Product specifications |
| Beamwidth | 120 deg (azimuth) 10 deg (elevation) |
| Cross Polarization | >30 dB |
| Diameter x Depth | 140 x 348 x 82 mm |
| Frequency Range | 5.17 - 5.825 GHz |
| Connector | two RP-SMA |
| Front-to-Back Ratio | >30 dB |
| Polarization | Vertical and horizontal |
| Port to Port Isolation | >40 dB min |
| VSWR | 1.43 typ, 1.8 max |
| Weight | 734 g |
| SKU |
MTAS-5G-15D120 |
| Brand |
MIKROTIK |
| Shipping Weight |
3.3000kg |
