(GS728TP-200AJS)

Traffic Management

  • Auto Negotiation of speed and duplex modes
  • IEEE 802.3x Flow Control
  • Dynamic MAC address management
  • IEEE 802.1Q-based VLAN
  • Auto Voice VLAN
  • Auto Video VLAN (selected models)
  • VLAN routing (selected models)
  • QoS based on WRR, strict priority, or both
  • Port-based and IEEE 801.2p-based QoS
  • TCP/UDP-based QoS
  • DiffServ
  • IPv4 and IPv6-based QoS
  • DSCP Support
  • Rate Limiting (egress only)
  • Link Aggregation and LACP

Security (except FS750T2)

  • MAC lockdown
  • MAC lockdown by number of MACs
  • IEEE 802.1x port authentication - MD5: FS526Tv2, FSS728TPv2, FS728TLP, GS108Tv2, GS110TP, GS510TP
  • IEEE 802.1x port authentication - EAP: GS516TP, GS716Tv3, GS724Tv4, GS748Tv5, GS752TP
  • Dynamic VLAN Assignment
  • Guest VLAN
  • TACACS+
  • 3 HTTPS /SSL versions (except FS526T/FS728TLP)
  • TLS session (except FS526T/FS728TLP)
  • Trusted MAC
  • IPv4, L4-based Access Control List (ACL)
  • IPv6-based ACL (except Fast Ethernet models)

Multicast Efficiency

  • IGMP snooping, v1, v2 and v3
  • IGMP Snooping querier (except FS750T2)
  • Blocking of unknown multicast traffic (except FS750T2)
  • MLD snooping

Spanning Tree, Routing and Stacking

  • IEEE 802.1D, IEEE 802.1w RSTP and MSTP
  • Option to enable/disable BPDU flooding when STP is disabled
  • Static routing with 32 static routes (Selected models)
  • Hosted ARP table size of 1,024 (Selected models)

Reliability, Performance and Troubleshooting

  • Port mirroring both on ingress and egress traffic
  • Jumbo frame support
  • Broadcast Storm control (except FS750T2)
  • Cable diagnostics
  • Loop Detection
  • DoS Prevention
  • IEEE 802.1ab LLDP
  • LLDP-MED
  • Dual Image
  • SNTP
  • Option to enable/disable the flooding of EAPOL when 802.1x is disabled
  • Protected ports
  • DNS client (except FS526T/FS728TLP/FS750T2)
  • DHCP clients
  • DHCP snooping (except FS526T/FS728TLP/FS750T2)
  • Ping and traceroute client (except FS526T/FS728TLP/FS750T2)
  • Energy Efficient Ethernet (IEEE 802.3az) compliant (Selected models)
  • Power savings with short cable detection (GS752TXS only) and auto power-down when ports are in idle mode

Switch Management

  • Web browser-based management GUI
  • Smart Control Center Software for multi-switch management
  • IP Access List
  • IPv6 Management
  • Configurable Management VLAN
  • SNMP v1/v2c and v3
  • Standard MIBs (RFC1213, RFC1643, and RFC1493)
  • RMON group 1, 2, 3, 9 (except FS750T2)
  • Firmware Upgrade through Smart Control Center (TFTP)
  • Firmware download (to switch) and upload (to server) through TFTP/HTTP (except FS750T2)
  • Configuration and Image Upload (to PC) through HTTP
  • Configuration Download (to Switch) thru TFTP/HTTP (except FS750T2) and upload (to server)
  • Memory & FLASH log (except FS750T2)
  • Syslog (server) (except FS750T2)
  • System password protection

NETGEAR Warranty

  • This product is backed by a NETGEAR ProSAFE® Limited Lifetime Hardware Warranty.
  • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.
  • ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
Product Number

GS728TP

Product Thumbnail
Model Description

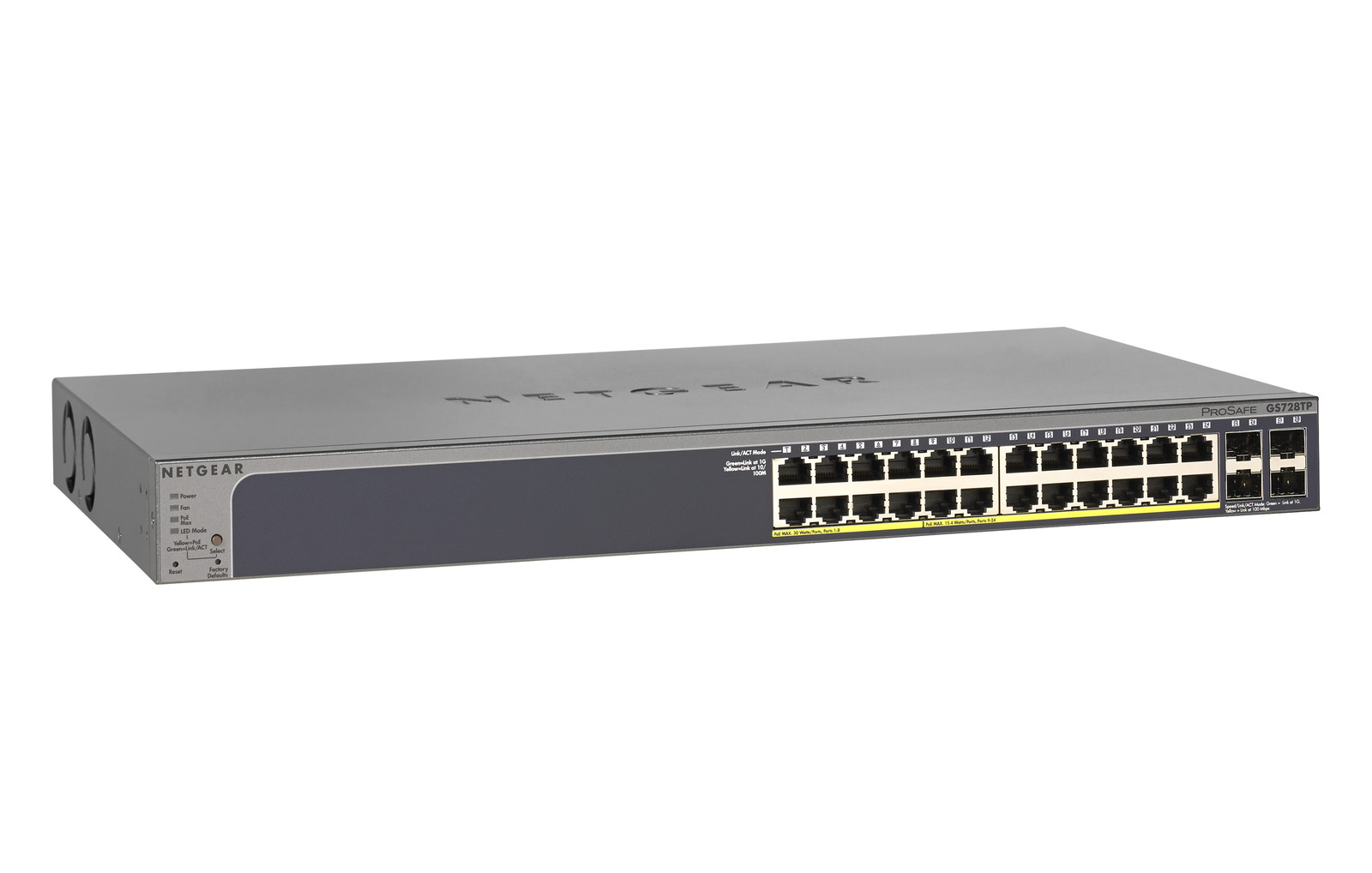

  • ProSAFE® 24-port 1000base-T Gigabit PoE Smart Switch
Datasheet (PDF)
10/100Mbps ports
  • N/A
Gigabit ports
  • 24
SFP ports
  • 4
Number of PoE ports
  • 24
PoE+ (802.3at)
  • 8
Total PoE Power budget (Watts)
  • 192w
Max MAC entries
  • 8K
Buffer size
  • N/A
VLAN (Number Supported)
  • 256
VLAN routing
  • Yes
Dynamic VLAN assignment
  • Yes
MLD Snooping
  • Yes
Static route
  • 32
Host ARP table
  • 1024 in Switch mode, approximately 100 in Router mode
EEE
  • Yes
DoS Prevention
  • N/A
Internal/External
  • Internal 100-240VAC 50-60Hz
Max consumption (Watts)
  • 264w
FAN
  • 2
Acoustic Noise Level @25C (dBA)
  • 31.8
Operating Temperature
  • 0° to 50° C
MTBF
  • 345901.2 hrs
Weight (kg)
  • 3.73kg
Dimensions (WxDxH) mm
  • 440 x 257 x 44
SKU GS728TP-200AJS
Barcode # 606449131635
Brand Netgear
Shipping Weight 4.9000kg
Shipping Width 0.241m
Shipping Height 0.380m
Shipping Length 0.567m

This product is backed by a NETGEAR ProSAFE® Limited Lifetime Hardware Warranty.
