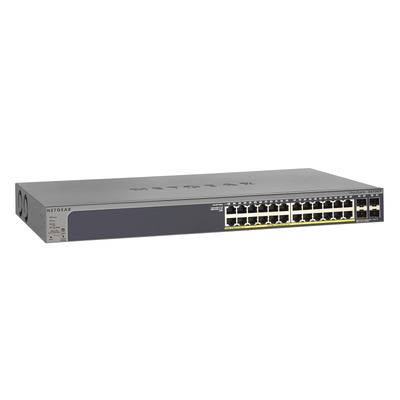

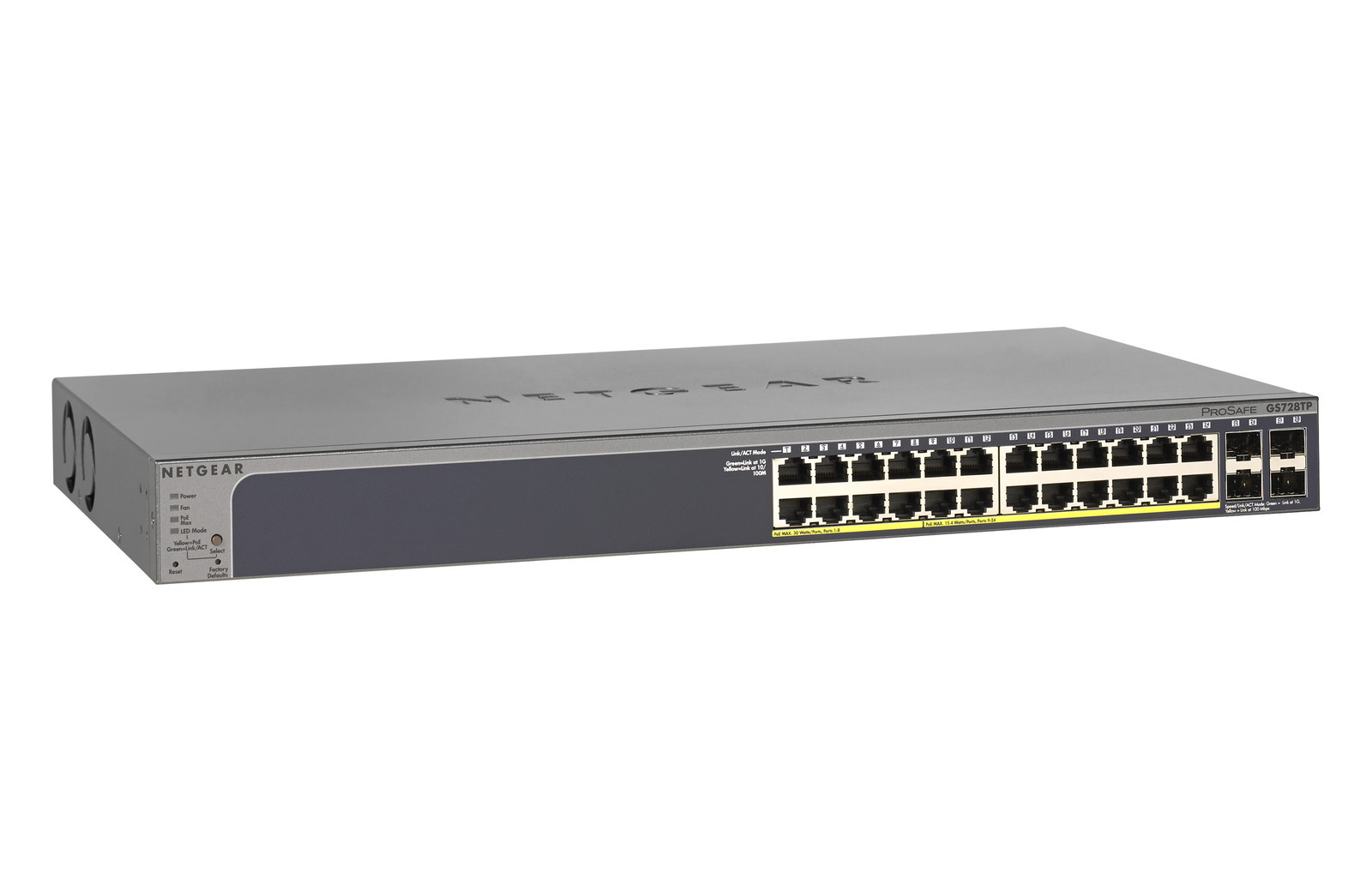

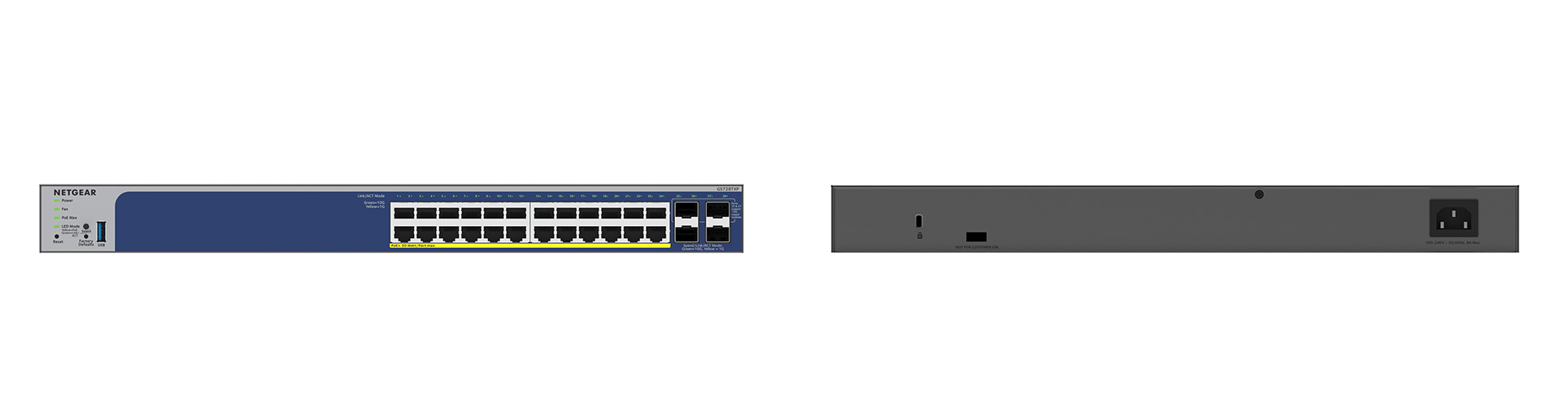

NETGEAR GS728TP-300AUS 24-Port Gigabit PoE+ Ethernet Smart Switch, 4 SFP, 190W (GS728TPv3)
Model # GS728TPv3
-
SKU: GS728TP-300AUS
- Pick Up Available
- Australian Warranty
- Checkout Securely
NETGEAR GS728TP-300AUS
NETGEAR (GS728TP) 24-PORT SMART MANAGED SWITCH, POE+(24) 190W, SFP(4)
Overview:
All ports PoE+ with up to 760W PoE budget and Remote/Cloud Management option - Select your new network engine!
As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of providing a great choice of PoE port counts and power budgets that can adapt to your business’ needs, whether in the hospitality, catering, education or retail domains.
The GS728TP, GS728TPP, GS752TP and GS752TPP Gigabit Ethernet Switches with PoE+ and 4 SFP Ports join the NETGEAR standalone Smart switches family, adding full 24 and 48 port PoE+ support for deployment of modern high-power PoE devices. Cautious spender organizations can now deploy denser PoE+ devices connected to a cost-effective switch, with a reasonable PoE power budget of 190W over 24-port, or 380W over 48-port. Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can now select a switch with a PoE power budget of 380W over 24-port, or 760W over 48-port providing more headroom.
Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS728TP supports quiet rack mounting operation with a maximum of 26.80dBA even at full PoE power with traffic on all ports and 25°C (77°F) ambient. Following the same measurements, the GS728TPP is rated at 33.30dBA, the GS752TP at 36.60dB and the GS752TPP at 39.30dBA.
Highlights
The NETGEAR PoE+ Gigabit Smart switches with Remote/Cloud Management provides a great value, with configurable L2 network features like VLANs and PoE operation scheduling, allowing SMB customers to deploy PoEbased VoIP phones, IP cameras, videoover-IP endpoints and Wireless access points simply and securely. Advanced features such as IPv4/IPv6 Layer 3 static routing, LACP link aggregation, DiffServ QoS, Private VLANs, Multicast VLAN Registration and Spanning Tree will satisfy even the most advanced small business networks.
Key features include:
• Quiet rack mounting operation with 26.80 to 39.30dBA at 25°C (77°F) ambient
• Layer 3 static routing with 32 routes (IPv4 and IPv6) for interVLAN local routing
• Advanced VLAN and Private VLAN support for better network segmentation
• L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication
• Advanced per port PoE controls for remote power management of PoE connected devices including operation scheduling (e.g. Wireless APs, IP security cameras, LED lighting, secure access door locks, IoT devices…)
• Advanced QoS (Quality of Service) for traffic prioritization including port-based, 802.1p and L2/L3/L4 DSCP-based
• Auto “denial-of-service” (DoS) prevention
• IGMP Snooping and Querier for multicast optimization
• Multicast VLAN Registration (MVR) for larger L2 multicast networks and AV over IP deployment
• Dynamic ARP for increased security targeting a class of Man in the Middle attack
• Rate limiting and priority queuing for better bandwidth allocation
• Port mirroring for network monitoring
• Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings
• Cable test to troubleshoot connection issues
• SNMP v1, v2c, v3 and RMON remote monitoring
Build a future-proof network with NETGEAR:
• Solid performance with non-blocking architecture, 16K MAC addresses, 256 VLANs, 100 shared (ingress) ACLs and 512 Multicast groups
• Comprehensive IPv6 supporting management, QoS, ACL and routing, ensuring investment protection and a smooth migration to IPv6-based network
• PoE+ support on all models and on all ports
• 4 Dedicated SFPs, not only providing fiber uplinks, but also uplink redundancy and failover, improving reliability and availability for the network
Fully-integrated cloud-manageable devices
• Remote/Cloud Management capability with NETGEAR Insight. Instantly activate NETGEAR Insight Cloud management from the web GUI, for simpler configuration and deployment from anywhere using the NETGEAR Insight app on mobile devices or the Insight Cloud portal through a web browser
Smart IT, not Big IT
• Easy-to-use Web browser-based management GUI
• Network Management System (NMS300), allowing all NETGEAR business products to be deployed and managed through this single interface
• Dual firmware images improve reliability and uptime to your network
• Text-based Lite Command-line Interface (CLI)
NETGEAR quality and reliability
• Worry-free NETGEAR Limited Lifetime Warranty*, online technical chat support and Next Business Day (NBD) replacement
• 90-days Free 24x7 Advanced Technical Phone Support**
Features:
Management FEATURES
Traffic Management
Auto Negotiation of speed and duplex modes
IEEE 802.3x Flow Control
Dynamic MAC address management
IEEE 802.1Q-based VLAN
Auto Voice VLAN
Auto Video VLAN (selected models)
VLAN routing (selected models)
QoS based on WRR, strict priority, or both
Port-based and IEEE 801.2p-based QoS
TCP/UDP-based QoS
DiffServ
IPv4 and IPv6-based QoS (selected models)
DSCP Support
Rate Limiting (ingress, or egress)
Link Aggregation and LACP
Switch Management
Insight mobile app or Insight Cloud Portal
Web browser-based management GUI
Smart Lite CLI Software for multi-switch management
IP Access List
IPv6 Management
Configurable Management VLAN
SNMP v1/v2c and v3
Standard MIBs (RFC1213, RFC1643, and RFC1493)
RMON group 1, 2, 3, 9
Firmware download (to switch) and upload (to server) through TFTP/HTTP
Configuration and Image Upload (to PC) through HTTP
Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)
Memory & FLASH log
Syslog (server)
System password protection
Security and More FEATURES
Security
MAC lockdown
MAC lockdown by number of MACs
IEEE 802.1x port authentication (EAP) - MD5: FS728TPv2, FS728TLP, GS108Tv2, GS110TP, GS510TP
IEEE 802.1x port authentication - EAP: GS510TLP, GS510TPP, GS418TPP, GS516TP, GS716Tv3, GS724Tv4, GS748Tv5, GS724TPv2, GS728TP, GS728TPv2, GS728TPP, GS728TPPv2, GS752TP, GS752TPv2, GS752TPP
Dynamic VLAN Assignment
Guest VLAN
TACACS+
3 HTTPS /SSL versions (except FS728TLP)
TLS session (except FS728TLP)
Trusted MAC
IPv4, L4-based Access Control List (ACL)
IPv6-based ACL (selected models)
Multicast Efficiency
IGMP snooping, v1, v2 and v3
IGMP snooping querier
Blocking of unknown multicast traffic
Spanning Tree, Routing and Stacking
IEEE 802.1D, IEEE 802.1w RSTP and MSTP
Option to enable/disable BPDU flooding when STP is disabled
Static routing with 32 static routes (Selected models)
Hosted ARP table size of 512 (Selected models)
RELIABILITY FEATURES
Reliability, Performance and Troubleshooting
Port mirroring both on ingress and egress traffic
Jumbo frame support
Broadcast Storm control
Cable diagnostics
Loop Detection
DoS Prevention
IEEE 802.1ab LLDP
LLDP-MED
Dual Image
SNTP
Option to enable/disable the flooding of EAPOL when 802.1x is disabled
Protected ports
DNS client
DHCP clients
DHCP snooping
Ping and traceroute client
Energy Efficient Ethernet (IEEE 802.3az) compliant (Selected models)
(GS728TP-300AUS)
Specifications:
| NETGEAR GS728TP-300AUS Specifications | |
|---|---|
| Physical Specification | Dimensions (WxDxH) @mm : 440 x 257 x 43.2 mm (17.3 x 10.1 x 1.7 in) Weight (kg) : 3.78 kg (8.32 lb) |
| Technical Specification | Model Description : 24 Port Gigabit PoE+ Smart Switch with 4 SFP Ports (GS728TPv3) Management : Insight Remote/Cloud Manageable with 1 Year Insight subscription included 10/100Mbps ports : N/A Gigabit ports : 24 SFP ports : 4 Number of PoE ports : 24 PoE+ (802.3at) : 24 Total PoE Power budget (Watts) : 190W Max MAC entries : 16K Buffer size : 1.5MB VLAN (Number Supported) : 256 VLAN routing : Yes Dynamic VLAN assignment : Yes MLD Snooping : Yes Static route : 32 Host ARP table : 512 EEE : Yes DoS Prevention : Yes Internal/External : Internal 100-240VAC 50-60Hz Max consumption (Watts) : 226W FAN : 2 Acoustic Noise Level @25C (dBA) : 26.80 Operating Temperature : 0° to 50° C MTBF : 1,751,613 hours (200.0 years) ProSupport : CAT 1 Create an account at mynetgear.com, log in and purchase a ProSupport contract. |
| Support & Warranty | Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty . Lifetime Next Business Day Hardware Replacement. Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts. ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat. |
| SKU | GS728TP-300AUS |
| Barcode # | 606449162172 |
| Brand | NETGEAR |
| Shipping Weight | 4.9000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.530m |
| Shipping Cubic | 0.002650000m3 |
