5-Port 10GbE Lite Managed Switch

QNAP QSW-L3205-1C4T

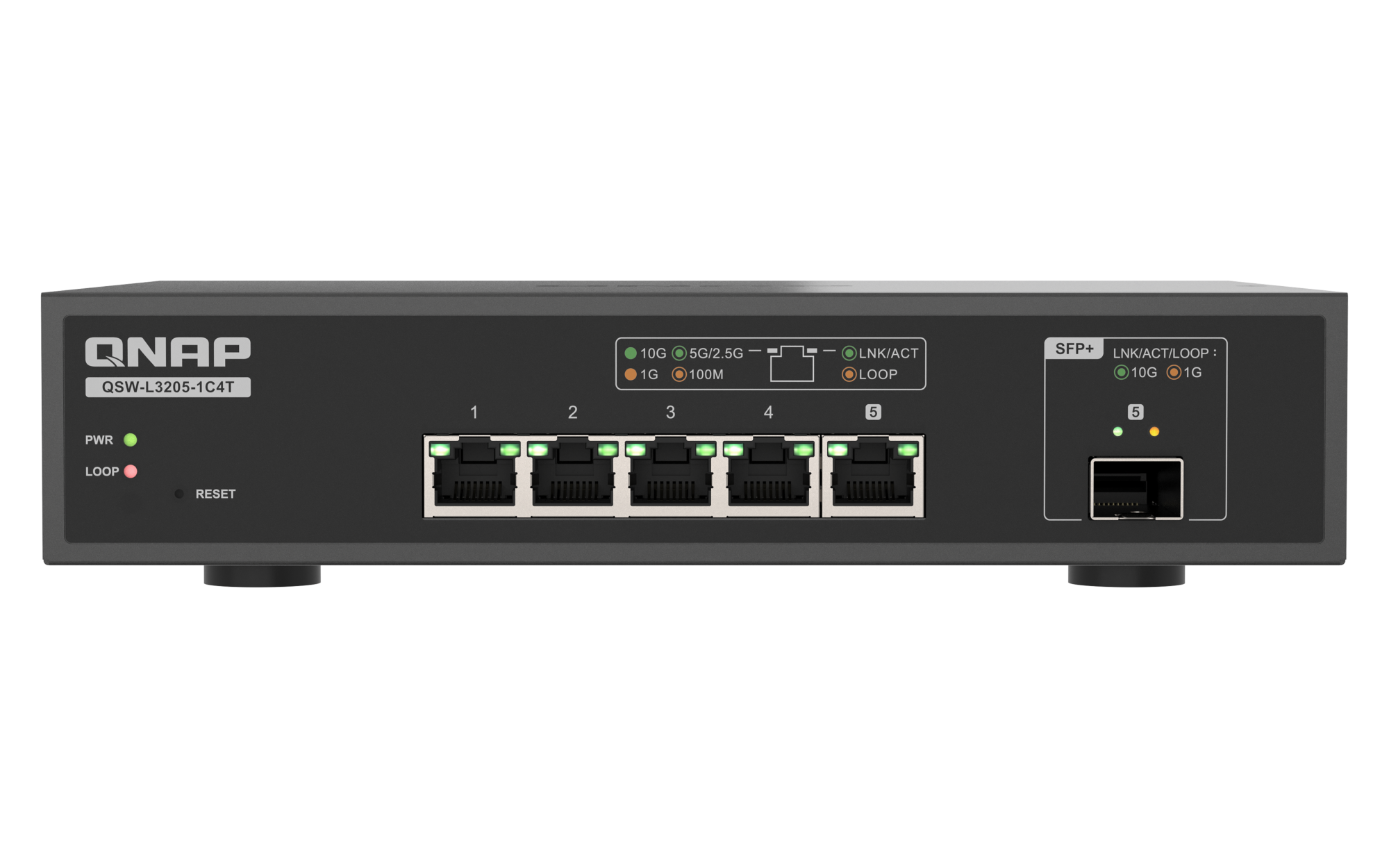

The QSW-L3205-1C4T combines five full 10GbE network ports with practical Lite Managed features for video editing, backups, surveillance streaming and other high-bandwidth environments. It provides four 10GbE Multi-Gig RJ45 ports and one flexible 10GbE SFP+/RJ45 combo port in a fanless desktop design.

What is the QNAP QSW-L3205-1C4T?

The QSW-L3205-1C4T is a five-port Lite Managed 10GbE switch designed to provide faster network connectivity without the complexity of a full Layer 2 managed switch. It supports LACP, VLAN, QoS, port mirroring, IGMP Snooping, flow control and loop detection through the QNAP Switch System web interface.

5 × 10GbEFour RJ45 ports plus one SFP+/RJ45 combo port

100GbpsSwitching capacity with 50Gbps non-blocking throughput

Up to 20GbpsTotal bandwidth with supported LACP link aggregation

FanlessDesktop operation with IEEE 802.3az Energy Efficient Ethernet

Flexible 10GbE Copper and Fibre Connectivity

Five high-speed ports support versatile network designs and multiple link speeds.

The switch provides four 10GbE RJ45 ports that support 10G, 5G, 2.5G, 1G and 100M network speeds. Its additional combo port can operate as either a 10GbE SFP+ connection or an RJ45 copper connection supporting the same five speeds.

The SFP+ interface is backward compatible with 1GbE SFP modules. The RJ45 ports can be used with Cat 6 or higher cables for the supported Multi-Gig connections described in the supplied product information.

Practical Lite Managed Network Control

Essential traffic, bandwidth and monitoring tools without unnecessary management complexity.

LACP Link Aggregation

Combines network links for greater bandwidth and connection stability, with support for up to 20Gbps of total bandwidth.

VLAN Segmentation

Separates departments, devices or applications to improve resource management, security and network efficiency.

QoS Traffic Prioritisation

QoS, CoS and DSCP scheduling helps priority applications such as VoIP, video streaming and backups receive stable bandwidth.

IGMP Snooping

Manages multicast traffic to reduce unnecessary network load in IPTV, NVR and multi-stream environments.

Port Mirroring

Duplicates selected port traffic for monitoring and troubleshooting to help identify network issues.

Flow and Loop Control

Flow control regulates high-speed traffic, while built-in loop detection blocks affected ports to restore normal operation.

Designed for Smooth High-Bandwidth Workflows

High-speed switching and packet control support demanding network traffic.

The QSW-L3205-1C4T is designed for video editing, data backup and surveillance streaming. Support for IGMP Snooping and 12K jumbo frames helps maintain smooth multimedia playback, multi-stream NVR traffic and NAS performance.

Its 16K MAC address table, 50Gbps total non-blocking throughput and 100Gbps switching capacity support efficient traffic handling across all five ports.

Lite Managed, L2 Managed or Unmanaged?

The supplied comparison positions Lite Managed switching between plug-and-play unmanaged switches and more advanced Layer 2 management.

Management Type	Key Features	Management Advantages	Ideal Use Cases
Lite Managed	LACP / VLAN / QoS / Port Mirroring	Simple yet effective traffic segmentation and rate control	SMBs, retail, basic multi-device segmented surveillance
L2 Managed	ACL / SNMP / RSTP	Fine-grained traffic and security control, full monitoring and troubleshooting	Virtualization, storage networks, enterprise surveillance, campus networks
Unmanaged	EEE / Flow Control / Loop Protection	Plug-and-play deployment with stable, maintenance-free connectivity	Homes, SOHOs, meeting rooms

Simple QSS Management and Firmware Updates

A graphical web interface keeps configuration and maintenance straightforward.

The QNAP Switch System (QSS) provides an intuitive graphical interface for fast, organised network management. QSS and Qfinder Pro can also be used to check and apply firmware updates with a single click.

The switch is made and designed in Taiwan and is presented as a stable and reliable networking solution.

Frequently Asked Questions

Quick answers about the QNAP QSW-L3205-1C4T.

How many 10GbE ports does the QSW-L3205-1C4T have?

It has five 10GbE ports: four 10GbE RJ45 ports and one 10GbE SFP+/RJ45 combo port.

Which network speeds do the RJ45 ports support?

The RJ45 ports support 10G, 5G, 2.5G, 1G and 100M speeds.

Can the SFP+ port use 1GbE SFP modules?

Yes. The 10GbE SFP+ interface is backward compatible with 1GbE SFP modules.

Which management features are included?

The supplied information lists LACP, VLAN, QoS, CoS, DSCP, IGMP Snooping, port mirroring, flow control, traffic monitoring and loop detection.

Is the QSW-L3205-1C4T fanless?

Yes. The supplied datasheet lists a fanless desktop design.

What are the switching capacity and non-blocking throughput?

The switch has 100Gbps switching capacity and 50Gbps total non-blocking throughput.

Does it support jumbo frames?

Yes. It supports 12K jumbo frames.

What warranty is listed in the datasheet?

The supplied datasheet lists a two-year warranty.

Product information: Product images are for illustrative purposes only and may differ from the actual product. Designs and specifications are subject to change without notice.

(QSW-L3205-1C4T)

QNAP QSW-L3205-1C4T Specifications

Review the management, ports, switching, power, standards, physical and environmental specifications.

Specification	Details
Product and Management
Model	QSW-L3205-1C4T
Management Type	Lite Managed
Management Interface	Web

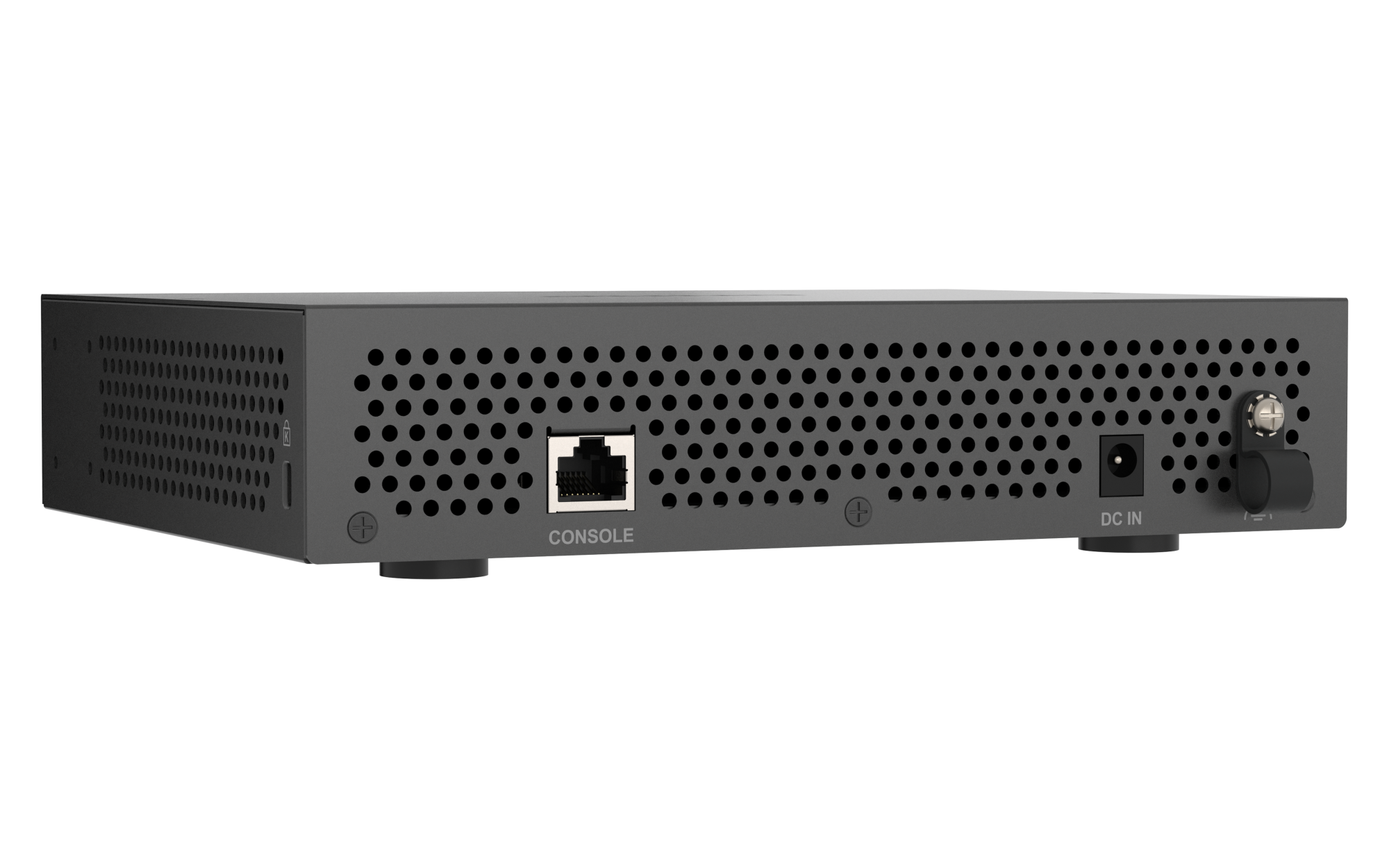

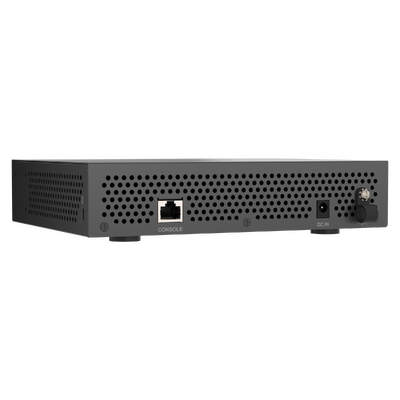

Console	RJ45
Network Interfaces
Number of Ports	5
10GbE BASE-T (RJ45)	4 10G/5G/2.5G/1G/100M
10GbE SFP+/RJ45 Combo Port	1The 10GbE SFP+ interface is backward compatible with 1GbE SFP. The RJ45 copper combo port supports 10G/5G/2.5G/1G/100M.
Switching Performance
MAC Address Table	16K
Total Non-Blocking Throughput	50Gbps
Switching Capacity	100Gbps
Jumbo Frames	12K
Power and Cooling
Power Supply Description	Adapter
Maximum Power Consumption	36W
Input Power Type	DC
Input Voltage Range	12V/3A
Energy Efficient Ethernet	Yes — IEEE 802.3az compliant
Fanless	Yes
Supported Standards
Ethernet and Network Standards	IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3an 10GBASE-T IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.1p Class of Service IEEE 802.3az EEE
Physical Specifications
Form Factor	Desktop
LED Indicators	Per Port: Speed/Link/Activity Per System: Power/Loop/Fan
Buttons	Reset button
Dimensions (H × W × D)	44 × 210 × 160 mm
Weight (Net)	1.17 kg
Weight (Gross)	2.49 kg
Operating Environment and Compliance
Operating Temperature	0°C to 40°C (32°F to 104°F)
Relative Humidity	0–90% non-condensing
Certifications	CE, UKCA, FCC, IC, VCCI, RCM, BSMI, LVD, KC
Electromagnetic Compliance	Class A
Warranty	2 years

Manufacturer note: QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer or supplier. Any replacement will be tested and verified for compatibility, stability and equivalent performance.

Product images are for illustrative purposes only and may differ from the actual product. Designs and specifications are subject to change without notice.

SKU	QSW-L3205-1C4T
Brand	QNAP
Shipping Weight	1.4000kg
Shipping Width	0.320m
Shipping Height	0.220m
Shipping Length	0.060m
Shipping Cubic	0.002940000m3
