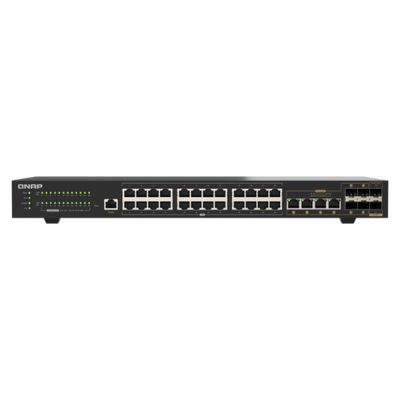

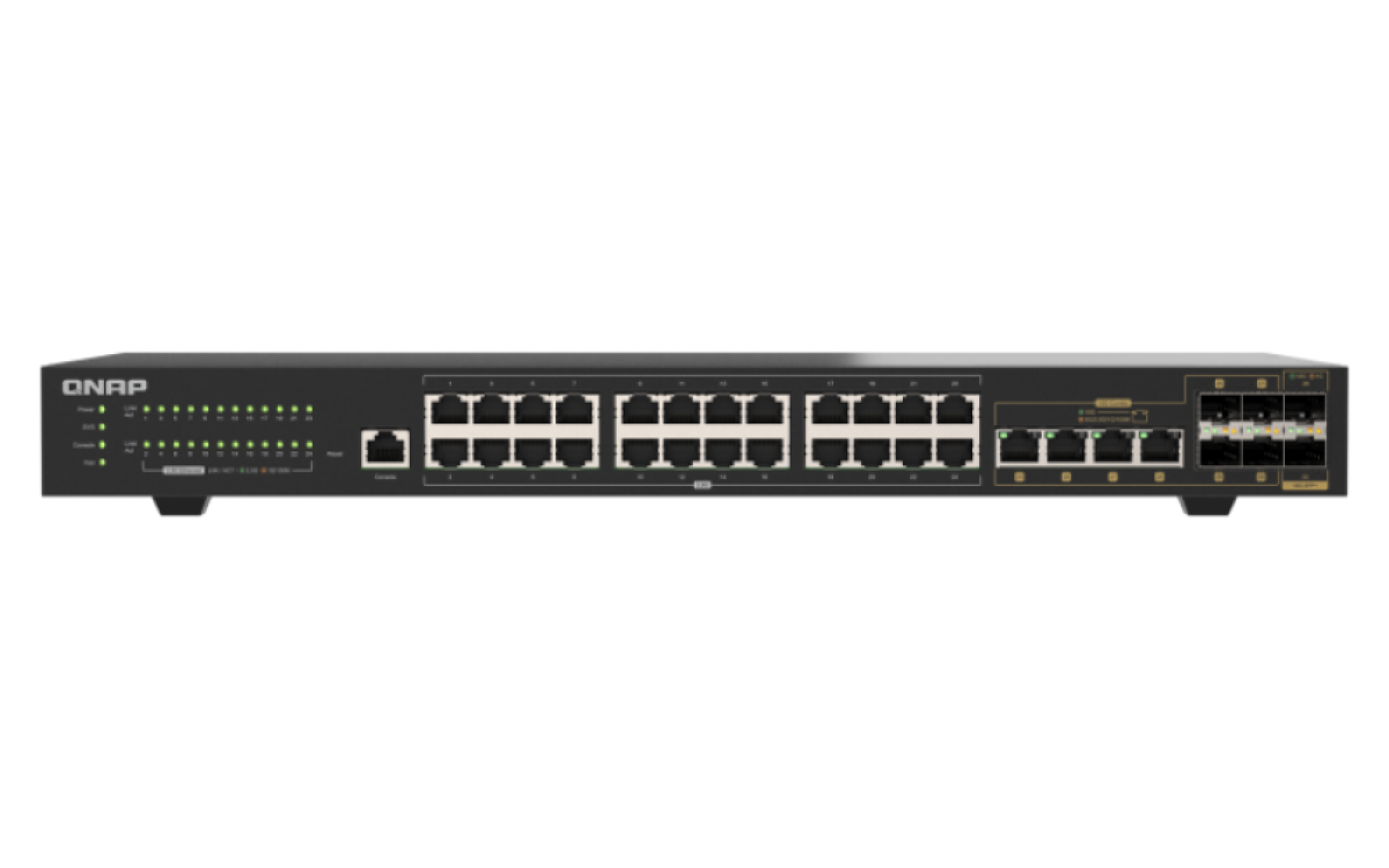

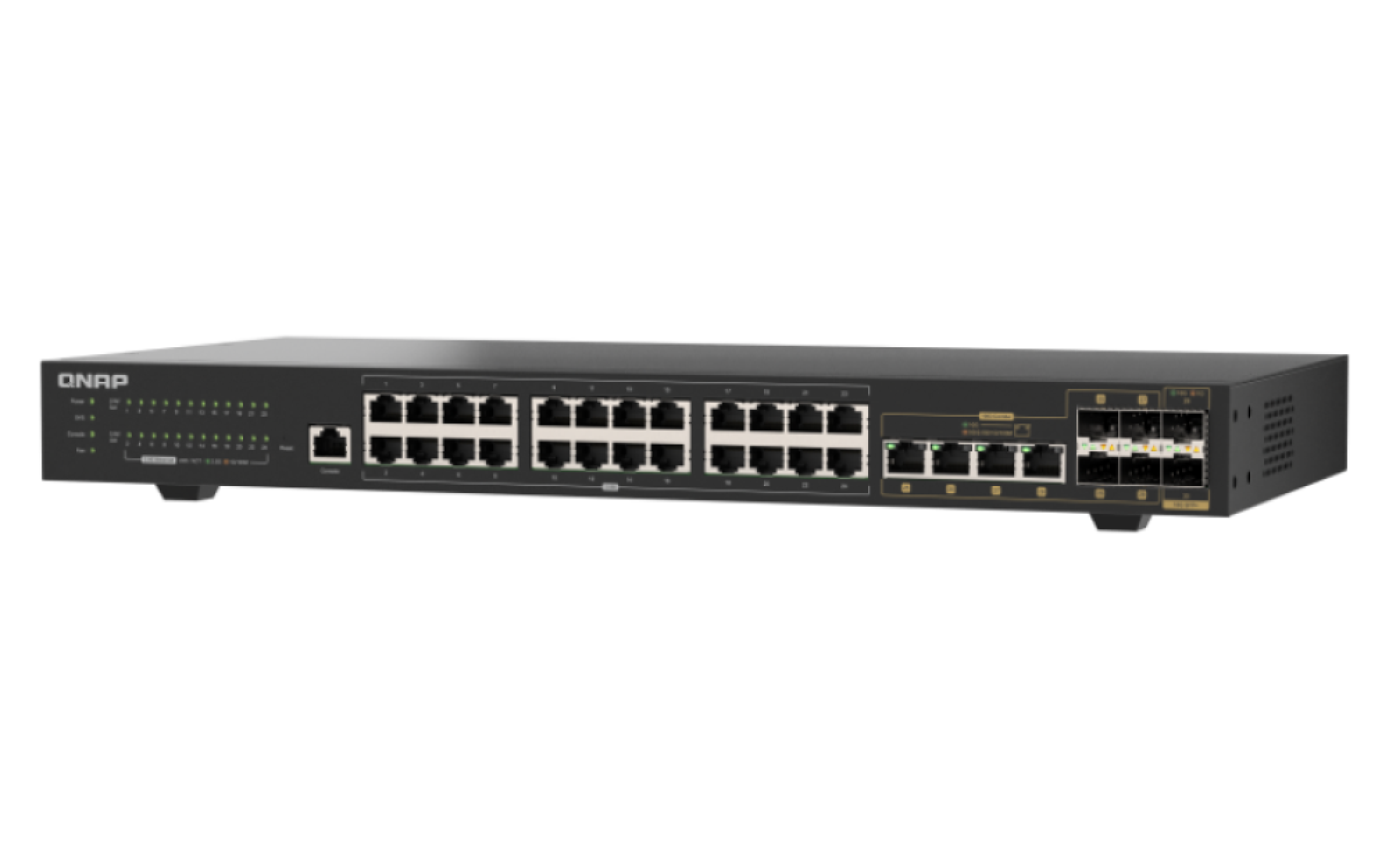

30-Port L2 Web Managed Switch

QNAP QSW-M2130-4C2S24T

The QSW-M2130-4C2S24T combines 24 x 2.5GbE Base-T ports, 2 x 10GbE SFP+ ports and 4 x 10GbE SFP+/RJ45 combo ports in a rackmount Layer 2 managed switch. It is designed to serve access and aggregation roles while providing VLAN, QoS, LACP, ACL and other network management functions through QSS.

What is the QNAP QSW-M2130-4C2S24T?

It is a 30-port L2 web managed switch for multi-Gigabit business networks. High-density 2.5GbE access ports connect workstations, NAS, servers and edge devices, while six 10GbE-capable ports provide flexible high-speed uplinks and aggregation.

24 x 2.5GbEHigh-density RJ45 access connectivity

6 x 10GbETwo SFP+ ports plus four combo ports

240GbpsSwitching capacity

L2 ManagedQSS web management with VLAN, QoS, LACP and ACL

Access and Aggregation in One Switch

Simplify multi-Gigabit network architecture across SMB and multi-floor office environments.

The QSW-M2130-4C2S24T integrates access and aggregation roles into one device. Its 24 x 2.5GbE ports can connect workstations, NAS, servers and edge devices, while the 10GbE ports aggregate traffic towards core switches, servers or high-performance NAS.

This consolidated design supports structured network growth while reducing the complexity created by separate access and aggregation devices.

Flexible 10GbE and 2.5GbE Connectivity

A versatile port layout supports copper and fibre connections for network expansion.

10GbE Combo Ports

Four combo ports support either SFP+ fibre or RJ45 copper connections, allowing deployment to match the existing cabling environment.

10GbE SFP+ Ports

Two dedicated SFP+ ports support high-speed backbone links and long-distance fibre connections to core switches, servers or NAS.

24 x 2.5GbE RJ45

High-density 2.5GbE access supports workstations, servers and other multi-Gigabit devices using standard Ethernet cabling.

Dual-Purpose 10GbE Combo Ports

Choose RJ45 copper or SFP+ fibre on each combo interface.

RJ45 Copper Connection

Connect compatible NAS or servers directly with Ethernet cabling. The copper combo interface supports 10G, 5G, 2.5G, 1G and 100M speeds.

SFP+ Fibre Connection

Use an SFP+ uplink for longer-distance connections and scalable backbone expansion. The 10GbE SFP+ interfaces are backward compatible with 1GbE SFP.

Flexible Infrastructure

The combo design allows copper and fibre deployment without changing the switch platform as network requirements evolve.

Bandwidth and Packet Control

Layer 2 functions help organise traffic and allocate network resources.

Link Aggregation

LACP combines multiple network connections to increase throughput and provide protection against a connection failure.

VLAN

Virtual networks allow devices from different physical network segments to be grouped into one logical network.

Quality of Service

QoS prioritises bandwidth usage to improve network resource allocation.

IGMP Snooping

IGMP snooping helps minimise unnecessary multicast traffic and reduce bandwidth loss.

Security and Network Reliability

Access control, attack prevention, loop protection and traffic regulation support stable operation.

Access Control List

ACL filters packets according to configured rules to provide firewall-like access control.

DoS Attack Prevention

Helps protect the switch from malicious traffic intended to exhaust system resources and disrupt network access.

RSTP

Rapid Spanning Tree Protocol helps maintain a loop-free Ethernet topology by controlling forwarding paths.

Flow Control

Balances traffic between sending and receiving devices to help avoid congestion and packet loss.

QSS Web Management

Manage Layer 2 functions and review switch information through a browser-based interface.

The QSS management interface provides an overview dashboard and graphical statistics to help administrators review switch information at a glance. QSS also supports one-click online firmware updates to simplify system maintenance.

Frequently Asked Questions

Quick answers about the QNAP QSW-M2130-4C2S24T.

How many ports does the QSW-M2130-4C2S24T have?

It has 30 ports: 24 x 2.5GbE RJ45, 2 x 10GbE SFP+ and 4 x 10GbE SFP+/RJ45 combo ports.

Can the switch be used for both access and aggregation?

Yes. The supplied product information positions it for both access and aggregation roles, using 2.5GbE ports for connected devices and 10GbE ports for uplinks.

What connection types do the 10GbE combo ports support?

Each combo port can use either an SFP+ fibre connection or an RJ45 copper connection. Only one connection type can be used on a combo port at a time.

Which Layer 2 management features are included?

Supplied features include VLAN, LACP, ACL, LLDP, QoS, IGMP Snooping, RSTP and Flow Control.

How is the switch managed?

It is managed through the QSS browser-based web interface. An RJ45 console port is also listed in the datasheet.

Is the QSW-M2130-4C2S24T rackmountable?

Yes. The datasheet lists a rackmount form factor with dimensions of 44 x 440 x 205 mm.

Product images are for illustrative purposes only and may differ from the actual product. Designs and specifications are subject to change without notice.

(QSW-M2130-4C2S24T)

QNAP QSW-M2130-4C2S24T Specifications

Review the management, port, switching, power, physical, environmental and standards information supplied in the datasheet.

Specification	Details
Management and Switching
Management Type	L2 Web Managed
Number of Ports	30
Management Interface	Web
Console	RJ45
MAC Address Table	32K
Total Non-Blocking Throughput	120Gbps
Switching Capacity	240Gbps
Jumbo Frames	12K
Network Interfaces
10GbE SFP+	2Backward compatible with 1GbE SFP.
10GbE SFP+/RJ45 Combo Ports	4The RJ45 copper combo interface supports 10G / 5G / 2.5G / 1G / 100M.
2.5GbE RJ45	24
LED Indicators	Per port: Speed / Link / Activity Per system: Power / Loop
Supported Standards
Ethernet and Network Standards	IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3an 10GBASE-T IEEE 802.3ae 10G Fibre IEEE 802.3z 1000BASE-SX/LX IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.1p Class of Service IEEE 802.3az EEE
Energy Efficient Ethernet	Yes (IEEE 802.3az compliant)
Power and Cooling
Power Supply	Internal power supply unit
Input Power Type	AC
Input Voltage Range	100–240VAC, 50/60Hz
Maximum Power Consumption	70W
Fan	1 x PWM VAPO bearing fan
Sound Level	<28dB(A)
Physical Specifications
Form Factor	Rackmount
Buttons	Reset button
Dimensions (H x W x D)	44 x 440 x 205 mm
Net Weight	3.06 kg
Gross Weight	3.918 kg
Operating Environment
Operating Temperature	0°C to 50°C (32°F to 104°F)
Relative Humidity	5–95% non-condensing
Compliance and Warranty
Certifications	CE, VCCI, BSMI, FCC, ICES, RCM, UKCA, LVD
Electromagnetic Compliance	Class A
Warranty	2 years

QNAP may replace parts or accessories when the original is unavailable from the manufacturer or supplier. Replacement items are tested for compatibility and stability and are intended to deliver identical performance. Product images are illustrative only. Designs and specifications are subject to change without notice.
