L2 Managed Multi-Gigabit PoE++ Switch

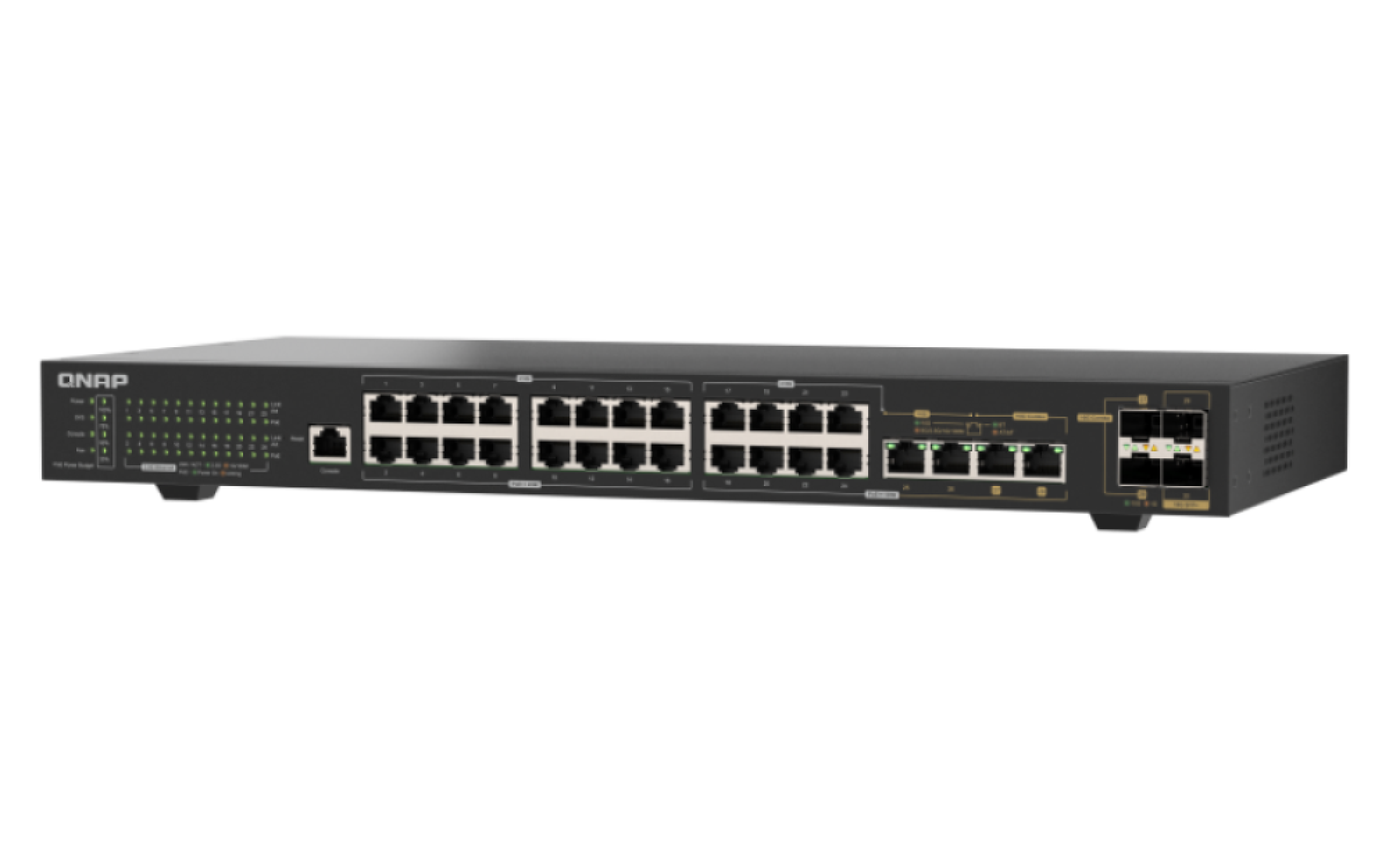

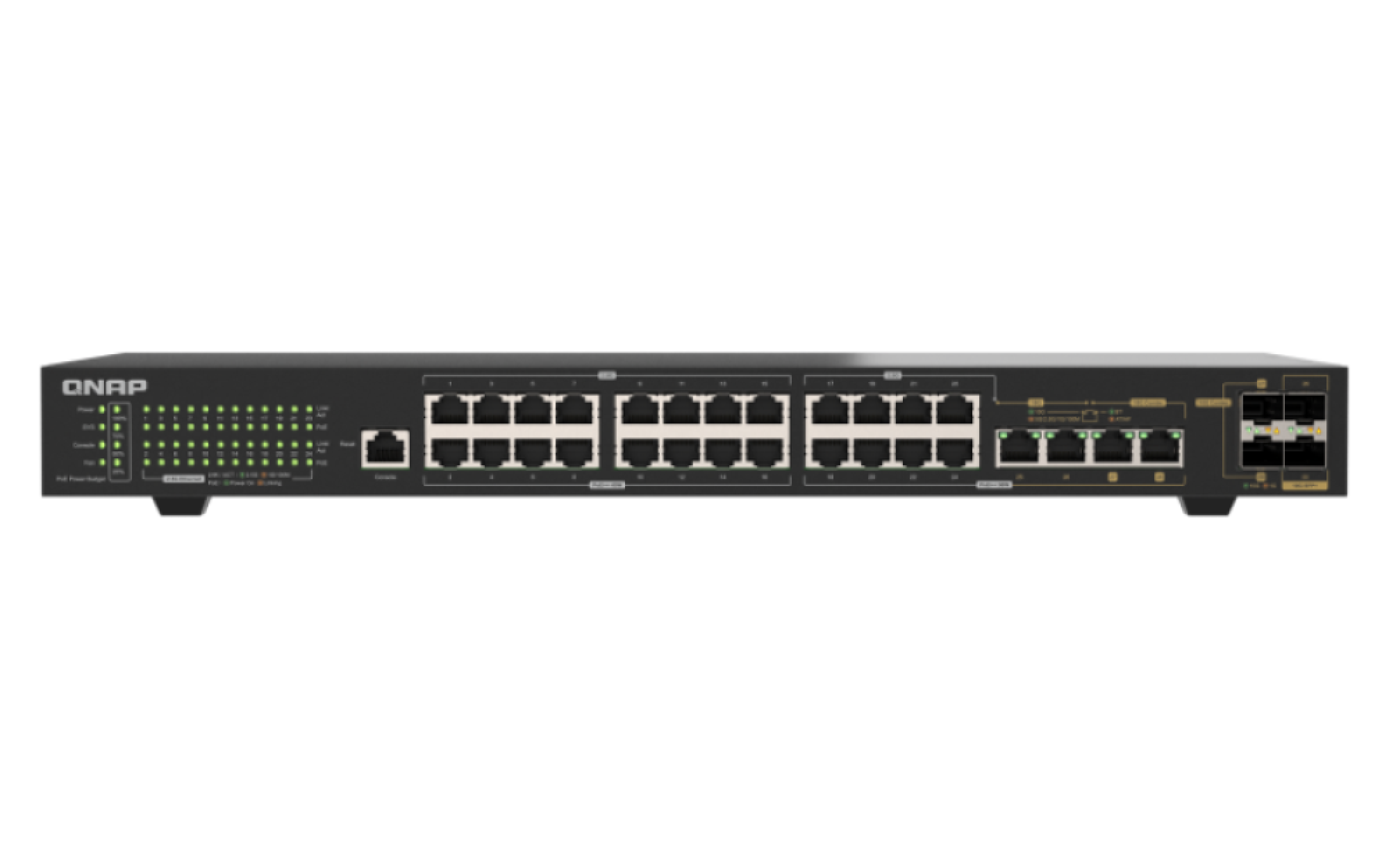

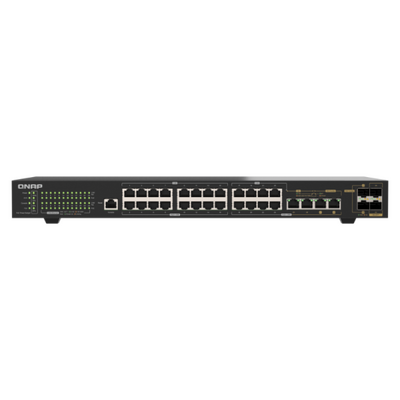

QNAP QSW-M2130P-2C2S26T

The QSW-M2130P-2C2S26T combines 24 x 2.5GbE Base-T ports, two 10GbE SFP+ ports, two 10GbE Base-T ports and two 10GbE Combo ports with IEEE 802.3bt PoE++ and a total PoE power budget of 375W. Designed for access and aggregation roles, it supports high-speed connectivity, powered devices and Layer 2 network management through QSS.

What is the QNAP QSW-M2130P-2C2S26T?

It is a 30-port L2 web-managed switch that integrates 2.5GbE access, multiple 10GbE uplink options and PoE++ power delivery. It is designed to connect workstations, NAS, servers, Wi-Fi 6/6E/7 access points, IP surveillance devices and other powered devices while supporting VLAN, QoS, LACP, ACL, LLDP and additional traffic-management features.

24 x 2.5GbEHigh-density Base-T access ports

6 x 10GbETwo SFP+, two Base-T and two Combo ports

Up to 90WIEEE 802.3bt PoE++ per supported port

375WTotal PoE power budget

Integrated Access and Aggregation

Simplify multi-Gigabit network architecture by combining edge connectivity and high-speed uplinks in one switch.

In SMB and multi-floor office environments, the QSW-M2130P-2C2S26T can connect multiple 2.5GbE devices at the access layer and aggregate traffic through 10GbE connections to a core switch or data-centre backbone. This integrated design reduces fragmented network architecture while supporting scalable expansion and predictable performance.

The switch is made in Taiwan and provides a structured connectivity platform for offices, hotels, retail stores and campuses.

High-Power PoE++ for Access Points and Powered Devices

Deliver data and power across 2.5GbE and 10GbE connections from a total 375W PoE budget.

IEEE 802.3bt PoE++

Supports 12 ports with up to 90W output and 16 ports with up to 45W output.

28 PoE Ports

Provides 24 x 2.5GbE PoE ports and four 10GbE PoE ports for powered network deployment.

High-Power Device Support

Designed to power devices such as 4K IP cameras, wireless access points, IP phones, LED lights and digital signage.

Flexible 10GbE and 2.5GbE Connectivity

Use copper or fibre connections to suit existing cabling, distance and expansion requirements.

10GbE Combo Ports

Support either RJ45 copper or SFP+ fibre connections, simplifying upgrades without requiring a complete infrastructure change.

10GbE Base-T

Connect directly to servers, switches or NAS using standard Ethernet cabling without additional transceivers.

10GbE SFP+

Suitable for long-distance uplinks and high-speed backbone connections to core switches, servers or high-performance NAS.

2.5GbE Base-T

Provides high-density access for workstations, NAS, servers and edge devices using standard Ethernet cabling.

Five-Speed Copper Connectivity

Maintain compatibility with existing Ethernet devices while enabling higher multi-Gigabit speeds.

The 10GbE Base-T and RJ45 copper side of the Combo ports support 10G, 5G, 2.5G, 1G and 100M speeds. This allows the switch to provide higher transmission speeds over compatible existing cabling while supporting devices operating at different Ethernet rates.

Layer 2 Bandwidth and Packet Control

Manage traffic, prioritisation, multicast delivery and network segmentation through QSS.

LACP

Combines multiple network connections to increase throughput and help protect against connection failure.

VLAN

Creates virtual networks that can group devices from different physical networks into a single logical network.

QoS

Prioritises bandwidth usage to optimise network resource allocation.

IGMP Snooping

Helps minimise unnecessary bandwidth use and reduces unwanted multicast traffic distribution.

Security and Network Reliability Functions

Use access controls, attack prevention, loop protection and traffic flow management to support network stability.

Access Control List

Filters packets according to defined rules to provide firewall-like access protection.

DoS Attack Prevention

Helps protect system resources from malicious traffic intended to disrupt legitimate network access.

RSTP

Maintains a loop-free Ethernet topology by controlling whether network paths block or forward traffic.

Flow Control

Balances traffic between sender and receiver to help avoid congestion and packet loss.

QSS Web Management and Online Updates

A browser-based interface for switch configuration, monitoring and firmware maintenance.

QSS (QNAP Switch System) provides a user-friendly web management interface for configuring Layer 2 functions and controlling network bandwidth. Administrators can also perform online firmware updates with one click to help keep the switch software current.

Frequently Asked Questions

Quick answers about the QNAP QSW-M2130P-2C2S26T.

How many network ports does the QSW-M2130P-2C2S26T have?

It has 30 ports: 24 x 2.5GbE Base-T, two 10GbE SFP+, two 10GbE Base-T and two 10GbE SFP+/RJ45 Combo ports.

How many PoE ports are available?

The switch provides 28 PoE ports. Ports 1-16 support up to 45W, while ports 17-28 support up to 90W.

What is the total PoE power budget?

The total PoE power budget is 375W.

What is a 10GbE Combo port?

A Combo port can use either an RJ45 copper connection or an SFP+ fibre connection. The two connection types share the same logical port, allowing deployment based on the available cabling environment.

Which Layer 2 management features are supported?

Supplied features include VLAN, LACP, ACL, LLDP, QoS, IGMP Snooping, RSTP, Flow Control and DoS attack prevention.

Can the firmware be updated through QSS?

Yes. QSS supports online one-click firmware updates.

Is the switch rackmountable?

Yes. The supplied datasheet lists a rackmount form factor with dimensions of 44 x 440 x 205mm.

Product information: Product images are for illustrative purposes only and may differ from the actual product. Designs and specifications are subject to change without notice.

(QSW-M2130P-2C2S26T)

QNAP QSW-M2130P-2C2S26T Specifications

Review the management, port, PoE, switching, power, physical and environmental specifications.

Specification	Details
Management
Management Type	L2 Web Managed
Management Interface	Web
Console	RJ45
Network Interfaces
Number of Ports	30
10GbE SFP+	2Backward compatible with 1GbE SFP.
10GbE Base-T (RJ45)	2 10G / 5G / 2.5G / 1G / 100M
10GbE SFP+/RJ45 Combo Ports	2The RJ45 copper Combo port supports 10G / 5G / 2.5G / 1G / 100M.
2.5GbE (RJ45)	24
Power over Ethernet
Total PoE Ports	28
PoE++ PSE (IEEE 802.3bt, 90W)	Ports 17-28 (90W)
PoE Power Output	Ports 1-16 (45W) Ports 17-28 (90W)
Total PoE Power Budget	375W
Switching Performance
MAC Address Table	32K
Total Non-Blocking Throughput	120Gbps
Switching Capacity	240Gbps
Jumbo Frames	12K
Power and Cooling
Power Supply Description	Internal power supply unit
Maximum Power Consumption	455W
Input Power Type	AC
Input Voltage Range	100-240VAC, 50/60Hz
Energy Efficient Ethernet	Yes (IEEE 802.3az compliant)
Fan	PWM VAPO Bearing fan x 3
Sound Level	<28 dB(A)
Supported Standards
Standards	IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3an 10GBASE-T IEEE 802.3ae 10G Fiber IEEE 802.3z 1000BASE-SX/LX IEEE 802.3bt Power over Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.1p Class of Service IEEE 802.3az EEE
Physical Specifications
Form Factor	Rackmount
LED Indicators	Per Port: Speed/Link/Activity Per System: Power/Loop
Buttons	Reset button
Dimensions (H x W x D)	44 x 440 x 205mm
Weight (Net)	3.54kg
Weight (Gross)	4.398kg
Operating Environment
Operating Temperature	0°C to 50°C (32°F to 104°F)
Relative Humidity	5-95% non-condensing
Compliance and Warranty
Certifications	CE, VCCI, BSMI, FCC, ICES, RCM, UKCA, LVD
Electromagnetic Compliance	CLASS A
Warranty	2 years

QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer or supplier. Any replacement will be tested and verified for compatibility and stability and will deliver identical performance to the original.

Product images are for illustrative purposes only and may differ from the actual product. Colours may appear different due to monitor variations. Designs and specifications are subject to change without notice.
