Two 10GbE combo ports
Use SFP+ fibre/DAC or multi-speed RJ45 copper at each selectable position.
QNAP 8-PORT WEB MANAGED SWITCH, 10GbE SFP+/10GBASE-T(2), 2.5GbE(8), 2YR WTY
Model # QSW-M2108R-2C
-
SKU: QSW-M2108R-2C
- Pick Up Available
- Australian Warranty
- Checkout Securely
QNAP half-width Layer 2 managed switch

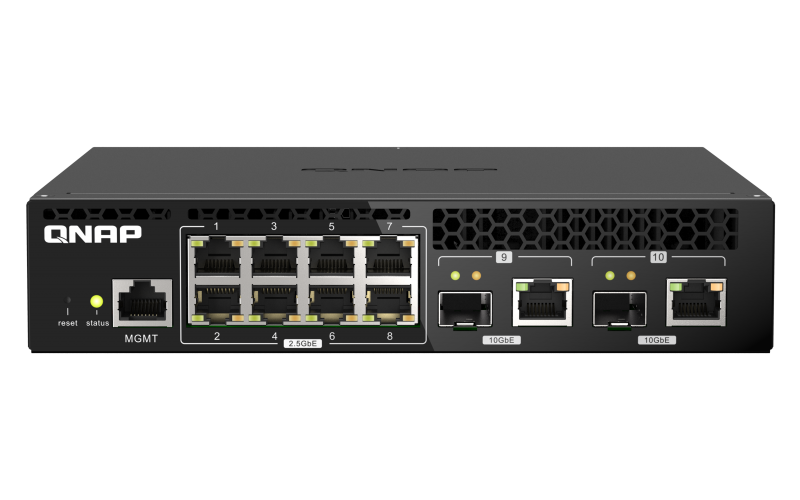

QNAP QSW-M2108R-2C 10-Port Half-Width 10GbE and 2.5GbE Managed Switch
A half-width rackmount managed switch with two 10GbE SFP+/RJ45 combo ports, eight 2.5GbE RJ45 ports and QSS web management.
Network ports10
10GbE combo2 × SFP+ or RJ45
2.5GbE RJ458 ports
Switching capacity80Gbps
Space-efficient Multi-Gigabit switching
The detailed supplied description and specifications identify two selectable 10GbE SFP+/RJ45 combo positions and eight 2.5GbE RJ45 ports. The copper combo interfaces support 10G, 5G, 2.5G, 1G and 100M.
Management, performance and deployment
- Layer 2 web management supports functions including LACP, VLAN, QoS, IGMP Snooping, ACL, LLDP and RSTP.
- The switch provides 80Gbps switching capacity and 40Gbps total non-blocking throughput.
- The half-width rackmount chassis supports organised, space-efficient deployment.
- Two compatible half-width switches can share one 1U rack space when the optional SP-EAR-QSW2FOR1-01 kit is used.
Rack kit and combo ports
The optional SP-EAR-QSW2FOR1-01 rackmount kit is required for side-by-side installation of two half-width switches. Each combo position uses either SFP+ or RJ45, not both simultaneously.
Frequently asked questions
Answers below are based only on the supplied product information for QSW-M2108R-2C.
How many network ports does the QSW-M2108R-2C provide?
The detailed supplied description and specifications identify 10 ports: two 10GbE SFP+/RJ45 combo ports and eight 2.5GbE RJ45 ports.
Which speeds are supported by the copper combo interfaces?
The supplied description lists 10G, 5G, 2.5G, 1G and 100M support.
What is required to mount two half-width switches side by side?
The supplied description states that the optional SP-EAR-QSW2FOR1-01 rackmount kit is required for side-by-side installation in one 1U rack space.
What switching performance is specified?
The supplied specifications list 80Gbps switching capacity and 40Gbps total non-blocking throughput.
Is the QSW-M2108R-2C web managed?
Yes. It is supplied as a Layer 2 web managed switch with a QSS management interface.
What warranty applies to the QSW-M2108R-2C?
The supplied specifications state a 2-year QNAP manufacturer warranty.
(QSW-M2108R-2C)
Features and highlights
QNAP QSW-M2108R-2C 10-Port Half-Width 10GbE and 2.5GbE Managed Switch
Eight 2.5GbE RJ45 ports
Provides Multi-Gigabit access connectivity for compatible devices.
Half-width rackmount chassis
Designed for space-efficient rack deployment and side-by-side installation with the optional kit.
Layer 2 web management
QSS supports traffic, segmentation, security and network-resilience functions.
Additional supplied highlights
- 80Gbps switching capacity and 40Gbps total non-blocking throughput.
- 16K MAC address table with support for 9K jumbo frames.
- Internal AC power supply with maximum power consumption listed as 36W.
- Two-year QNAP manufacturer warranty.
Technical specifications
Specifications below are organised from the supplied product information for QSW-M2108R-2C.
| Specification | Details |
|---|---|
| Product and Management | |
| Model | QSW-M2108R-2C |
| Management Type | Web Managed |
| Management Interface | Web |
| Console | RJ45 |
| Number of Ports | 10 |
| Network Interfaces | |
| 10GbE SFP+/RJ45 Combo Ports | 2 |
| 2.5GbE RJ45 Ports | 8 |
| Network Performance | |
| Switching Capacity | 80Gbps |
| Total Non-Blocking Throughput | 40Gbps |
| MAC Address Table | 16K |
| Jumbo Frames | 9K |
| Supported Standards | |
| Ethernet Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3an 10GBASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G Fiber |
| Flow Control | IEEE 802.3x Full-Duplex Flow Control |
| VLAN | IEEE 802.1Q VLAN Tagging |
| Rapid Spanning Tree Protocol | IEEE 802.1w RSTP |
| Link Aggregation | IEEE 802.3ad LACP |
| Link Layer Discovery Protocol | IEEE 802.1AB LLDP |
| Class of Service | IEEE 802.1p |
| Power and Cooling | |

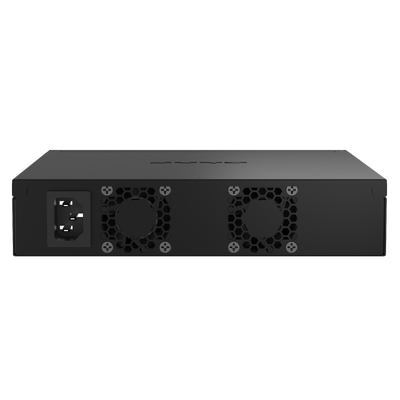

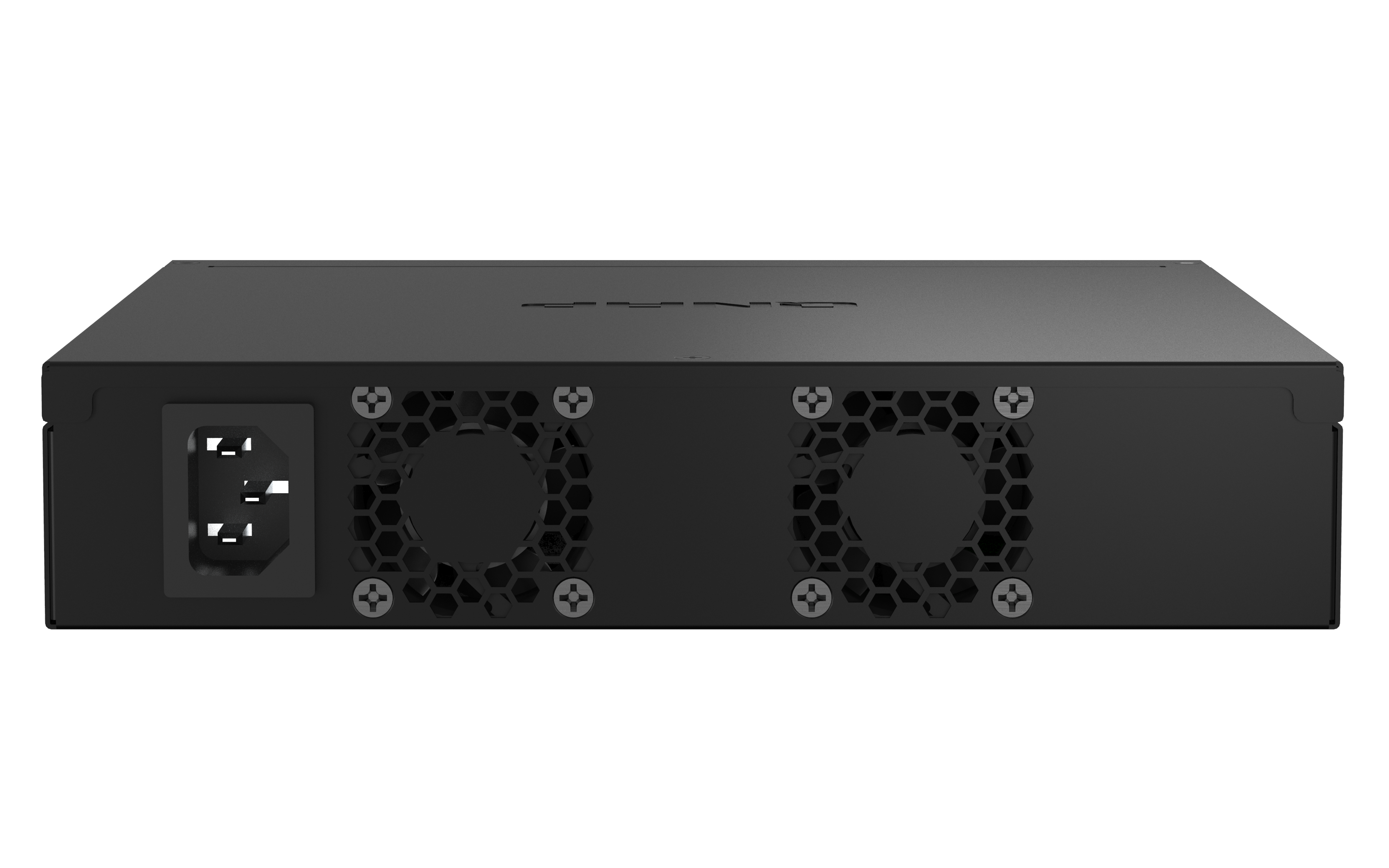

| Power Supply | Internal Power Supply Unit |
| Input Power Type | AC |
| Input Voltage Range | 100240VAC, 50/60Hz |
| Maximum Power Consumption | 36W |
| Fan | 1 × PWM double ball bearing fan |
| Sound Level | <21dB(A) |
| Physical Specifications | |
| Form Factor | Half-width rackmount |
| Dimensions (H × W × D) | 43.3 × 207 × 199.5mm |
| Net Weight | 1.2kg |
| Gross Weight | 1.92kg |
| LED Indicators | Per port: Speed, Link and Activity Per system: Power and Status |
| Buttons | Reset button |
| Operating Environment | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 595%, non-condensing |
| Compliance and Warranty | |
| Certifications | CE, FCC, VCCI, BSMI |
| Electromagnetic Compliance | Class A |
| Warranty | 2 years |
Note: The optional SP-EAR-QSW2FOR1-01 kit is required to mount two compatible half-width switches side by side.
Note: Each combo position can operate as SFP+ or RJ45; it does not provide two simultaneous data ports.
| SKU | QSW-M2108R-2C |
| Model # | QSW-M2108R-2C |
| Barcode # | 4713213518366 |
| Brand | QNAP |
| Shipping Weight | 2.9000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.200m |
| Shipping Length | 0.200m |
QNAP2-year
QNAP manufacturer warranty
The QNAP QSW-M2108R-2C is supplied with a 2-year QNAP manufacturer warranty.
Warranty coverage, eligibility and claim assessment are subject to QNAP terms. Please retain your DeviceDeal tax invoice as proof of purchase.
