QNAP 8-port 10GbE Lite Managed switch

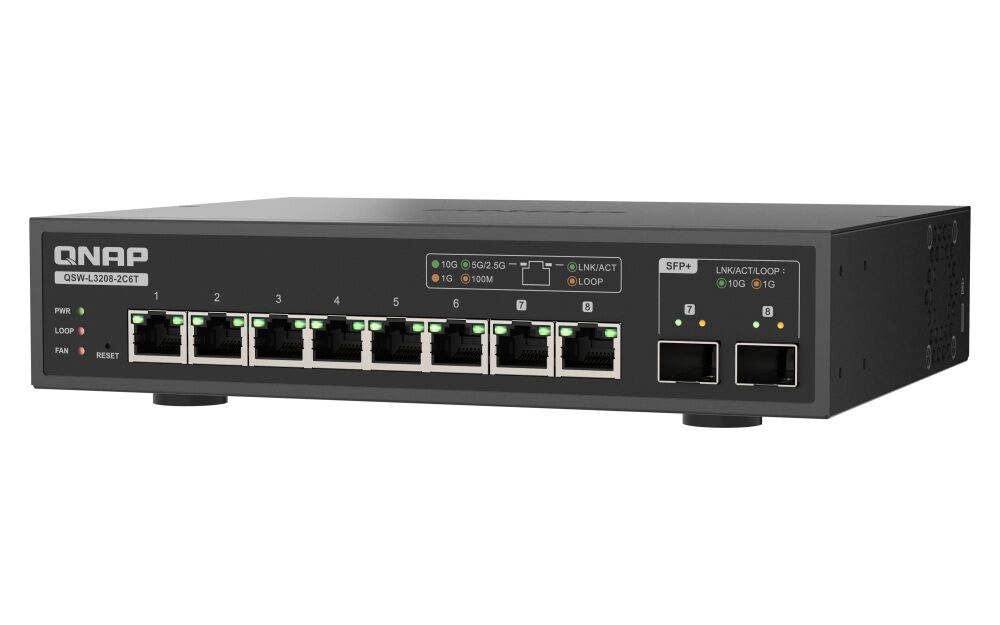

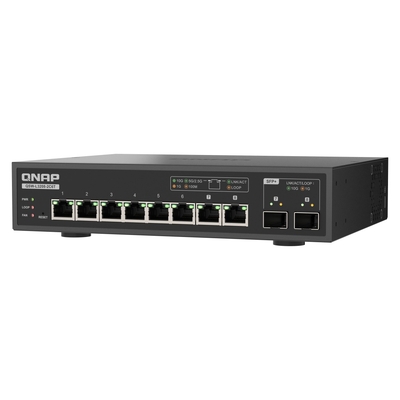

QNAP QSW-L3208-2C6T 8-Port 10GbE Lite Managed Switch with Two Combo Ports

An eight-port desktop switch with six multi-speed 10GbE RJ45 ports, two SFP+/RJ45 combo ports and Lite Managed controls for high-bandwidth networks.

Fixed RJ45 ports6 × 10GbE Multi-Gig

Combo ports2 × SFP+ or RJ45

Switching capacity160Gbps

Jumbo frames12K

Eight flexible 10GbE connections

Six fixed RJ45 ports and the RJ45 side of each combo port support 10G, 5G, 2.5G, 1G and 100M. Each combo port can instead operate as a 10GbE SFP+ connection, with backward compatibility for 1GbE SFP modules.

Lite Managed traffic and bandwidth control

LACP link aggregation with supplied support for up to 40Gbps aggregated bandwidth.
VLAN, QoS, CoS, DSCP, IGMP Snooping, port mirroring and flow control.
80Gbps total non-blocking throughput and 160Gbps switching capacity.
12K jumbo frames and a 16K MAC address table.
QNAP Switch System web management with online firmware checks and Qfinder Pro support.

Cooling and combo-port planning

This model is not specified as fanless; the source lists a system 4 × 4cm, 12V fan. Confirm whether each combo position will use SFP+ or RJ45 and source the required cabling or modules separately.

Frequently asked questions

Answers below are based only on the supplied product information for QSW-L3208-2C6T.

How many ports does the QSW-L3208-2C6T provide?

It provides eight ports: six fixed 10GbE RJ45 ports and two 10GbE SFP+/RJ45 combo ports.

Which speeds do the RJ45 interfaces support?

The fixed RJ45 ports and RJ45 combo interfaces support 10G, 5G, 2.5G, 1G and 100M.

Are the SFP+ interfaces backward compatible with 1GbE?

Yes. The supplied specifications state that the 10GbE SFP+ interfaces are backward compatible with 1GbE SFP.

Does the switch support link aggregation?

Yes. The supplied description states that LACP can support up to 40Gbps aggregated bandwidth.

Is the QSW-L3208-2C6T fanless?

No fanless claim is supplied. The specifications list a system 4 × 4cm, 12V fan.

What warranty applies to this switch?

The supplied specifications state a 2-year QNAP manufacturer warranty.

(QSW-L3208-2C6T)

Features and highlights

QNAP QSW-L3208-2C6T 8-Port 10GbE Lite Managed Switch with Two Combo Ports

Six Multi-Gig RJ45 ports

Supports 10G, 5G, 2.5G, 1G and 100M copper Ethernet.

Two flexible combo ports

Each position can use either SFP+ or multi-speed RJ45.

160Gbps switching

Provides 80Gbps total non-blocking throughput.

Lite Managed functions

Includes supplied LACP, VLAN, QoS, IGMP Snooping and web management.

Key details to check before purchase

Total ports: 8
Jumbo frames: 12K
MAC address table: 16K
Cooling: system 4 × 4cm, 12V fan

QNAP QSW-L3208-2C6T 8-Port 10GbE Lite Managed Switch with Two Combo Ports specifications

Technical information below is organised from the supplied product data.

Specification	Details
Product and Management
Brand	QNAP
SKU	QSW-L3208-2C6T
Product Type	8-port 10GbE Lite Managed desktop switch
Model	QSW-L3208-2C6T
Management Type	Lite Managed
Management Interface	Web

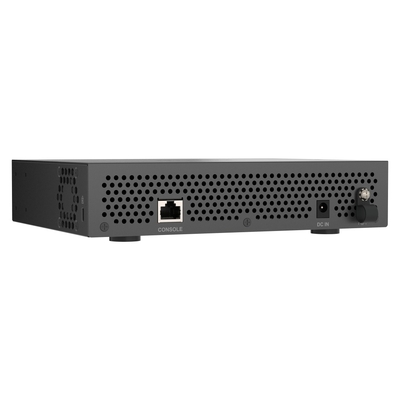

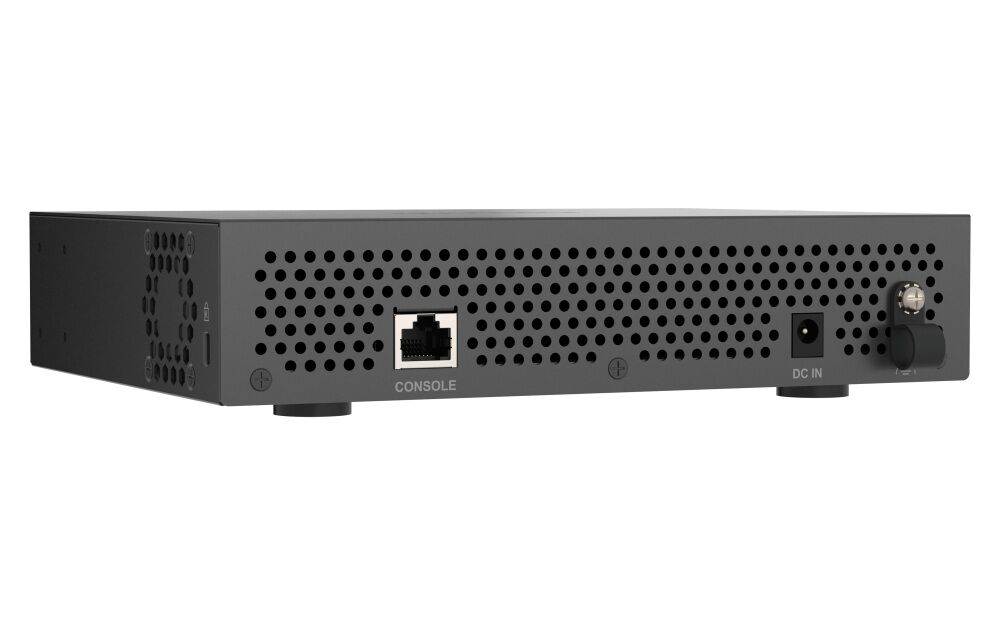

Console	RJ45
Form Factor	Desktop
Network Interfaces
Number of Ports	8
10GbE BASE-T RJ45 Ports	6 × RJ45, supporting 10G/5G/2.5G/1G/100M
10GbE SFP+/RJ45 Combo Ports	2 The 10GbE SFP+ interfaces are backward compatible with 1GbE SFP. Each RJ45 copper combo interface supports 10G/5G/2.5G/1G/100M.
Switching Performance
Total Non-Blocking Throughput	80Gbps
Switching Capacity	160Gbps
MAC Address Table	16K
Jumbo Frames	12K
Supported Standards
Ethernet Standards	IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3an 10GBASE-T IEEE 802.3ae 10G Fibre
Traffic and Management Standards	IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.1p Class of Service
Energy Efficient Ethernet	Yes IEEE 802.3az EEE
Power and Cooling
Power Supply Description	Adapter
Input Power Type	DC
Input Voltage Range	12V/3A
Maximum Power Consumption	36W
Fan	System: 4 × 4cm, 12V
Physical Specifications
Dimensions	44 × 210 × 160mm
Net Weight	1.29kg
Gross Weight	2.61kg

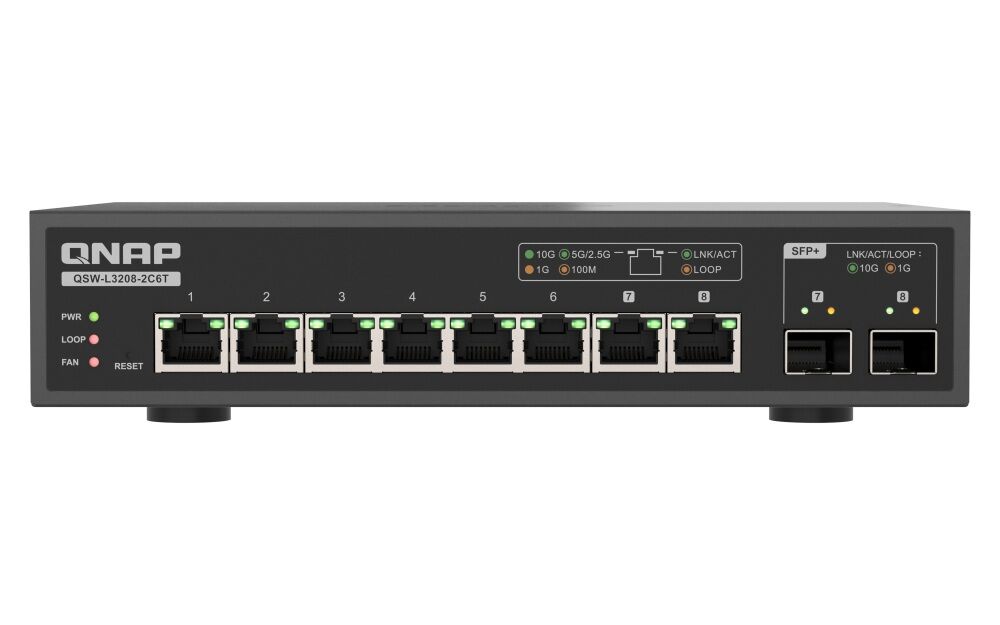

LED Indicators	Per port: Speed, link and activity Per system: Power, loop and fan
Buttons	Reset button
Operating Environment
Operating Temperature	0°C to 40°C (32°F to 104°F)
Relative Humidity	090%, non-condensing
Compliance and Warranty
Certifications	CE, UKCA, FCC, IC, VCCI, RCM, BSMI, LVD and KC
Electromagnetic Compliance	Class A
Warranty	2 years

No SFP+ modules, direct-attach cables or package contents were supplied.

The source lists a system 4 × 4cm, 12V fan; this model is not presented as fanless.
