Four 10GbE combo ports
Choose SFP+ fibre/DAC or multi-speed RJ45 copper at each combo position.
QNAP QSW-M2106-4C 10-PORT WEB MANAGED SWITCH, 10GbE SFP+/10GBASE-T(4), 2.5GbE(6)
Model # QSW-M2106-4C
-
SKU: QSW-M2106-4C
- Pick Up Available
- Australian Warranty
- Checkout Securely
QNAP Layer 2 web managed switch

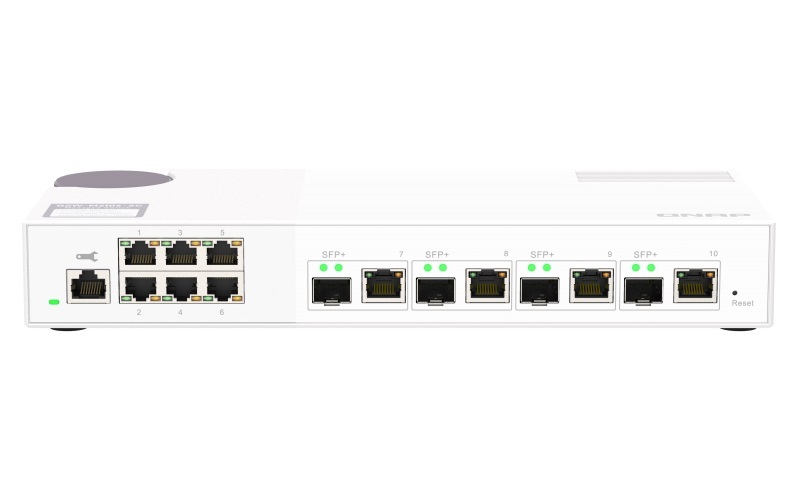

QNAP QSW-M2106-4C 10-Port Web Managed 10GbE and 2.5GbE Switch
A desktop managed switch with four selectable 10GbE SFP+/RJ45 combo ports, six 2.5GbE RJ45 ports and QNAP Switch System web management.
Network ports10
10GbE combo4 × SFP+ or RJ45
2.5GbE RJ456 ports
Switching capacity110Gbps
Flexible 10GbE and 2.5GbE connectivity
Each 10GbE combo position can use either its SFP+ interface or its corresponding RJ45 interface. The copper side supports 10G, 5G, 2.5G, 1G and 100M, while the SFP+ side is backward compatible with 1GbE SFP.
Management, performance and deployment
- Layer 2 functions supplied include LACP, VLAN, ACL, LLDP and Rapid Spanning Tree Protocol.
- QNAP Switch System provides browser-based setup, port monitoring and firmware management.
- The switch provides 55Gbps total non-blocking throughput, a 16K MAC address table and 9K jumbo frames.
- Desktop operation uses a 12V/3A adapter, with maximum power consumption listed as 36W.
Combo-port planning
Each combo position represents one selectable network interface, not two simultaneous ports. The supplied information does not list transceivers, DAC cables or Ethernet cables as included.
Frequently asked questions
Answers below are based only on the supplied product information for QSW-M2106-4C.
What is the QNAP QSW-M2106-4C?
It is a 10-port Layer 2 web managed desktop switch with four 10GbE SFP+/RJ45 combo ports and six 2.5GbE RJ45 ports.
How do the four combo ports work?
Each combo position can use either its SFP+ interface or its RJ45 interface. The two sides of the same combo position are not used as separate simultaneous ports.
Which speeds are supported by the RJ45 interfaces?
The 10GbE copper combo interfaces support 10G, 5G, 2.5G, 1G and 100M. The six 2.5GbE RJ45 ports support 2.5G, 1G and 100M.
Which management features are supplied?
The supplied information lists QSS web management with LACP, VLAN, ACL, LLDP and Rapid Spanning Tree Protocol.
What are the switching capacity and throughput?
The supplied specifications list 110Gbps switching capacity and 55Gbps total non-blocking throughput.
What warranty applies to the QSW-M2106-4C?
The supplied specifications state a 2-year QNAP manufacturer warranty.
(QSW-M2106-4C)
Features and highlights
QNAP QSW-M2106-4C 10-Port Web Managed 10GbE and 2.5GbE Switch
Six 2.5GbE ports
Connect devices at 2.5G, 1G or 100M through the six RJ45 access ports.
Layer 2 web management
Use QSS functions including LACP, VLAN, ACL, LLDP and RSTP.
110Gbps switching capacity
The supplied specifications list 55Gbps total non-blocking throughput.
Additional supplied highlights
- Desktop form factor with web management and an RJ45 console.
- 16K MAC address table and support for 9K jumbo frames.
- Operating range supplied as 0°C to 40°C with 595% non-condensing humidity.
- Two-year QNAP manufacturer warranty.
Technical specifications
Specifications below are organised from the supplied product information for QSW-M2106-4C.
| Specification | Details |
|---|---|
| Product Details | |
| Model | QSW-M2106-4C |
| Management Type | Web Managed |
| Form Factor | Desktop |
| Number of Ports | 10 |
| Network Interfaces | |
| 10GbE SFP+/RJ45 Combo Ports | 4 The 10GbE RJ45 interfaces support 10G, 5G, 2.5G, 1G and 100M. The SFP+ interfaces are backward compatible with 1GbE SFP. |
| 2.5GbE RJ45 Ports | 6 Supports 2.5G, 1G and 100M speeds. |
| Management Interface | Web |
| Console | RJ45 |
| Switching Performance | |
| MAC Address Table | 16K |
| Total Non-Blocking Throughput | 55Gbps |
| Switching Capacity | 110Gbps |
| Jumbo Frames | 9K |
| Supported Standards | |
| Ethernet Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3an 10GBASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G Fibre IEEE 802.3x Full-Duplex Flow Control |
| Management Standards | IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.1p Class of Service |
| Power and Cooling | |
| Power Supply | Adapter |
| Input Power Type | DC |
| Input Voltage Range | 12V/3A |
| Maximum Power Consumption | 36W |
| Fan | PWM double ball bearing fan × 1 |
| Sound Level | <44 dB(A) |
| Physical Specifications | |
| Dimensions (H × W × D) | 42.5 × 290 × 127mm |
| Net Weight | 1.15kg |
| Gross Weight | 1.75kg |
| LED Indicators | Per port: Speed, link and activity Per system: Power and status |
| Buttons | Reset button |
| Operating Environment | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 595% non-condensing |
| Compliance and Warranty | |
| Certifications | CE, FCC, VCCI, BSMI |
| Electromagnetic Compliance | Class B |
| Warranty | 2 years |
Note: Each combo position can operate as SFP+ or RJ45; it does not provide two simultaneous data ports.
| SKU | QSW-M2106-4C |
| Model # | QSW-M2106-4C |
| Barcode # | 885022021253 |
| Brand | QNAP |
| Shipping Weight | 2.9000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.200m |
| Shipping Length | 0.200m |
QNAP2-year
QNAP manufacturer warranty
The QNAP QSW-M2106-4C is supplied with a 2-year QNAP manufacturer warranty.
Warranty coverage, eligibility and claim assessment are subject to QNAP terms. Please retain your DeviceDeal tax invoice as proof of purchase.
